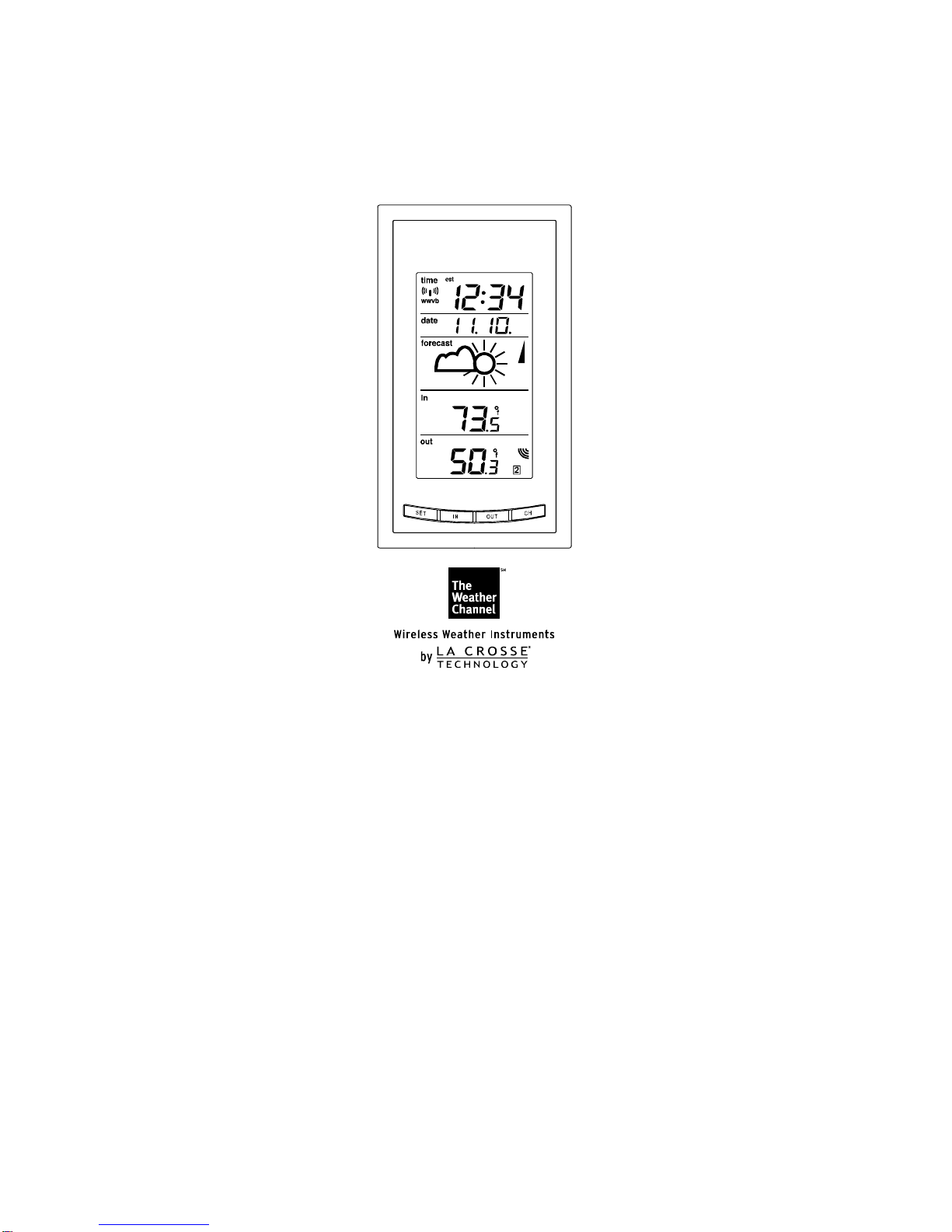

La Crosse Technology WS-9077TWC-IT Manual de usuario

WS-9077TWC-IT

Wireless 915 MHz

Weather Station

Instruction Manual

TABLE OF CONTENTS

Topic Page

Inventory of Contents/Additional Equipment 3

About WWVB 3

Quick Set-Up Guide 4

Detailed Set-Up Guide

Battery installation 5

Program Mode

Program Sequence and Default Settings 6

Function Keys 6

Setting the LCD Contrast 7

Setting the Time Zone 7-8

Daylight Saving Time Setting 8

Radio-controlled Time Setting 9

12/24-hour Time Setting 9

Setting the Time 10-11

Setting the Year, Day and Month 11

Setting the Snooze 12

Setting the Temperature Format 12

Setting the Forecast Sensitivity 13

Features

Weather Forecast Icons and Tendency Arrows 14-15

Indoor Temperature 15-16

Outdoor Temperatures 16

Minimum & Maximum Records (Indoor,

Outdoor, & Resetting) 16-17

Additional Remote Control Sending Units (Set-Up, Viewing,

& Operation) 18-19

Mounting 19-21

Troubleshooting 22-23

Maintenance & Care 23

Specifications 24

Warranty Information 25-26

INVENTORY OF CONTENTS

1. The Wireless Weather Station/ (Figure 1).

2. One remote temperature sensor with mounting bracket (Figure 2).

3. Three each, ½” Philips screws.

4. One strip double-sided adhesive tape.

5. Instruction manual and warranty card.

ADDITIONAL EQUIPMENT (not included)

1. Two fresh AA 1.5V Alkaline batteries for the Wireless Weather Station.

2. Two fresh AA 1.5V Alkaline batteries for the remote temperature sensor.

3. One, Philips screwdriver for mounting.

Figure 1

Time LCD

Date LCD

Forecast LCD

Indoor LCD

Outdoor LCD

Figure 2

Mounting

Bracket TX29U-IT remote

temperature sensor

INSTANT TRANSMISSION is the state-

of-the-art new wireless transmission

technology, exclusively designed and

developed by LA CROSSE

TECHNOLOGY.

INSTANT TRANSMISSION offers you an

immediate update (every 4 seconds!) of

all your outdoor data measured from

the SENSORs: follow your climatic

variations in real-time!

This product offers:

ABOUT WWVB (Radio Controlled Time)

The NIST (National Institute of Standards and Technology—Time and Frequency Division)

WWVB radio station is located in Ft. Collins, Colorado, and transmits the exact time and date

signal continuously throughout the United States at 60 kHz. The signal can be received up to

2,000 miles away through the internal antenna in the Weather Station. However, due to the

nature of the Earth’s Ionosphere, reception is very limited during daylight hours. The Weather

Station will search for a signal every night when reception is best. The WWVB radio station

derives its signal from the NIST Atomic clock in Boulder, Colorado. A team of atomic physicists

is continually measuring every second, of every day, to an accuracy of ten billionths of a second

per day. These physicists have created an international standard, measuring a second as

9,192,631,770 vibrations of a Cesium-133 atom in a vacuum. For more information on the

atomic clock and WWVB please see the NIST website at

http://www.boulder.nist.gov/timefreq/stations/wwvb.htm.

QUICK SET-UP GUIDE

Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries.

1. Have the Wireless Weather Station and remote temperature sensor 3 to 5 feet apart.

2. Batteries should be out of both units for 10 minutes.

3. Place the batteries into the remote temperature sensor first then into the Wireless

Weather Station.

(All remote temperature sensors must be started before the Wireless Weather Station)

4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.

In this time the Wireless Weather Station and remote temperature sensor will begin to

communicate with each other and the display will show both the indoor temperature and the

outdoor temperature. If the Wireless Weather Station does not display both temperatures after

the 15 minutes please retry the set up as stated above. After both indoor and outdoor

temperatures are displayed for 15 minutes you can place your remote temperature sensor

outdoor and set your time.

The remote temperature sensor should be placed in a dry, shaded area. The temperature

sensor has a range of 330 feet. Keep in mind that the 330 feet is in open air with no

obstructions and that radio waves DO NOT curve around objects. Actual transmission range will

vary depending on what is in the path of the signal. Each obstruction (roof, walls, floors,

ceilings, thick trees, etc.) will effectively cut signal range in half.

Example: A Wireless Weather Station with a 330 feet range is mounted on an interior wall, so

that the signal has to pass through one interior wall, one exterior wall, and across the 10 feet

width of the room between the 2 walls. The first wall will reduce the range to 165 feet, and the

second wall will reduce the range to 87 feet. Factoring in the 10 foot room, this leaves a

maximum of 77 feet of remaining signal range.

This allowance is typically enough for a frame wall with non-metallic siding; however certain

materials can reduce range even further. Metal siding, stucco, and some types of glass can

reduce signal range by as much as ¾ or more, compared to the ½ reduction typical of most

obstructions. It is possible to receive a signal through these materials, however maximum range

will be much less due to their tendency to absorb or reflect a much larger portion of the sensor’s

signal.

To complete the set up of your Wireless Weather Station after the 15 minutes have passed

please follow the steps that follow in the Detailed Set-Up Guide.

DETAILED SET-UP GUIDE

I. BATTERY INSTALLATION (When one temperature sensor is being used)

1. First, insert the batteries to the temperature sensor (see “A. Remote Temperature

Sensor” below).

2. Within 30 seconds of powering up the sensor, insert the batteries to the Weather

Station (see “B. Wireless Weather Station” below). Once the batteries are in place, all

segments of the LCD will light up briefly. Following the indoor temperature, and the

time as 12:00 will be displayed. If they are not shown in LCD after 60 seconds, remove

the batteries and wait for at least 60 seconds before reinserting them. Once the indoor

data is displayed user may proceed to the next step.

3. After the batteries are inserted, the Weather Station will start receiving data signal

from the sensor. The outdoor temperature should then be displayed on the Weather

Station. If this does not happen after 2 minutes, the batteries will need to be removed

from both units and reset from step 1 and the signal reception icon is no longer shown.

A. REMOTE TEMPERATURE SENSOR

1. Remove the mounting bracket. The bracket snaps on

and off easily.

2. Remove the battery cover, by sliding the cover down.

3. Observing the correct polarity install 2 AA batteries. The

batteries will fit tightly (to avoid start-up problems make

sure they do not spring free).

4. Replace the battery cover by sliding upwards. Be sure

battery cover is on securely.

B. WIRELESS WEATHER STATION

1. Remove the battery cover. To do this, insert a solid object in the space provided

at the lower-central position of the battery cover, then push up and pull out on the

battery cover.

2. Observe the correct polarity, and install 2 AA batteries.

3. Replace the battery cover.

Battery

Cover

Battery

Cover

Sensor signal

reception icon*

*When the signal is successfully received by the Weather Station, the icon will be

switched on. (If not successful, the icon will not be shown in LCD) So the user can

easily see whether the last reception was successful (icon on) or not (icon off). On the

other hand, the short blinking of the icon shows that a reception is being done now.

•If the signal reception is not successful on the first frequency (915MHz) for 45 seconds, the

frequency is changed to 920MHz and the learning is tried another 45 seconds. If still not

successful the reception is tried for 45 seconds on 910MHz. This will also be done for re-

synchronization.

PROGRAM MODE

Programming Note: If 30 seconds is allowed to pass, or the CH button is pressed

during the programming mode, the unit will confirm/set the last information entered—

the display will stop flashing and return to normal time-date readings. If you don’t leave

the program mode during the programming of sections III through XII, you can

advance to step 4 of the next program setting. If you do leave the program setting (or

want to program a specific setting) follow each instructional step to program that

setting.

I. PROGRAMMING SEQUENCE AND DEFAULT SETTINGS

The programming sequence and default (factory) settings are as follows:

LCD Contrast 5

Time Zone -5h (Eastern)

Daylight Saving Time 1 (on)

Radio-controlled time reception ON

12/24-hour time 12

Time 12:00

Year 2006

Day and Month 1.1.

Snooze (this function not used) 10

Temperature Format °F

Forecast Sensitivity 2

Please note that while there is a snooze adjustment in the programming this is an

unused function as there is no alarm on the indoor weather station.

II. FUNCTION KEYS

The function keys are located on the front of the unit directly below the LCD.

III. SETTING THE LCD CONTRAST

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

Note: There are 8 LCD contrast levels to choose from—“Lcd 0” is the

lightest, and “Lcd 7” is the darkest.

3. Press and release the IN button to select the level you desire.

4. Press and release the SET button to confirm and advance to the Time

Zone setting.

IV. TIME ZONE SETTING

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

3. Press and release the SET button again.

4. The time zone will flash in the date LCD.

5. Press and release the IN button to select your time zone.

Note: When a time zone for the U.S. is selected the corresponding

abbreviation will appear above the time (please see the table on the next

page). It is possible to select any time zone from –12 GMT to +12 GMT (for

example to see the time in another country)

TIME ZONES

GMT 0

ALT Atlantic -4

EST Eastern -5

CST Central -6

MST Mountain -7

PST Pacific -8

ALA Alaska -9

HAW Hawaii -10

6. Press and release the SET button to confirm and advance to the

Daylight Saving Time setting.

V. DAYLIGHT SAVING TIME (DST) SETTING

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

3. Press and release the SET button twice.

4. “DST” will appear in the date LCD and either “1” or “0” will flash.

5. Press and release the IN button to select DST on or off.

“DST 0” indicates that the feature is off and the WWVB will not change

times automatically. “DST 1” indicates that the feature is on and the WWVB

will change times automatically.

Note: Some locations (Arizona and parts of Indiana) do not follow Daylight

Saving Time, and should select “DST 0.”

6. Press and release the SET button to confirm and advance to the radio-

controlled time on/off setting.

VI. RADIO-CONTROLLED TIME ON/OFF SETTING

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

3. Press and release the SET button three times.

4. “RCC” will appear in the date LCD and “ON” or “OFF” will flash in the

time LCD.

5. Press and release the IN button to select radio-controlled time on or

off.

6. Press and release the SET button to confirm and advance to the

12/24-hour time setting.

VII. 12 OR 24 HOUR TIME SETTING

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

3. Press and release the SET button four times.

4. “12h” or “24h” will flash in the time LCD.

5. Press and release the IN button to select 12 or 24-hour time format.

Note: When in the 12-hour format “P.M.” will appear to the left of the hour

in the time LCD between the hours of noon and midnight.

6. Press and release the SET button to confirm and advance to the time

setting.

VIII. TIME SETTING

There are two methods by which the time and date can be set:

A) Automatically via WWVB reception, or

B) Manually.

A. WWVB (Remote Control Time)

This method requires you to do nothing, except wait for the signal to be received, and to select a

time zone. Reception usually takes approximately 10 minutes during optimal conditions. The

best condition for reception is at night, between midnight and 6:00 am—when there is less

atmospheric interference. To keep your time as accurate as possible, the Wireless Weather

Station conducts a WWVB search every night between these hours, and overrides any manually

set time. The WWVB tower icon (appearing in the TIME LCD) will flash when a signal-search is

in progress and a signal is being received, and will remain steady when the signal has been

received. If the WWVB time has not been received after 10 minutes of battery installation, you

may manually set the time or leave the time function alone (reception will occur regardless).

After a successful reception, no more reception attempt would be made until the following day.

B. MANUAL TIME SETTING

Note: When in the 12-hour format “P.M.” will appear to the left of the hour in the

time LCD between the hours of noon and midnight.

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

3. Press and release the SET button five times.

4. The time will flash in the time LCD.

5. Press and release the IN button to advance the hours.

6. Press and release the OUT button to advance the minutes.

7. Press and release the SET button to confirm and advance to the year

setting.

IX. SETTING THE YEAR, DAY AND MONTH

Note: Reception of the WWVB signal will also set the date and day. The

reception of the signal will override any programmed date and day.

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

3. Press and release the SET button six times.

4. The year will flash in the date LCD.

5. Press and release the IN button to advance the year.

6. Press and release the SET button to confirm and advance to the day/month

setting.

7. The day and month will flash in the date LCD.

8. Press and release the IN button to advance the month.

9. Press and release the OUT button to advance the day.

10. Press and release the SET button to confirm and advance to the snooze

setting.

X. SETTING THE SNOOZE

Note: This is an unused function of the Wireless Weather Station and should be

disregarded. The setting has no bearing on the operation. Please press and release

the SET button to advance to select the temperature format.

XI. SELECTING °F OR °C

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

3. Press and release the SET button nine times.

4. Either ”°F” or “°C” will flash in the time LCD.

5. Press and release the IN button to select the temperature format.

6. Press and release the SET button to confirm and advance to the forecast

sensitivity setting.

XII. SETTING THE FORECAST SENSITIVITY

Note: The forecast sensitivity can be adjusted to allow for areas that have a

higher or lower sensitivity to changing air pressure (for example coastal

areas have more pressure change than areas such as southern Arizona).

The numbers correspond to the amount of air pressure change necessary to

trigger a change in the forecast icon. Areas that tend to have more air

pressure change would set the sensitivity to 3, while areas that experience

lower than normal air pressure change would set the sensitivity to 1.

1. Press and hold the SET button for 5 seconds.

2. “LCD” will show in the time LCD and the number setting will flash.

3. Press and release the SET button ten times.

4. Either “1”, “2” or “3” will flash in the time LCD.

Tabla de contenidos

Otros manuales de Estación meteorológica de La Crosse Technology

La Crosse Technology

La Crosse Technology WS-9035U Manual de usuario

La Crosse Technology

La Crosse Technology WS-7394U Manual de usuario

La Crosse Technology

La Crosse Technology 308-1415BWV2 Manual de usuario

La Crosse Technology

La Crosse Technology CA76669 Manual de usuario

La Crosse Technology

La Crosse Technology Wireless Weather Station Manual de usuario

La Crosse Technology

La Crosse Technology WS9090 Manual de usuario

La Crosse Technology

La Crosse Technology WS-9620U-IT Manual de usuario

La Crosse Technology

La Crosse Technology WS-2810U Manual de usuario

La Crosse Technology

La Crosse Technology WS-1913U-IT Manual de usuario

La Crosse Technology

La Crosse Technology WS-2816U-IT Manual de usuario

La Crosse Technology

La Crosse Technology 308-1409BT Manual de usuario

La Crosse Technology

La Crosse Technology WS-9032U Manual de usuario

La Crosse Technology

La Crosse Technology WS-7034TWC Manual de usuario

La Crosse Technology

La Crosse Technology WS-7014CH-IT Manual de usuario

La Crosse Technology

La Crosse Technology WD-3102U Manual de usuario

La Crosse Technology

La Crosse Technology 308-1425CV2 Manual de usuario

La Crosse Technology

La Crosse Technology V21-WTH Guía de configuración

La Crosse Technology

La Crosse Technology WS-7014U Manual de usuario

La Crosse Technology

La Crosse Technology WS6304 Manual de usuario

La Crosse Technology

La Crosse Technology S82967 Manual de usuario

La Crosse Technology

La Crosse Technology C84343 Manual de operación y mantenimiento

La Crosse Technology

La Crosse Technology V40-PRO Manual de usuario

La Crosse Technology

La Crosse Technology WS-2812U-IT Manual de usuario

La Crosse Technology

La Crosse Technology WS-7091 Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario

TFA

TFA 30.3013.IT Manual de usuario

Alecto

Alecto WS-1200 Manual de usuario

Oregon Scientific

Oregon Scientific RMR966PA Manual de usuario
