La Crosse Technology WS-9031U Manual de usuario

WS-9031U Quick Set-up instructions

1) Insert two AA batteries into the remote transmitter.

2) Insert three AA batteries into the Weather Projection Station and/or plug into wall.

Note: When starting or restarting your weather projection station the transmitter should be started first and then your

weather projection station. After power is supplied (either battery or AC) ensure that no buttons are pressed

for 15 minutes. This will allow time for the weather projection station to communicate with the remote

transmitter as well as receive the WWVB signal.

3) Wait 15 minutes for WWVB reception and remote temperature and humidity.

4) If there is no WWVB reception, manually set the time, date and time zone (instructions are also in the Manual Settings

section of the main manual).

Manually setting the time zone and time

1) Press and hold the SET button (located on the back of the unit) until

the LCD digits start flashing.

2) Press and release the SET button once or until the current TIME ZONE

is displayed.

3) Press and release the CH/+ key to advance the time zone to your time

zone.

4) Press and release the SET key four times or until the

HOUR digit begins to flash.

5) Press and release the CH/+ key to select the correct

hour. “PM” will appear for hours from 12 noon until

midnight.

6) Press and release the SET key to advance to the MINUTE setting mode.

7) Press and release the CH/+ key to select the correct minute.

-Optional- setting the Day, Month and Year (This will be set automatically upon WWVB reception)

8) Press and release the SET key to advance to the YEAR setting mode.

9) Press and release the CH/+ key to select to the correct year.

10) Press and release the SET key to advance to the MONTH setting

mode.

11) Press and release the CH/+ key to select to the correct month.

12) Press and release the SET key to advance to the DAY setting mode.

13) Press and release the CH/+ key to select the correct day of the month.

14) Press and release the SET key three times to complete the settings or wait 15 seconds and the display will exit the set-

up screen automatically.

Note: All manual settings will be updated and corrected once the WWVB signal is received (typically overnight

when the signal is strongest).

5) Place the WS-9031U in your desired location.

6) Mount the transmitter in a shaded area protected from rain, where remote temperature and humidity measurements are

desired (on the North side of a house for example).

Note: When placing and mounting the transmitter and weather projection station please keep in mind that the

transmitting distance from the transmitter to the weather projection station is 80 feet. Any obstacles (such as

walls) will decrease the effective range of the transmission.

Note: The remote transmitter is weather resistant but not waterproof. High humidity and mist will not damage the

transmitter but direct rain will. The maximum range between the transmitter and weather projection station is

80ft. open air (no obstructions). Any resistance (i.e. walls, furniture, etc) between the two will decrease the

effective operating range.

7) The projector will activate and remain on if the Weather Projection Station is plugged in. If only batteries are used, the

projector will only be activated when the SNOOZE button is pressed.

8) See “How to use the projector” instructions for projection direction, etc.

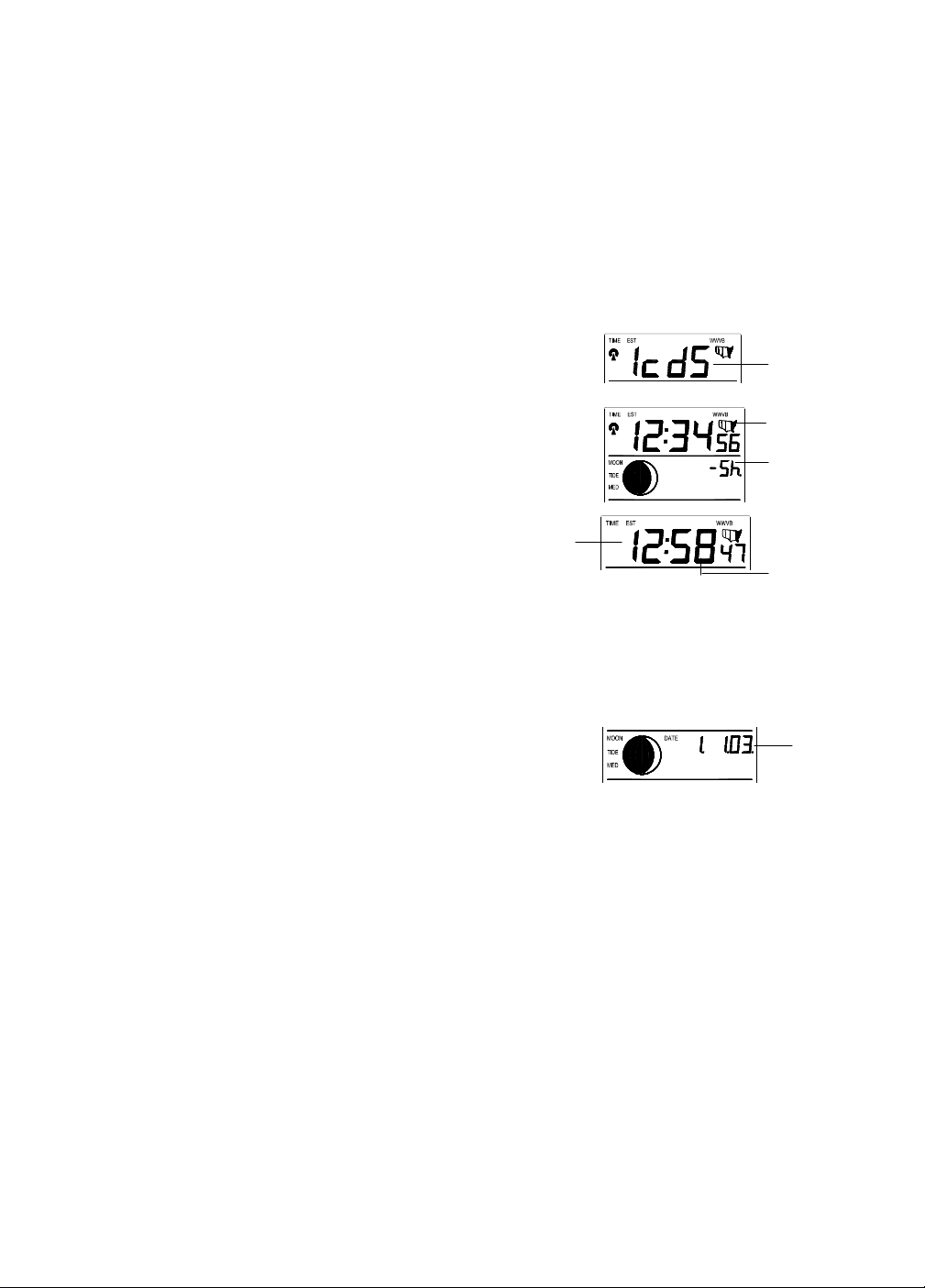

Last digit flashing

Time Zone Flashing

(-5h equals Eastern

Time zone or GMT –5)

U.S. Time

zone map

Hour flashing

Minutes flashing

Year

Date and month (24hr time format)

Month and date (12hr time format)

WS-9031U

WEATHER PROJECTION STATION

POSTE METEO A PROJECTION

ESTACION CON PROYECCIÓN DEL ESATDO

DEL TIEMPO

Instruction Manual

Mode d’emploi

Manual de Instrucciones

WEATHER PROJECTION STATION

Instruction Manual

INTRODUCTION:

Congratulations on purchasing this state-of-the-art weather

projection station as an example of innovative design and quality

piece of engineering. Providing radio controlled time, date,

calendar, moon phase, indoor and outdoor temperature, indoor and

outdoor relative humidity, this unit will never keep you guessing on

current and future weather conditions. Operation of this product is

simple and straightforward. By reading this operating manual, the

user will receive a better understanding of the weather projection

station together with the optimum benefit of all its features.

Battery

compartment

LCD

Display

Function

keys

FEATURES:

The Weather Projection Station

Projector

Function

SNOOZE key

•WWVB Radio controlled time with manual setting option

•Time reception ON/OFF (user selectable)

•12/24 hour time display

•DST ON/OFF (daylight saving time)

•US time zone map

•Time zone option ±12 hours

•Month, date, weekday calendar display

•Alarm setting with snooze function

•Automatic daylight saving time

•Display 12 moon phases throughout the year with moon/tide indication

•Weather forecasting with 3 weather icons

•Weather tendency indicator

•Indoor comfort indicator

•Temperature display with MIN/MAX records and time of reception

•Indoor and outdoor temperature display in ºC/ºF

•Humidity data with MIN/MAX records

•Indoor and outdoor humidity display as RH%

•Can receive up to 3 sensors

•Time projection display (hour and minute)

•Outdoor temperature projection display (degrees ºC or ºF)

•Alternate projection display mode selectable

•Projection with adjustable brightness and projection orientation possible

•LCD contrast selectable

•LED back light

•Low battery indicator

•Table standing

•AC/DC power adapter included

The Outdoor Thermo-hygro Sensor

•Remote transmission of outdoor temperature and humidity to Weather

Projection Station by 433 MHz

•Rain proof casing

•Wall mounting case

Rain protection

cover

Wall mounting

base

TO INSTALL AND REPLACE BATTERIES IN THE WEATHER

PROJECTION STATION

The Weather Projection Station uses 3 x AA,

IEC LR6, 1.5V batteries. To install and

replace the batteries, please follow the steps

below:

1. Insert finger or other solid object in

the space at the bottom center of the

battery compartment and lift up to

remove the cover.

2. Insert batteries observing the correct

polarity (see marking).

3. Replace compartment cover.

TO INSTALL AND REPLACE BATTERIES IN THE THERMO-

HYGRO SENSOR

The Thermo-hygro sensor uses 2 x AA, IEC LR6, 1.5V batteries. To install and

replace the batteries, please follow the steps below:

1. Remove the battery cover.

2. Insert the batteries, observing the correct

polarity (see marking).

3. Replace the battery cover on the unit.

Note:

In the event of changing batteries in any of the units,

all units need to be reset by following the setting up

procedures. This is due to a random security code

assigned by the sensor at start-up. This code must be

received and stored by the Weather Projection Station

in the first 3 minutes of power being supplied to the

sensor.

BATTERY CHANGE:

It is recommended to replace the batteries in all units on an annual basis to

ensure optimum accuracy of these units.

Please participate in the preservation of the environment.

Return used batteries to an authorized depot.

SETTING UP

The Weather Projection Station can be either batteries-operated or

BATTERY INSTALLATION:

1. First, insert the batteries into the Weather Projection Station (see “To

install and replace batteries in the Weather Projection Station”).

Once the batteries are in place, all segments of the LCD will light up

briefly and a short signal tone will sound. Then the ALM1 6:00, the indoor

temperature and humidity, the time as 12:00, the date as WE 1.1., the

moon icon, the weather icons (sun and clouds) will be displayed. If the

indoor temperature and indoor humidity are not displayed after 15

seconds, remove the batteries and wait for at least 3 minutes before

reinserting them. Once the indoor data is displayed proceed to step 2.

2. Within 4 minutes of activating the Weather Projection Station, place the

batteries into the sensor (see “To install and replace batteries in the

Thermo-hygro Sensor“).

3. After inserting the batteries into the sensor, the Weather Projection

Station will start receiving data from the sensor. The outdoor temperature

and humidity should then be displayed on the Weather Projection Station.

If this does not happen after 3 minutes, the batteries will need to be

removed from both units and reset from step 1.

4. The Weather Projection Station can receive up to 3 remote Outdoor

Thermo-hygro sensors. If you have purchased additional sensors, repeat

from step 3 for all extra sensors. However, ensure that you leave 10

seconds in between the reception of the last sensor and the set-up of the

following sensor. The Weather Projection Station will number the sensors

in the order of set-up, i.e. the first sensor will have the

temperature/humidity displayed with the number 1 against it and so on.

5. With less than 3 sensors received, the Weather Projection Station will try

to pick up the remaining one in approximately another 3 minutes. If 3

sensors are received, the Weather Projection Station will stop further

reception.

6. Once the outdoor temperature and the humidity have been received and

displayed on the Weather Projection Station, the WWVB time code

reception is automatically started. This takes typically between 6-8

minutes in good conditions.

7. If after 10 minutes, the WWVB time has not been received, use the SET

key to manually enter a time initially. The clock will automatically attempt

to receive the WWVB time from 12:00 to 6:00 a.m. for a successful

reception. When WWVB reception signal is successful, the received time

will override the manually set time. The date is also updated with the

received time. The next reception attempt will occur on the following day.

(Please refer to notes on “About WWVB Radio controlled Time” and

“Manual Time Setting”).

Your Weather Projection Station is now operational!

Note:
