La Crosse Technology WS-9029U Manual de usuario

WS-9029U

915 MHz

WIRELESS WEATHER STATION

INSTRUCTION MANUAL

CONTENTS

03 introduction

03 features

04 quick set up guide

05 detailed set up guide

06 function keys

06 operations

08 mounting

09 troubleshooting

10 maintenance and care

10 specifications

10 warranty information

FEATURES

•Wireless Weather Station (Figure 1).

•Remote Temperature Sensor with optional Channel 2 Probe (TX25U, Figure 2).

•Indoor Temperature (°F or °C) and Indoor Humidity.

•Wireless Outdoor Temperature (°F or °C).

•Optional Channel 2 Temperature Probe.

•Able to Receive up to 3 Remote Temperature Sensors.

12 or 24 Hour

Time Display

Connection

w/ Sensor Icon

Low Battery

Indicator

Set/

Channel Button

Indoor Temperature

(

°F or °C

)

Indoor Humidity

(

%RH

)

Channel Indicato

(

1, 2, or 3

)

Outdoor Temperature

(

°F or °C

)

Minimum or Maximum

Tem

erature & Humidit

Minimum/Maximum/+

Button

FIGURE 1

INSTANT TRANSMISSION is the state-of-the-art new

wireless transmission technology, exclusively

designed and developed by LA CROSSE

TECHNOLOGY. INSTANT TRANSMISSION offers you

an immediate update (every 4 seconds!) of all your

outdoor data measured from the sensors: follow

your climatic variations in real-time!

This product offers:

•Wall Hanging or Free Standing.

ADDITIONAL EQUIPMENT (not included)

1. Two fresh AA 1.5V alkaline batteries for the wireless weather station.

2. Two fresh AAA 1.5V alkaline batteries for the remote temperature sensor.

3. One, Philips screwdriver for mounting.

QUICK SETUP

Hint: Use good quality Alkaline Batteries; avoid rechargeable batteries.

1. Have the Wireless Weather Station and Temperature sensor 3 to 5 feet apart.

2. Batteries should be out of both units for 10 minutes.

3. Place the batteries into the Temperature sensor first and next into the Wireless Weather

Station.

4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES.

In this time the Wireless Weather Station and the temperature sensor will begin to communicate with

each other, and the display will show both the indoor temperature and an outdoor temperature. If the

Wireless Weather Station does not display both temperatures after the 15 minutes, please retry the

set up as stated above. After both indoor and outdoor temperatures are displayed for 15 minutes you

can place your temperature sensor outdoors, and set your time.

The temperature sensor should be placed in a dry, shaded area (ex: under the eve of a roof). The

temperature sensor has a range of 330 feet. Any walls that the signal will have to pass through will

reduce distance. An outdoor wall or window will have up to 20 feet of resistance and an interior wall

will have up to 10 feet of resistance. Your distance plus resistance should not exceed 330 feet in a

straight line.

NOTE: Fog and mist will not harm your temperature sensor, but direct rain must be avoided.

FIGURE 2

Remote

Temperature Senso

LCD Temperature Displa

Wall-Mounting

Bracket

Optional Probe

w/ 10 Foot Wire

DETAILED SETUP GUIDE

I. BATTERY INSTALLATION (When one Temperature sensor is being used)

1. First, insert the batteries to the Temperature sensor (see “A. Temperature sensor” below).

2. Within 2 minutes of powering up the sensor, insert the batteries to the Weather Station (see

“B. Wireless Weather station” below). Once the batteries are in place, all segments of the

LCD will light up briefly. Following the indoor temperature and the time as 12:00 will be

displayed, and the signal reception icon will flash. If they are not shown in LCD after 60

seconds, remove the batteries and wait for at least 60 seconds before reinserting them. Once

the indoor data is displayed user may proceed to the next step.

3. After the batteries are inserted, the Weather Station will start receiving data signal from the

sensor. The outdoor temperature should then be displayed on the Weather Station. If this does

not happen after 2 minutes, the batteries will need to be removed from both units and reset

from step 1.

A. TEMPERATURE SENSOR

1. Remove the Battery Cover.

2. Observing the correct polarity, install 2 “AAA” Alkaline

Batteries—make sure they do not spring free, or start-up

problems may occur.

3.Replace the Battery Cover.

B. WIRELESS WEATHER STATION

Note: After the batteries are installed, DO NOT press any buttons. This may interfere with the

signals, causing temperatures to register incorrectly.

1. Remove the Battery Cover on the back of the Wireless Weather Station.

2. Observing the correct polarity, install 2 “AA” Alkaline Batteries.

3. Replace Battery Cover.

4. Wait 15 minutes before pressing any buttons.

Battery

Compartment

Battery

Cover

Remote

Temperature

Sensor (TX-25U)

Battery

Com

artment Battery

Cove

Wireless Weather

Station

Sensor signal

reception icon*

*When the signal is successfully received by the Weather Station, the icon will be switched on. (If not

successful, the icon will not be shown in LCD) So the user can easily see whether the last reception

was successful (icon on) or not (icon off). On the other hand, the short blinking of the icon shows that

a reception is being done now.

FUNCTION KEYS

The simple design of this product features 2 keys.

SET/CH:

•Press and hold for 5 seconds to enter set-up mode.

•Press and release to toggle between channels.

MIN/MAX/+:

•Press and release to toggle between minimum, maximum, and current temperature values.

•Press and hold 5 seconds to reset all minimum and maximum recorded values.

•Press and release to advance hours and minutes.

•Press and release to toggle between 12 hour time and 24 hour time.

OPERATIONS

12 OR 24 HOUR TIME SETTING

1. Press and hold the SET/CH button for 5 seconds.

2. “12h” will flash in the Time section of the LCD.

3. Press and release the MIN/MAX/+ button to toggle between 12 hour time and 24 hour time.

4. Press and release the SET/CH button to confirm selection and advance to the time setting.

Note: Selecting 12 hour time will automatically select Fahrenheit (°F) temperature. Selecting 24

hour time will automatically select Celsius (°C) temperature.

TIME SETTING

1. Press and hold the SET button for 5 seconds.

2. “12h” or “24h” will appear flashing in the TIME section of the LCD.

3. Press and release the SET/CH button once.

4. The hour will begin flashing.

5. Press and release the MIN/MAX/+ button to advance the hours.

6. Press and release the SET/CH button once more, and the minutes will begin to flash.

7. Press and release the MIN/MAX/+ button to advance the minutes.

8. Press and release the SET/CH button to confirm selection.

Note: When in the 12-hour format “PM.” will appear to the left of the hour in the time LCD between

the hours of noon and midnight.

OUTDOOR TEMPERATURE

The temperature received from the remote temperature sensor is viewed in the OUTDOOR LCD.

When there is more than one remote temperature sensor unit in operation, a “boxed” number will

appear to the right of the temperature. This indicates which remote temperature sensor unit (1, 2, or

3) is currently displaying its data in the OUTDOOR LCD. (This feature is explained in further detail in

the section—Adding Remote Temperature Sensors).

VIEWING MINIMUM AND MAXIMUM TEMPERATURE RECORDS

The WS-9029U keeps a record of the MINIMUM and MAXIMUM indoor and outdoor temperatures.

To view minimum and maximum temperatures: press the min/max/+ button once. “MIN” appears in

the bottom left of the LCD. The indoor and outdoor temperatures displayed when “MIN” appears are

the minimum recorded values. The minimum records will display for 30 seconds before returning to

the normal display mode.

Press the min/max/+ button again (once while “MIN” is still displayed, twice otherwise). “MAX”

appears in the bottom right of the LCD. The indoor and outdoor temperatures displayed when “MAX”

appears are the maximum recorded values. The maximum records will display for 30 seconds before

returning to the normal display mode.

While “MAX” is still displayed press the min/max/+ button again to return to the current data display.

Or you can wait 30 seconds, during either the minimum or the maximum readings, and the unit will

automatically return to current data readings.

RESETTING THE MIMIMUM AND MAXIMUM RECORDS

All the minimum and maximum records (minimum and maximum) will be reset after the min/max/+

button is pressed and held for 5 seconds.

OPTIONAL CHANNEL 2 TEMPERATURE PROBE

When the temperature probe is connected to the remote temperature sensor, the WS-9029U’s

channel 1 will display the remote temperature sensor data, and channel 2 will display the temperature

probe data. The remote temperature sensor data will always be displayed on the channel 1 and the

temperature probe on the channel 2.

If the probe on remote temperature sensor is unplugged, the "probe channel" on WS-9029U LCD will

show "---", the remote temperature sensor displayed value will still be shown.

The probe can be connected to the remote temperature sensor anytime. There is no need to reset the

units. The Weather Station will automatically detect the temperature probe and will display the

temperature probe data in channel 2.

ADDING TEMPERATURE SENSORS (OPTIONAL)

The WS-9029U is able to receive signals from 2 remote temperature sensors (TX-25U). These extra

sensors can be purchased through the same dealer as this unit

A. SET-UP OF MULTIPLE SENSORS

1. Remove all the batteries from the receiver and sensor(s) and wait 60 seconds. During these

60 seconds, press any button 20 times to discharge any excess power.

2. Insert the batteries to the first sensor.

3. Within 2 minutes of powering up the first sensor (Temperature sensor with probe), insert the

batteries to the Weather Station. Once the batteries are in place, all segments of the LCD will

light up briefly. Following the indoor temperature/humidity and the time as 12:00 will be

displayed, and the signal reception icon will flash. If they are not shown in LCD after 60

seconds, remove the batteries and wait for at least 60 seconds before reinserting them.

4. The outdoor temperature from the first sensor (channel 1) should then be displayed on the

Weather station. If this does not happen after 2 minutes, the batteries will need to be removed

from both units and reset from step 1.

5. If the temperature probe has been used, the outdoor temperature from channel 2 will then be

displayed. Otherwise, the outdoor temperature will display “---“.

Note: The temperature probe from the first sensor will always occupy “channel 2”. Channel 2 can

only be used for the temperature probe. If you choose not to use the temperature probe, Channel

2 will display “---“.

6. Insert the batteries to the second sensor as soon as the outdoor temperature readings from

the first sensor are displayed on the Weather station.

NOTE: You must insert the batteries into the second sensor within 30 seconds of

reception of the first sensor.

7. The outdoor temperature from the second sensor and the "channel 3" icon should then be

displayed on the Weather station. If this does not happen after 2 minute, the batteries will need

to be removed from all the units and reset from step 1.

Note: only the readings from the internal sensor of the second sensor will be displayed in “channel 3”

IMPORTANT: Transmission problems will arise if the setting for additional sensors is not

followed as described above. Should transmission problems occur, it is necessary to

remove the batteries from all units and start again the set-up from step 1.

B. VIEWING AND OPERATING WITH MULTIPLE TEMPERATURE SENSOR UNITS

1. To view the temperature of a different remote temperature sensor unit, press and release the

SET/CH button. A shift from one “boxed” number to the next should be observed in the

OUTDOOR LCD.

2. To determine which remote temperature sensor reading is displayed on the 3 channels, match the

temperature displayed on each channel, with the corresponding temperature displayed on the

LCD of each remote temperature sensor.

3. To view the Minimum/Maximum temperature: first select which remote temperature sensor to read

data from (indicated by the “boxed” number), then press the SET/CH button. Pressing this button

once will display the minimum temperature, and the date and time the data was recorded.

Pressing this button a second time (while “MIN” is still displayed, otherwise press the button twice)

will display the same data for the maximum recordings.

4. To reset the Minimum/Maximum readings, press and hold the MIN/MAX/+ button for 5 seconds,

this will reset all the minimum and maximum data from all sensors.

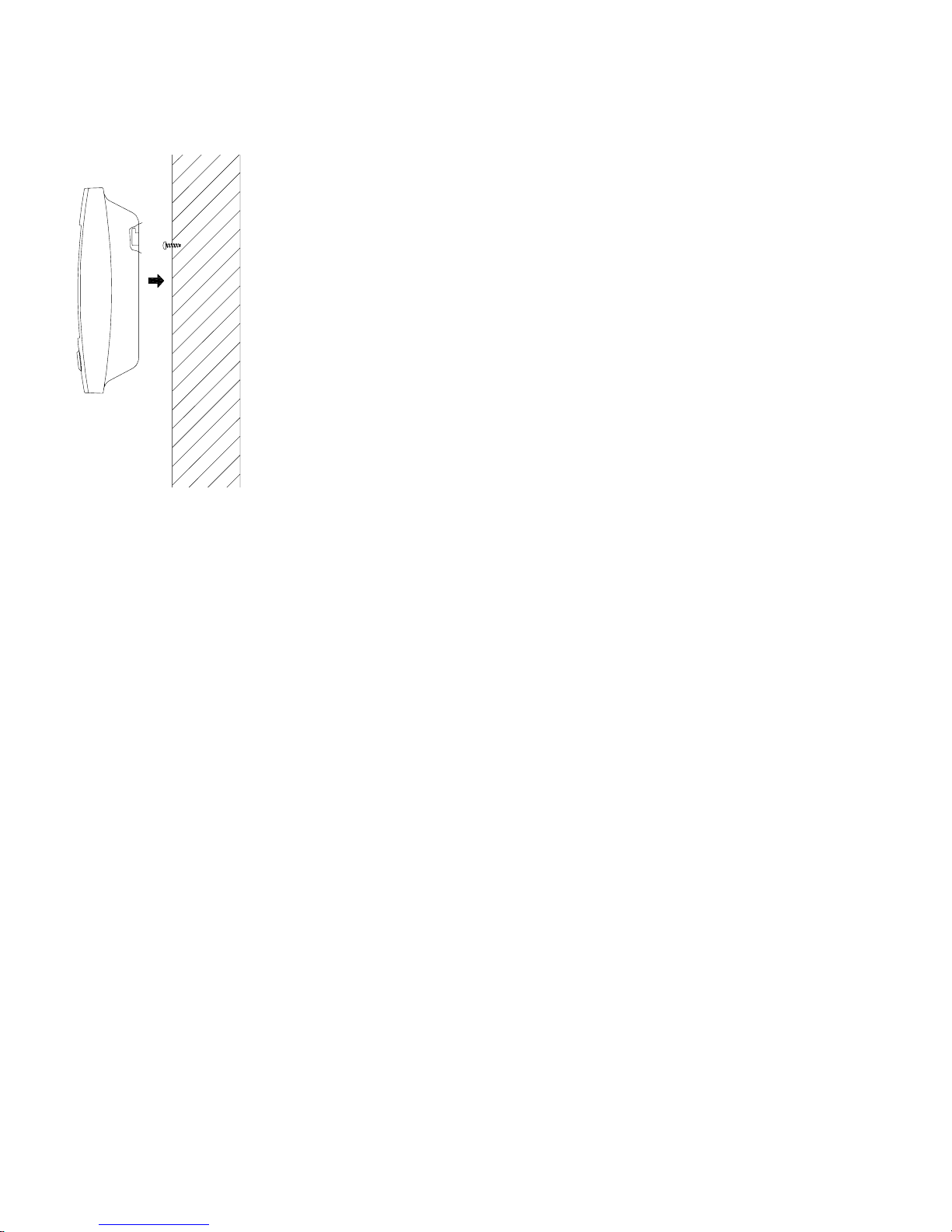

MOUNTING

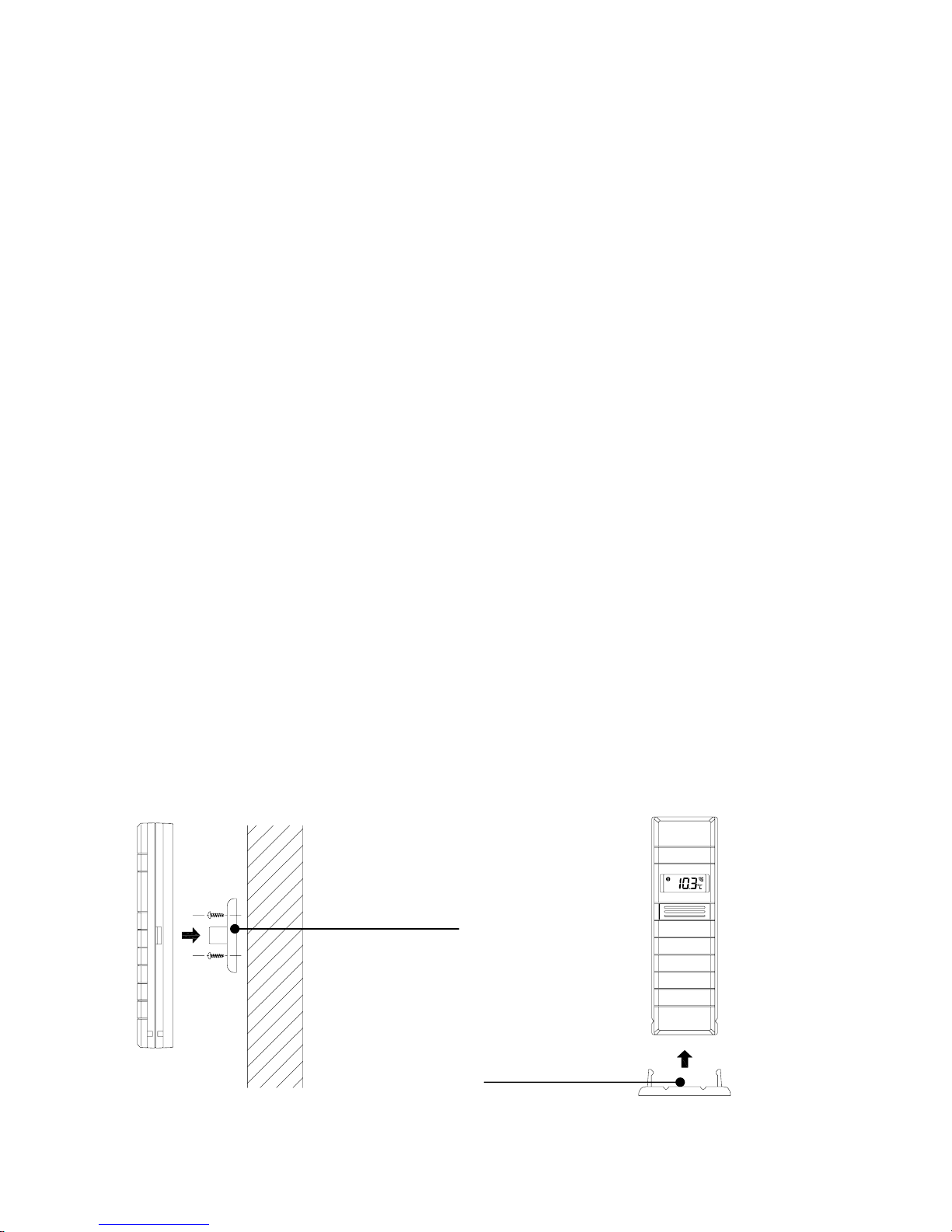

THE REMOTE TEMPERATURE SENSOR

1. Remove the mounting bracket/stand from the temperature sensor.

2. Place the mounting bracket over the desired location.

3. The mounting bracket can attach to the sensor in the middle of the back or on the bottom.

4. Through the 3 screw holes of the bracket, mark the mounting surface with a pencil.

5. Screw mounting bracket onto the mounting surface. Ensure that the screws are flush with the

bracket.

6. Insert the remote temperature sensor into the bracket.

Bottom of sensor

inserted into Mounting

Bracket

Back middle o

sensor inserted into

Mounting Bracket

THE WIRELESS WEATHER STATION

The wireless weather station can be mounted in 2 ways:

•with the table stand or,

•on the wall with the use of a wall hanging screw (not included).

A. USING THE TABLE STAND

The wireless weather station comes with the table stand attached. If

you wish to use the table-stand all that is required is to pull out the table

stand on the back of the receiver and place the receiver on a flat

surface.

B. WALL MOUNTING

1. Make sure the table stand is flush against the wireless weather

station.

2. Fix a screw (not included) into the desired wall, leaving

approximately 1/4 of an inch (5mm) extended from the wall.

3. Place the wireless weather station onto the screw using the hanging

hole on the backside.

4. Gently pull the wireless weather station down to lock the screw into

place.

TROUBLESHOOTING

NOTE: For problems not solved, please contact La Crosse Technology.

Problem: Hour is incorrect (minute and date are correct)

Solution: Be sure correct time zone and daylight saving time settings are selected.

Problem: The LCD is faint

Solution: 1) Set the LCD contrast to a higher number

2) Replace batteries

Problem: No outdoor temperature is displayed.

Solution: 1) Remove all batteries, reinsert into sensor first, then into the wireless weather station.

2) Place remote temperature sensor closer to wireless weather station.

3) Be sure all batteries are fresh.

4) Place remoter temperature sensor and wireless weather station in position so the straight-line

signal is not passing through more than 2 or 3 walls.

Problem: Temperatures do not match if units are placed next to each other.

Solution: Each remote temperature sensor is manufactured to be accurate to within 1 degree plus or

minus and under normal conditions, so two sensors could be as much as 2 degrees different.

However, the difference can be exaggerated further because the sensors are designed for

different working environments. The indoor sensor is less responsive to ambient air currents

because of the shielding effect of the display's case. In addition, the case can act as a heat

sink to absorb and store heat from external sources (i.e. handling of the case or radiant heat).

Also, the much greater range of the remote temperature sensor requires a different calibration

curve than the indoor range. Error is usually greater at the extreme ends of a range, making it

harder to compare different ranges with different curves. Under non-laboratory conditions, it is

difficult to compensate for the above factors and obtain an accurate comparison.

MAINTENANCE AND CARE INSTRUCTIONS

9Extreme temperatures, vibration, and shock should be avoided to prevent damage to the units.

9Clean displays and units with a soft, damp cloth. Do not use solvents or scouring agents; they

may mark the displays and casings.

9Do not submerge in water.

9Immediately remove all low powered batteries to avoid leakage and damage.

9Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse

Technology for repairs.

SPECIFICATIONS

Temperature measuring range:

Indoor: 14.1°F to 139.8°F with 0.1°F resolution.

“OFL” displayed if outside this range.

Outdoor: -39.8°F to 139.8°F with 0.1°F resolution.

“OFL” displayed if outside this range.

Indoor relative humidity measuring range: 1% to 99% with 1% resolution.

(“- -” displayed if outside this range.

Indoor Temperature checking interval: Every 15 seconds.

Outdoor Temperature checking interval

(Remote Control Sender): Every 4 seconds.

Transmission Range: 330 feet (in open space).

Power Supply:

Weather Station: 2 x AA, IEC LR6, 1.5V.

Temperature Sensor: 2 x AAA, IEC LR3, 1.5V.

Battery life cycle: Approximately 24 months.

Recommended battery type: Alkaline.

Dimensions (L x W x H)

Weather Station 2.91” x 1.15” x 3.86” (74 x 29.1 x 98mm).

Temperature Sensor: 1.44” x 0.76” x 4.80” (36.6 x 19.3 x 121.8 mm)

WARRANTY INFORMATION

La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and

workmanship.

This limited warranty begins on the original date of purchase, is valid only on products purchased and used in North America and only to

the original purchaser of this product. To receive warranty service, the purchaser must contact La Crosse Technology, Ltd for problem

determination and service procedures. Warranty service can only be performed by a La Crosse Technology, Ltd authorized service

center. The original dated bill of sale must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse

Technology, Ltd’s authorized service center.

La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or

reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and

products become the property of La Crosse Technology, Ltd and must be returned to La Crosse Technology, Ltd. Replacement parts

and products assume the remaining original warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd will pay all

expenses for labor and materials for all repairs covered by this warranty. If necessary repairs are not covered by this warranty, or if a

product is examined which is not in need or repair, you will be charged for the repairs or examination. The owner must pay any shipping

charges incurred in getting your La Crosse Technology, Ltd product to a La Crosse Technology, Ltd authorized service center. La

Crosse Technology, Ltd will pay ground return shipping charges to the owner of the product to a USA address only.

Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the following specified exceptions: (1)

damage caused by accident, unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage

occurring during shipment (claims must be presented to the carrier); (3) damage to, or deterioration of, any accessory or decorative

Otros manuales para WS-9029U

Tabla de contenidos

Otros manuales de Estación meteorológica de La Crosse Technology

La Crosse Technology

La Crosse Technology WS-7026U Manual de usuario

La Crosse Technology

La Crosse Technology 308-1416 Manual de usuario

La Crosse Technology

La Crosse Technology ED31411 Manual de usuario

La Crosse Technology

La Crosse Technology WS-7049-Mah Manual de usuario

La Crosse Technology

La Crosse Technology WS-9121U-IT Manual de usuario

La Crosse Technology

La Crosse Technology Tomorrow's Weather Today TX24U Manual de usuario

La Crosse Technology

La Crosse Technology CA80550 Manual de usuario

La Crosse Technology

La Crosse Technology 308-1417BL Manual de usuario

La Crosse Technology

La Crosse Technology WS-1612 Manual de usuario

La Crosse Technology

La Crosse Technology 327-1418BW Manual de usuario

La Crosse Technology

La Crosse Technology T85647v2 Manual de operación y mantenimiento

La Crosse Technology

La Crosse Technology Wireless Weather Station Manual de usuario

La Crosse Technology

La Crosse Technology WS-2310TWC Manual de usuario

La Crosse Technology

La Crosse Technology Wireless Weather Station Manual de usuario

La Crosse Technology

La Crosse Technology WS-7390U Manual de usuario

La Crosse Technology

La Crosse Technology CA73453B Manual de usuario

La Crosse Technology

La Crosse Technology WS6212 Manual de usuario

La Crosse Technology

La Crosse Technology 308-807 Manual de usuario

La Crosse Technology

La Crosse Technology CA87092 Manual de operación y mantenimiento

La Crosse Technology

La Crosse Technology S84107 Dimensiones

La Crosse Technology

La Crosse Technology 308-1451v2 Manual de usuario

La Crosse Technology

La Crosse Technology WS-7047U Manual de usuario

La Crosse Technology

La Crosse Technology WS6868 Manual de usuario

La Crosse Technology

La Crosse Technology CA79103v2 Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario

TFA

TFA 30.3013.IT Manual de usuario

Alecto

Alecto WS-1200 Manual de usuario

Oregon Scientific

Oregon Scientific RMR966PA Manual de usuario
