RADIO CONTROLLED ANALOG CLOCK WITH TEMPERATURE

& DATE LCD

Instruction manual

INTRODUCTION:

Congratulations on purchasing this Analog Clock featuring WWVB radio controlled time with daylight

saving time function, indoor temperature and calendar display. The operation of this product is simple

and straightforward but please read this instruction manual to ensure that you have the full benefits of

all its features.

FEATURES:

•WWVB radio control time with manual time setting option

•4 time zones : Pacific Time (PT), Mountain Time (MT), Central Time (CT) and Eastern Time

(ET).

•Indoor temperature in degrees Fahrenheit (°F) or Celsius (°C) (User selectable)

•Calendar display

•Indoor temperature

SPECIFICATIONS:

Indoor Temperature measuring range : -4°F to +140°F (-20°C to +60°C)

Indoor Temperature checking interval : every 15 seconds

POWER SUPPLY:

Analog Clock : 1 x AA, IEC LR6, 1.5V battery

LCD Thermo-Hygro Weather Monitor : 2 x AAA, IEC LR3, 1.5V battery

Battery life cycle : approximately 12 months (Alkaline batteries recommended)

DIMENSIONS:

Analog Clock (ø x W) : 13.0" x 1.7" (330 x 42.5 mm)

The Digital Temperature and date LCD

SETTING UP OF THE TEMP AND DATE LCD:

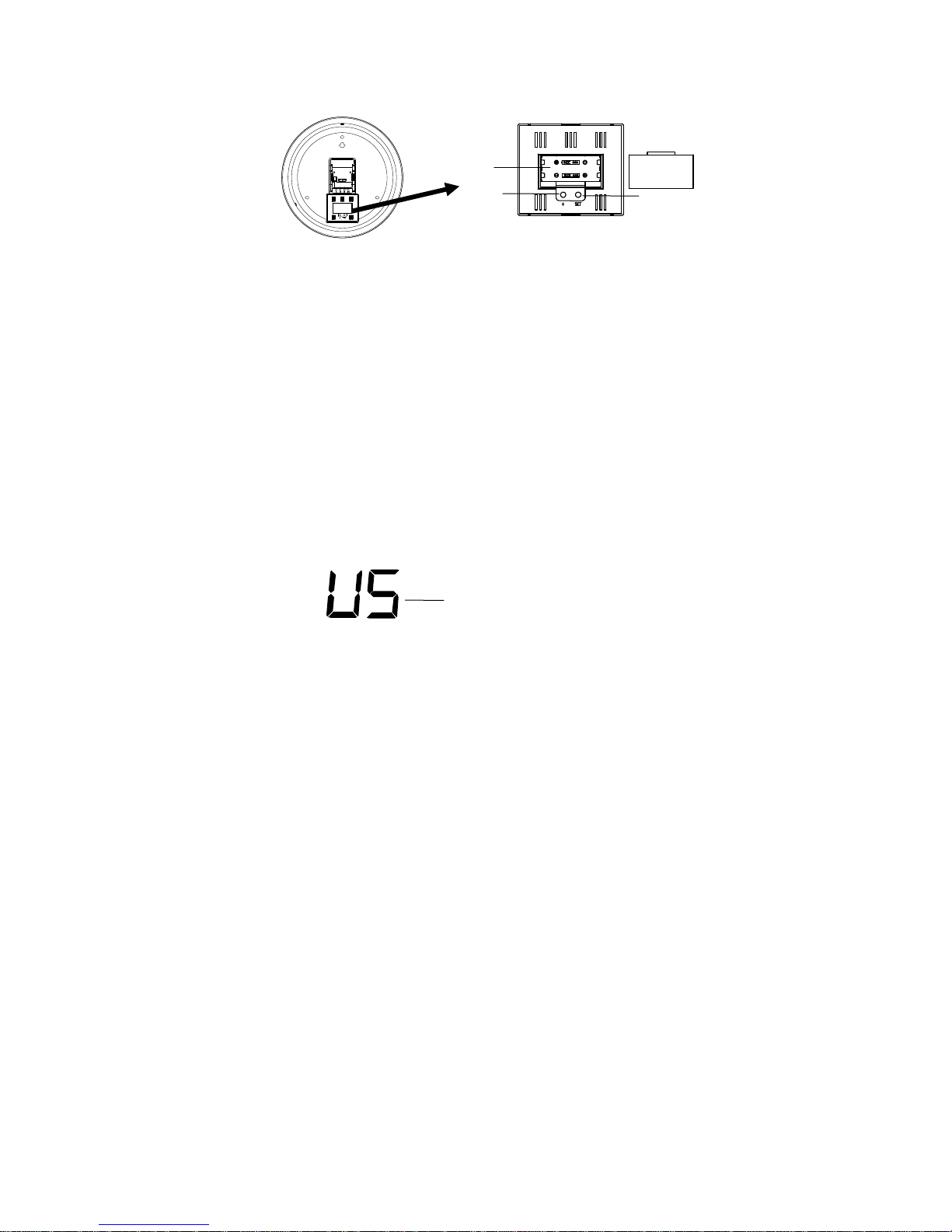

The temperature LCD uses 2 x AAA, IEC LR3, 1.5V batteries. To install and replace the batteries,

please follow the steps below:

1. Lift the center of the battery compartment and remove the cover.

2. Insert the batteries, observing the correct polarization.

3. Replace the battery cover on the unit.

After a few seconds, the LCD screen starts to display indoor temperature and the date.

FUNCTION KEYS

SET key:

•Press and hold to enter the set mode for the following functions: Display Language (English or

Spanish), °F/°C settings, 12/24 hour format, Manual time, Year, Month and Date

+ key

•Press To make adjustment for various settings

•In normal display, press to toggle between the display of "Weekday + date", "Indoor temp + date"

and "Weekday + indoor temp" in the LCD

MANUAL SETTINGS:

The following manual settings can be done in the setting mode:

•Display Language (English or Spanish)

•°F/ °C setting

•12/ 24 hr time format

•Manual time setting

•Calendar setting

Press and hold the SET key for about 3 seconds to advance to the setting mode:

DISPLAY LANGUAGE (ENGLISH OR SPANISH)

The default language of display is set English (US). To select Spanish ('E")°C:

1. The “US” will be flashing, use the + key to toggle between “US” (English) and “S” (Spanish).

2. Once the desired language has been chosen, confirm with the SET to advance to the

°F/°C hr time format.

+ ke

SET key

Batter

compartmen

flashing

Year

°F/°C TEMPERATURE UNIT SETTING

The default temperature reading is set to °F (Fahrenheit). To select °C (Celsius):

3. The “°F/ °C” will be flashing, use the + key to toggle between “°F” and “°C”.

4. Once the desired temperature unit has been chosen, confirm with the SET to advance to the

12/ 24 hr time format.

12/ 24 HR TIME FORMAT

The time display can be selected to show hours in 12-hour or 24-hour settings. (Default 12-Hour)

1. Press the + key to toggle between “12H” or “24H”.

2. Confirm with the SET key and enter the Manual time setting.

MANUAL TIME SETTING

To set the clock:

1. The hour digits start flashing in the time display section.

2. Use the + key to adjust the hours and then press SET key to go to the minute setting.

3. The minute will be flashing. Press the + key to adjust the minutes.

4. Confirm with the SET key and enter the “Calendar Setting”.

CALENDAR SETTING

The date default of the clock is 1. 1. of the year 2006 after initial set-up.

To set the date:

1. Using the + key, set the year required. The range runs from 2006 to 2036 (default is 2006).

2. Press the SET key to enter the month setting mode.

3. The month digit will be flashing. Press the + key to set the month and then press the SET key to

go to the day setting.

4. The day digit will be flashing. Press the + key to set the day.

5. Confirm with the SET and return to the normal display.

Note: The weekday will be automatically set. In normal display, the time will not be shown.

Minutes (flashing)

Hours (flashing)

flashing

"Month/ Date" – when 12 hour time is chosen;

"Date/ Month" – when 24 hour time is chosen.

MANUAL SET

BUTTON

will turn off

WWVB reception!

TO VIEW THE DIFFERENT MODE IN THE LCD.

In normal display, user may press the + key to toggle between the display of "Weekday + date", "Indoor

temp + date" and "Weekday + indoor temp" in the LCD:

The Analog Clock:

Note: The Analog clock and the Temp and date LCD works independently.

Nothing is more precisely measured than time!

And nothing keeps track of time more precisely and trouble-free than La Crosse Technology radio

controlled clocks.

Since the beginning of time, man has been fascinated with the measurement of time and

has devised accurate machines to trap and measure time. Today, time is precisely measured in the

United States by the most accurate clock in North America, the Atomic Clock of the US National

Institute of Standards and Technology, Time and Frequency Division in Boulder, Colorado. A team of

atomic physicists continually measures every second of every day to an accuracy of ten billionths of a

second per day. These physicists have created an international standard, measuring a second as

9,192,631,770 vibrations of a Cesium 133 atom in a vacuum. This atomic clock regulates the WWVB

radio transmitter located in Fort Collins, Colorado, where the exact time signal is continuously broadcast

throughout the United States at 60 kHz to take advantage of stable long wave radio paths found in that

frequency range. Radio waves at these low frequencies use the earth and the ionosphere as a wave-

guide and follow the curvature of the earth for long distances.

The built-in antenna system will receive the WWVB signal anywhere in North America

within 2000 miles of Fort Collins where long-wave radio reception is undisturbed. A microprocessor

activates the receiver and processes the time signal from Fort Collins overnight.

Through the radio signals, La Crosse Technology radio controlled clocks always keep

precise time. The changeover from standard time to daylight savings time, and vice versa, takes place

automatically with the same precision.

Battery

compartment

Weekday

Date

Temperature

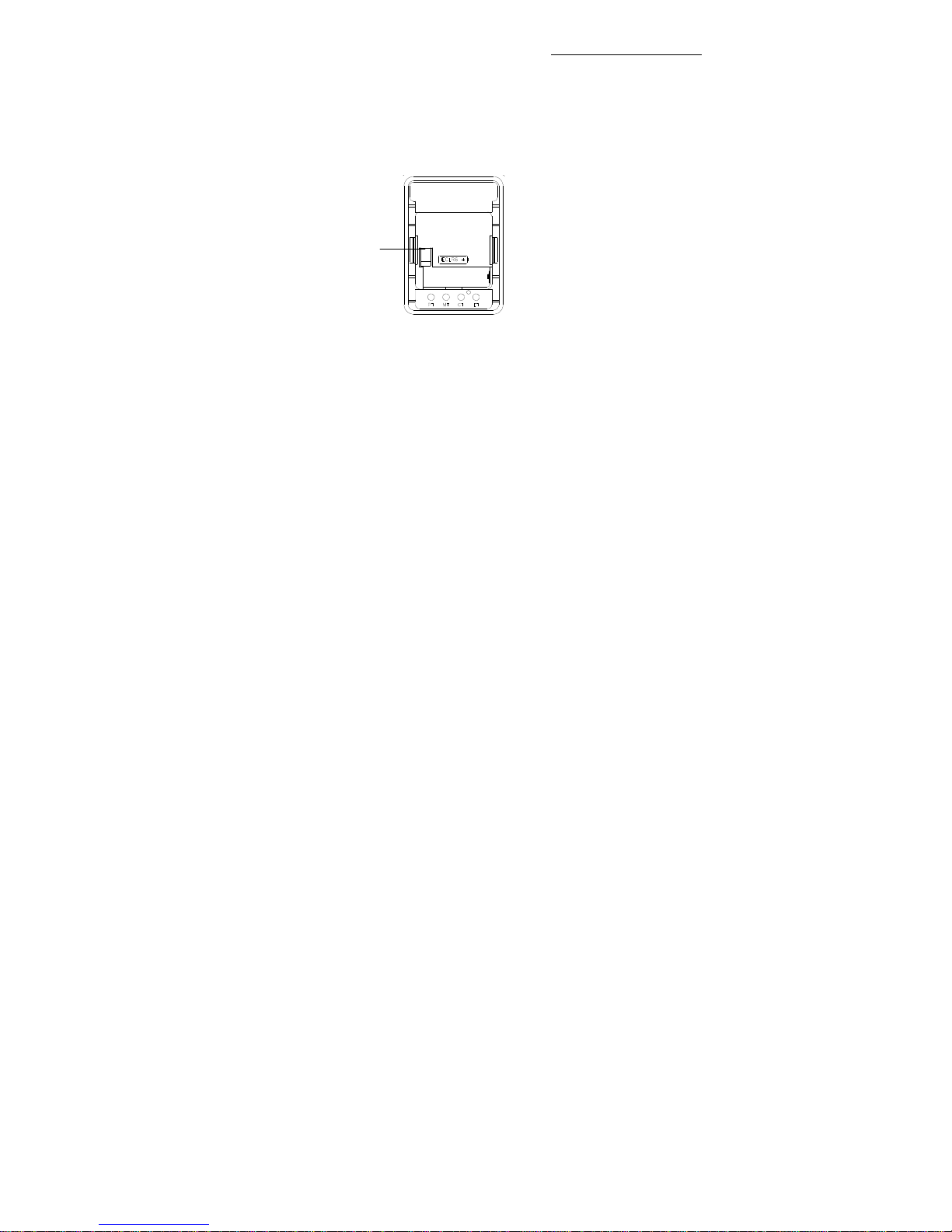

SET UP INSTRUCTIONS

To set up your clock simply install one fresh AA, LR6 ALKALINE battery. Due to the nature of

long-wave radio signals, it is normally not possible to receive a signal during the day so it is best to

install the battery late in the evening. Once the battery is installed, the clock will begin searching for a

signal. For the initial setting, it is recommended to stand the clock in an upright position near a window.

Within five minutes the clock will either receive the WWVB signal and set itself to the exact time (for the

default Pacific Time Zone), or it will determine that the signal is not receivable at its current location and

time of day. If a signal is not receivable, it will fast-forward the hands to the 4, 8, or 12 o’clock position

and search for WWVB every two hours until a signal is received. If the time is manually set, the clock

will continue to periodically search for a signal and automatically reset the hands when the signal is

received.

Once the clock has set to the correct time (default Pacific Time Zone)

If you are in the Pacific Time Zone- you are ready to hang your clock.

If you are not in the Pacific Time Zone, select your time zone by pressing one of the four time zone

buttons PT-Pacific Time, MT-Mountain Time, CT-Central Time, ET-Eastern Time. If multiple buttons are

pressed, the clock will set to the time zone selected last. If no time zone is selected the clock will

default to Pacific Time. Your clock can only set itself to one of the four time zones stated above. For

time zones outside of PT, MT, CT or ET you must manually set the time using the Manual Time set

button on the back of the movement. Our clock will set to the correct Time Zone that you selected. Once

the clock has reached the correct time, you are ready to hang your clock.

ONCE THE CLOCK HAS SET TO THE DEFAULT PACIFIC TIME ZONE, YOU MUST PRESS

THE CORRECT TIME ZONE BUTTON.

The clock is designed for indoor use only. Select a location to place your radio-controlled clock

where it will be at least six feet away from a TV, computer, air conditioner or other household electrical

appliances. The optimal location is near a window. Windows facing Colorado provide the best signal.

The WWVB time signal will easily penetrate masonry and wood framed buildings. WWVB will

penetrate almost every residential building and most steel buildings if they have adequate windows. It

is not possible, however, for WWVB to penetrate most indoor shopping malls and rooms in the center of

large office buildings that do not have windows. In buildings that WWVB cannot penetrate, you may set

the time using the manual time set button. When the clock receives the WWVB signal it will

automatically set the hands to the exact time.

Eastern Time

Pacific Time Mountain Time Central Time

MANUAL TIME

SET BUTTON*

*ONLY use in areas

with No WWVB reception

Daylight Saving Time

(DST) ON/OFF Button

MANUAL SET

BUTTON

will turn off

WWVB reception!

For more information on the NIST and radio controlled time, see www.boulder.nist.gov/timefreq/

*DST (Daylight saving time) ON/OFF button

Pressing DST-ON/OFF button during DST the clock will switch to time without daylight saving. Pressing

it again DST will be activated again. In areas where no DST is used you may deactivate DST by

pressing the DST-OFF switch.

SET THE TIME USING THE MANUAL TIME SET BUTTON

In some cases, the clock may not receive the WWVB signal due to atmospheric disturbances or hard to

reach locations such as inside shopping malls. In this case, please use the Manual Time Set button,

located at the back of the clock to manually set the time. To do this:

1. Press and hold the Manual Set button. The second hand will move to the 12 position.

2. Release the Manual Set button and again press and hold the Manual Set button. The minute and

hour hands will fast-forward while the button is held.

3. Keep holding the Manual Set button until the time is set as required.

4. Release the button. About 3 seconds later, the second hands will start to move and the clock is

now running with manual time.

Note:

When the clock displays manual time, it will continue to try to receive the WWVB signal at each of the

even numbered hours: 0:00, 2:00, 4:00, 6:00 … 20:00 & 22:00.

TROUBLESHOOTING

The wonderful advantage of owning a La Crosse Technology radio controlled clock is that it is virtually

trouble free. If the clock receives a clear signal it will set itself perfectly. If it does not receive a signal

consider the following:

Battery - The clock should have a fresh Alkaline Battery to best receive and process the time

signal.

Location - Try a different location, ideally near a window. It should be at least six feet from

computers, TVs, air conditioners, other Radio Controlled clocks and other electrical

appliances that cause interference.

Weather - Electrical storms between you and Colorado during the night will interfere with the

WWVB signal. Although we cannot control the weather, we can help you predict it.

Reception - The clock seems to “take off” for no reason and then stopping at the same

time.

It is not uncommon for the clock to make a "correction", sometimes daily. This

happens (ADD “s” TO HAPPEN) if the clock gets ahead of itself by a fraction of

a second. To correct this the clock will advance a complete rotation the next time

it receives a signal.

Daylight Saving Time

The National Institute of Standards and Technology and WWVB encode a special DST “bit” in the

WWVB transmission for DST. Your La Crosse Technology clock will read this information and

automatically advance the hands one hour in the spring and eleven hours in the fall. If Congress

MANUAL TIME SET

BUTTON

changes the Daylight Saving Time dates, your La Crosse Technology clock will automatically set itself

to the correct time on the newly designated dates.

Arizona and Indiana

If you live in an area that does not recognize DST you must press the (unmarked) DST button for one

second to deactivate your clock’s DST program. To reactivate the DST program simply press the DST

button again for one second.

POSITIONING THE ANALOG CLOCK:

Before wall mounting, please check that the WWVB signal can be received from the desired location. To

wall mounting:

1. Fix a screw (not supplied) into the desired wall, leaving the head extended out by about 3/16"

(5mm).

2. Hang the Analog clock onto the screw. Please remember to ensure it locked on the place

before releasing.

FREQUENTLY ASKED QUESTIONS

Q. How long will the battery last?

A. A good AA alkaline battery will last over one year. If your clock is located in an area with little

interference where it can quickly receive a signal, the battery can last much longer than one year.

Q. Can the clock be wired to control timing circuits?

A. No.

Q. Why does the second hand move only once every 2 seconds?

A. When the battery drops below 1.25 volts the clock indicates that it is time to change the battery by

advancing the second hand in 2-second steps. The operating voltage range is 1.25 to 1.75 volts.

CARE AND MAINTENANCE:

•Extreme temperatures, vibration and shock should be avoided as these may cause damage to

the units and give inaccurate forecasts and readings.

•When cleaning, use a soft damp cloth only. Do not use solvents or scouring agents as they

may mark the casing.

•Do not submerge the unit in water.

•Immediately remove all low powered batteries to avoid leakage and damage. Replace only

with new batteries of the recommended size.

•Do not make any attempts to repair the unit. Return it to its original point of purchase for repair

by a qualified engineer. Opening and tampering with the unit may invalidate its guarantee.

•Do not expose the unit to extreme and sudden temperature changes, as this may lead to rapid

changes in forecasts and readings and thereby reduce its accuracy.

BATTERIES CHANGE:

For best performance, batteries should be replaced at least once a year to maintain the best running

accuracy. Ensure that the batteries used are new and the correct size.

Please help in the preservation of the environment and return used batteries to an

authorized depot.

WARRANTY

La Crosse Technology, Ltd provides a 1-year limited warranty on this product against

manufacturing defects in materials and workmanship.

This limited warranty begins on the original date of purchase, is valid only on products

purchased and used in North America and only to the original purchaser of this product. To

receive warranty service, the purchaser must contact La Crosse Technology, Ltd for problem

determination and service procedures. Warranty service can only be performed by a La Crosse

Technology, Ltd authorized service center. The original dated bill of sale must be presented

upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s

authorized service center.

La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as

stipulated herein, with new or reconditioned parts or products if found to be defective during the

limited warranty period specified above. All replaced parts and products become the property of

La Crosse Technology, Ltd and must be returned to La Crosse Technology, Ltd. Replacement

parts and products assume the remaining original warranty, or ninety (90) days, whichever is

longer. La Crosse Technology, Ltd will pay all expenses for labor and materials for all repairs

covered by this warranty. If necessary repairs are not covered by this warranty, or if a product is

examined which is not in need or repair, you will be charged for the repairs or examination. The

owner must pay any shipping charges incurred in getting your La Crosse Technology, Ltd

product to a La Crosse Technology, Ltd authorized service center. La Crosse Technology, Ltd

will pay ground return shipping charges to the owner of the product to a USA address only.

Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with

the following specified exceptions: (1) damage caused by accident, unreasonable use or neglect

(including the lack of reasonable and necessary maintenance); (2) damage occurring during

shipment (claims must be presented to the carrier); (3) damage to, or deterioration of, any

accessory or decorative surface; (4) damage resulting from failure to follow instructions

contained in your owner’s manual; (5) damage resulting from the performance of repairs or

alterations by someone other than an authorized La Crosse Technology, Ltd authorized service

center; (6) units used for other than home use (7) applications and uses that this product was

not intended or (8) the products inability to receive a signal due to any source of interference..

This warranty covers only actual defects within the product itself, and does not cover the cost of

installation or removal from a fixed installation, normal set-up or adjustments, claims based on

misrepresentation by the seller or performance variations resulting from installation-related

circumstances.

LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL,

CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE

OPERATION OR MALFUNCTION OF THIS PRODUCT. THIS PRODUCT IS NOT TO BE

USED FOR MEDICAL PURPOSES OR FOR PUBLIC INFORMATION. THIS PRODUCT IS

NOT A TOY. KEEP OUT OF CHILDREN’S REACH.

This warranty gives you specific legal rights. You may also have other rights specific to your

State. Some States do no allow the exclusion of consequential or incidental damages therefore

the above exclusion of limitation may not apply to you.

For warranty work, technical support, or information contact:

La Crosse Technology, Ltd

2809 Losey Blvd. S.

La Crosse, WI 54601

Phone: 608.782.1610

Fax: 608.796.1020

e-mail:

support@lacrossetechnology.com

(warranty work)

sales@lacrossetechnology.com

(information on other products)

web:

www.lacrossetechnology.com

processed using electronic, mechanical or chemical procedures without written permission of the publisher.

This handbook may contain mistakes and printing errors. The information in this handbook is regularly checked

and corrections made in the next issue. We accept no liability for technical mistakes or printing errors, or their

consequences.

All trademarks and patents are acknowledged.

Tabla de contenidos

Otros manuales de Reloj de La Crosse Technology

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

La Crosse Technology

La Crosse Technology 513-1419-WA Dimensiones

La Crosse Technology

La Crosse Technology Radio Controlled Analog Clock WT-3181bz Manual de usuario

La Crosse Technology

La Crosse Technology WT-3129BX1 Dimensiones

La Crosse Technology

La Crosse Technology 513-1429 Dimensiones

La Crosse Technology

La Crosse Technology W80000 Manual de usuario

La Crosse Technology

La Crosse Technology 513-63867v2 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1211 Dimensiones

La Crosse Technology

La Crosse Technology WT-5120 433 Manual de usuario

La Crosse Technology

La Crosse Technology 512-1422WH Manual de usuario

La Crosse Technology

La Crosse Technology C86224 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1417v5 Manual de usuario

La Crosse Technology

La Crosse Technology WT-3126H Manual

La Crosse Technology

La Crosse Technology C86279V3 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1417CH Manual de usuario

La Crosse Technology

La Crosse Technology WT-8112U Manual de usuario

La Crosse Technology

La Crosse Technology WT-3132LCD Manual de usuario

La Crosse Technology

La Crosse Technology 616-1410 Manual de usuario

La Crosse Technology

La Crosse Technology S74870 Manual de usuario

La Crosse Technology

La Crosse Technology 433-3256W Manual de usuario

La Crosse Technology

La Crosse Technology 404-3556A Manual de usuario

La Crosse Technology

La Crosse Technology WT-5350 Manual de usuario

La Crosse Technology

La Crosse Technology 513-1422 Dimensiones

La Crosse Technology

La Crosse Technology WT-8005U Manual de operación y mantenimiento

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

Sharp

Sharp SPC900 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario

LG LEC-005 Manual de usuario

IKEA

IKEA ROTBLÖTA Manual de usuario

U-Line

U-Line Н-2811 Manual de usuario

Digiview

Digiview RC305EL Manual de usuario
