La Crosse Technology 513-63867v2 Manual de usuario
SET UP GUIDE
MODEL: 513-63867v2
EXECUTIVE
ATOMIC CLOCK 2.0
1. Insert 2-AA batteries into your Temperature Sensor.
2. Insert 6-AA batteries into your Atomic Clock.
3. Once the sensor is reading your Clock, place the sensor outside.
Watch our sensor mounting video: bit.ly/th_sensor_mounting
Power Up
2
Buttons
TX141TH-Bv4
Outdoor Sensor 513-63867v2
Atomic Clock
Press to search for Atomic Time Signal.
Hold to enter Settings Menu.
+ PLUS Settings: Press and release to adjust settings. Hold to adjust quickly.
Hold to search for Outdoor Sensor.
MINUS Settings: Press and release to adjust settings. Hold to adjust quickly.
Press and release to switch between Desired Time or Local Time.
Hold to adjust your Desired Time hour.
Press and release to adjust the information displayed: Time, Desired Hour
(if set) Outdoor Temperature... etc. The Auto-Scroll Icon will show when
active.
Press and release to select Calendar Display.
Press and release to select Fahrenheit or Celsius Temperature Display.
3
Settings Menu
1. Hold the button until the display changes to enter the Settings Menu.
2. Press and release the +or -button to adjust values.
3. Press and release the button to confirm and move to next item.
4. Press and release the ºF/ºC button at any time to exit.
Settings order:
•Language (English, Spanish, French, German)
•Beep ON/OFF
•Atomic ON/OFF
•DST AUTOMATIC / DST ALWAYS OFF / DST ALWAYS ON
(Change Spring/Fall) (No change in Spring) (No change in Fall)
•Time Zone
•12/24 Format
•Hour
•Minutes
•Year
•Month
•Date
•Month/Date or Date/Month
Language: Whichever language is selected, the following instructions and
weekday will be presented in that language.
Atomic O: When Atomic O is selected, you will move directly to the 12/24
Hour setting.
Weekday: Weekday will set automatically when the Year, Month and Date
are set.
Farenheit or Celsius: Press and release the ºF/ºC button to select your
temperature display.
TIME ZONE
ATLANTIC
EASTERN
CENTRAL
MOUNTAIN
PACIFIC
ALASKA
HAWAII
4

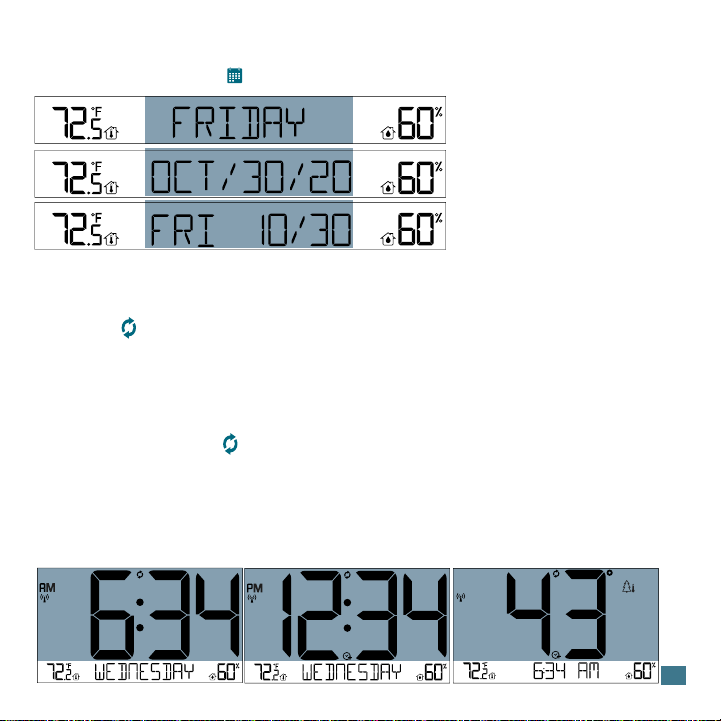

Custom Date Display
Press and release the button to change how the Calendar is displayed.
Full Weekday
Weekday/Month/Date
Month/Date/Year
Press the button to adjust the data displayed on screen.
•Current Time/Indoor Temp • Current Time/Outdoor Temp
•Desired Time/Indoor Temp • Outdoor Temp/Desired Time
•Outdoor Temp/Desired Time • Auto-Scroll
When the Auto-scroll Icon is showing, the clock will switch between
these options every 5 seconds.
•Current Time • Desired Hour • Temperature
Time Outdoor TemperatureDesired Hour
Custom Time/Temperature Display
5
Desired Hour (Time Adjust)
Have your clock match other times around the world by setting a Desired
Hour, kept accurate by the Atomic time signal.
Note: only the hour can be changed.
Set Desired Hour:
1. Hold the button until the Hour flashes, “
Desired Hour
” will show.
2. Press and release the + (PLUS) button to adjust the hour. Press and
release the - (MINUS) button to reset the hour to “Local Time”.
3. Press the button to confirm and exit.
Switch between Desired Time and Local time:
•Press and release the button to switch between Desired Time and
Local Time.
•Desired Time is indicated with the icon.
Note: In the event of battery change or reset, these settings will need to be
readjusted.
Set Desired Hour View Local TimeView Desired Time
Atomic Time
•Your Clock will automatically search for the Atomic Time Signal at UTC
7:00, 8:00, 9:00, 10:00, and 11:00.
•Press the button to manually start or stop search for the WWVB Atomic
Time Signal.
•While searching, the Tower Icon will flash. The Tower Icon will be solid
when the WWVB Signal is received by your clock.
•For information about WWVB Atomic Time visit: bit.ly/atomic_time
Search for Sensors
If you are seeing “NO” or dashes for any sensor readings, please try the
following steps:
1. Hold the PLUS (+) button to search for all sensors.
The Reception Indicator will begin to animate.
2. If after 3 minutes the sensor still isn’t connected, bring the sensor inside next
to the display and remove power from the sensor and clock.
3. Press any button on the station 20 times and leave the parts sit for a few
moments with the power o.
4. Install a new set of alkaline batteries into the sensor, then power up your
clock again.
5. If your sensor data is still not appearing after these steps, please contact our
support sta. For additional help visit: bit.ly/basic_restart
6
7
Sensor Placement & Mounting
For Accurate Temperature/Humidity Measurements
•Insert a mounting screw through the hole at the top to
securely mount the sensor. It can also hang from the back
using a nail.
•Mount the sensor vertically in a protected well-shaded area.
Keeping it out of direct weather elements such as sunlight,
rain, snow, etc. will help avoid inaccurate readings.
•For additional protection against weather elements, a Sensor
Weather Shield: bit.ly/weather-shield can be purchased
separately.
•The maximum wireless transmission range to the station is up
to 330ft (100m) in open air. This does not include walls, floors,
or other large obstructions.
•For online video instructions, visit: bit.ly/th_sensor_mounting
Low Battery Icons
Low Battery Icon by the Time, replace batteries in the Clock.
Low Battery Icon by Outdoor Temperature, replace batteries in the Outdoor
Sensor.
•The Sensor Weather Shield is designed to protect your outdoor
sensor from rain and snow.
•This shield will oer limited protection from the sun’s heat.
•Optional purchase at: bit.ly/weather-shield
*Not included
Sensor Weather Shield
8
Atomic Clock (513-63867v2):
Temperature Range: 32°F to 122°F (0°C to 50°C)
Humidity Range: 10% RH to 99% RH
Power Requirements: 6 “AA” (LR6, IEC) batteries (not included)
Battery Life: Over 24 months with reputable batteries.
Dimensions: 17.50” L x 11.75” H x 5.72” W (44.45cm L x 29.85cm H x 14.54cm W)
Specifications
Thermo-hygro Sensor (TX141TH-Bv4)
Temperature Range: -40°F to 140°F (-40°C to 60°C)
Humidity Range: 10% - 99% RH
Transmission Range: Over 330 feet
(100 meters) in open air RF 433MHz
Update Interval: About every 51 seconds
Power: 2-AA, LR6 batteries (not included)
Battery Life: Over 24 months
Dimensions: 1.58” L x 0.83” W x 5.08” H
(3.99cm L x 2.1cm W x 12.99cm H)
9
If you require additional assistance, get in touch with our
friendly customer support team based in La Crosse, WI.
Self Help: bit.ly/513-1429thv2_support
Online: bit.ly/contact_techsupport
Phone: 1.608.782.1610
Our knowledgable customer support team is available:
Mon-Fri 8am-6pm CST
We’re Here to Help SCAN HERE
Additional Info
and Support
Ask questions, watch setup videos, and provide feedback on our social media
outlets. Follow La Crosse Technology on YouTube, Twitter, Facebook and Instagram.
Stay in Touch!
Warranty & Patents
La Crosse Technology, Ltd. provides a 1-year limited time warranty
(from date of purchase) on this product relating to manufacturing defects in materials
& workmanship.
La Crosse Technology, Ltd, 2830 S. 26th St., La Crosse, WI 54601
For Full Warranty Details, Visit: www.lacrossetechnology.com/pages/warranty
Patents: www.lacrossetechnology.com/pages/patents
Designed in La Crosse, Wisconsin •Made in China •Printed in China •DC082423
10
Care & Maintenance
When batteries of dierent brand or type are used together, or new and old
batteries are used together, some batteries may be over-discharged due to
a dierence of voltage or capacity. This can result in venting, leakage, and
rupture and may cause personal injury.
•Do not mix Alkaline, Lithium, standard, or rechargeable battteries.
•Always purchase the correct size and grade of battery most suitable for
the intended use.
•Always replace the whole set of batteries at one time, taking care not to
mix old and new ones, or batteries of dierent types.
•Clean the battery contacts and also those of the device prior to battery
installation.
•Ensure the batteries are installed correctly with regard to polarity
(+ and -).
•Remove batteries from product during periods of non-use. Battery
leakage can cause corrosion and damage to this product.
•Remove used batteries promptly.
•For recycling and disposal of batteries, and to protect the environment,
please check the internet or your local phone directory for local recycling
centers and/or follow local government regulations.
This product can expose you to chemicals including acrylonitrile, butadiene, and
styrene, which are known to the State of California to cause cancer and birth de-
fects or other reproductive harm.
For more information, go to: www.P65Warnings.gov
CA WARNING:
