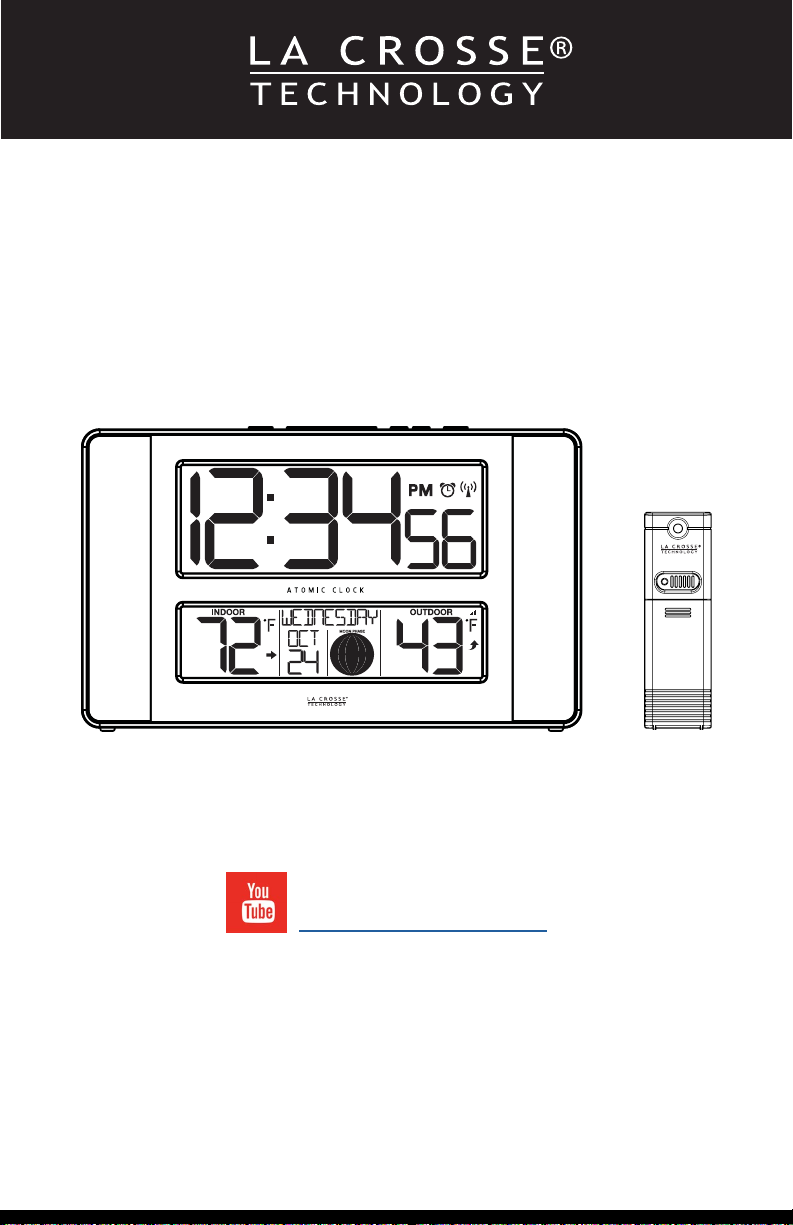

La Crosse Technology 513-1417v4 Manual de usuario

Atomic Digital Clock

with Temperature and Moon Phase

Model: 513-1417v4

D.C. 070617

For online video support:

http://bit.ly/LaxTechTalk

Setup

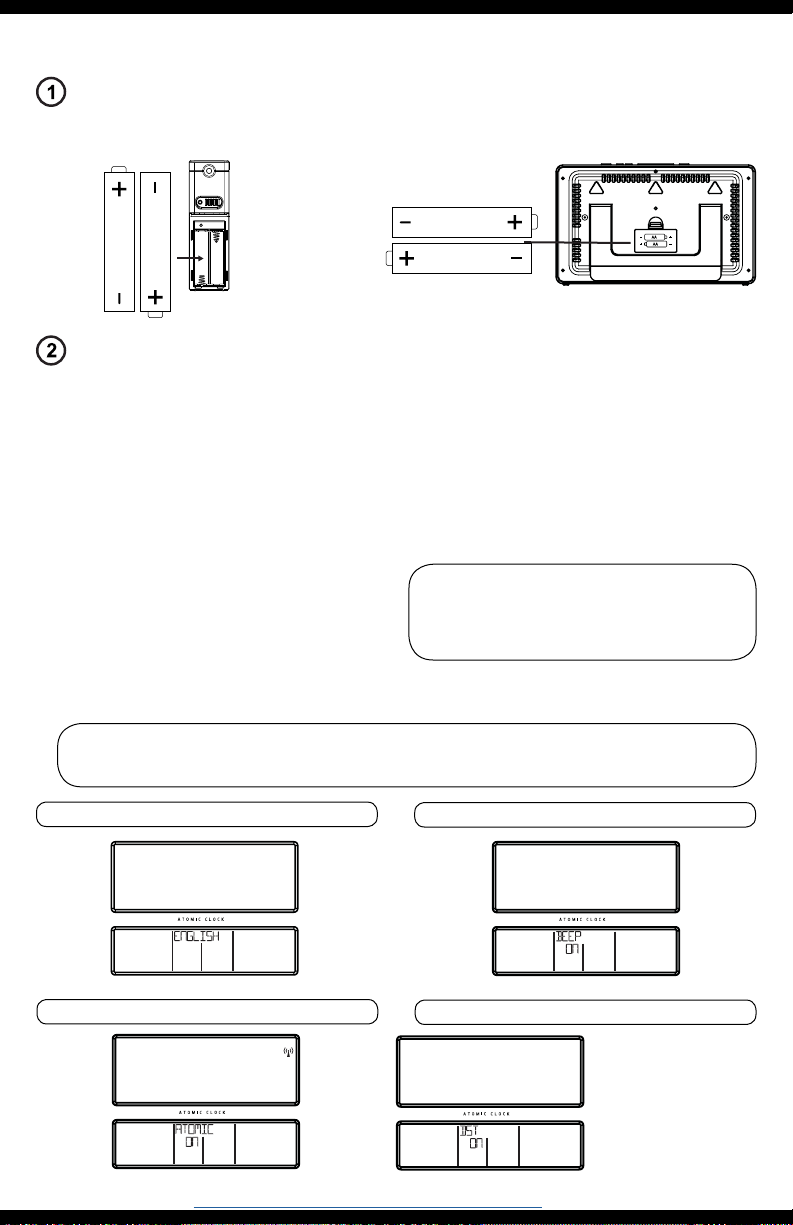

Power up. Insert 2-AA batteries into the sensor, then into the

clock. Observe the correct polarity.

Congure basic settings. Hold the SET button for 3 seconds to

enter settings menu. Use the +/- buttons to adjust and SET to

conrm.

Setting order:

1. Language: English | Español

2. Beep ON | OFF

3. Atomic ON | OFF

4. DST ON | OFF (Daylight Saving Time)

5. Time Zone

6. Hour

7. Minutes

8. Year

9. Month

10. Date

11. Fahrenheit | Celsius

Note: When Español is selected, weekday and sub menu

instructions will be in Spanish. Calendar order: Day, Month, Year.

English | Español Beep ON | OFF

Atomic ON | OFF DST ON | OFF

Page | 1 www.lacrossetechnology.com/support 513-1417v4

Note: When the Atomic setting

is set to OFF, the menu will skip

to item 6, your Hour setting

Time Zone Hour

AST

EST

CST

MST

PST

AKT

HAT

Atlantic

Eastern

Central

Mountain

Pacific

Alaskan

Hawaiian

Time Zone

Minutes Year

Month Date

Fahrenheit | Celsius

Atomic Time

• The station will automatically search for the atomic time signal at

UTC 7:00, 8:00, 9:00, 10:00, and 11:00.

• Press and release the SET button to search manually for atomic time

signal.

• Press the SET button to select daylight saving time ON/OFF. If you

do not observe DST, use the +/- button to turn OFF the Daylight

Saving Time Indicator.

• For information about WWVB visit: http://bit.ly/AtomicTime

Place outdoor sensor outside in the shaded location and enjoy

your weather information.

513-1417v4 www.lacrossetechnology.com/support Page | 2

Note: When setting the hour,

AM indicates times before 12:00

(noon) and PM indicates time

after 12:00 (noon).

Display icons

AM | PMLow Battery Alarm | Snooze

Atomic Time Fahrenheit | Celsius

Trend Arrow Sensor Signal Strength

Hour Minutes

Time Alarm

Set: Hold the ALARM button for 3 seconds to enter alarm settings.

Use the +/- buttons to adjust and ALARM to conrm.

Deactivate | Activate: The alarm is active when set.

Press and release the ALARM button to deactivate or activate

the alarm. The clock icon will show when alarm is active.

Snooze: Press and release the SNOOZE button to silence the alarm

for 10 minutes. Snooze can be repeated.

Page | 3 www.lacrossetechnology.com/support 513-1417v4

Moon Phase

The moon phase is based on the lunar calendar and the Year, Month,

and Date settings set within this clock. Most Internet moon phase

calculations are based on the lunar calendar and can be categorized

into one of the following

New

Moon

Small Waxing

Crescent

Large Waxing

Crescent

First

Quarter

Small Waxing

Gibbous

Large Waxing

Gibbous

Full

Moon

Large Waning

Gibbous

Small Waning

Gibbous

Last

Quarter

Large Waning

Crescent

Small Waning

Crescent

HI | LO Temperature

• Press the PLUS button to view HI Temperature.

• Press again to view LO Temperature.

• Hold the PLUS button for 5 seconds to reset HI and LO

temperature.

Note: All records reset at midnight.

HI Temp LO Temp

Temperature Trend Arrows

The outdoor temperature trend indicators update every 15 minutes and

provide a 1 hour comparison of readings that took place every 15

minutes within that hour. The temperature will have to rise or fall by

2°F (1°C) or more within the hour for the arrows to change.”

Temperature rose Temperature is

unchanged

Temperature fell

513-1417v4 www.lacrossetechnology.com/support Page | 4

Sensor Reception

• Hold the - button 3 seconds to search for the sensor.

• The strength signal icon will ash until the sensor signal is received

or for 3 minutes if no signal available.

• The signal will show solid when connected to the sensor.

Low Battery Icon

Mount Temperature Sensor

• Battery icon by time-Change batteries in the clock.

• Battery icon by outdoor temperature-Change batteries in the sensor.

• Mount the outdoor sensor on a north-facing wall or in any

well-shaded area. Under an eave or deck rail is preferred.

• The maximum wireless transmission range to the forecast station is

over 300 feet (91 meters) in open air; this does not include barriers

such as walls or oors.

• Be sure the outdoor sensor is mounted vertically.

For personalized interaction

http://bit.ly/LaxTech_Facebook

Join the conversation

http://bit.ly/LaxTech__Twitter

Latest video content

http://bit.ly/LaxTech_YouTube

Pin and share

http://bit.ly/LaxTech_Pinterest

Page | 5 www.lacrossetechnology.com/support 513-1417v4

Position Clock

The clock has a pullout stand to sit on a desk or table, or openings on

the back to mount on a wall.

• For best Atomic time reception orientate the clock with the front or

the back facing Ft. Collins, Colorado.

• Choose a location 6 feet or more from electronics such as cordless

phones, gaming systems, televisions, microwaves, routers etc.

• Place within range of the outdoor sensor (300 feet open air).

Restart

When the outdoor readings show dashes:

• Bring the sensor in the house ve feet from the station.

• Remove batteries from the sensor, and the batteries from the clock.

• Press any button 20 times.

• After 15 minutes insert batteries into the sensor, and into the clock.

• Wait 15 minutes to establish a strong connection.

• Place sensor outside in shaded location.

Indoor

Outdoor

Range

Update

Power

Battery Life

Dimensions

32 ˚F to 122 ˚F | 0 ˚C to 50 ˚C

-40 ˚F to 140 ˚F | -40 ˚C to 60 ˚C

Over 300 ft. (91 meters) RF 433MHz (open air)

Every 58 seconds

Clock: 2 AA (LR6, IEC) batteries not included

Sensor: 2 AA (LR6, IEC) batteries not included

12 months with reputable batteries

Clock: 11.10” W x 1.14” D x 6.75” H

(28.19 W x 2.89 D x 17.15 H cm)

Sensor: 1.57” L x 0.79” W x 5.12” H

(13.0 X 3.98 X 2.0 cm)

Specications

513-1417v4 www.lacrossetechnology.com/support Page | 6

Warranty and Support

Care and Maintenance

• Do not mix old and new batteries

• Do not mix Alkaline, Standard, Lithium or Rechargeable Batteries

• Always purchase the correct size and grade of battery most suitable for intended use.

• Replace all batteries of a set at the same time.

• Clean the battery contacts and also those of the device prior to battery installation.

• Ensure the batteries are installed with correct polarity (+ and -).

• Remove batteries from equipment which is not to be used for an extended period.

• Promptly remove expired batteries.

La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of

purchase) on this product relating to manufacturing defects in materials & workmanship.

Before returning a product, please contact our friendly customer support or visit our

online help:

Phone: 1-608-782-1610

Online: www.lacrossetechnology.com/support

View full warranty details online at:

www.lacrossetechnology.com/warranty_info.pdf

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-

ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy,

and if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device must not be co-located or operating in conjunction with any other antenna or transmitter.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

Caution!

The manufacturer is not responsible for any radio or TV interference caused by unauthorized changes or

modications to this equipment. Such changes or modications could void the user authority to operate the

equipment.

using electronic, mechanical or chemical process without the written permission of the publisher. This booklet

may contain errors or misprints. The information it contains is regularly checked and corrections are included

in subsequent

editions. We disclaim any responsibility for any technical error or printing error, or their consequences.

All trademarks and patents are recognized.

Canada Statement

This device complies with CNR Industry Canada license -exempt devices.

Operation is subject to the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that may cause undesired operation of

the device.

FCC Statement

Page | 7 www.lacrossetechnology.com/support 513-1417v4
