Kyocera TASKalfa 2420w Manual de usuario

2420 / 9124 / 8124

Hardware Operation Guide

(1)

Thank you for purchasing the Multi-Function Printer this machine.

This Hardware Operation Guide contains functional and operational explanations for .

Please read this Hardware Operation Guide carefully before using the printer.

Please keep this Hardware Operation Guide for future reference.

1. When this product is installed in North America.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

2. When this product is installed in Europe

This equipment complies with the requirements in Pub.22 of CISPR Rules for a Class B

computing device.

Operation of this equipment in a residential area may cause unacceptable interference to radio

and TV reception requiring the operator to take whatever steps are necessary to correct the

interference.

Do not install Machine around other electronic equipment or other precision instruments.

Other devices may be effected by electrical noise during operation.

If the Machine is installed near other electronic equipment, such as a TV or a radio,

interference to said equipment, such as noise or flickering, may occur.

Use a separate power line and install the PRINTER as far as possible from said equipment.

The International ENERGY STAR ® Office Equipment Program is an international program that

promotes energy saving through the penetration of energy efficient computers and other office

equipment. The program backs the development and dissemination of products with functions that

effectively reduce energy consumption. It is an open system in which business proprietors can

participate voluntarily. The targeted products are office equipment such as computers, monitors,

printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos are

uniform among participating nations.

The symbol shown indicates that this product conforms to Directive

2002/96/EC of the European Parliament and the council of 27 January

2003 on waste electrical and electronic equipment (WEEE) and does not

apply to countries outside of EU.

This machine is an ENERGY STAR qualified multifunction device.

The symbol shown indicates that this product conforms to

SJ/T11364-2006 of People’s Republic of China Electronic

Industry Standard and does not apply to countries outside of

People’s Republic of China.

The symbol shown indicates that this product conforms to GB

18455-2001 11364-2006 of National Standard of the People’s

Republic of China and does not apply to countries outside of

People’s Republic of China.

(2)

Safety Warnings

The following warnings are very important in order to safely use this product.

These notes are important in preventing danger to the operator or operation of the printer.

The following symbols are found throughout the USER’S Manual and have the following meaning:

WARNING

This WARNING mark means that there is a possibility of death or serious

injury if you ignore or do not follow the said instruction.

CAUTION

This CAUTION mark means that there is a possibility of injury or physical

damage if you ignore or do not follow the said instruction.

When marked with this symbol, “DO NOT ATTEMPT”

When marked with this symbol, “pay close attention to”

(3)

WARNING

1. The Power source should be as follows:

120 V Specification Model:

120V plus/minus10%, 50/60Hz, 15A or higher

230 V Specification Model:

220-240V plus6% or minus10%, 50/60Hz, 10A or higher

2. Use a circuit with a dedicated breaker.

3. Install the product as close to the wall outlet as possible.

4. If you wish to move the printer, please contact your service personnel.

Ground the product with a correct ground source or you may be electrically

shocked.

1. Do not plug in the printer into a multi-wire connector in which some other

equipment is plugged into.

It may cause a fire due to outlet overheating.

2. Do not damage the Power Cord by stepping on or placing heavy items

on it.

If the Power Cord is damaged, it may cause a fire or you may receive

an electric shock. REPLACE THE CORD IF DAMAGED!

1. Do not put a flower vase, a flowerpot or any water-filled item on the

product.

Spilt water could cause a fire or an electric shock.

2. If the product generates an abnormal smell or noise, turn it off and

unplug it from the wall electrical outlet immediately.

1. Do not remove the screw and do not open the cover if not instructed to

do so in this User’s Manual. If you ignore this warning, you may be burnt

or receive an electric shock due to a hot item or electrically charged part

inside of the printer.

2. Do not disassemble or tamper with the printer.

It may result in a fire or an electrical shock.

Do not throw the toner into a fire or other sources of heat, as it can

explode.

(4)

CAUTION

There are hot items inside of the printer.

Take great care not to touch these items when you remove mis-fed media.

Do not pull the cord when you unplug the printer as you may damage the

Power Cord.

Do not install the printer in a humidified room or a dusty room.

Also, do not install the printer on an unstable floor as injuries may occur.

1. Unplug the printer before you move it.

The power cord may be damaged and it may result in a fire or electric

shock.

2. If you do not use the printer for a long duration (holidays, company

shutdown) turn off and unplug the printer from the outlet for safety.

Ventilate the room well if you print in a small area.

The shipment package includes several tools (Wrench, etc) that are

designed for only unloading, installing, uninstalling the machine.

Use only for intended purpose.

Chapter 1 Before Use1-1

Chapter 1

Before Use

page

1. 1 Installation Requirements 1-2

1. 2 Originals Prohibited from Duplication 1- 3

1. 3 Features 1-4

1. 4 Specifications 1-5

1. 4. 1 General 1- 5

1. 4. 2 Printer part 1- 7

1. 4. 3 Scanner part 1- 8

1. 5 Appearance 1-9

1. 5. 1 Front view 1- 9

1. 5. 2 Rear view 1-10

1. 6 Specifications for the Scan Original 1-11

1. 7 Specifications for the Printing Paper 1-14

1. 7. 1 Papers not available to use 1-14

1. 7. 2 Keeping the paper in the custody 1-15

1. 7. 3 Treatment against environmental condition 1-16

Chapter 1 Before Use1-2

1. 1 Installation Requirements

The following conditions are required for installation of the equipment.

1. POWER SOURCE should be rated as follows.

120 V Specification Model: 120V plus/minus 10%, 50/60Hz, 15A or higher

230 V Specification Model: 220-240V plus 6% or minus10%, 50/60Hz, 10A or higher

2. The equipment must be on an exclusive circuit.

3. The outlet must be near the equipment and easily accessible.

I Norge: Kan kobles til IT strøm distribusjonssystemer.

1. Make sure to connect this equipment to a grounded outlet.

2. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near

the equipment and shall be easily accessible.

The site temperature range = 10 to 32 degrees Centigrade, with the humidity between

15% to 85% RH. (NON CONDENSING)

Keep the printer away from water sources, boilers, humidifiers or refrigerators.

1. The installation site must not have open flames, dust or ammonia gases.

2. The equipment must not be exposed to the air vents from air conditioners.

It may affect the image quality.

3. The equipment should not be exposed to the direct sunlight.

Please draw curtains to block any sunlight.

When you open the Movable Unit, do not expose the Photoconductive Drum

to strong (intense) light as this will damage the Drum.

Ozone will be generated while this equipment is use, although the quantity generated

is within safe levels. (see certifications)

Ventilate the room, if required.

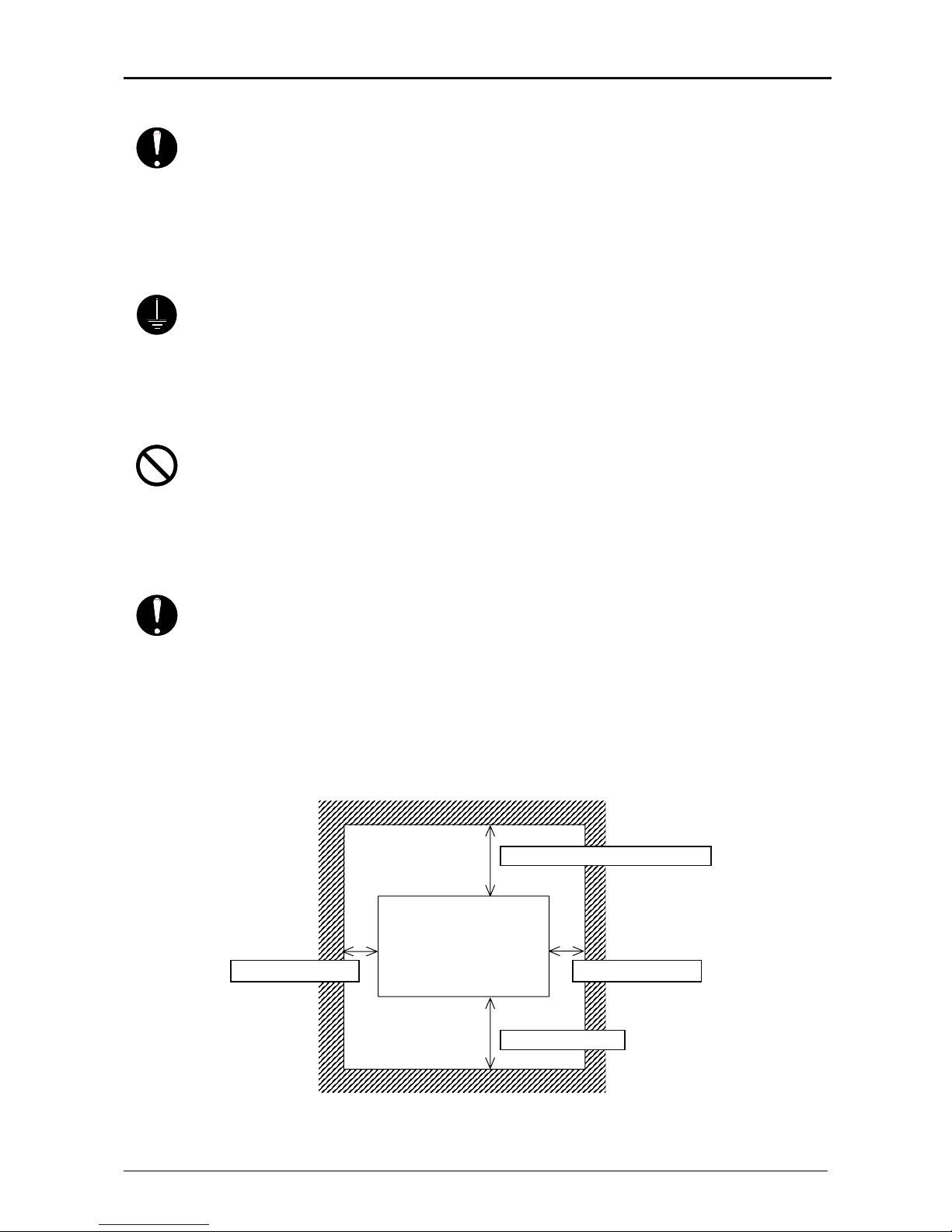

Keep ample room around the equipment to ensure comfortable operation.

(Refer to the following figure.)

The equipment must be leveled and the floor strength must be ample to sustain the

weight of the equipment.

This machine

10cm/4” or larger

(Front)

(Rear)

20cm/8” or larger with no option

10cm/4” or larger

20cm/8” or larger

Chapter 1 Before Use1-3

1. 2 Originals Prohibited from Duplication

It is not necessarily allowed to copy every kind of original.

You may be punished by the law if only you possess the copy of some kind of original.

We recommend you to consider enough before you copy such original.

[Originals prohibited from copying by the law]

1. It is not allowed to copy Currency (Bill, Money, Bank Note, etc.), Government issued

Negotiable Instruments (National Bonds, Security, Local Debt Bonds, etc.).

2. It is not allowed to copy Foreign Currency or Foreign Negotiable Instruments.

3. It is not allowed to copy unused postal stamps or government postcards without permission

to make replica from Government.

4. It is not allowed to copy Government issued revenue stamps, certificate stamps which are

prescribed by Liquor Tax Act or the Commodity Tax Act.

[Special items to be cared]

1. It is warned by the government to copy private issued securities (stock certificate, draft,

check, goods ticket, etc.), commutation ticket or book of tickets, excluding that some specific

company copies such originals as many as it requires for its own business.

2. We recommend you not to copy freely such originals as government issued passport, public

or private issued licenses, automobile inspection certification, IDs and tickets like pass or

meal.

Reference Law Prohibited items to copy

Regulations to control fake currency and

Bond.

Currency (Bill, Money, Bank Note, etc.),

Government issued Negotiable Instruments

(National Bonds, Security, Local Debt Bonds,

etc.)

Control Law against Forged & faked

Foreign Currency, Bill, Bank Note and Bond

Foreign Currency or Foreign Negotiable

Instruments

Forged postal stamps control law Unused postal stamps or government postcards

Forged revenue stamps control law Government issued revenue stamps, and

certificate stamps prescribed by Liquor Tax Act

or Commodity Tax Act

Currency similarity securities Control Law Private issued securities (stock, draft, check,

goods ticket, etc.), commutation or book tickets

[Originals protected by the copyright]

It is prohibited to copy such originals as book, music, paintings, printed copy, maps, drawings,

movie and pictures which are protected by the copyright, except for personnel or family use or

similar purpose.

Chapter 1 Before Use1-4

1. 3 Features

(1) This machine is a Multi-Function Printer for scan, copy and print large format documents. Some

of these features may be optional.

(2) Front loading - front delivery structure saves the installation space.

(3) Various media source; roll media feeding (1 roll), cut sheet manual feeding, Paper Tray multiple

cut sheet feeder (option).

(4) A dedicated printer stand offers easy print handling with the print basket. This machine is also

suitable for your office layout as a desktop MFP.

(5) The operation speed is 40mm/s (2.9 D landscape / 2.8 A1 landscape per minute).

(6) The maximum print width is 914mm / 36” wide, and the minimum one is 210mm or 8.5”.

The maximum print length is 2,400mm (for A0 / 36” wide media), and the minimum one is

297mm or 11”.

(7) Up to 600dpi print resolutions with an enhanced scanning system produces the highest quality

images controlled by an advanced Image Process System.

(8) The combination of Contact Development System and mono-component minute toner can

produce a high definition line, distinctive grayscale and consistent solid black.

The HDP process generates no Waste Toner.

(9) Easy access to USB port allows users to provide efficient productivity by using “File to Print” /

“Scan to USB” (option).

(10) 2 inch core plain paper support

Chapter 1 Before Use1-5

1. 4 Specifications

1. 4. 1 General

Subject Specification

Model 2420 / 9124 / 8124

Configuration Console

Power consumption

(Maximum)

1500w (120 V Specification Model)

1600w (230 V Specification Model)

(Including Scanner & Controller Unit)

Power consumption

(Low power mode)

13w or less (120 V Specification Model)

13.5w or less (230 V Specification Model)

Acoustic noise Idling Max. 51db

Printing Max. 60db

(impulse sound excluded) EN ISO 7779

Ozone Max. 0.05ppm (Measurement method under UL Standard)

Dimensions 1245mm (Width) x 833mm (Depth) x 1174mm (Height)

(including Stand)

Weight About 144kg / 318lbs (Stand excluded)

Environmental condition

for usage

Temperature: 10 to 32 degrees Centigrade / 50 to 89.6 F

Humidity: 15 to 85% RH

Interface Network Interface (10 BASE-T / 100 BASE-TX / 1000 BASE-T)

Rating input power 120 V Specification Model:

120V plus/minus 10%, 50/60Hz, 12A

230 V Specification Model:

220-240V plus 6% or minus 10%, 50/60Hz, 6.5A

NOTE

The above specifications are subject to change without notice.

Otros manuales para TASKalfa 2420w

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Kyocera

Kyocera

Kyocera TASKalfa 181 Manual de usuario

Kyocera

Kyocera KM-C2520 Manual de usuario

Kyocera

Kyocera TASKalfa 181 Manual de usuario

Kyocera

Kyocera TASKalfa 356ci Manual de usuario

Kyocera

Kyocera ECOSYS FS-C2126MFP Manual de usuario

Kyocera

Kyocera ecosys M2640idw Manual de usuario

Kyocera

Kyocera PE-MF2 Manual de usuario

Kyocera

Kyocera FS-1028MFP DP Manual de usuario

Kyocera

Kyocera FS-1028MFP DP Manual de usuario

Kyocera

Kyocera ECOSYS M8124cidn Manual de usuario

Kyocera

Kyocera KM-6030 Manual de usuario

Kyocera

Kyocera TASKalfa 8001i Manual de usuario

Kyocera

Kyocera FS-1016MFP Manual de usuario

Kyocera

Kyocera FS-1016MFP Manual de usuario

Kyocera

Kyocera FS-9100DN - B/W Laser Printer Manual de usuario

Kyocera

Kyocera FS-C2026MFP Manual de usuario

Kyocera

Kyocera TASKalfa 3050ci Manual de usuario

Kyocera

Kyocera KM-2560 Manual de usuario

Kyocera

Kyocera KM-C850 Manual de usuario

Kyocera

Kyocera ECOSYS FS-3640MFP Manual de usuario

Kyocera

Kyocera TASKalfa 266ci Manual de usuario

Kyocera

Kyocera ECOSYS FS-C8520MFP Manual de instalación y funcionamiento

Kyocera

Kyocera Ecosys M2235dn Manual de usuario

Kyocera

Kyocera TASKalfa 3010i Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Sharp

Sharp MX-2310U Guía

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario
