Kyocera FS-5800C Manual de usuario

BeforeYou Start

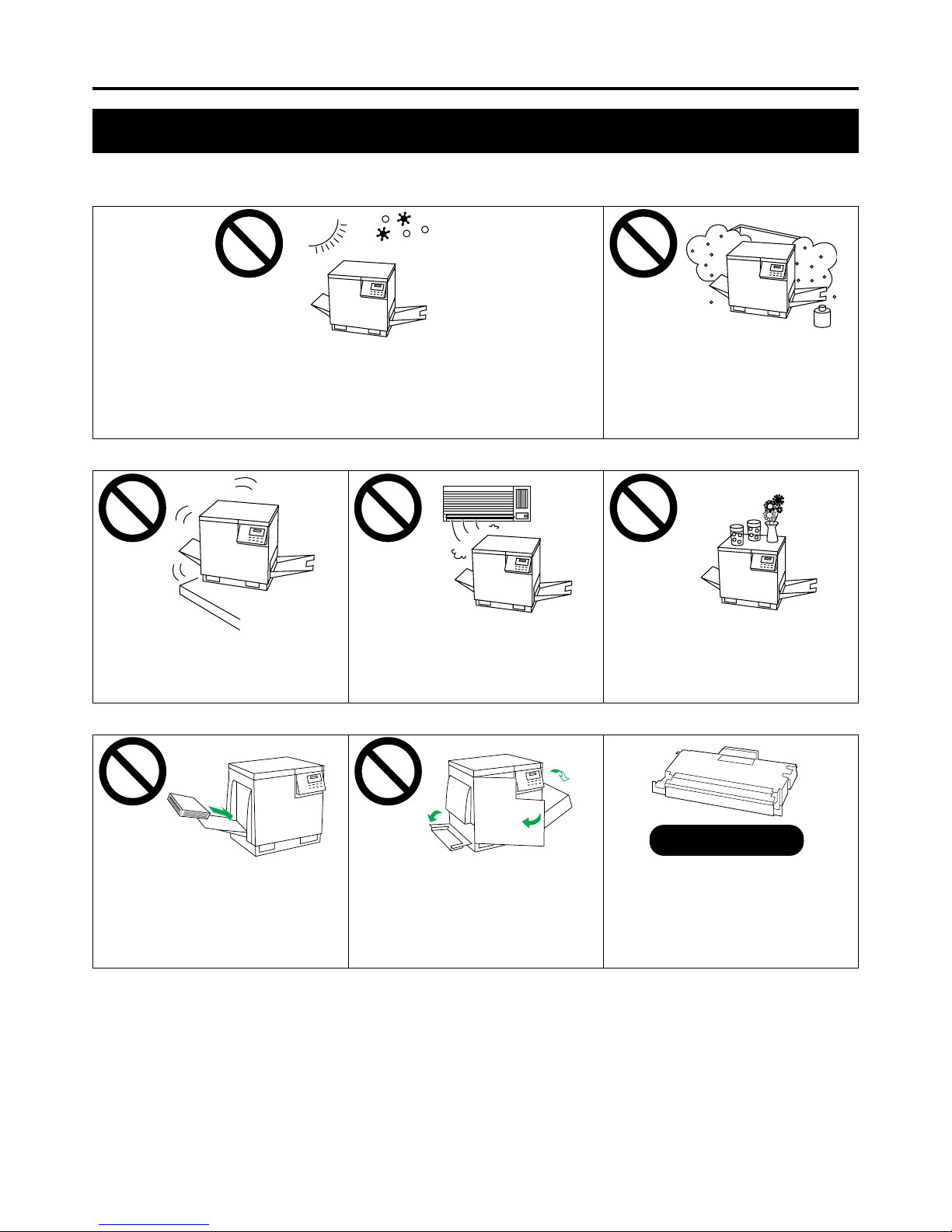

Cautions

To avoid machine malfunction, do not use the equipment under the following conditions:

• Direct exposure to sunlight

• Extremely high or low temperature [temperature range: 10˚C to 32.5˚C

(50˚F to 90.5˚F)]

• Extremely high or low humidity (humidity range: 20% to 80% RH)

• Condensation due to rapid change of temperature

• Areas of poor ventilation

• Areas of high dust or chemical

fume concentration (solvent etc.)

• Unstable or unlevel surfaces • Directly in front of air

conditioning vents • Liquids near the equipment

• Too much media which exceeds

the limit mark on the guide of

the tray.

• Front/right/left covers opened

while the printer is operating. It

may cause a media jam.

• We strongly recommend to use

only the original Kyocera toner

developer. Use of Kyocera toner

developer assures the intended

long term reliability of the printer.

Genuine or Original

BeforeYou Start

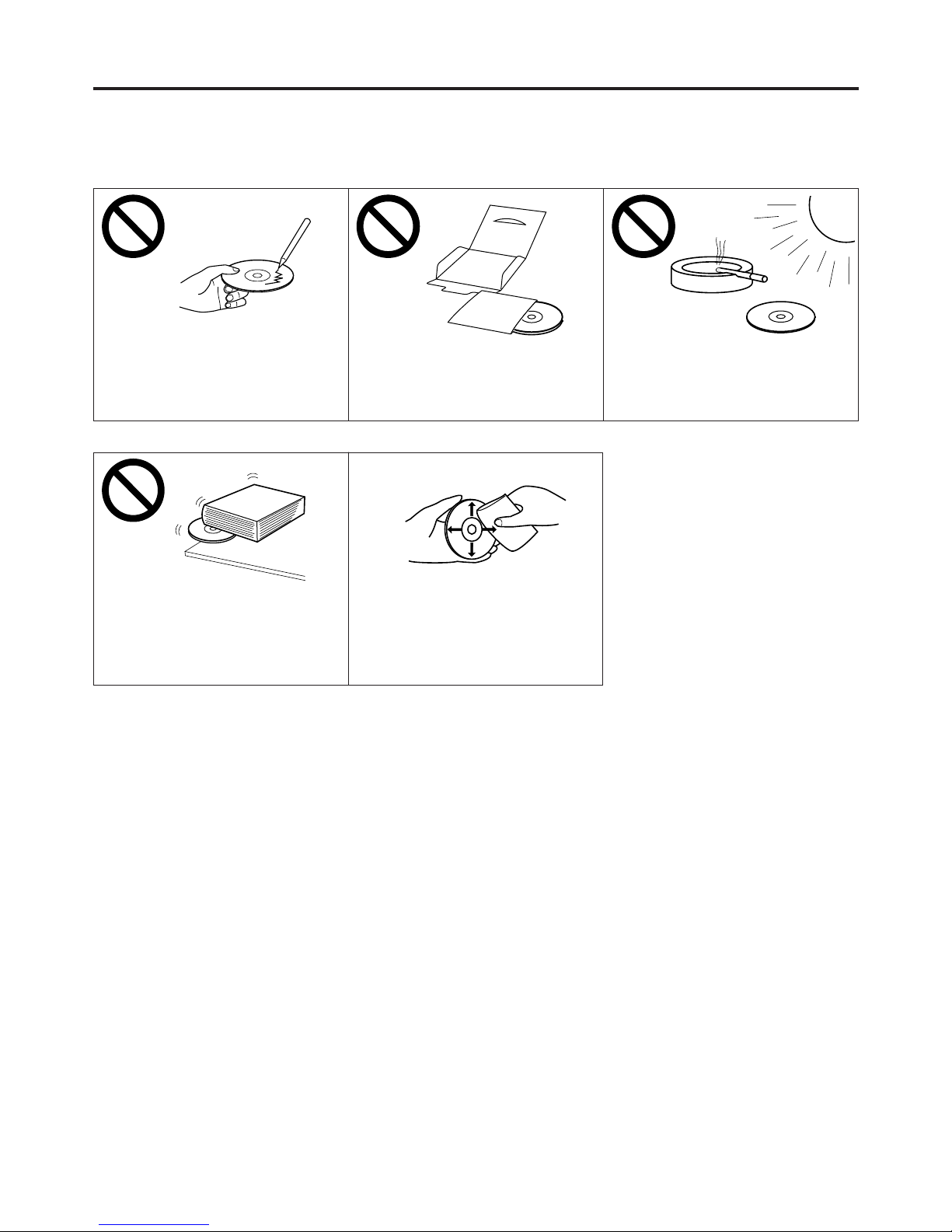

■CD-ROM

To prevent the CD-ROM from accidental damages:

• Do not touch or write on the

surface of the disc. • Do not leave the disc out of the

protective case. • Do not leave the disc in direct

sunlight or near heat sources.

• Do not place heavy objects on the

disc. • To clean the disc, hold the disc

by its edges and wipe it from the

center to the edges with a dry,

soft cloth.

■Static Electricity Damage

To prevent static electricity damage to any of the following components, touch a grounded metal surface, such as the

printer’s bare metal frame prior to touching the component.

• The interface connectors: Parallel and optional network card

• Electrical components, connectors inside the printer and any components on the optional boards (RAM expansion

board, network interface board, etc.)

• The connector pins on the optional paper feeder for the printer

■Interface Cable

Always use a shielded interface cable. Use of an unshielded cable can result in radio interference with data.

■Waste Disposal Method

Waste material may be dumped or incinerated under conditions which meet the applicable environmental

regulations.

BeforeYou Start

Features

The FS-5800C Colour Laser Printer provides fast, high-quality colour printing on plain

paper, plus the ease of operation and high performance you expect from a laser printer.

Some of its features include:

■High quality

Resolution

Maximum 1200 dpi*

(*KPDL emulation only, with SIMM options installed)

■High speed

Continuous printing on various sizes of paper

Full-colour mode: Maximum 3.5 ppm (pages per minute)

Monochrome mode: Maximum 14 ppm

■Easy operation

Printer driver

Easily print full-colour documents.

BeforeYou Start

System Requirements

To operate the FS-5800C effectively, refer to the following:

CPU: More than Pentium

(133 MHz or faster CPU is recommended.)

Operating System: Windows 3.1*1 / Windows 95*2 / Windows NT*3

RAM: 16 MB or more (More than 32 MB is recommended.)

Free disk space: 100 MB or more

Virtual memory: 16 MB or more (More than 32 MB is recommended.)

Display: Video card that can display more than 256 colours.

(A video card that can display more than 32,000 colours is

recommended.)

Drive: CD-ROM drive

*1 Microsoft®Windows®operating system Version 3.1 (hereafter Windows 3.1)

*2 Microsoft®Windows®95 operating system (hereafter Windows 95)

*3 Microsoft®Windows®NT 3.51/4.0 operating system (hereafter Windows NT)

Interface

■Parallel interface requirement

Interface

Based on the IEEE1284 standard(An ECP compatible paral-

lel port is recommended for Windows 95. To turn on the ECP

mode, use the computer’s BIOS setup. Refer to the comput-

er’s manual for details.)

■Network interface requirements

Manufacturer Model Applicable country

HBM HB-7SNMP Available in UK and France

Ethernet DPI EcoLAN 2000E Available in USA and Japan

SEH IC59-ETHER-KYO2 Other countries

Token Ring SEH IC69-Token-KYO2 All countries

See your nearest dealer of the manufacturer for availability.

BeforeYou Start

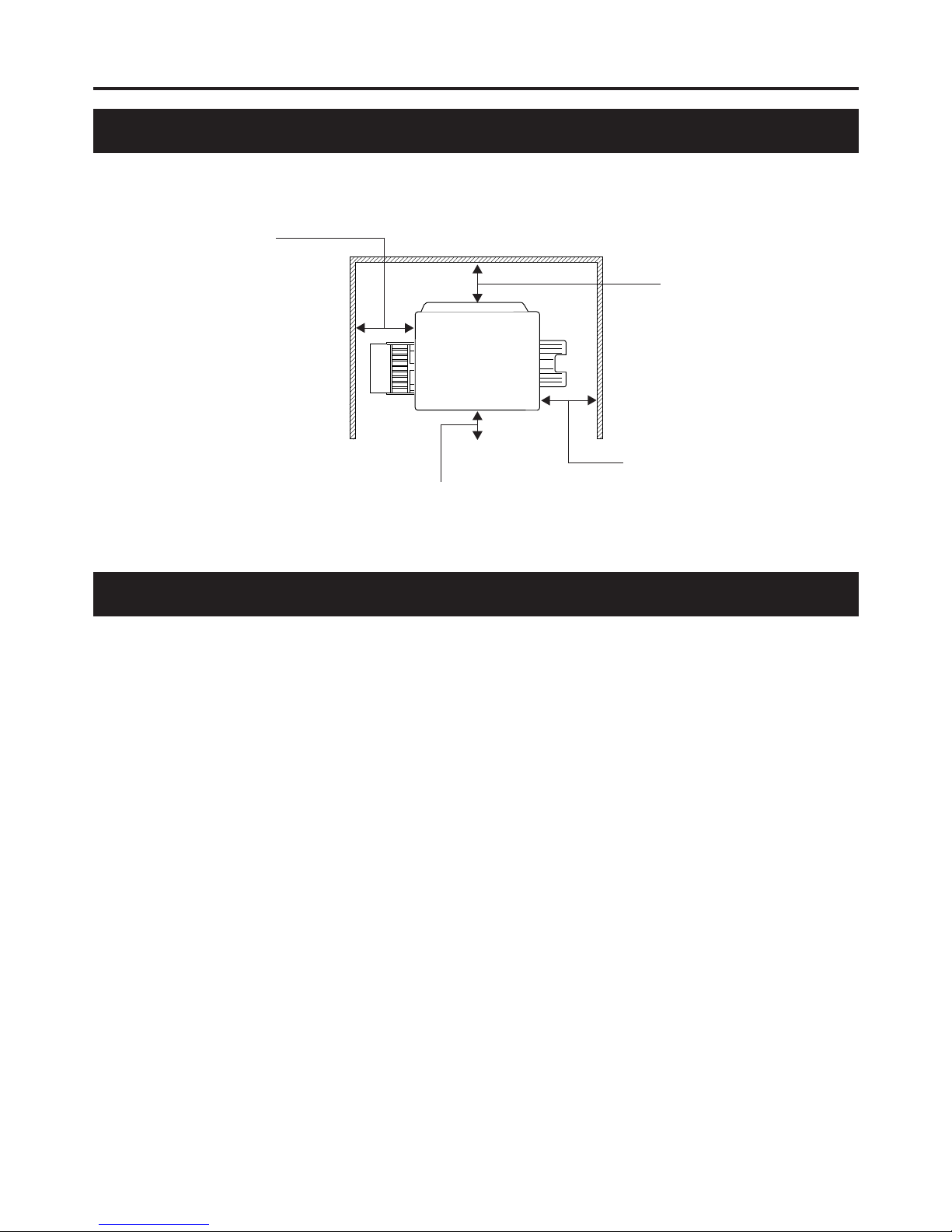

Minimum Space Requirements

Power Source

• The voltage level of the power source must not vary more than ±10% from the voltage

level marked on the nameplate (located on the back of the unit).

• Do not use an extension cord.

• Do not use a line conditioner, transient suppressor or surge protector as it may cause a

machine error.

Left Right

Rear

35 cm (13.8”)

Controller Board

Opening Space

45 cm (17.7”)

Multi-Purpose Tray

Opening Space

60 cm (23.6”)

Front cover opening space

50 cm (19.7”)

Media tray Opening

Space

BeforeYou Start

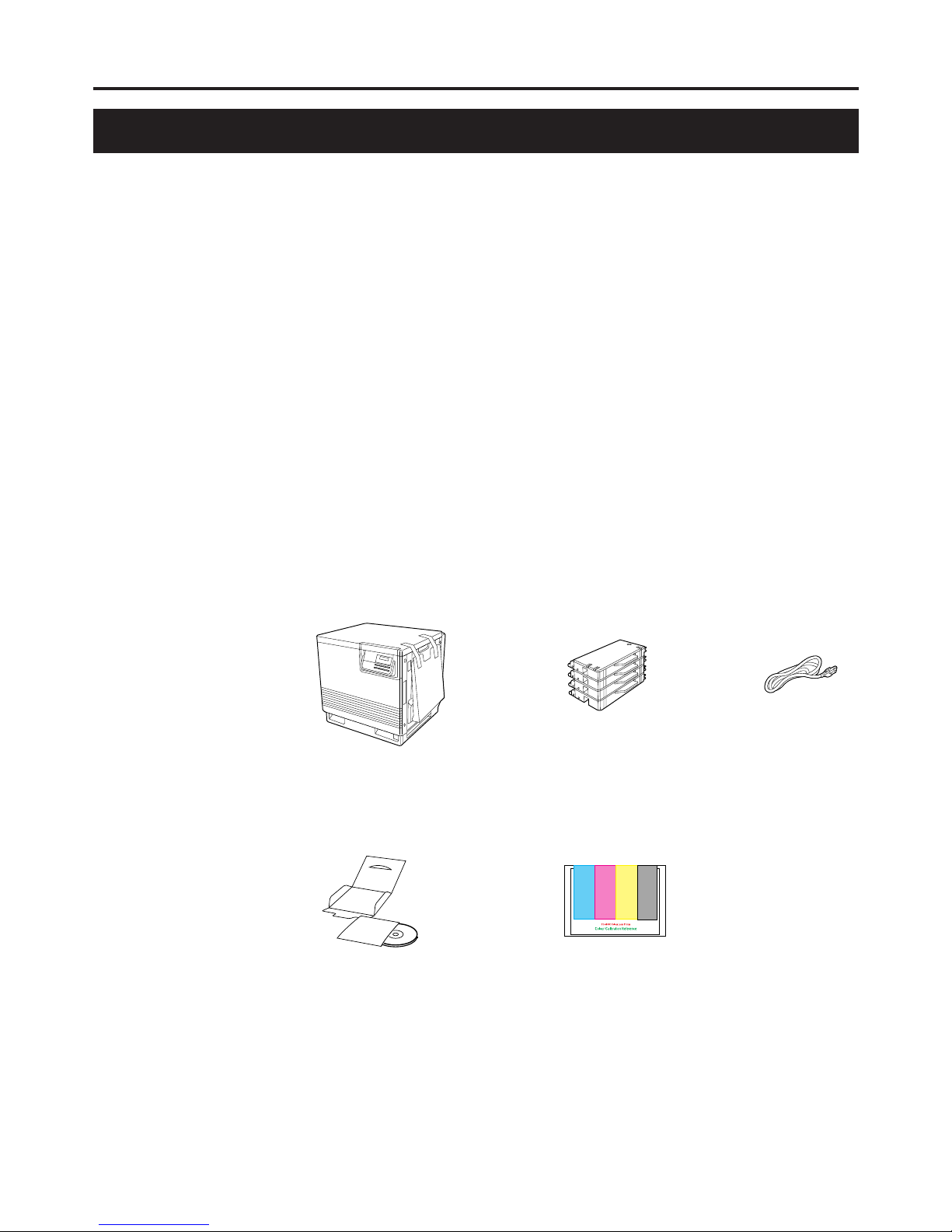

Unpacking

Make sure that all of the items shown below were provided and have not been damaged.

Report damage or shortages to the reseller from which the unit was purchased.

Note:

Save the original carton and packing materials for future shipping and transporting of

the unit. They have been specifically designed to protect the equipment during

shipment.

1. Printer (Colour imaging unit, Fuser kit, Paper cassette and Output tray are

included.)

2. Toner developers (black, cyan, magenta, and yellow)

3. Power cord

4. Kyocera Digital Library (Manuals, drivers, utilities) CD-ROM

5. Colour Calibration Reference card

123

BeforeYou Start

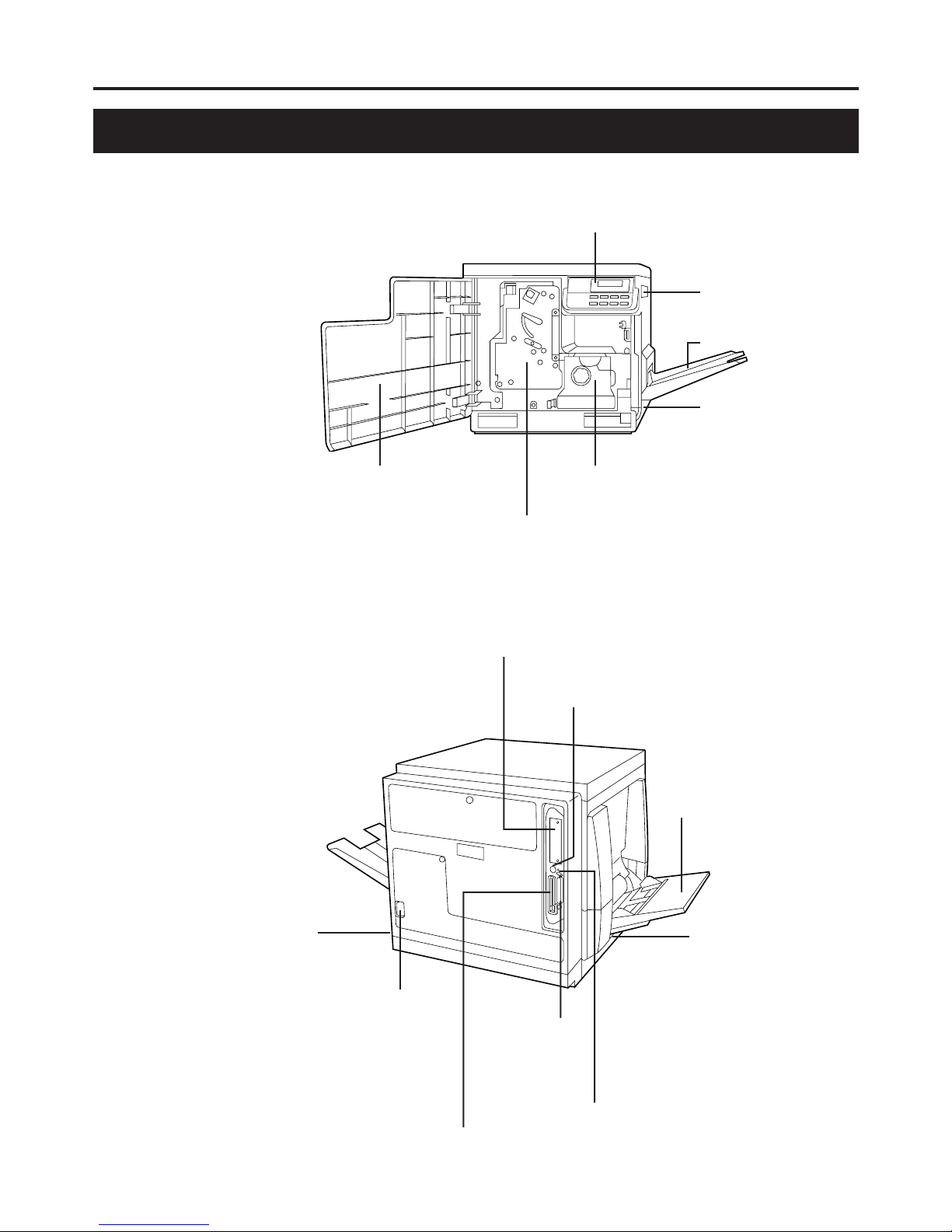

Part Names

■Front side view

■Rear side view

Front cover

Operation panel

Imaging unit

( ☞P. 12)

Fuser

( ☞P. 80)

Right side cover

Output tray

Media cassette

( ☞P. 16)

Power switch

( ☞P. 25)

Network interface card slot

Multi-purpose (MP) tray

( ☞P. 20)

Left side cover ( ☞P. 19)

[Media thickness switch*

( ☞P. 19)

Parallel interface

connector

( ☞P. 24)

AC inlet

( ☞P. 24) *Accessible by opening

the left side cover

Serial interface connector

( ☞P. 25)

Memory card connector

( ☞P. 51)

Harddisk access indicator

BeforeYou Start

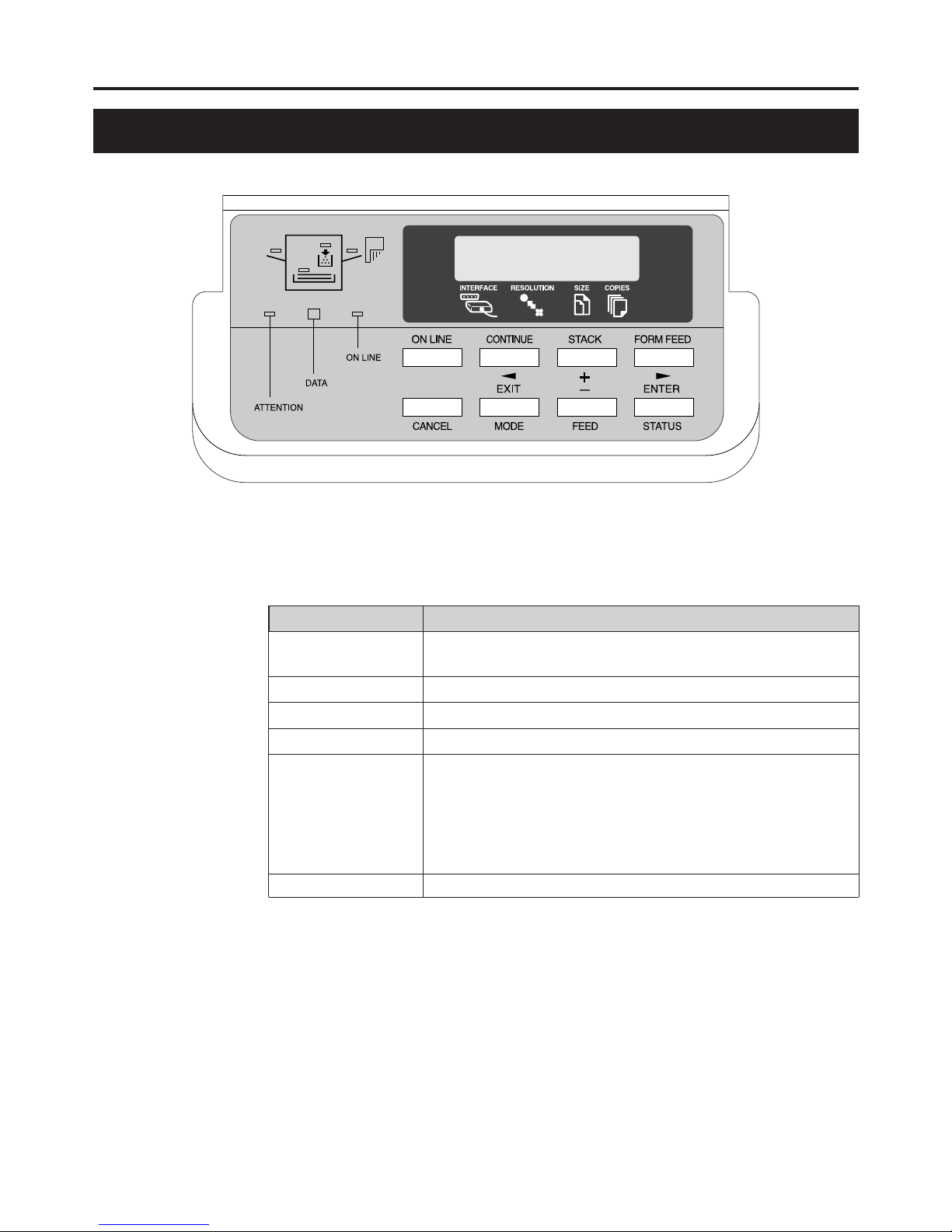

Control Panel Overview

Message Display

The message display displays the printer’s operational mode. Messages which are

displayed and their meanings are given in the table below.

Message Meaning

Self test The printer is self-testing after power-up and is not ready to

print.

Please wait The printer is warming up and is not ready to print.

Ready The printer is ready to print.

Processing The printer is processing print data or in the middle of printing.

Waiting The last page remains unprinted. The printer waits awhile and

eventually generates a form feed allowing the last page to be

printed. (The length of time depends on the form feed timeout

setting.) The printing will begin immediately when the Form

Feed key is pressed. If a memory card is being used this can in-

dicate the printer is waiting for data to be written (☞P. 51).

FormFeed TimeOut An automatic form feed has been generated.

Ready

PAR 600 A4 001

BeforeYou Start

Interface Indicator

The interface indicator indicates the interface over which data is currently being received

or was last received. The current interface is indicated by one of the following messages:

Display Description

PAR Parallel interface

SER Serial interface

OPT Optional interface (if a network interface card is installed)

Note:

The display will blink while the printer is receiving data and continue blinking until

the interface is released, even after data transmission is finished.

Resolution Indicator

This shows the current printing resolution in either 1200 or 600 dpi (dot-per-inch).

Paper Size Indicator

This indicator indicates the paper size of the cassette currently selected. The following

abbreviations are used to indicate the paper sizes:

Indicator Paper Size

A4 ISO A4 (21 ×29.7 cm)

EX Executive (7-1/4×10-1/2inches)

B5 JIS B5 (18.2 ×25.7 cm)

LT Letter (8-1/2×11 inches)

LG Legal (8-1/2×14 inches)

b5 ISO B5 (17.6 ×25.0 cm)

Copy Indicator

This indicator indicates the number of copies to print from 001 to 999. This number is

reduced as printing proceeds.

BeforeYou Start

ON LINE

DATA

ATTENTION

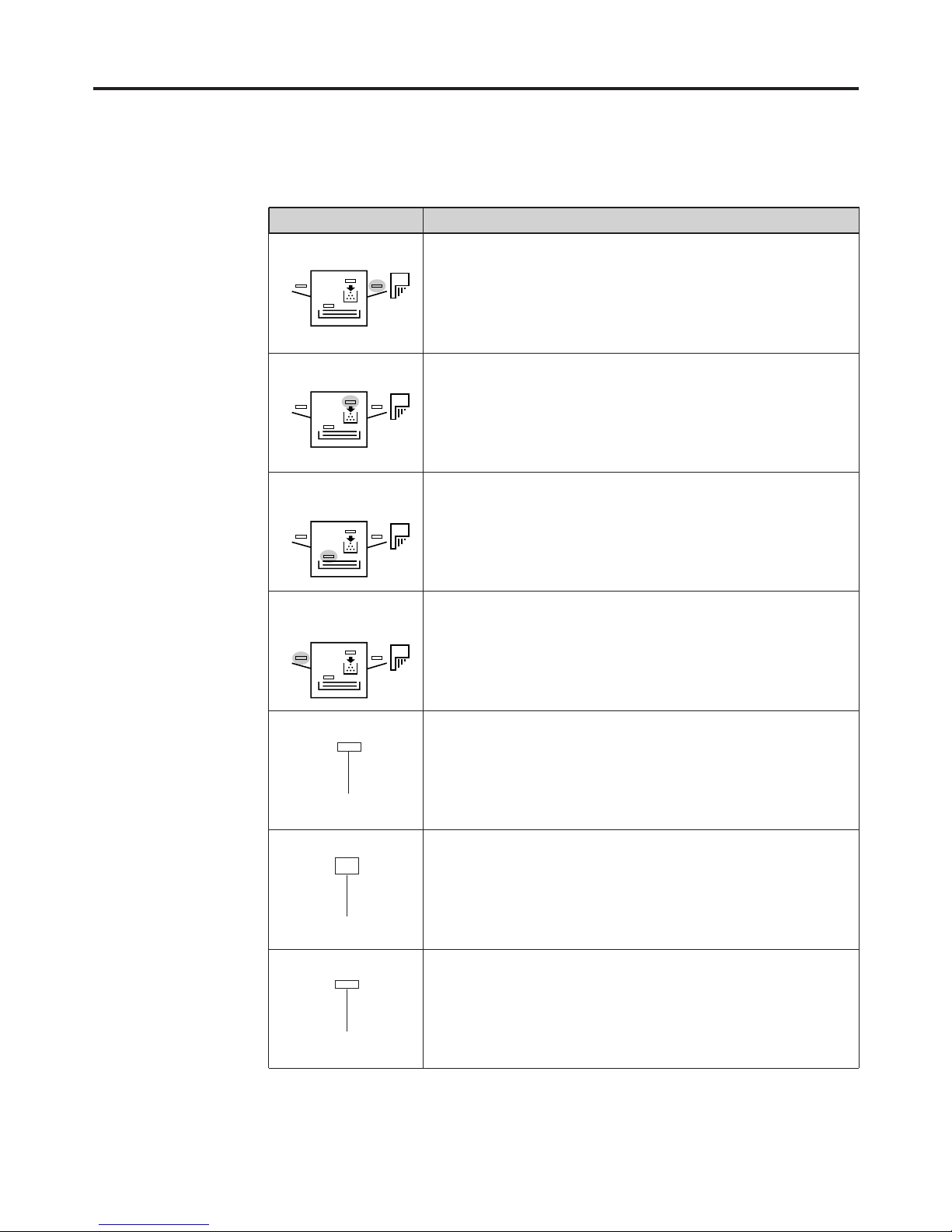

Symbolic Indicator

This printer icon includes the indicators which show the following information regarding

the printer’s paper and toner status.

Name Description

Face-down indicator This indicates when printed pages are delivered to the output

tray in the face-down stack (correct order). The pages are deliv-

ered in the reverse order when this indicator is not lit. If flash-

ing, it indicates that paper is jammed on the output tray.

Toner indicator This indicates the status of toner supply in either colour of

cyan, magenta, yellow, or black. The toner supply is normal

when this indicator is off. If flashing, the toner supply is dwin-

dling. If this is lit, it indicates that the printer is out of toner

and not operative until the appropriate toner cartridge is re-

placed (☞P. 73).

Cassette feed This indicates paper is being fed from the media cassette.

indicator When flashing, it indicates that there is no media in the

cassette or that media is jammed in the media cassette.

Multi-purpose feed Indicates when media is fed from the multi-purpose feed tray.

indicator If this is flashing, it indicates that there is no media in the tray

or that media is jammed on the multi-purpose tray.

ON LINE indicator When lit, it indicates that the printer is on-line (The printer

prints received data). When this is off, the printer is offline

(The printer stores but does not print received data).

DATA indicator This indicator flashes when data is arriving at the printer’s in-

terface. When lit continuously, it indicates that data is being

processed for printing (or that data is being written to the

memory card).

ATTENTION indicator This indicator indicates a problem that may be resolved by the

user is taking place. When flashing, it indicates that the print-

er needs maintenance (☞P. 73). When lit, it indicates that the

printer cannot print due to an error.
