KWIK GOAL EVOLUTION Series Manual de usuario
140 Pacific Drive Quakertown, PA 18951
(P) 215-536-2200 / (P) 800-531-4252 / (F) 215-536-4309 / (F) 800-778-8869
Visit our website @ kwikgoal.com
2005, Rev. 2014 Kwik Goal Ltd.
ASSEMBLY INSTRUCTIONS FOR 2B3306 (W & SW), 2B3406 (W & SW) EVOLUTION GOALS
1. Unpack all parts and check for damage that may have occurred during shipping. If damage has occurred,
notify trucking company immediately. Lay out all parts. Remove all cardboard and packaging immediately.
Wet or damp packaging may damage contents.
2. Read through entire instruction before beginning assembly and installation.
Back Bottom Bar (1)
280”
Crossbar (1)
280”
Parts
NZ224 Rev. 08/11/14
Most Kwik Goal products carry a Lifetime Guarantee. For details or claims,
visit kwikgoal.com or contact customer service at 1-800-531-4252.
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
®
Part#
Goal#
UZ932
2B3306
2B3306W
2B3306SW
UZ965
2B3406
2B3406W
2B3406SW
Part#
Goal#
UZ892
2B3306
2B3306W
2B3306SW
UZ966
2B3406
2B3406W
2B3406SW
140 Pacific Drive Quakertown, PA 18951
(P) 215-536-2200 / (P) 800-531-4252 / (F) 215-536-4309 / (F) 800-778-8869
Visit our website @ kwikgoal.com
1998 rev 2009 Kwik Goal Ltd.
IMPORTANT GOAL SAFETY INSTRUCTIONS
READ CAREFULLY
1. Check for structural integrity and proper connecting hardware before every
use. Replace damaged or missing parts or fasteners immediately.
2. Safety/Warning labels must be clearly visible.
3. Securely anchor moveable soccer goals at ALL times.
4. Always instruct players, managers, coaches, trainers, teachers, maintenance
workers and all other personnel who might come in contact with the goal,
on the safe handling of and potential dangers associated with moveable
soccer goals.
5. Always exercise extreme caution when moving goals and provide adequate
manpower to move goals of varied sizes and weights. Moveable soccer goals
should only be moved by authorized personnel.
6. NEVER allow anyone to climb on the net or goal framework.
7. Moveable soccer goals should only be used on LEVEL fields, NEVER on a
slope or hill area.
8. Remove nets when goals are not in use.
9. Most tip-over injuries occurr when goals are left unattended. Anchor or
chain one goal to another or to nearby fence posts, dugouts, or any other
similar sturdy fixture when not in use. If this is not practical, store moveable
soccer goals in a place where children cannot have access to them.
10. Fully disassemble goals for seasonal storage.
NZ224 Rev. 08/11/14

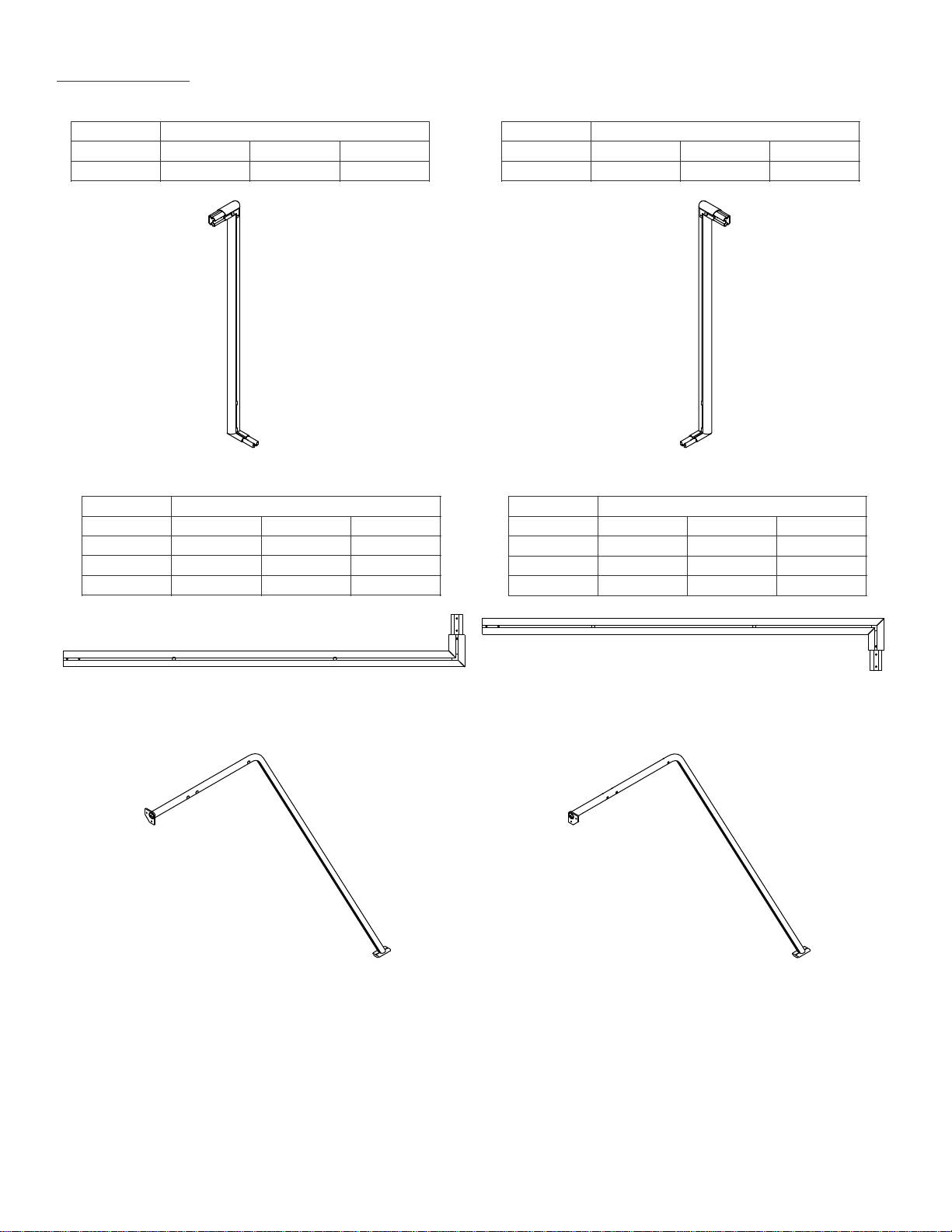

Left Post (1) Right Post (1)
Right Base (1) Left Base (1)
Right Backdrop (1)
(Part# UZ967)
Left Backdrop (1)
(Part# UZ968)
Parts - Continued
NZ224 Rev. 08/11/14
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Part#
Goal#
UZ863
2B3306
2B3306W
2B3306SW
UZ962
2B3406
2B3406W
2B3406SW
Part#
Goal#
UZ864
2B3306
2B3306W
2B3306SW
UZ961
2B3406
2B3406W
2B3406SW
Part#
Goal#
UZ891
2B3306
2B3306W
UZ963
2B3406
2B3406W
UZ1358
2B3406SW
UZ1360
2B3306SW
Part#
Goal#
UZ890
2B3306
2B3306W
UZ964
2B3406
2B3406W
UZ1357
2B3406SW
UZ1359
2B3306SW
Hardware
Note: Hardware may be packaged separately
in one or more boxes. Open all packages
before beginning assembly.
3/8“ x 1 1/2” Hex Bolt (Part# TZ106) (12)
3/8“ x 1 1/4” Hex Bolt (Part# TZ59) (8)
3/8" x 7/8" Hex Bolt (Part# TZ249) (4)
3/8“ Lock Washer (Part# TZ65) (24)
3/8“ Flat Washer (Part# TZ60) (24)
3/8" Square Nut (Part# TZ247) (8)
5/16“ x 1” Hex Bolt (Part# TZ121) (4)
5/16" Eyebolt (Part# TZ120) (2)
5/16" Flat Washer (Part# TZ269) (6)
5/16” Lock Washer (Part# TZ122) (4)
Assembly Tools
AND
Parts - Continued
NZ224 Rev. 08/11/14
Net Clip (100)
(Part# 10B3101 Pack of 100)
Channel Spacer (6)
(Part# UZ812)
Net (1)
(Part# 3B2162)
Post Brace (2)
(Part# UZ737)
Backdrop Brace (2)
(Part# UZ953)
Scissors
Ratchet with
1/2”, 9/16” & 3/4”
Sockets
1/2”, 9/16” & 3/4”
Wrenches
9/16
Net Strap (1)
(Part# 10B4406)
Ground Anchor (4)
(Part# 10B101 Pack of 4)
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Left Post
Right Post
Crossbar
3. Attach left post and right post to crossbar using channel spacers and 3/8” x 1 1/2” hex bolts. Note direction of
decals on crossbar before fastening. Place a 3/8” square nut in each side of the crossbar before inserting
channel spacer. Be sure connections are pressed firmly together before tightening hex bolts.
4. Insert one 3/8” square nut in slot located in each of the assembled posts.
NZ224 Rev. 08/11/14
3/8” X 1 1/2” Hex Bolt
Channel Spacer
3/8” Square Nut
3/8” Flat Washer
Right Post
3/8” Lock Washer
Crossbar
3/8” Square Nut
3/8” Square Nut Slot
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Bottom Bar
Left Base
Right Base
5. Attach left base and right base to back bottom bar using channel spacers and 3/8” x 1 1/2” hex bolts. Note
direction of decals on back bottom bar before fastening. Be sure connections are pressed firmly together
before tightening hex bolts.
6. 2B3306SW & 2B3406SW - skip to step 8, all other goals continue to step 7.
7. Insert two 3/8” square nuts into left base and right base. NOTE: If installing optional wheels (Part#
10B403), also include two threaded channel spacers from wheel option package in each base. To
prevent threaded channel spacers or square nuts from falling out during assembly, temporarily insert a 3/8”
hex bolt in last threaded hole of the threaded channel spacer or square nut and finger tighten only.
NZ224 Rev. 08/11/14
12"
Minimum
Temporary
3/8" X 1 1/4" Hex Bolt
3/8" Square Nuts
Left and Right Base
Threaded Channel Spacers (metal)
(For wheel option 10B403)
3/8" Square
Nuts
Channel Spacer
(plastic)
Bottom Bar
Right Base
3/8” X 1 1/2” Hex Bolt
3/8” Lock Washer
3/8” Flat Washer
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Threaded Channel Spacers (metal)
(For wheel option 10B403)
8. 2B3306SW & 2B3406SW ONLY
Insert two 3/8” square nuts into left base and right base at locations shown.
Insert square nuts
into slot and
slide in direction
shown
Left Base
Right Base
Bottom Bar
NZ224 Rev. 08/11/14
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
9. Lift and insert assembled bases into assembled posts. Fasten using channel spacers, front post braces, 3/8”
hex bolts and 3/8” square nuts. Be sure connections are pressed firmly together before tightening hex bolts.
NZ224 Rev. 08/11/14
Left Base
Crossbar
Lift
Lift
Bottom Bar
Left Post
Right Base
Right Post
Left Post
Right Base
Bottom Bar
Right Post
Left Base
Crossbar
3/8” Square Nut
Front Post
Brace
3/8” Flat Washer
3/8” Lock Washer
3/8” X 7/8”
Hex Bolt
3/8” X 1-1/2”
Hex Bolt
3/8” Flat Washer
Channel Spacer (plastic)
Base
3/8” Lock Washer
Front Post
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.

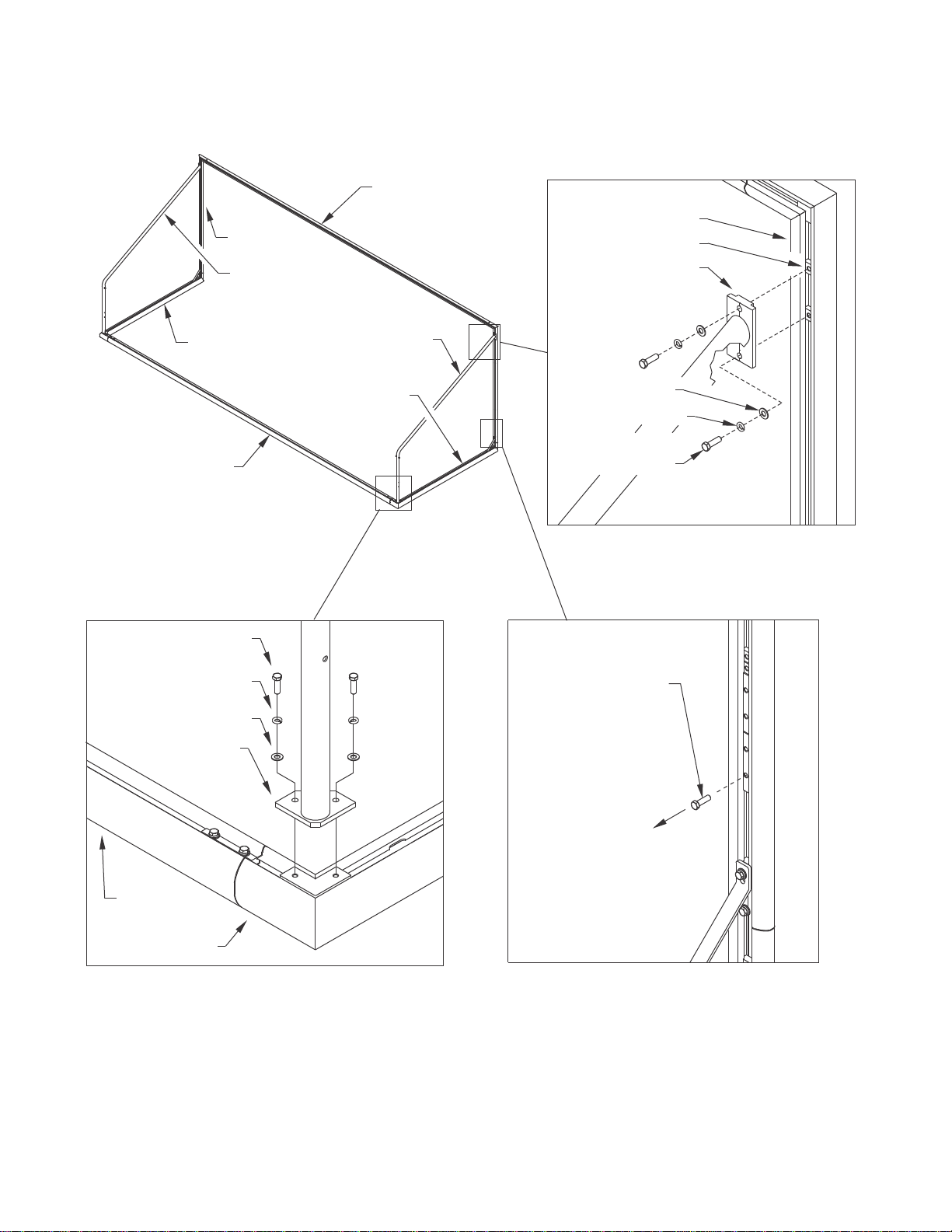

Crossbar
Left Post
Left Base
Right Backdrop
Back Bottom
Left Backdrop
Right Post
10. Remove 3/8” hex bolts used to temporarily secure fasteners to bases. Attach each backdrop to goal using
3/8” x 1 1/4” hex bolts.
NZ224 Rev. 08/11/14
Remove
3/8” X 1 1/4”
Hex Bolt and
use to attach
backdrop
3/8" X 1 1/4"
Hex Bolt
3/8" Lock Washer
3/8" Flat Washer
Right Backdrop
Crossbar
Right Post
3/8" X 1 1/4"
Hex Bolt
3/8" Lock Washer
3/8" Flat Washer
3/8" Square Nut
Right Base
Right Backdrop
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Right Post
Right Backdrop
Left Post
Left Backdrop
Left Base Right Base
Crossbar
Bottom Bar
5/16" X 1"
Eye Bolt
5/16" Flat
Washer
Right Backdrop
11. Attach backdrop braces using 3/8” x 7/8” hex bolts, 3/8” square nuts and 5/16” x 1” hex bolts. Attach eye
bolts to right backdrop and left backdrop.
NZ224 Rev. 08/11/14
3/8" X 7/8" Hex Bolt
5/16" X 1" Hex Bolt
3/8" Lock Washer
3/8" Flat Washer
Crossbar
5/16" Lock Washer
5/16" Flat Washer
Backdrop
Brace
Right Backdrop
Right Post
***CAUTION***
This goal has been designed to be used for the game of soccer only. Goal posts must be anchored AT ALL TIMES
and shall be secured against overturning. Do not climb on the net or goal framework at any time! All fastenings
must be checked to insure they are fully tightened before and after each use of this product. Goal posts not in use
must be disassembled and properly stored in a safe, secure area (See included Guidelines for Moveable Soccer Goal
Safety.). Assembled goal posts should not be left unattended. Remove nets when goals are not in use. Do not use
this equipment during the threat of high winds. Goal posts should be checked for safety before and after each use.
All warning and safety labels included with this product must be visible at all times.
Any modifications to this or any Kwik Goal product will void any and all warranties.
Este manual sirve para los siguientes modelos
4
Otros manuales de Deporte y aire libre de KWIK GOAL
KWIK GOAL
KWIK GOAL 2B3002 Manual de usuario
KWIK GOAL

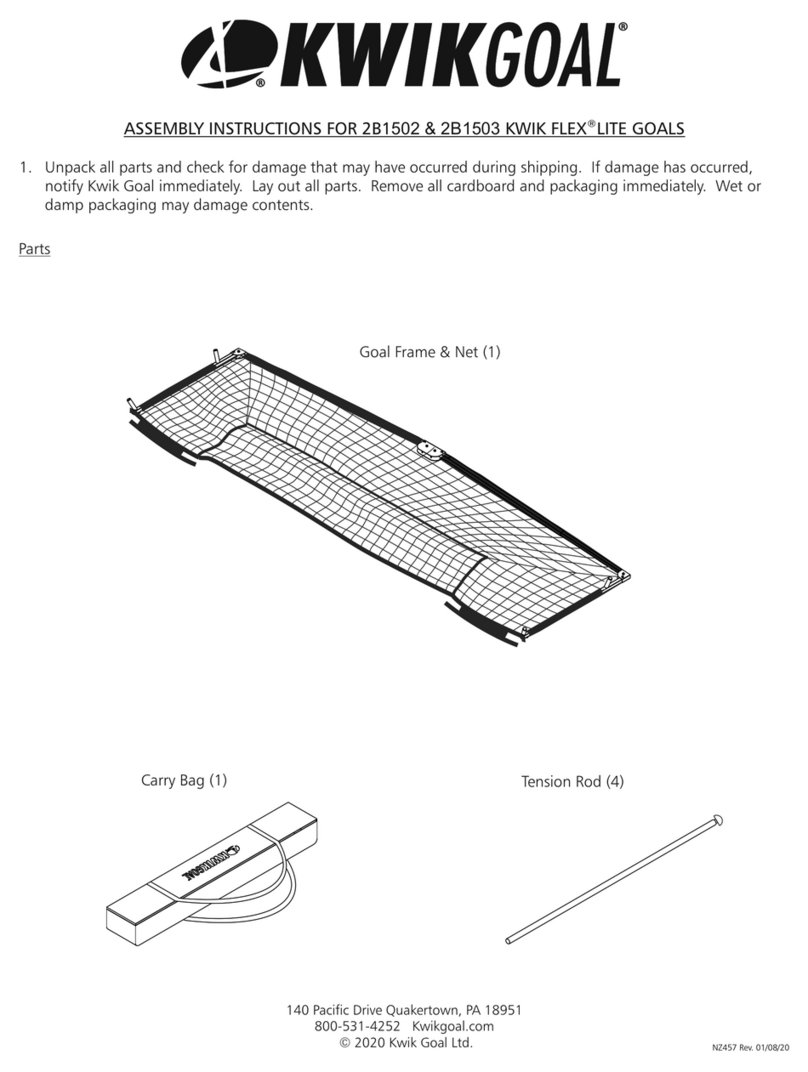

KWIK GOAL KWIK FLEX 2B1502 Manual de usuario
KWIK GOAL
KWIK GOAL 2B5004 Manual de usuario
KWIK GOAL
KWIK GOAL FUSION 2B3806 Manual de usuario
KWIK GOAL
KWIK GOAL FUSION 2B3804 Manual de usuario
KWIK GOAL
KWIK GOAL FUSION 2B3806SW Manual de usuario
KWIK GOAL
KWIK GOAL 2B6001 Manual de usuario
KWIK GOAL
KWIK GOAL 2B5001 Manual de usuario
KWIK GOAL
KWIK GOAL 2D301 Manual de usuario
KWIK GOAL
KWIK GOAL FUSION GOAL 2B3805 Manual de usuario
KWIK GOAL
KWIK GOAL FUSION 25B386512 Manual de usuario
KWIK GOAL
KWIK GOAL FUSION GOAL 2B3806 Manual de usuario
KWIK GOAL
KWIK GOAL 2B4003 Manual de usuario
KWIK GOAL
KWIK GOAL 2B9007 Manual de usuario
KWIK GOAL
KWIK GOAL 2B3024 Manual de usuario
KWIK GOAL
KWIK GOAL KWIK FLEX 2B1505 Manual de usuario
KWIK GOAL
KWIK GOAL 10B5303 Manual de usuario
KWIK GOAL
KWIK GOAL 2B1602 AFR-2 Manual de usuario
KWIK GOAL
KWIK GOAL 2B4006 Manual de usuario
KWIK GOAL
KWIK GOAL 2B3004 Manual de usuario
