Kustom KXB100 Manual de usuario

Congratulations on the purchase of your new Kustom bass amplier.

Your KXB Model draws on decades of amp design and manufacturing

experience at Kustom. This model was built from the ground up to offer

world-class tone, useful features and reliable performance. Inside this manual,

you’ll nd valuable information about the amp’s controls and specications.

Being familiar with its features will help you effectively dial in different tones.

We wish you many years of enjoyment with your Kustom amplier.

OWNER’S MANUAL

kustom.com

KXB100 BASS GUITAR AMPLIFIER

KXB100

FCC Statements

1. Caution: Changes or modications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

2. Note: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

kustom.com

ENGLISH

kustom.com

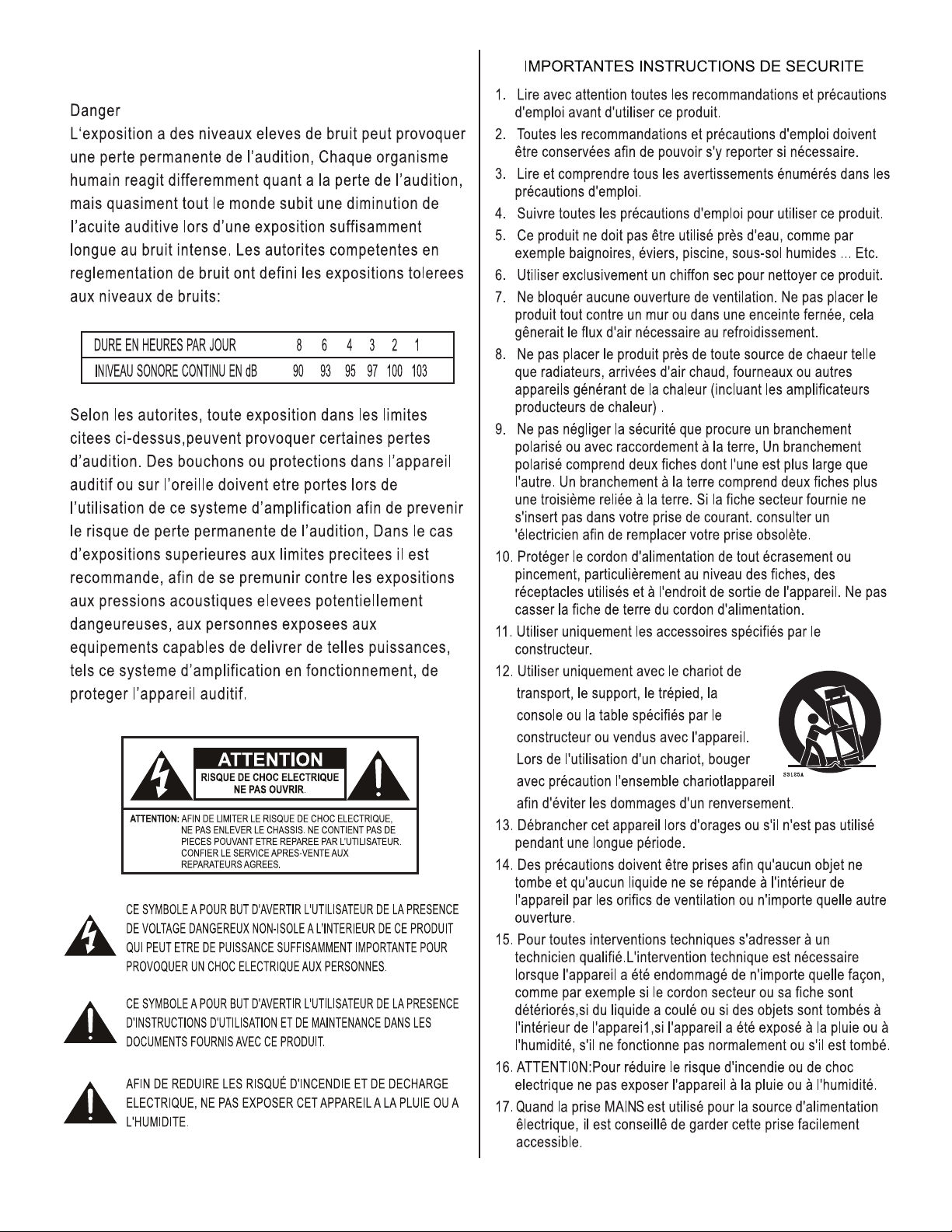

FRENCH

1. 0 dB Input: ¼-inch input that is intended for bass guitars with standard, passive electronics.

2. –6 dB Input: ¼-inch input that is optimized for bass guitars with active electronics.

3. Gain: Controls the input level to the preamp. Set so Clip indicator light is not lit, otherwise distortion may occur.

4. Volume: Controls the overall volume level of the amplier. Use in conjunction with the Gain control to obtain the

desired level.

5. Bass: This active control adjusts the lower frequencies to provide rich, full bass tones. It will boost or cut by 14 dB at

60 Hz.

6. Lo-Mid: This control adds thickness and body to your tone. It will boost or cut by 12 dB at 340 Hz.

7. Hi-Mid: This control adds punch to your overall tone. It will boost or cut by 10 dB at 2 kHz.

8. Treble: Increasing this control will add presence and attack to your bass tone. It will boost or cut by 15 dB at 10 kHz,

perfect for enhancing “slap” and pick playing.

9. Aux In: This is a 3-conductor, 1/8-inch, stereo jack that allows playback from a Compact Disc, MP3 player or other

audio device. The overall volume level will be determined by the audio device, so start with lower volume levels and

increase as needed.

10. Headphones: This is a 3-conductor, 1/8-inch input jack intended for headphone use. The amplier’s internal speaker

is disconnected when this jack is used.

11. Power Switch: This dual-function component is both an On/Off power switch and a status indicator light. When

illuminated, it shows that your amplier is ready to be played. To turn amplier on, press switch upward. To turn amp off,

press switch downward.

KXB100

1234678

kustom.com

5109 11

KXB100 Control Panel

kustom.com

KXB100

Power Cord: This supplies AC power to the amplier. If the cord becomes damaged, take the amplier to an authorized

service center for repair.

External Speaker: This is a two-conductor, ¼-inch external speaker jack. (Note: This jack is wired in series with the

amp’s internal speaker. Therefore, the internal speaker still functions when an external speaker cabinet is added. For this

reason, there is no minimum external speaker impedance load.)

Effects Loop Send: Use this 2-conductor, ¼-inch jack to connect to the input of an external effects processor or

equalizer. This jack can also be used as a Preamp Out.

Effects Loop Return: Use this 2-conductor, ¼-inch jack to connect to the output of an external effects processor or

equalizer. This jack can also be used as a Power Amp In.

Balanced Line Out: This XLR jack is used to connect the amplier to a mixer or other line level amplier. (Note: This

output is post-EQ and post- Effects Loop but is located before the Volume control.)

Direct Out Volume: This control sets the output level for the Balanced Line Out. Set in its lower ranges until necessary

volume has been determined.

Ground Lift: Activating this switch removes the ground connection on the Balanced Line Out jack. If necessary, use this

switch to eliminate hum.

KXB100 Back Panel

KXB100 Suggested Settings

The following suggested settings will help you dial in a variety of popular tones. Keep in mind, these are starting points to

get you up and running with your KXB amplier. Feel free to experiment to achieve your own signature sounds.

TRADITIONAL/VERSATILE TONE

In this setting, the amplier will deliver a traditional, yet versatile, electric bass sound. Whether you are playing Rock,

Country, Blues or Gospel, this setting will get you close. If you play with a pick and want less treble attack on the notes,

decrease the amount of high frequencies using the Treble control. If you need a deeper bottom end, increase the amount

of low frequencies using the Bass control. Adjust the amount of Midrange to best match the tone of your bass guitar and

how it ts into the overall sound.

FUNKY, SLAPPED TONES

This style of music needs a strong attack with lots of treble. Using less Midrange will produce the extra top end neces-

sary for this type of music. If you use a “slapping” thumb technique, add a bit more low end and extra volume – or less if

you really hit the strings hard.

ALTERNATIVE STYLE

These settings are designed for upper-end punch and edge that will cut through most any sound mix. This tone will work

well with pick or ngers. Make sure your bass guitar’s volume control is turned up all the way. Since you’re adding vol-

ume, be careful with the amount of Bass, Mid and Treble that you dial in, as it can also add some distortion to the sound.

kustom.com

KXB100

Kustom® KXB100 Specications

Output Power 100 Watts 4 Ohms at 10% THD+N

Speaker 1 X 15”

Custom Designed

4 Ohms

Input Impedance Dual Input 0 dB: 500K ohm, -6dB: 95K Ohm

Gain 72 dB Gain and Master at Max, All EQ at 12 o’clock

S/N Ratio -80 dB typical Below rated power

DIrect Output Electronically Balanced

XLR

Ground Lift Switch and Level control

Aux Input 1.2 V Sensitivity Stereo 3.5mm High Impedance

Headphone Output 15 mW @ 30 ohms

per channel

Stereo 3.5mm, 8 ohm minimum

Effects Loop 900 mV/1K Ohm output

Impedance

Effects Send, Gain @ 12 o’clock,

Master fully CW

900mV/22K Ohm input

Impedance

Effects Return, Gain @ 12 o’clock,

Master fully CW

Amplier Tone Controls 60 Hz +/- 15 dB

500 Hz +/- 10 dB

2 KHz +/- 10 dB

10 KHz +/- 15 dB

Power Requirements USA/Canada 120VAC/60Hz, 180W

Europe 230VAC/50Hz, 180W

UK 240VAC/50Hz, 180W

Australia 240VAC/50Hz, 180W

Japan 100VAC/50-60Hz, 180W

Dimensions/Weight cm3/Kilogram 59.7 (Height) X 47.6 (Width) X 38.1 (Depth),

24 Kilogram

Inches/Pounds 23.5 (Height) X 18.75 (Width) X 15.0 (Depth),

53 Lbs

kustom.com

KXB100 Signal Flow Diagram

kustom.com

19 November 2009

KXB100
