Kusam-meco KM 3060 Manual de usuario

G-17, Bharat Industrial Estate, T. J. Road, Sewree (W), Mumbai - 400 015. INDIA.

Sales Direct.: 022-24156638, Tel. : 022-24124540, 24181649, Fax : 022-24149659

Email : [email protected], Website : www.kusamelectrical.com

All Specifications are subject to change without prior notice

GENERAL SPECIFICATIONS :

AC Current : 0.01A ~ 1000A

AC Voltage : 1V ~ 750V

DC Voltage : 1V ~ 1000V

Resistance : 0.1W ~ 2MW

Frequency : 1Hz ~

rate : 3 reading/sec.

Polarity : Automatic.

Power Supply : 9V Alkaline Battery.

Dimension : 228(L) x 75(W) x 36(H)mm

Weight : approx 465 gms.(including battery).

2KHz

í Sampling

Test leads set, Users Manual, Battery &

Carrying Case.

Preliminary Data

— Display : 3 ½ digits LCD,1999 counts

● Jaw size : Φ40mm

● Date hold

● Black Light

● Resistance, Frequency test

● Diode & Continuity test

SPECIAL FEATURES :

An ISO 9001:2008 Company

MODEL KM 3060

ACCESSORIES :

An ISO 9001:2008 Company

Chhaya com/D/chhaya/my documents/chhaya/backup/catlog/New catlog/2015 new arrival catalogs/KM 3060.cdr

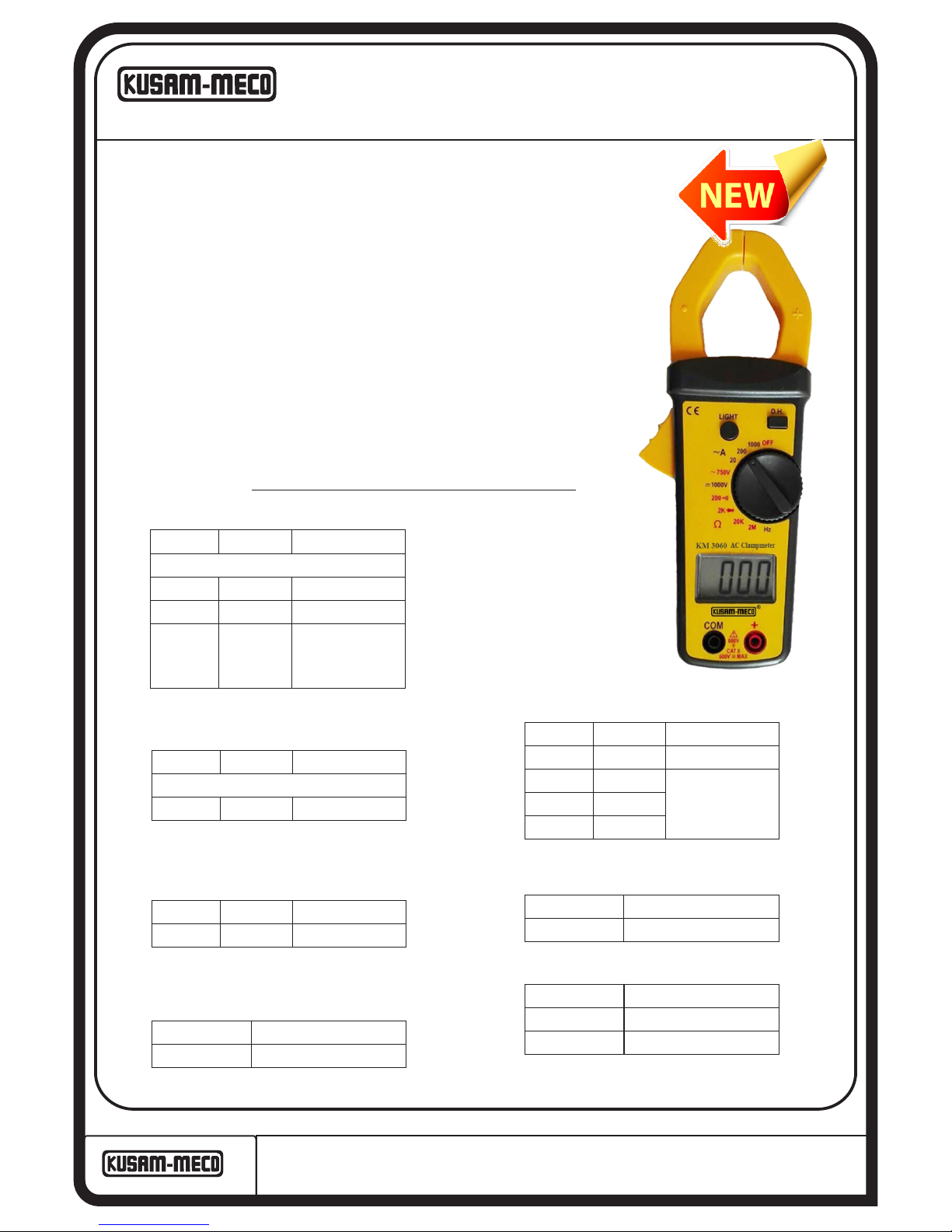

1000A AC DIGITAL CLAMPMETER

ELECTRICAL SPECIFICATIONS : KM 3060

AC CURRENT

Range

Overload Protection : 1200A within 60 seconds.

20 A

200 A

50Hz ~ 60Hz

1000 A

Accuracy

Resolution

± (3%rdg + 5dgts)

0.01 mA

± (2%rdg + 5dgts)

0.1 mA

± (2%rdg + 5dgts)

for 800A & below

± (3%rdg + 5dgts)

for others current.

1 A

AC VOLTAGE

Range

Overload Protection : 750V AC / DC on all ranges.

Input Impedance : 9MW

750 V

50Hz ~ 60Hz

Accuracy

Resolution

± (1.2%rdg + 10dgts)

1 V

DC VOLTAGE

Range

Overload Protection : 1000V DC / Peak AC on all ranges.

Input Impedance : 9MW

Accuracy

Resolution

1000 V ± (1%rdg + 1dgts)

1 V

RESISTANCE

Range

Overload Protection : 250V DC / rms AC on all ranges.

Accuracy

Resolution

200 W± (1.2%rdg + 5dgts)

0.1 W

2 KW

± (1%rdg + 5dgts)

0.001 KW

20 KW0.01 KW

2 MW0.001 MW

CONTINUITY TEST

Range

Overload Protection : 500V DC / rms AC

200 W

Buzzer Sound With resistance less than 50W

DIODE TEST

Test Current

Overload Protection : 500V DC / rms AC

Application : Display reading approx. Diode forward voltage value.

< 1.2mA

Open Circuit Voltage £ 3.2V

Relative Humidity max. 80%

FREQUENCY

Range Accuracy

1Hz ~ 2KHz ± (2.0% rdg + 5 dgts)

®®

AN ISO 9001:2015 COMPANY

MODEL - KM 3060

OPERATION MANUAL

DIGITAL CLAMP MULTIMETER

G 17, Bharat Industrial Estate, T. J. Road,

Sewree (W), Mumbai - 400 015. INDIA.

Sales Direct : (022) 24156638

Tel. : (022) 24124540, 24181649. Fax : (022) 24149659

Email : [email protected]

Website : www.kusamelectrical.com

LIST OF PRODUCTS

¬ Digital Multimeter ¬ Digital AC & AC/DC Clampmeter

¬ AC Clamp Adaptor ¬ AC/DC Current Adaptor

¬ Thermo Anemometer ¬ Thermo Hygrometer

¬ Distance Meter ¬ Digital Lux Meter

¬ Network Cable Tester ¬ Power Factor Regulator

¬ Earth Resistance Tester ¬ Digital Panel Meters

¬ DC Power Supplies ¬ High Voltage Detector

¬ Calibrators ¬ Gas Analysers

¬ Frequency Counter ¬ Function Generator

¬ Phasing Sticks ¬ Battery Tester

¬ Waterproof Pen Testers ¬ Solar Power Meter

¬ EMF Detector

¬ Wood, Paper & Grain Moisture Meter

¬ Transistorised Electronic Analog & Digital Insulation

Resistance Testers(upto 10 KV)

¬ Digital Sound Level Meter & Sound Level Calibrator

¬ Digital contact & Non-contact Type Tachometer

¬ Digital Non-contact (infrared) Thermometer

¬ Maximum Demand Controller/Digital Power Meter

¬ Digital Hand Held Temperature Indicators

® ®

WARRANTY

Each “KUSAM-MECO” product is warranted to be free from defects in

material and workmanship under normal use & service. The warranty

period is one year (12 months) and begins from the date of despatch of

goods. In case any defect occurs in functioning of the instrument,

under proper use, within the warranty period, the same will be rectified

by us free of charges, provided the to and fro freight charges are borne

by you.

This warranty extends only to the original buyer or end-user customer

of a “KUSAM-MECO” authorized dealer.

This warranty does not apply for damaged Ic’s, fuses, burnt PCB's,

disposable batteries, carrying case, test leads, or to any product which

in “KUSAM-MECO’s” opinion, has been misused, altered, neglected,

contaminated or damaged by accident or abnormal conditions of

operation or handling.

“KUSAM-MECO” authorized dealer shall extend this warranty on new

and unused products to end-user customers only but have no authority

to extend a greater or different warranty on behalf of “KUSAM-MECO”.

“KUSAM-MECO’s” warranty obligation is limited, at option, free of

charge repair, or replacement of a defective product which is returned

to a “KUSAM-MECO” authorized service center within the warranty

period.

THIS WARRANTY IS BUYER’S SOLE AND EXCLUSIVE REMEDY

AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED

WARRANTY OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR PURPOSE. “KUSAM-MECO” SHALL NOT BE LIABLE

FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL

DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, ARISING

FROM ANY CAUSE WHATSOEVER.

All transaction are subject to Mumbai Jurisdiction.

1. OPERATING FEATURES:

· AC Current0.01A to 1000A

· AC Voltage1V to 750V

· DC Voltage1V to 1000V

· Resistance0.1n to 2Mfl

· Continuity Test50c2±2552 with audio tone

· Diode TestSemiconductor PN junction

· Frequency1Hz-2KHz

° ° ° °

Calibration temperature of 18 C to 28 C (64 F to 82 F) at

relative humidity under 80%, unless otherwise noted.

2.1 AC Current

20A 10mA ±(3% of reading + 5 d)

200A 100mA ±(2% of reading + 5 d)

1000A 1A ±(2% of reading + 5 d)

for 800A and below

±(3% of reading + 5 d)

for others current.

Overload Protection 1200A within 60 seconds.

Jaw opening 2" (5cm)

Instruction Manual

This meter is completely portable, LCD, 31/2 digit clamp meter.

Designed for use by electricians, technicians, serviceman. It's

rugged structure design is good feeling to hold in operator's

hand and convenient to use.

TEST CERTIFICATE

This Test Certificate warrantees that the product has been

inspected and tested in accordance with the published

specifications.

The instrument has been calibrated by using equipment

which has already been calibrated to standards traceable

to national standards.

MODEL NO. ________________

KM - 3060

SERIAL NO. ___________

DATE: ___________

ISO 9001

REGISTERED

PASS

KUSAM-MECO

DIGITAL CLAMP MULTIMETER

Range Resolution Accuracy (50Hz-60Hz)

2.2 AC Voltage

750 V 1V ±(1.2% of reading + 10 d)

Input impedance :

Overload Protection :

9MW

750V AC/DC on all ranges.

2.3 DC Voltage

Range

Resolution Accuracy (50Hz-60Hz)

Accuracy (50Hz-60Hz)

Input impedance :

Overload Protection :

9MW

1000V DC/peak AC on

all ranges.

1000V 1V ±(1% of reading+ 1 d)

2.4 Resistance

200W±(1.2% of reading + 5 d)

2K0,20K0,2M0 ±(1% of reading + 5 d)

250VDC/rmsAC on all ranges

2.5 Continuity Test

200W

Buzzer sound With resistance less than 50W

Overload Protection 500V DC/rms AC

Range

3.4 Resistance and Continuity Measurements

3.4.1 Set the Function/Range switch to the resistance range or continuity

position.

3.4.2 Turn off the power from the circuit under test.

3.4.3 Connect the red test lead to the "VGA" jack and the black test lead to the

"COM" jack.

3.4.4 Touch the probes to the test points In ohms, the value indicated in the

display is the measured value of resistance. In continuity test, the beeper

sounds continuously, if the resistance is less than 50G.

3.5 FREQUENCY Measurement

3.5.1 Connect the red test lead to the "VG" jack and the black test lead to the

"COM" jack.

3.5.2 Set the switch to Hz range and connect the test leads to the frequency

source to get the frequency value.

4. Battery Replacement

—

A 9-volt "transistor" batterr TEDA1604, IEC 6F22) is the

supply power. The " " appears on the LCD display when

replacement is needed. Open the meter and lift off the front

case. Then,remove the battery from battery contacts and

replace with a new one

2.6 Diode Test

Test current < 1.2mA

Open circuit voltage < 3.2V

Overload Protection 500V DC/rms AC

Application Display reading approx.

Diode forward voltage value

Relative Humidity max. 80%

2.7 FREQUENCY

Range Accuracy

1Hz-2KHz ±(2.0%rdg+5d)

2.8 Function Characteristics

Measurement method Dual slope integration technical

Reading Rate 3 reading/Sec.

Polarity Automatic, indicated minus

assumed plus.

Overload indication Blanking of all digits. Except

MSD. decimal point and

sign.appropriate

Power requirements 9V Battery

Battery life Up to 200 hours typical with

Alkaline Up to 150 hours typical

with Zinc carbon

Display LCD 31/2 digit (1999 count)

0.5" high

3.1 DC/AC VOLTAGE MEASUREMENT

3.1.1 Connect red test lead to "+' ;Black test lead to "COW.

3.1.2 Set RANGE switch to ACV or DCV desired position.

3.1.3 Connect test leads to device or circuit being tested.

3.1.4 Read voltage value on Digital Display.

3.2 AC Current Measurement

3.2.1 Set Function/Range Switch to the ACA 1000A range,

if the display indicates one or more leading zeros, shift to the

200A or 20A range to improve the resolution of the

measurements.

3.2.3 Press the trigger to open the transformer jaws and

clamp one conductor only. It is impossible to make

measurements when two or three conductors(wires) are

clamped at the same time.

3.2.4 Display reading is the AC current flowing through the

conductor

3.2.5 Press the trigger to open the transformer jaws and

remove clamp meter from the conductor.

3.3 Diode Tests

3.3.1 Connect the red test lead to the "VG" jack and the

black test lead to the "COM" jack.

3.3.2 Set Function /Range Switch to the diode test position.

3.3.3 Turn off power to the circuit under test.

3.3.4 Read the forward voltage value on digital display.

3.3.5 Reverse probes. If the diode is good. "1" is displayed.

If the diode is shorted, ".000" or another number is displayed.

3.3.6 If the diode is open circuit, "1" will be displayed in both

directions of the diode.

All function and Ranges with

this feature.

Data hold

Dimension 228(L)X75(W)X36(H)mm

Weight 465gr.aprox.(batteryincluded)

2.9 Accessories

Instruction manual Test leads

9V battery Carrying Case

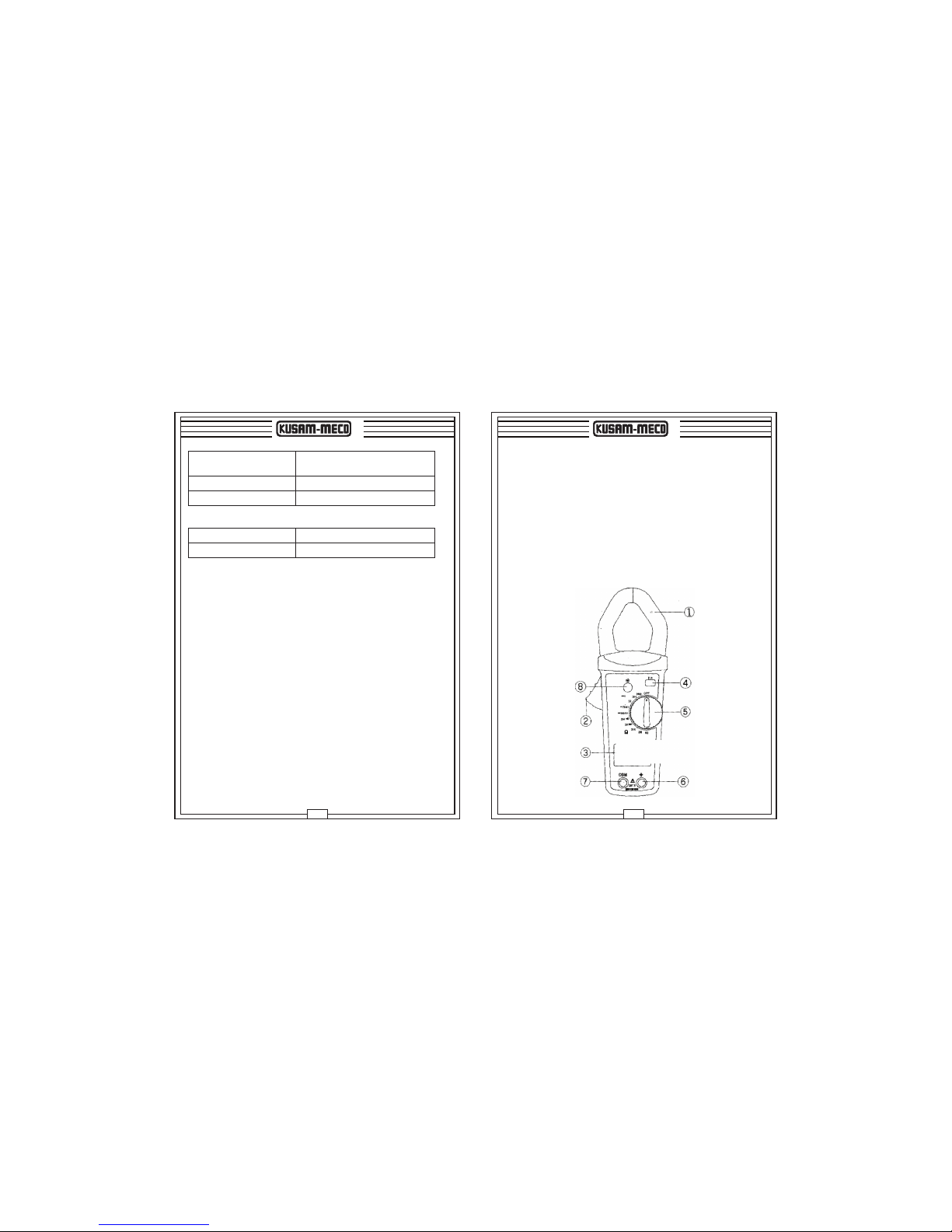

3. Operating And Recalibration:

1. Transformer jaws

Pick up the AC current flowing through the conductor.

2. Trigger

Press the level to open the transformer jaw. When the finger

press on the level is released the jaws will close again.

3. Display

372 digit (1999). decimal point, minus polarity, over-range

and LO BAT indicators.

4. Data Hold Switch

A push switch, (Push ON, Push OFF, do not pull to select

function). Push ON to hold the measured value and store the

value in memory_ Push OFF to release hold function.

A rotary switch is used to select measurement Function and

Range switch.

5. Rotary Switch

6. "+ " connector

High input terminal for voltage, resistance, continuity,

measurement. Accept banana plugs.

7. "COM " input connector

Low input terminal for voltage, resistance, continuity,

measurement. Accept banana plugs.

8. Back light Switch

A push switch, (Push ON, Push OFF, do not pull to select

function). A Push ON, the back light will be on. Another

Push OFF, the back light wilt be off.

Tabla de contenidos

Otros manuales de Instrumento de medición de Kusam-meco

Kusam-meco

Kusam-meco KM-LUX-200K Manual de usuario

Kusam-meco

Kusam-meco 954 MK-II Manual de usuario

Kusam-meco

Kusam-meco KM 078 Manual de usuario

Kusam-meco

Kusam-meco KM 071 Manual de usuario

Kusam-meco

Kusam-meco KM 3961 Manual de usuario

Kusam-meco

Kusam-meco KM-01 Manual de usuario

Kusam-meco

Kusam-meco KM 088 Manual de usuario

Kusam-meco

Kusam-meco KM 076 Manual de usuario

Kusam-meco

Kusam-meco KM 2775 Manual de usuario

Kusam-meco

Kusam-meco KM 072 Manual de usuario

Kusam-meco

Kusam-meco KM 1120 Manual de usuario

Kusam-meco

Kusam-meco KM-6300 Manual de usuario

Kusam-meco

Kusam-meco KM 907 Manual de usuario

Kusam-meco

Kusam-meco KM 061 Manual de usuario

Kusam-meco

Kusam-meco KM 8041 Manual de usuario

Kusam-meco

Kusam-meco KM 2784-T Manual de usuario

Kusam-meco

Kusam-meco KM 039F Manual de usuario

Kusam-meco

Kusam-meco KM 711 Manual de usuario

Kusam-meco

Kusam-meco KM 2820EL Manual de usuario

Kusam-meco

Kusam-meco KM 117A Manual de usuario

Kusam-meco

Kusam-meco KM 2008 Manual de usuario

Kusam-meco

Kusam-meco KM 033 Manual de usuario

Kusam-meco

Kusam-meco KM 981 MK-1 Manual de usuario

Kusam-meco

Kusam-meco KM 63 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
