Kubota GR1600EC2 Manual de instrucciones

GR1600EC2

WORKSHOP MANUAL

KiSC issued 07, 2006 A

TO THE READER

This Workshop Manual has been prepared to provide servicing personnel with

information on the mechanism, service and maintenance of KUBOTA GR1600EC2. It is

divided into three parts, “General”, “Mechanism” and “Servicing”.

■General

Information on the tractor identification, the general precautions, maintenance check

list, check and maintenance and special tools are described.

■Mechanism

Information on the construction and function are included. This part should be

understood before proceeding with troubleshooting, disassembling and servicing.

■Servicing

Information on the troubleshooting, servicing specification lists, tightening torque,

checking and adjusting, disassembling and assembling, and servicing which cover

procedures, precautions, factory specifications and allowable limits.

All information illustrations and specifications contained in this manual are based on

the latest product information available at the time of publication.

The right is reserved to make changes in all information at any time without notice.

Due to covering many models of this manual, information or picture being used, have

not been specified as one model.

July 2006

KiSC issued 07, 2006 A

GR1600EC2, WSM SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS

BEFORE SERVICING AND REPAIRING

• Read all instructions and safety instructions in this

manual and on your machine safety decals.

• Clean the work area and machine.

• Park the machine on a firm and level ground, and set

the parking brake.

• Lower the implement to the ground.

• Stop the engine, and remove the key.

• Disconnect the battery negative cable.

• Hang a “DO NOT OPERATE” tag in operator

station.

SAFETY FIRST

This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on

the machine itself to warn of the possibility of personal injury. Read these instructions carefully.

It is essential that you read the instructions and safety regulations before you attempt to repair or use

this unit.

DANGER : Indicates an imminently hazardous situation which, if not avoided, will result in

death or serious injury.

WARNING : Indicates a potentially hazardous situation which, if not avoided, could result in

death or serious injury.

CAUTION : Indicates a potentially hazardous situation which, if not avoided, may result in

minor or moderate injury.

■IMPORTANT : Indicates that equipment or property damage could result if instructions are not

followed.

■NOTE : Gives helpful information.

KiSC issued 07, 2006 A

GR1600EC2, WSM SAFETY INSTRUCTIONS

SAFETY STARTING

• Do not start the engine by shorting across starter

terminals or bypassing the safety start switch.

• Do not alter or remove any part of machine safety

system.

• Before starting the engine, make sure that all shift

levers are in neutral positions or in disengaged

positions.

• Never start the engine while standing on ground.

Start the engine only from operator’s seat.

SAFETY WORKING

• Do not work on the machine while under the influence

of alcohol, medication, or other substances or while

fatigued.

• Wear close fitting clothing and safety equipment

appropriate to the job.

• Use tools appropriate to the work. Makeshift tools,

parts, and procedures are not recommended.

• When servicing is performed together by two or more

persons, take care to perform all work safely.

• Do not work under the machine that is supported

solely by a jack. Always support the machine by

safety stands.

• Do not touch the rotating or hot parts while the engine

is running.

• Never remove the radiator cap while the engine is

running, or immediately after stopping. Otherwise, hot

water will spout out from radiator. Only remove

radiator cap when cool enough to touch with bare

hands. Slowly loosen the cap to first stop to relieve

pressure before removing completely.

• Escaping fluid (fuel or hydraulic oil) under pressure

can penetrate the skin causing serious injury. Relieve

pressure before disconnecting hydraulic or fuel lines.

Tighten all connections before applying pressure.

AVOID FIRES

• Fuel is extremely flammable and explosive under

certain conditions. Do not smoke or allow flames or

sparks in your working area.

• To avoid sparks from an accidental short circuit,

always disconnect the battery negative cable first and

connect it last.

• Battery gas can explode. Keep sparks and open

flame away from the top of battery, especially when

charging the battery.

• Make sure that no fuel has been spilled on the engine.

KiSC issued 07, 2006 A

GR1600EC2, WSM SAFETY INSTRUCTIONS

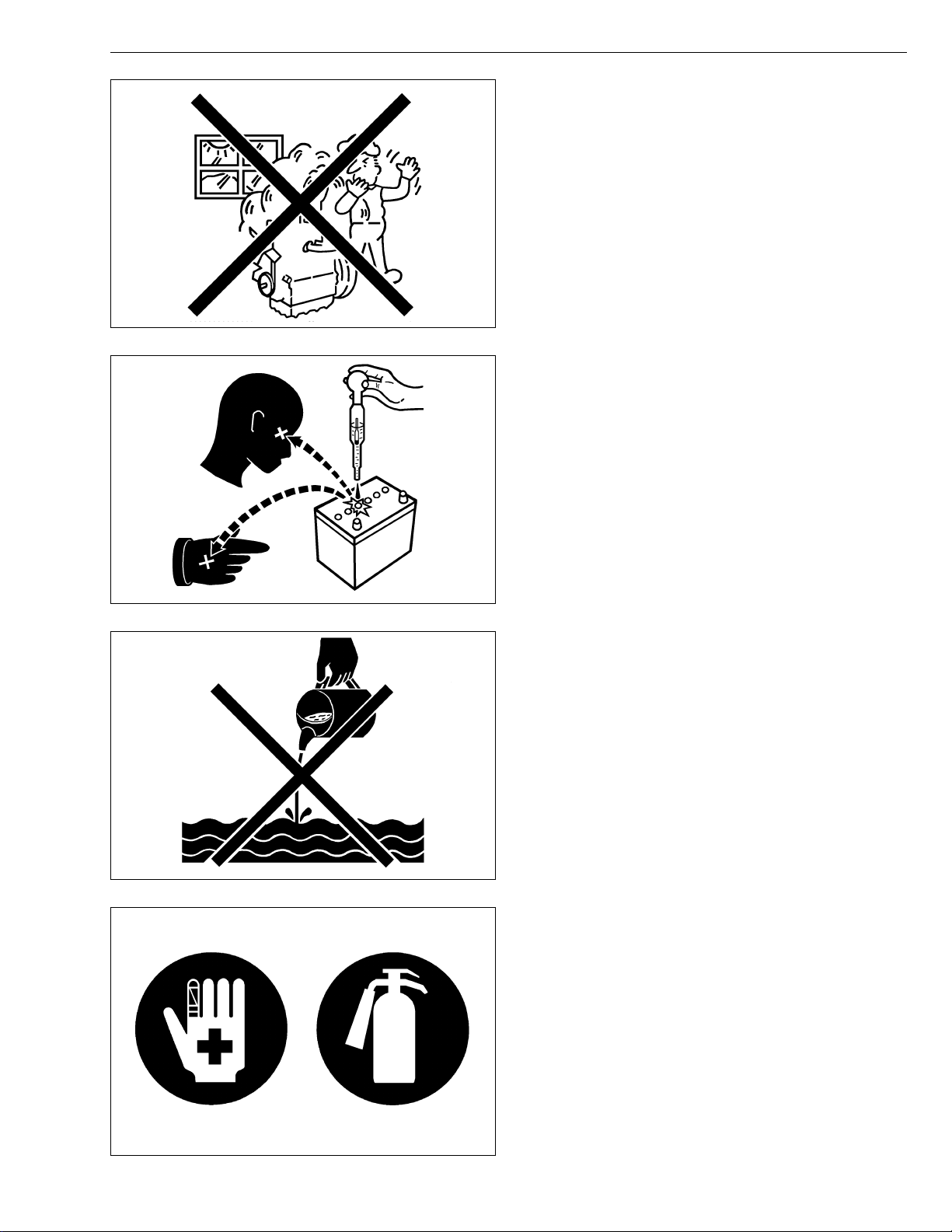

VENTILATE WORK AREA

• If the engine must be running to do some work, make

sure the area is well ventilated. Never run the engine

in a closed area. The exhaust gas contains poisonous

carbon monoxide.

PREVENT ACID BURNS

• Sulfuric acid in battery electrolyte is poisonous. It is

strong enough to burn skin, clothing and cause

blindness if splashed into eyes. Keep electrolyte

away from eyes, hands and clothing. If you spill

electrolyte on yourself, flush with water, and get

medical attention immediately.

DISPOSE OF FLUIDS PROPERLY

• Do not pour fluids into the ground, down a drain, or

into a stream, pond, or lake. Observe relevant

environmental protection regulations when disposing

of oil, fuel, coolant, electrolyte and other harmful

waste.

PREPARE FOR EMERGENCIES

• Keep a first aid kit and fire extinguisher handy at all

times.

• Keep emergency numbers for doctors, ambulance

service, hospital and fire department near your

telephone.

KiSC issued 07, 2006 A

GR1600EC2, WSM SAFETY INSTRUCTIONS

The following safety decals are installed on the machine. If a decal becomes damaged, illegible or is not on

the machine, replace it. The decal part number is listed in the parts list.

SAFETY DECALS

KiSC issued 07, 2006 A

GR1600EC2, WSM SAFETY INSTRUCTIONS

KiSC issued 07, 2006 A

GR1600EC2, WSM SAFETY INSTRUCTIONS

KiSC issued 07, 2006 A

GR1600EC2, WSM SPECIFICATIONS

SPECIFICATIONS

NOTE: *Manufacture's estimate

The company reserves the right to change the specifications without notice. W1028280

Model GR1600EC2

Engine

Maker KUBOTA

Model Z482-E2-GX

Type Indirect injection. Vertical, water-cooled, 4-cycle diesel

Number of cylinders 2

Bore and stroke 67 x 68 mm (2.64 x 2.68 in.)

Total displacement 479 cm3(29.9 cu.in.)

Engine gross power (DIN) 10.0 kW (13.4 HP)

Rated revolution 53.3 r/s [3200 min-1 (rpm)]

Battery 51R (12 V, 450CCA)

Starting system Cell starter (with glow plug)

Lubrication system Forced lubrication by trochoidal pump

Cooling system Pressurized radiator, forced circulation with water pump

Fuel Diesel fuel No.2-D [above -10 °C (14 °F)],

Diesel fuel No.1-D [below -10 °C (14 °F)]

Capacities

Fuel tank 18 L (4.8 U.S.gals, 4.0 lmp.gals)

Engine crankcase (with filter) 1.2 L (1.27 U.S.qts., 1.06 lmp.qts.)

Engine coolant (with recovery tank) 2.15 L (2.27 U.S.qts., 1.89 lmp.qts.)

Transmission case 2.7 L (0.71 U.S.gals., 0.59 lmp.gals.)

Dimensions

Overall length (with grass catcher) 2710 mm (107 in.)

Overall width 1110 mm (43.7 in.)

Overall height 1190 mm (46.9 in.)

Wheel base 1280 mm (50.4 in.)

Tread Front 750 mm (29.5 in.)

Rear 800 mm (31.5 in.)

Weight (without mower and grass catcher) 310 kg (684 lbs)

Traveling system

Tires Front 15 x 6.00 - 6, 4PR

Rear 20 x 10.00 - 8, 4PR

Steering Manual (Sector gear type)

Transmission Hydrostatic transmission

Brake Internal expanding brake

Differential Bevel gear

Traveling speed Forward 0.0 to 10.0 km/h (0.0 to 6.2 mph)

Reverse 0.0 to 5.0 km/h (0.0 to 3.1 mph)

PTO system Clutch Mechanical wet multi discs

PTO brake Wet multi discs

KiSC issued 07, 2006 A

GR1600EC2, WSM SPECIFICATIONS

W1030594

NOTE: *Manufacture's estimate

The company reserves the right to change the specifications without notice. W1031306

Model RCK42GREC2

Mower

Cutting width 1067 mm (42.0 in.)

Cutting height 25 to 102 mm (1 to 4 in.)

Adjustment of cutting height Dual gauge

Mounting method Quick joint, Parallel linkage

Weight (Approx.) 75 kg (165 lbs)

Dimensions Total length 965 mm (38.0 in.)

Total width 1110 mm (43.7 in.)

Total height 295 mm (11.6 in.)

Discharge direction Rear

Gear box oil 0.33 L (0.35 U.S.qts, 0.29 Imp.qts)

Model GCK370GREC2

Grass catcher Container capacity 370 L (97.7 U.S.gals, 81.4 Imp.gals)

Weight (Approx.) 40 kg (88.2 lbs)

KiSC issued 07, 2006 A
