Krups ZX7000 Manual de usuario

ZX7000 www.krups.com

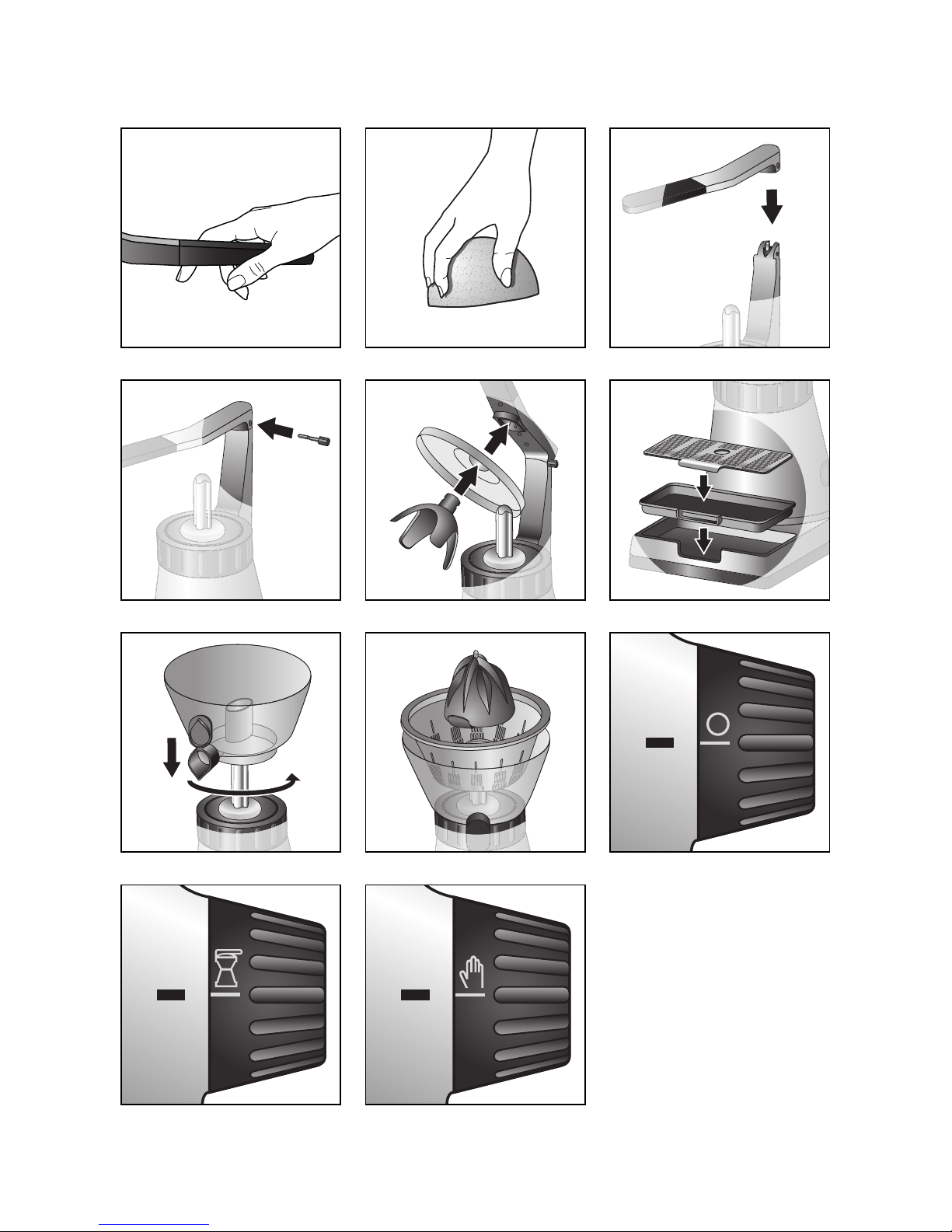

Fig.1 Fig.2 Fig.3

Fig.4 Fig.5 Fig.6

Fig.7 Fig.8 Fig.9

Fig.10 Fig.11

English

TAB E OF CONTENTS

IMPORTANT SAFEGUARDS ............................................PG. 6-8

DESCRIPTION OF PARTS ................................................PG. 9

BEFORE USING YOUR APP IANCE

FOR THE FIRST TIME.........................................................PG. 9

ASSEMB ING YOUR CITRUS PRESS.........................PG. 10-11

USING YOUR CITRUS PRESS .......................................PG. 11-12

FOR BEST RESU TS ..........................................................PG. 12

C EANING .............................................................................PG. 12

WARRANTY ...........................................................................PG. 13-14

English

IMPORTANT SAFEGUARDS

Read all instructions carefully before using.

When using electrical appliances, basic safety precautions

should always be followed to reduce the risk of fire, electric

shock, and/or injury to persons, including the following:

Use appliance only for its intended use.

To protect against risk of electrical shock, do not immerse

the base in water or any other liquid.

Close supervision is necessary when any appliance is used

near children. This appliance is not intended for use by

children.

Unplug from outlet when not in use, before putting on or

taking off parts, and before cleaning.

Avoid contact with moving parts. Keep hands, hair, clothing,

as well as spatulas and other utensils away during operation

to reduce the risk of injury to persons, and/or damage to

the appliance.

Do not operate any appliance with a damaged cord or plug

or after the appliance malfunctions, or is dropped or dama-

ged in any manner. Return the appliance to an authorized

KRUPS Service Center for examination or repair.

The use of attachments not recommended or sold by

KRUPS may cause fire, electric shock or injury.

Do not use outdoors.

Do not let cord hang over edge of table or counter.

Do not let cord contact hot surface, including the stove.

The appliance is not intended to prepare large quantites of

food at one time.

A rubber/plastic spatula or wooden spoon may be used,

when the appliance is in “off” position and unplugged.

English

This appliance is for household use only. Any servicing other

than cleaning and user maintenance should be performed

by an authorized KRUPS Service Center.

SAVE THESE

INSTRUCTIONS

CAUTION

This appliance complies with applicable technical rules

and standards at the time of manufacture.

Do not leave the appliance within reach of children.

An electrical appliance is not a toy and should be kept

out of reach of children.

This appliance is intended for household use only. Do not

use it for commercial purposes. Any servicing other than

cleaning and user maintenance should be performed by

the nearest authorized KRUPS Service Center.

Check voltage to be sure that the voltage indicated on the

rating label matches your voltage.

Do not immerse the appliance in water or any other liquid.

To reduce the risk of fire or electric shock, do not remove

the base. No user serviceable parts inside. Repairs should

be done by an authorised KRUPS Service Center only.

Keep your hands and the cord away from hot parts during

operation.

Never clean with harsh or abrasive cleaners or sponges.

Clean using gentle dishwashing liquid and warm water.

Dry all parts carefully before next use.

Do not place or use the appliance on hot surfaces such as

stoves, hotplates, or near open gas flames.

English

Do not unplug the unit by pulling on the cord. Instead grasp

plug and pull to disconnect.

Only use the appliance on a stable working surface away

from water splashes.



SHORT CORD INSTRUCTIONS

A. We do not recommend using an extension cord with

this device.

B. If an extension cord is absolutely necessary,

1) the marked electrical rating of the extension cord

should be at least as great as the electrical rating of

the machine,

2) the longer cord should be arranged so that it will not

drape over the counter top or table top where it can

be pulled on by children or tripped over.

C. This machine has a polarized plug (one blade is wider

than the other). To reduce the risk of electric shock, this

plug is intended to fit into a polarized outlet only one

way. If the plug does not fit fully into the outlet, reverse

the plug. If it still does not fit, contact a qualified

electrician. Do not attempt to modify the plug in any way.

In the interest of improving products, Krups reserves

the right to change specifications without prior notice.

English

DESCRIPTION OF PARTS

Pressing lever

ever pin

Splash guard

Fruit press

Universal cone for all citrus fruits

Pulp filter

Transparent bowl

Pouring spout

“Drip stopper” accessory (according to model)

Drip tray grid

Drip tray

ON/OFF selector knob

Citrus Press Arm

BEFORE USING YOUR APP IANCE

FOR THE FIRST TIME

Before first use, remove all packaging, stickers, and accessories.

Remove the small lever pin

(B)

in the bag attached to the pressing

lever

(A)

, it will be needed later when assembling the citrus press.

Rinse all removable parts

(C-D-E-F-G-H-I-J)

and dry carefully.

Wipe the outside of the citrus press with a clean damp cloth.

English

ASSEMB ING YOUR CITRUS PRESS

ENSURE THE ON/OFF SE ECTOR KNOB IS IN THE OFF

POSITION AND THE CITRUS PRESS IS NOT P UGGED IN

WHEN ASSEMB ING.

Remove the small lever pin

(B)

in the bag attached to the pressing

lever

(A) - Fig.4

Holding the black portion of the pressing lever

(A)

horizontally,

slip the silver end of the pressing lever

(A)

into the notches at the

top of the citrus press arm

( )

. Note the hole on the silver end of

the pressing lever

(A)

should be on the right side

- Fig.3

While holding the pressing lever

(A)

in place, align the hole on

the right side of the lever with the hole in the shaft. Hold the black

end of the lever pin

(B)

, and push the lever pin

(B)

into the hole.

The lever can now be moved up and down.

Put the lever

(A)

in its upper position.

Rest the lever in the upright position so that the round notches on

the center of the underside of the handle are visible. Press the

clear splash guard

(C)

onto the round notches, it will click in place.

Align the notches on the black fruit press

(D)

with the metal bar in

the center of the round notches, then turn clockwise one quarter

turn to lock into place. Once locked in place, the fruit press

(D)

cannot be pulled off, but can be moved up and down

- Fig.5

Slip the drip tray

(J)

and drip tray grid

(I)

in place

- Fig.6

Rest the lever in the up position. Slide the clear bowl

(G)

onto the

black plastic shaft of the citrus press. Align the clear bowl

(G)

that the plastic pouring spout

(G1)

is on the front, to the left of

the center (7:00 position), then turn counter-clockwise so that

the pouring spout

(G1)

is centered and the bowl is locked in

place

- Fig.7

Place the pulp filter

(F)

inside the clear bowl

(G) - Fig.8

Slide the juicing cone onto the center of the black axis in the

center of the pulp filter

(F)

and check that the cone rotates

smoothly both clockwise and counter-clockwise.

English

Ensure that the ON/OFF selector knob

(K)

on the right side of

the base of the appliance is in the OFF position before plugging

in the citrus press

- Fig.9

. Your citrus press is now assembled

and ready to use.

Your citrus press offers two different modes of use:

- A

“lever-operated”

function for squeezing your citrus fruits

quickly and cleanly

- Fig.1

- A

“manual”

mode for squeezing your fruit by hand

- Fig.2

USING YOUR CITRUS PRESS

Your citrus press can be used with or without the pressing lever

(A)

. The lever will help press citrus fruits against the rotating jui-

cing cone for clean, efficient extraction and is helpful when pres-

sing larger fruits, or large quantities of citrus fruits.

In manual mode, fruit is pressed by hand against the rotating jui-

cing cone

(E)

There are three positions on the ON/OFF selector knob:

Fig. 9

OFF position

Fig. 10

Pressing with lever

Fig. 11

Manual pressing

To press citrus fruit using the pressing lever:

Raise the lever to the upper position. Place a glass on the drip tray

(J)

, under the pouring spout

(G1)

. Cut your citrus fruits in half.

Place your fruit cut side down on the cone, applying gentle pres-

sure. Turn the ON/OFF selector knob

(K)

to the

EVER

position

- Fig.10

. ower the lever to press the fruit between the fruit press

(D)

and cone. The citrus press will start working automatically,

and the cone will rotate. Center fruit and maintain constant pres-

sure for best results.

When pressing is complete, close the drip stopper

(H)

and remove

your glass.
