KROHNE OPTISONIC 6300 Manual de usuario

Ultrasonic Clamp-on Flowmeter

OPTISONIC 6300 Quick Start

OPTISONIC 6300

7.30959.22.002

General safety notes

You can find additional information on the CD-ROM provided, in the

manual, the data sheet, special manuals and certificates.

Installation, mounting, commissioning, and maintenance can be

performed only by trained personnel.

Responsibility for suitability and intended use of this instrument rests

solely with the user.

The supplier accepts no liability for inappropriate use by the customer.

Improper installation and operation may lead to loss of warranty.

Moreover, the "general terms and conditions" on the back of the bill

apply, which form the basis for the sales contract.

If you have to send the device back to the manufacturer or supplier, fill

out the form contained on the CD-ROM and enclose it with the device.

Unless this form is completely filled out, it will unfortunately not be

possible for KROHNE to perform repair or inspection.

Respect general and local electrical safety requirements.

OPTISONIC 6300

www.krohne.com 3

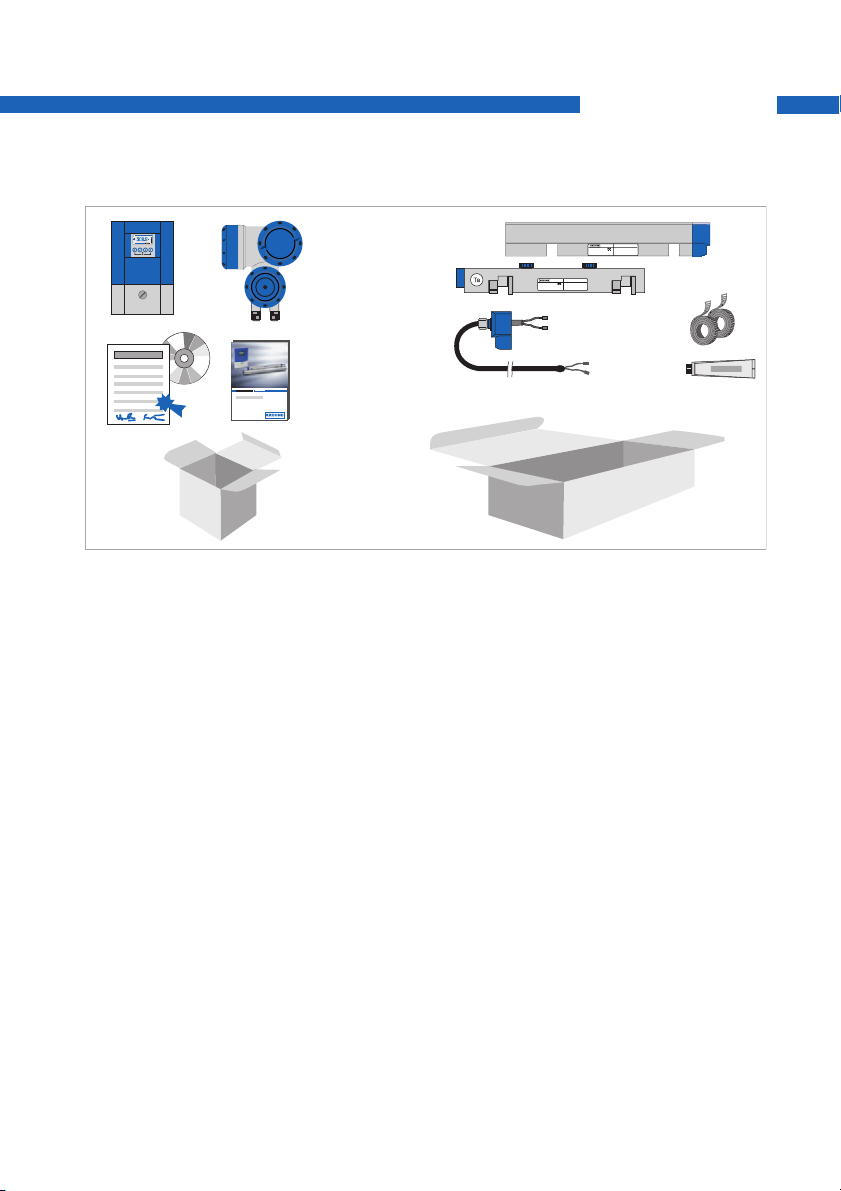

Scope of delivery

1Signal converter, wall version or field version

2Quick Start

3CD-ROM (including Handbook, Quick Start, Technical Datasheet, Support database, movie)

4Factory calibration report

5Sensor OPTISONIC 6000 plus cover

6Metal strap

7Mineral coupling grease

8Signal cable plus connector cap

UFC300

0% 50 100

OPTISONIC6000

Manufactured:2006

Tm:-40 ... +120C

Ta=-40... +70C

IP66/67 accordingto EN 60529

S/N:A06xxxxx

Calibrationnr.:xxxxxxxxx

Altometer,Dordrecht

NL- 3313 LC

OPTISONIC6000

Manufactured:2006

Tm:-40 ... +120C

Ta=-40... +70C

IP66/67 accordingto EN 60529

S/N:A06xxxxx

Calibrationnr.:xxxxxxxxx

Altometer,Dordrecht

NL- 3313 LC

OPTISONIC 6300

7.30959.22.004

Additionally for large version:

12nd sensor OPTISONIC 6000 plus cover

290 degree screw driver

34 fixing units

4positioning tool

52 metal straps

6signal cable plus connector cap

7cable box plus signal cable

OPTISONIC6000

Manufactured:2006

Tm:-40 ... +120C

Ta=-40... +70C

IP66/67 accordingto EN 60529

S/N:A06xxxxx

Calibrationnr.:xxxxxxxxx

Altometer,Dordrecht

NL- 3313 LC

OPTISONIC6000

Manufactured:2006

Tm:-40 ... +120C

Ta=-40... +70C

IP66/67 according to EN 60529

S/N:A06xxxxx

Calibrationnr.: xxxxxxxxx

Altometer,Dordrecht

NL- 3313 LC

OPTISONIC 6300

www.krohne.com 5

Visual check

•Visual check at rail 1and flow converter 2(IO sticker is inside the

converter housing).

NOTE!

Rail is marked Ta in most cases. Only for dual path / dual pipe

versions you receive a second rail marked Tb.

If you ordered a large version, you receive two rails, both marked

with Ta!

(FE)

POWERINPUT / OUTPUT

L(L+)

N(L-)

A = Active

CG 34 xxxxxx S/N: A06 xxxxx

P = Passive

NC = Not connected

PULSE OUT / STATUS OUT

Imax = 100 mA@f<= 10 Hz;

= 20 mA@f<=12 kHz

Vo = 1.5 V @ 10 mA; Umax = 32 VDC

STATUS OUT

STATUS OUT / CONTROL IN

Imax = 100 mA; Vmax = 32 VDC

Imax = 100 mA

Vmax = 32 VDCVon > 19 VDC, Voff < 2.5 VDC;

CURRENT OUT ( HART )

Active

Passive

( Terminals A & A+);

( Terminals A & A- );

RLmax = 1 kohm

Vmax = 32 VDC

D -

C -

B -

A +

A -

UFC300

0% 50 100

Manufactured: 2006

S/N Ta:

S/N Tc:

S/N Tb:

Altometer, Dordrecht

NL - 3313 LC

UFC300

www.krohne.com

100-230 V AC

A06 xxxxx

50-60 Hz 22 VA

OPTISONIC 6000 yyy

Manufactured: 2006

Tm: -40 ... +120C

Ta= -40 ... +70C

IP66/67 according to EN 60529

S/N: A06 xxxxx

Calibration nr.: xxxxxxxxx

Altometer, Dordrecht

NL - 3313 LC

OPTISONIC6000

Manufactured:2006

Tm:-40 ... +120C

Ta=-40... +70C

IP66/67 according to EN 60529

S/N:A06 xxxxx

Calibrationnr.: xxxxxxxxx

Altometer,Dordrecht

NL- 3313 LC

OPTISONIC 6300

7.30959.22.006

Inlet, outlet and recommended mounting area

1Min. 10 DN

2Min. 5 DN

3OK, 120°

OPTISONIC 6300

www.krohne.com 7

General mechanical installation

Installation of the rails with the metal straps

Installation of the rails with the metal strapsInstallation of the rails with the metal straps

Installation of the rails with the metal straps

NOTE!

This chapter explains the basic handlings that are used

throughout this Quick Start. Do not execute them at first reading!

OPTISONIC 6300

7.30959.22.008

•7: Repeat steps 1...6at the other side of the rail.

Change the position of the transducer

Change the position of the transducerChange the position of the transducer

Change the position of the transducer

•Unlock the floating transducer 2by turning the locking knob 1counter

clockwise.

•Slide the transducer 2to the advised mounting distance 3(menu X9.4).

OPTISONIC 6300

www.krohne.com 9

•Lock the transducer by turning the locking knob 1clockwise.

Greasing the transducer surfaces

Greasing the transducer surfacesGreasing the transducer surfaces

Greasing the transducer surfaces

OPTISONIC 6300

7.30959.22.0010

Mounting the cover

Mounting the coverMounting the cover

Mounting the cover
