INSTALLATION MANUAL

OlettoTM Pull Down Touch

Kitchen Faucet

KTF-3104

Congratulations on the purchase of your new

Kraus plumbing fixture!

Please keep the box and packaging materials until your product is

completely installed. If you have any questions, require technical

assistance or have any problems with your product:

Please contact our Customer Service Team

1-800-775-0703 / [email protected]

Have the model number available and retain a copy of your

receipt with purchase date for reference.

If for any reason this product does not meet your expectations,

please be sure to repack this product in the original box and

packaging material to avoid damage during transit.

DO NOT RETURN TO STORE

STOP

Prior to Installation:

·Make sure you have all necessary parts by checking the diagram and

parts list. If any part is missing or damaged, please contact Kraus

Customer Service at 800-775-0703 for a replacement.

·Turn off the hot and cold water supply at the angle stops and turn on

the old faucet to release any built up pressure. Remove existing faucet.

Clean sink or countertop to remove any debris, plumber’s putty, or

silicone.

·Flush angle stops to release any debris prior to installation.

·Pre-drilled hole size requirement: 1 3/8" (min)

·Max countertop thickness: 2 3/8”

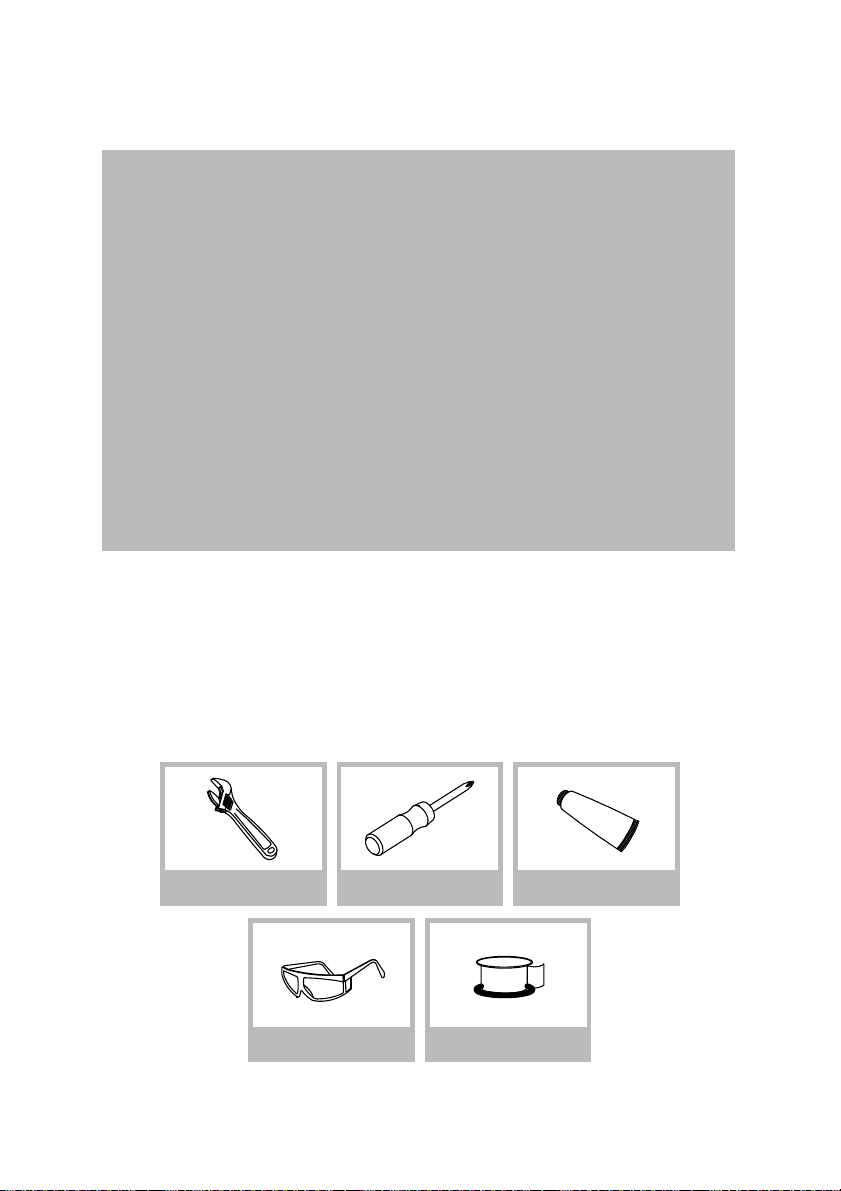

Tools Required

Adjustable Wrench Phillips Screwdriver

Safety Goggles Pipe Tape

Silicone Sealant

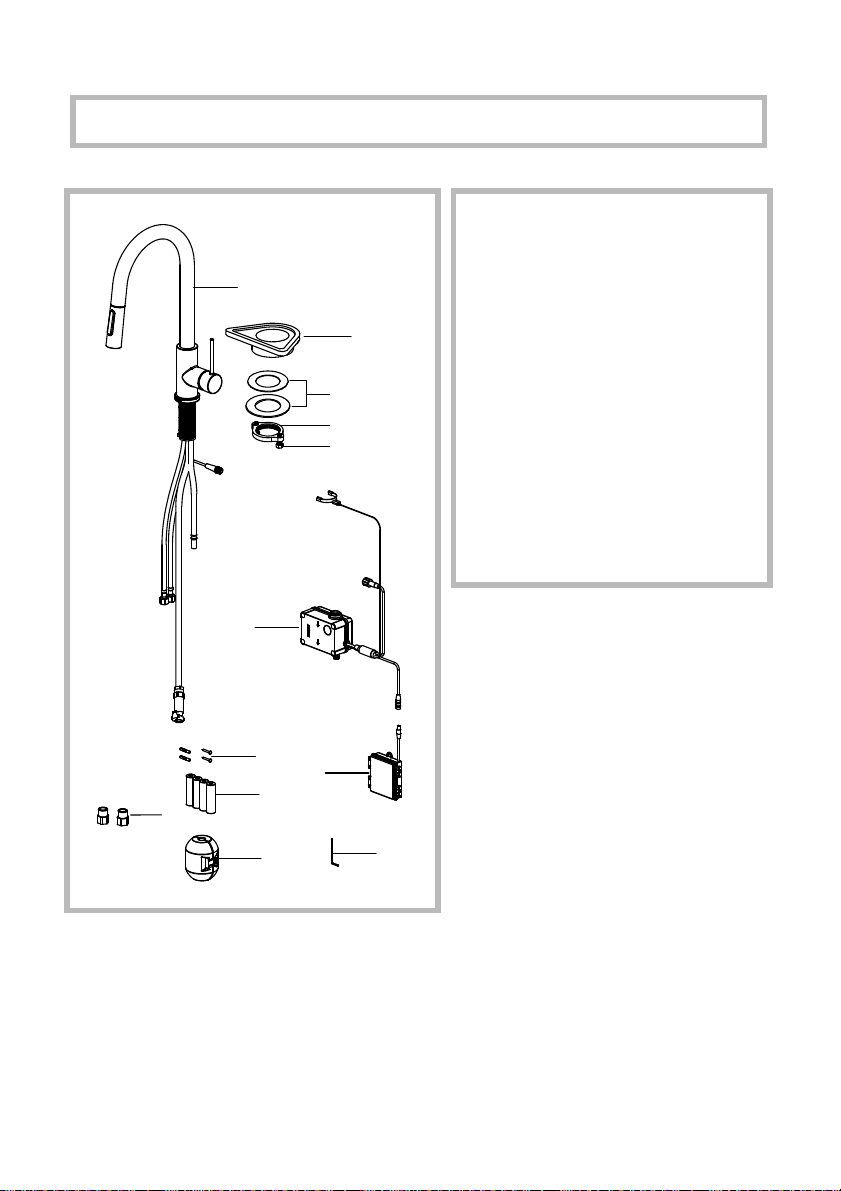

A. Faucet Body

B. Mounting Hardware

1. Rubber & Metal Washer

2. Mounting Nut

3. Mounting Screws

4. Plastic Spacer

C. Control Box

D. Battery Box

E. Battery & Control Box

Mounting Screws

F. Batteries

G. Weight

H. Hex Key

I. Brass Check Valve

Diagram and Parts List

For technical assistance or replacement parts, please contact Kraus

Customer Service and one of our representatives will be happy to help:

Toll-Free: 800-775-0703 or [email protected]

Installer Tip:

Shut off main water supply before installing new faucet.

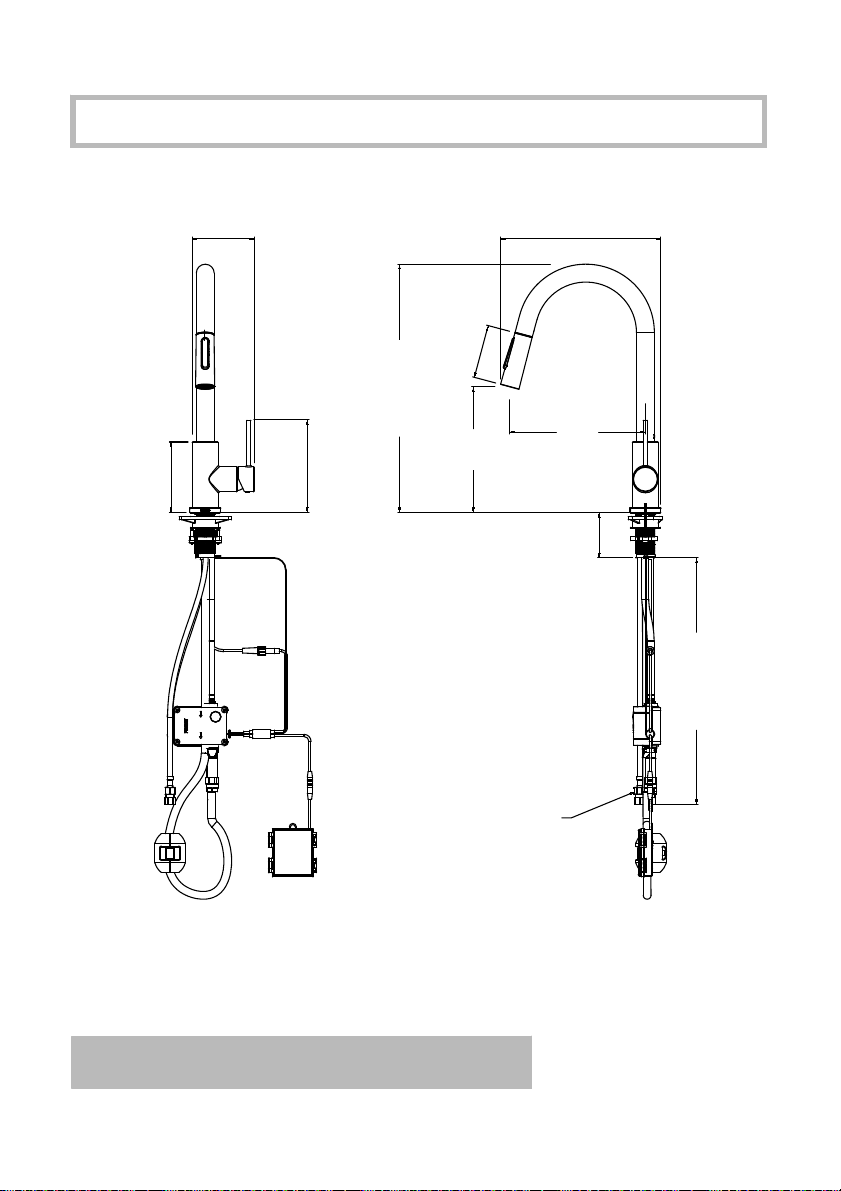

Faucet Dimension

10 5/8" (269mm)

16 3/8" (417mm)

4 5/8"

(118mm)

6 1/8" (155mm)

4 1/8" (104mm)

(203mm)

(230mm)

3 1/2"

(90mm)

24 1/4" (615mm)

3/8" Compression

Max.

2 3/8"

(60mm)

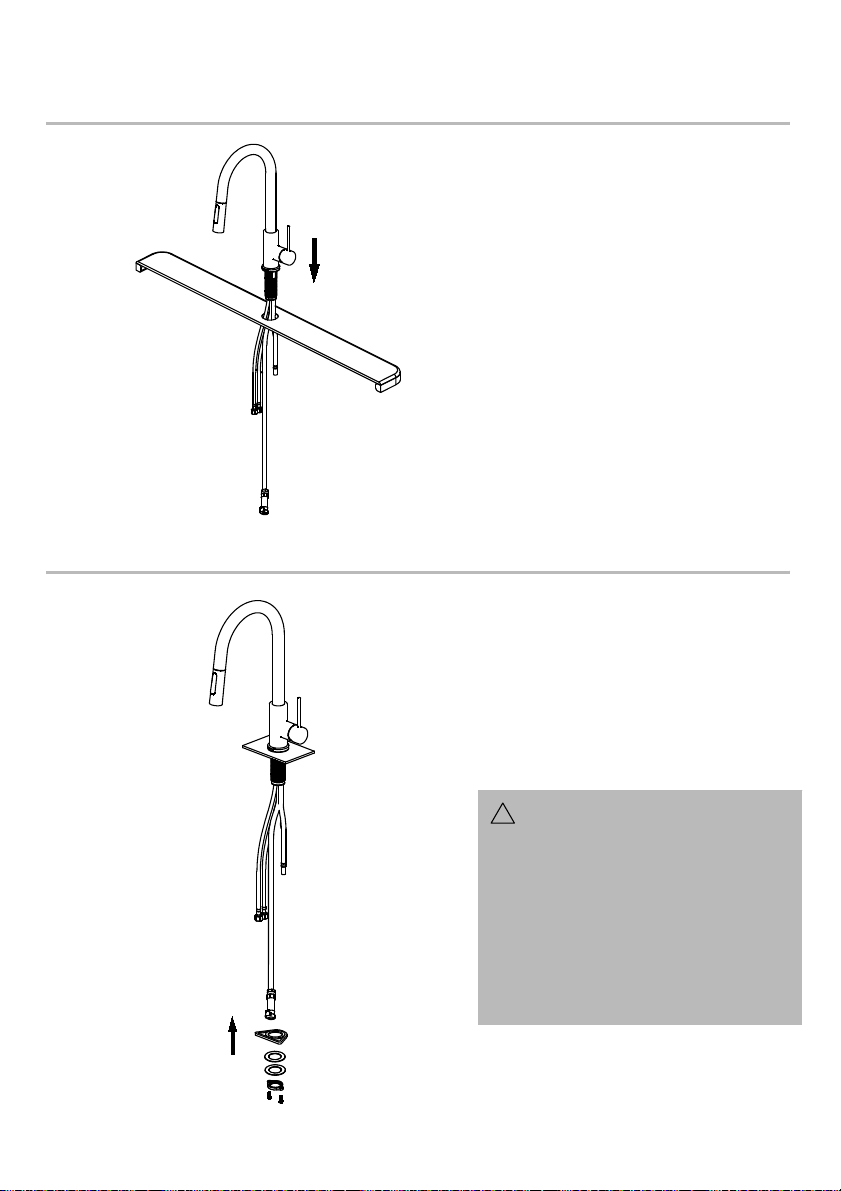

Step 1. Installing the faucet assembly

Step 2. Securing the faucet assembly

Insert faucet body through the

hole in the sink or countertop.

Install the rubber washer and

metal washer onto the threaded

mounting shank. Thread the nut

onto the mounting shank. Lock

the nut into position by tightening

the screws. Do not overtighten.

Stabilizing

base

NOTE: Faucet comes with a

white stabilizing base. The

stabilizing base MUST be used

when installing the faucet to a

stainless steel counter top or

direct install to any kitchen sink

(Top Mount sink). Without this

base, the touch faucet will not

function properly.

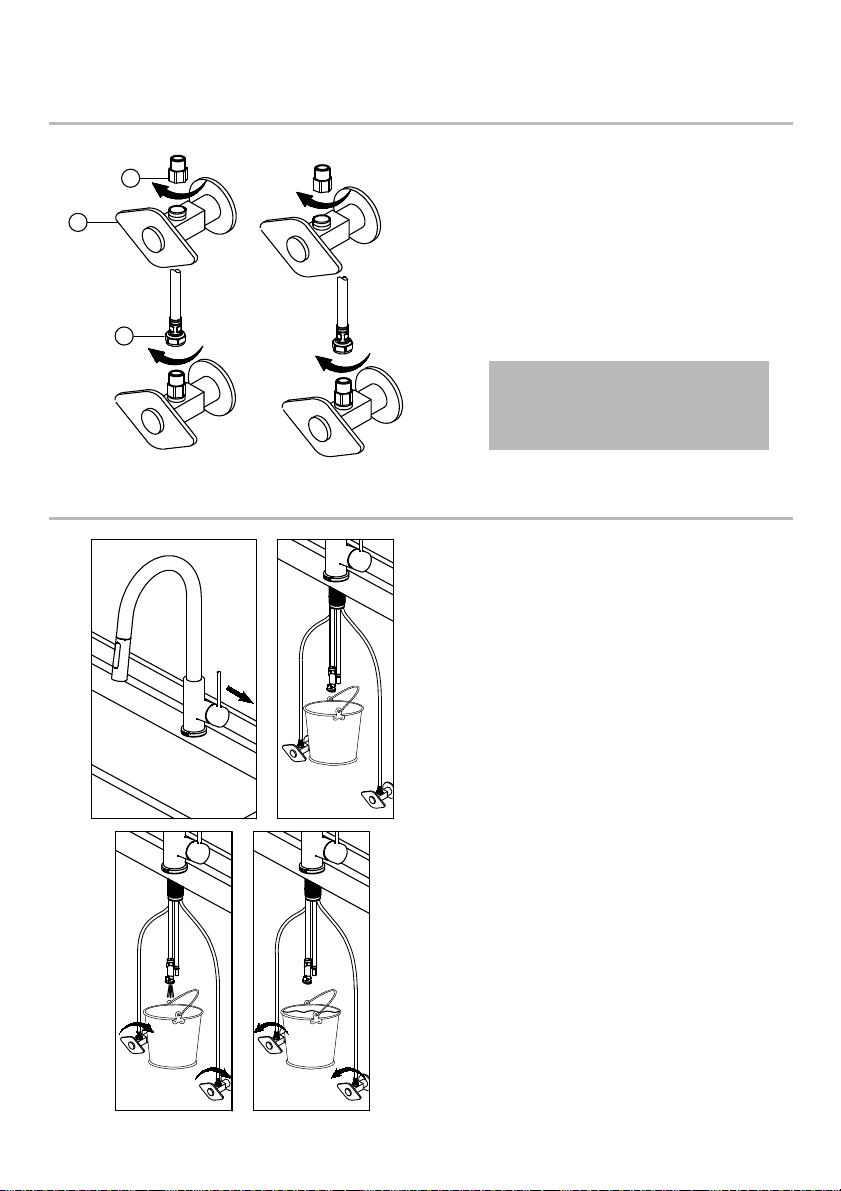

Step 3. Connect the waterlines

Thread the nut (1) onto the outlet

of the water supply valve (2) and

tighten with wrench. Thread nut

(3) on the supply line onto the nut

(1) and tighten with wrench. Do

not overtighten.

Step 4. Flush the faucet

Make sure water supplies are

closed. Move handle to full mix

position. Place bucket under the

faucet supply hose. Slowly open

both water supply stops to flush

lines. This will prevent debris from

being lodged in the hose and

sprayer. Close water supplies and

faucet valve. Remove bucket and

dry tube with soft cloth.

NOTE: Please make sure filter

washers are installed before

connecting to the main valve.

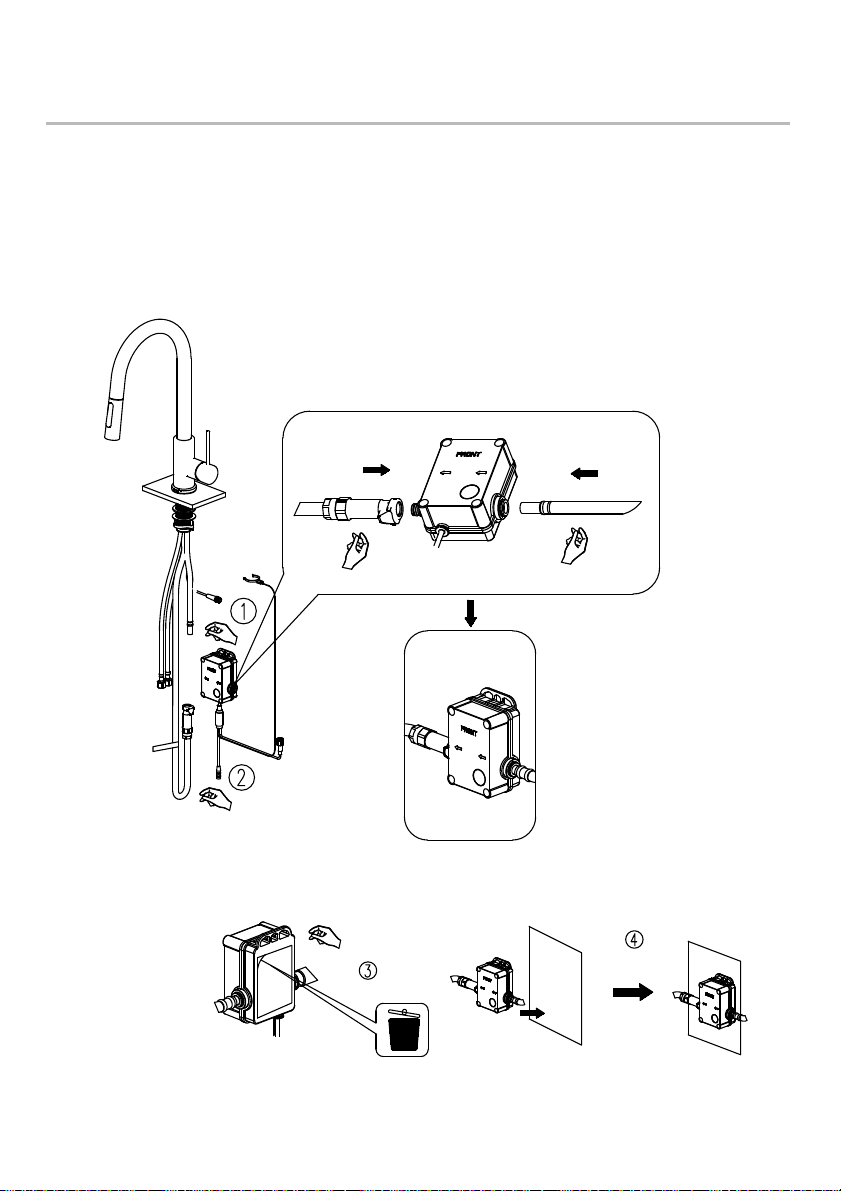

Step 5. Control box installation

Connect the supply hose to inlet on the control box. Connect the pull down hose to

the outlet. Install the control box on cabinet wall vertically by pulling the adhesive

from the velcro backing on the control box. Attach the control box to the cabinet

wall. You may also use the control box mounting screw (E) to attach the box to the

cabinet wall.

Step 6. Attach the battery housing

Install the 4 AA batteries provided in battery housing. Pull the adhesive from the

velcro backing on battery housing and attach the battery housing to the cabinet

wall. You may also use the mounting screw (E) to attach the battery housing to the

cabinet wall.

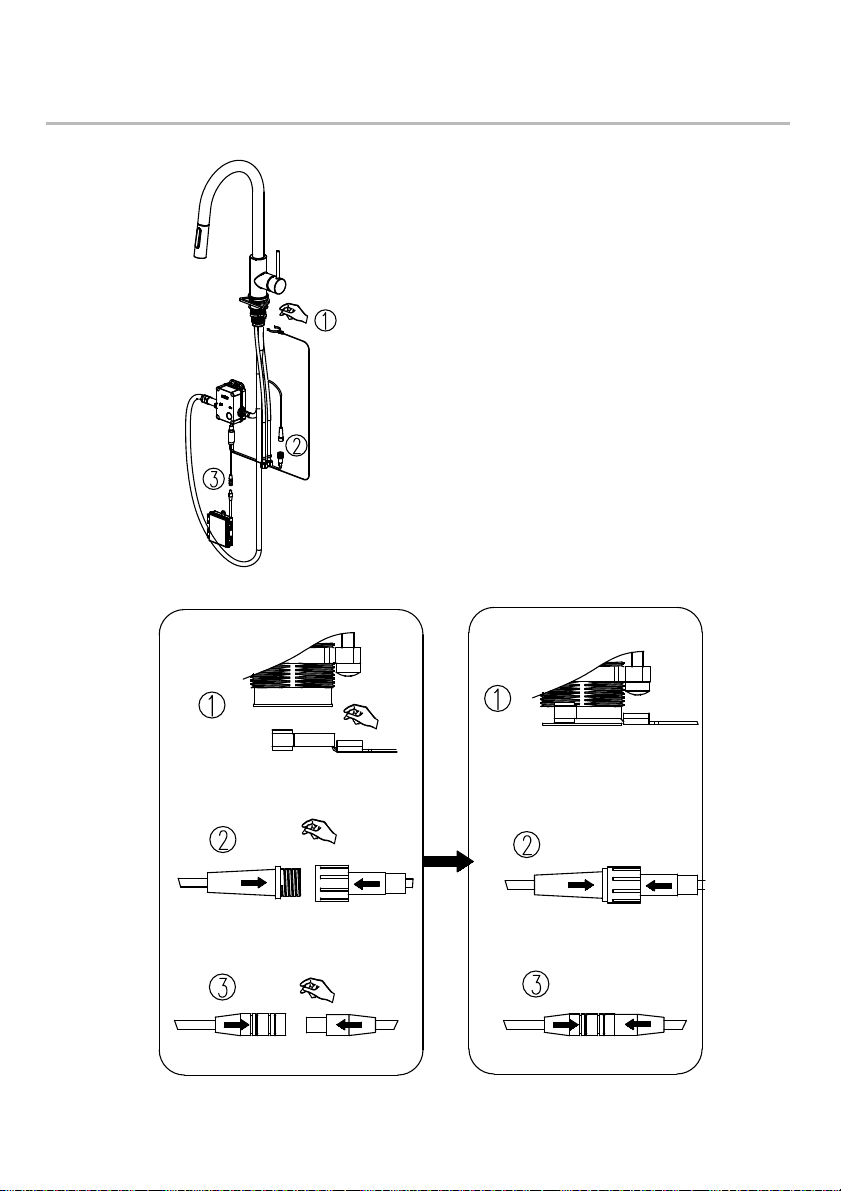

Step 7. Connect the wires

1. Attach the C-clip from control

box to the faucet shank.

2. Connect the wire from the

faucet to the control box.

3. Connect battery housing to the

control box.
