1. INTRODUCTION
The IP Network Camera is designed with the “user-friendly” idea deep in mind. The user can install the IP
Camera easily on his/her home network and then access the IP Camera anywhere in the world through the
accompanied video management software - KraunView without setting some complicated DNS name or
changing the router’s settings. It’s just a plug & play action.
With 3GPP/ISMA support, users can see the video of the IP camera on any 3G mobile phone anywhere,
anytime. The big dierence is that there is software for downloading to the mobile phone so that the
xed IP address is not needed for the IP camera. The video settings including frame rate, resolution and
bandwidth could be dierent for PC monitoring and mobile viewing.
For outdoor surveillance and remote monitoring, the IP Camera provides the best image quality in its class,
and excellent performance. It also provides the best bandwidth eciency, oers 640x480 resolution, 30 fps
frame rate, real MPEG4 image compression ability.
With the very low light sensitive sensor and IR led inside the IP66-rated water proof housing, the IP Camera
can work day and night and satisfy all security and indoor/outdoor surveillance needs. With the motor
controlled IR-cut lter, the day-time video quality is not aected by the infrared light in the sun light. The
IR-cut lter is automatically turned on during dark light.
The NAS storage function can easily turn any NAS device to a NVR device. The schedule function provides
full scheduling of email/ftp sending, motion detection and NAS recording event. With the built-in Web
server, the IP Cameras can also be managed from a standard web browser on a Windows computer or a
Macintosh.
The IP Camera provides motion detection function. Users can easily setup this function and receive the
notication with the snapshot images through email and/or ftp when some motion events are detected.
The IP camera is ideal for securing small businesses, home oces and residences over a local area network
and/or the Internet.
The dierences
It’s very easy to see the video of the IP Cam, you only need to key in the ID/Password of the IP CAM any
where in the world, you do not need to remember the IP address or domain name or DDNS name or port
number. And you do not need to modify the settings(like port mapping, xed IP, DDNS, virtual server) of
the NAT/router devices, it’s just a plug & play usage.
So, the dierences are the followings:
• Public IP address needed ? No
• Dynamic DNS needed ? No
• Port mapping in router? No
• Virtual server in router ? No
• UPnP support in router ? No
• What’s needed ? ID and Password
4
Manual
www.kraun.com
2. HARDWARE DESCRIPTION AND QUICK
INSTALLATION/USAGE
The IP CAM is designed to be very easy to install and use. First, let’s see the major components of the IP
CAM products.
2.1. Major hardware components.
The major components of the IP CAM products are listed below :
1. Lens – the focus of the lens is xed, you do not need to spend time to adjust the focus, the eective
focus range is from 30cm to innity.
2. IR LEDs – there are totally 36 IR LEDs that can provide approximately 30m distance night vision.
3. Light detector – this light detector can detect when the light is becoming dark and turn on the IR
LEDs automatically.
4. Power jack – this is the place to plug in the power adaptor. The power needed for this IP CAM is
12V/1.0A, please make sure you are using the correct power adaptor.
5. Ethernet jack – this is the place to plug in the RJ45 Ethernet cable.
6. Reset button – this is the button to reset the IP CAM to default factory settings. You need to press
the reset button for more than 4 seconds to enable the reset function. Usually when you forgot the
administrator account, you will probably need to do this reset action to reset to the default factory
settings. Please refer to section 3.16 for more details.
7. Digital input terminal block – this is for alarm detection, an open circuit is o, a close circuit is on.
8. Status indication LED (red) – this LED is to indicate the Internet connection status. When the Internet
connection is connected, the LED will be constant red light. If there is any Internet connection
problem, the LED will be blinking red light.
9. Ethernet indication LED (blue) – this LED is to indicate if the Ethernet link is ok and packet trac is
sending/receiving. When the Ethernet cable is connected, the LED is constant blue light. When there
is packet sending/receiving, the LED is blinking blue light.
Figure 2-1: Major components of the IP camera
5
Manual
www.kraun.com
2.2. Quick installation and usage
There are only three things that you need to do to see the video from the IP CAM.
1. Connect the IP CAM to the home/oce network.
2. Install the KraunView software on the notebook/PC.
3. Key in the ID/password of the IP CAM(from the ID/Password card) on the KraunView, and then you can
see the video.
First, Connect the IP CAM to the home/oce network
Please connect the IP CAM accessaries to the IP CAM body correctly, including the bracket, power adapter
and Ethernet cable, as shown in Figure 2-2. And connect the other end of the Ethernet cable to the home
network or oce network. Usually, this Ethernet cable is plugged into a home NAT/router device or an
Ethernet switch if in the oce, as shown in Figure 2-2. Since the default settings of the IP CAM use DHCP
function and very often there is a DHCP server on most of the Home/oce network, the IP CAM should be
connected to the Internet immediately.

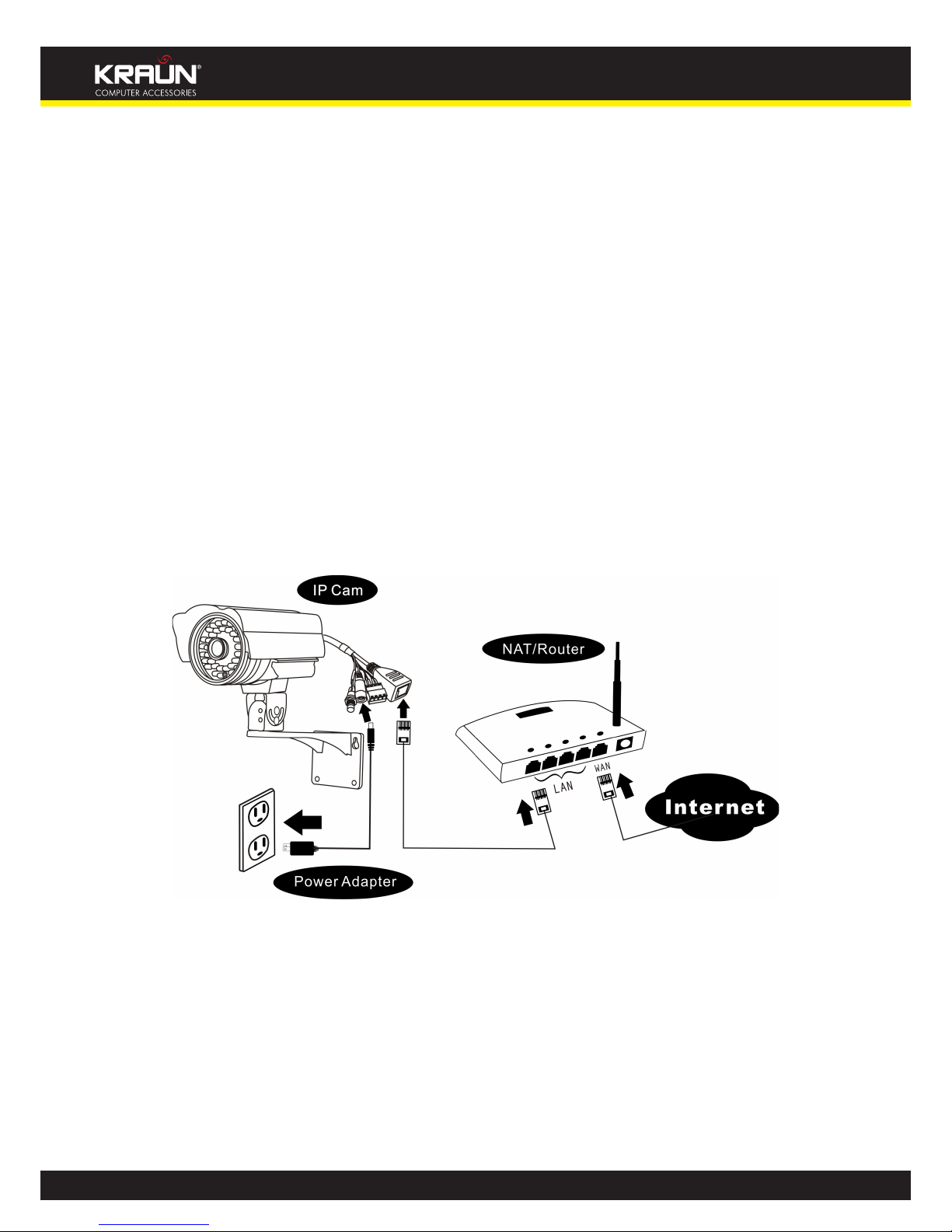

Figure 2-2: IP CAM connection diagram.
6
Manual
www.kraun.com
Second, Install the KraunView software on the notebook/PC
Please insert the installation CD into the CD-ROM drive in your notebook or personal computer (must be
running Microsoft Windows OS). Execute the program KraunViewInstaller-xxx.exe on the disk. The program
will pop-up some windows about the installation options, please press the “next” button to proceed with
the installation. After the installation is complete, there will be a KraunView icon on the desktop of your
computer screen, please execute this icon. The KraunView program will run immediately.
Figure 2-3: The installation CD disk
Third, Use KraunView program to see the video
Figure 2-5 is the running window of the KraunView program. If the computer and IP CAM is connected to
the same network, the IP CAM ID will be displayed in the “Auto Search” list. You can double click the “Auto
Search” to search all the connected IP CAMs any time. The only thing left right now for seeing the video is
to double click the IP CAM ID item in the “Auto Search” list. For example, if the IP CAM ID is 001-001-029, you
can then double click the 001001029 item in the “Auto Search” list to view the video. A window asking for
password input will pop up. Please key-in the password in your ID/Password card into this eld and click
“ok”. The video will then be displayed on the window.
Figure 2-4: The ID/Password card
Notice :
1. You can modify this play-video password by entering into the web conguration pages. Please refer
to section 3.6 for more information.
2. You can also add the IP CAM into the CameraList in the KraunView software to have more convenient
video display, please refer to the user manual of the KraunView software for more functions.
7
Manual
www.kraun.com
Seeing the video in a remote location
After the IP CAM is installed and you can see the video from the KraunView software in the local network, it’s
very easy to see the video in a remote location. All you need to do is add a camera item in the “CameraList”
folder of the KraunView software, key in the IP CAM ID and Password(from the ID/Password card). And
then double click this camera item. You will then see the Camera video immediately. No further NAT/router
setting modications are needed.
Figure 2-5: Running window of KraunView program
Figure 2-6: Pop-up play-video password window
8
Manual
www.kraun.com
3. WEB CONFIGURATIONS
You can login into the web conguration page by directly key-in the IP address of the IP CAM or right-click
the searched IP CAM in the “Auto Search” list of the KraunView software and click the “Web Congure” to
open the login window of the IP CAM.
Figure 3-1: Open the web conguration page from KraunView software
The default login account is “admin”, leave the Password eld empty.
Figure 3-2: IP CAM Web conguration login page
9
Manual
www.kraun.com
4. INFORMATION
The rst page of the web conguration of the IP CAM is the information page. You can see the model name/
rmware version, IP CAM ID, registration status, network type and current video settings( bandwidth,
resolution) in this page.
The IP CAM can be viewed remotely by the KraunView software only when the IP CAM is registered. If this IP
CAM is not registered, please check the Ethernet wiring of your network environment. The “Network type”
eld displays the network connection(wired or wireless) and method(DHCP, PPPoE or static ip) the IP CAM
is running. The “Video users” eld displays the number of connected video viewing users.
Figure 3-3: IP CAM Information page
10
Manual
www.kraun.com
4.1. Video Display
This display page allows you to view the video display of the IP camera. For the rst time use of this display
on a computer, an activeX component will be automatically downloaded into the browser. This could take
some time, depends on the internet speed. The component is downloaded from a public domain, so that
the computer must be connected to the Internet.
If you want to modify the video display screen size, please refer to section 3.6 for more details.
Figure 3-4: Video display page
