Kramer WP-580Txr Manual de usuario

KRAMER ELECTRONICS LTD.

USER MANUAL

MODELS:

WP-580Txr

HDMI Line Transmitter

WP-580Rxr

HDMI Line Receiver

P/N: 2900-300087 Rev 4

WP-580Txr/WP-580Rxr – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 About HDBaseT™ Technology 5

3.2 Using Twisted Pair Cable 5

4Defining the WP-580Txr HDMI Line Transmitter 6

5Defining the WP-580Rxr HDMI Line Receiver 8

6Connecting the WP-580Txr and WP-580Rxr 10

6.1 Wiring the RJ-45 Connectors 12

6.2 Grounding the Transmitter/Receiver 13

7Technical Specifications 14

Figures

Figure 1: WP-580Txr HDMI Line Transmitter for the US and Decora® 6

Figure 2: WP-580Txr HDMI Line Transmitter for Europe (80mm/86mm) 7

Figure 3: WP-580Rxr HDMI Line Receiver for the US and Decora® 8

Figure 4: WP-580Rxr HDMI Line Receiver for Europe (80mm/86mm) 9

Figure 5: Connecting the WP-580Txr/WP-580Rxr Transmitter/Receiver Pair 11

Figure 6: TP PINOUT 12

Figure 7: Grounding Connection Components 13

WP-580Txr/WP-580Rxr - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 13 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP

5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP

7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:

Sierra Video Products; GROUP 12: Digital Signage; and GROUP 13: Audio.

Congratulations on purchasing your Kramer WP-580Txr and WP-580Rxr

transmitter/receiver pair (for the US, Europe and/or Decora® wall plates), which is

ideal for the following typical applications:

Projection systems in conference rooms, boardrooms, auditoriums, hotels

and churches, production studios

Rental and staging

Note that WP-580Txr and WP-580Rxr are purchased separately,

and can be connected to other HDBaseT certified transmitters and

receivers, respectively.

WP-580Txr/WP-580Rxr - Getting Started

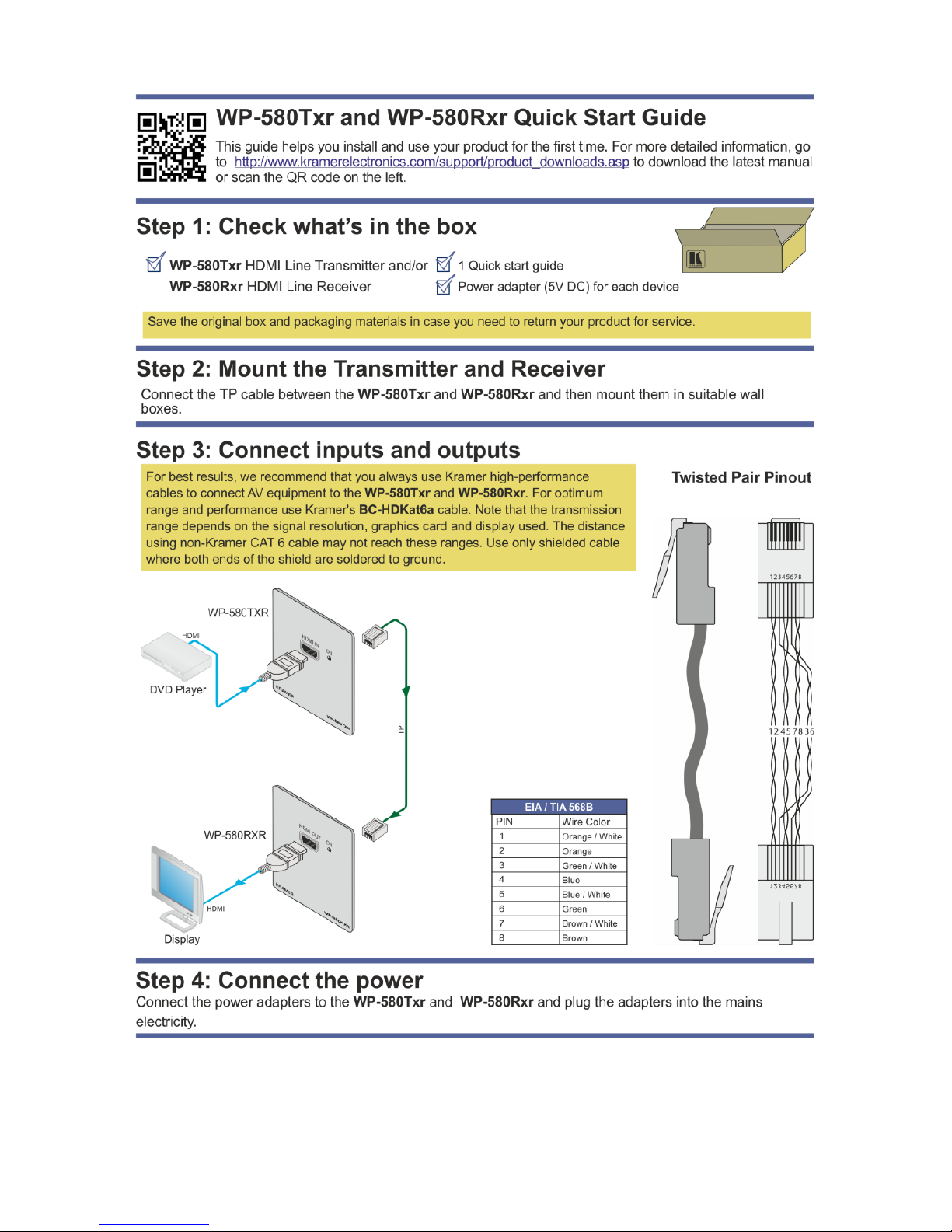

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com/support/product_downloads.asp

to check for up-to-date user manuals, application programs, and to check if

firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer WP-580Txr and WP-580Rxr transmitter/receiver pair

away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the

wall before installing

WP-580Txr/WP-580Rxr - Getting Started

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

WP-580Txr/WP-580Rxr - Overview

3 Overview

The WP-580Txr and WP-580Rxr are a high-performance, extra range, HDBaseT

technology Twisted Pair transmitter and receiver for HDMI signals.

The WP-580Txr converts the HDMI signal to a twisted pair signal.

The WP-580Rxr converts the twisted pair signal back into an HDMI signal.

The WP-580Txr and WP-580Rxr together form an extended transmission and

reception system or can separately connect to other certified HDBaseT devices to

form the transmission and reception system. For example, the transmitter and

receiver system can be composed of WP-580Txr that connects to the Kramer

WP-580Rxr to form a transmitter / receiver pair.

The WP-580Txr and WP-580Rxr transmitter/receiver pair features:

A bandwidth of up to 10.2Gbps (3.4Gbps per graphic channel) in normal

mode; up to 4.95Gbps (1.65Gbps per graphic channel) in ultra mode

System Range - Up to 130m (430ft) normal mode; up to 180m (590ft) ultra

mode (1080p @60Hz @24bpp) when using BC−HDKat6a cables

For optimum range and performance using HDBaseT™, use Kramer's

BC−HDKat6a cable. Note that the transmission range depends on the

signal resolution, source and display used. The distance using

non−Kramer CAT 6 cable may not reach these ranges.

2K and 4K support in normal mode

HDBaseT™ technology

HDTV compatibility and HDCP compliance

HDMI support - HDMI (deep color, x.v.Color™, lip sync, HDMI

uncompressed audio channels, Dolby TrueHD, DTS−HD, CEC, 2K, 4K, 3D)

3D pass through

EDID pass-through -passes EDID/HDCP signals from the source to the display

LED status indicators for power

Wall plate size of 2 gang EU/US/Decora®

WP-580Txr/WP-580Rxr - Overview

3.1 About HDBaseT™ Technology

HDBaseT™ is an advanced all-in-one connectivity technology (Supported by the

HDBaseT Alliance). It is particularly suitable in the consumer home environment

as a digital home networking alternative where it enables you to replace numerous

cables and connectors by a single LAN cable used to transmit, for example,

uncompressed full high-definition video, audio, IR, as well as various control

signals.

The products described in this user manual are HDBaseT certified.

3.2 Using Twisted Pair Cable

Kramer engineers have developed special twisted pair cables to best match our

digital twisted pair products; BC−HDKat6a (CAT 6 23 AWG cable) significantly

outperforms regular CAT 5 / CAT 6 cables.

We strongly recommend that you use shielded twisted pair cable.

WP-580Txr/WP-580Rxr - Defining the WP-580Txr HDMI Line Transmitter

4 Defining the WP-580Txr HDMI Line Transmitter

Figure 1: WP-580Txr HDMI Line Transmitter for the US and Decora®

Note that the Decora® type wall plate is supplied with a Midway

Size 2 gang frame. You can also fit it into a different sized Decora®

frame (not supplied) such as Standard Size or Oversized.

WP-580Txr/WP-580Rxr - Defining the WP-580Txr HDMI Line Transmitter

Figure 2: WP-580Txr HDMI Line Transmitter for Europe (80mm/86mm)

Feature

Function

HDMI IN Connector

Connects to the HDMI source

ON LED

Lights red when receiving power only, orange when

either input or output and power are attached, and

green when both an active input and output are

attached

Note, if no input is connected the device invokes the

power save mode automatically turning off the power

HDBT OUT RJ-45 Connector

Connects to the HDBT IN RJ-45 connector on the

WP-580Rxr

5V DC

+5V DC connector for powering the unit

PROG 4-pin Connector

For internal use

Grounding Screw

Connect to grounding wire, see Section 6.2
