Kramer DigiTOOLS 6505 Manual de usuario

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

6505

1:5S/PDIF Distributor

P/N: 2900-000420 Rev 2

6505 – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

3Overview 3

3.1 Defining the 6505 1:5 S/PDIF Distributor 3

4Connecting the 6505 4

5Technical Specifications 5

Figures

UFigure 1: 6505 1:5 S/PDIF DistributorU3

UFigure 2: Connecting the 6505 1:5 S/PDIF DistributorU4

6505 - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer 6505 1:5 S/PDIF Distributor, which is

ideal for the following typical applications:

•Video and audio production facilities

•Recording studios, for connecting a source to several acceptors

2 6505 - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high-performance, high-resolution cables

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer 6505 away from moisture, excessive sunlight and dust

Caution: No operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning: Disconnect the power and unplug the unit from the wall

before installing

6505 - Overview 3

3 Overview

The 6505 is a high−performance distribution amplifier for S/PDIF digital audio

signals. The unit takes one S/PDIF input and distributes the signal to five identical

S/PDIF outputs.

The 6505 features:

•Compatibility with EIAJ CP1201, IEC-60958, AES3id and S/PDIF standards

•A sample frequency range of 32kHz to 96kHz

•Equalization and reclocking of incoming data for low jitter recovery of the

digital audio data stream

•5V DC power and is housed in a DigiTOOLS® enclosure

3.1 Defining the 6505 1:5 S/PDIF Distributor

This section defines the 6505.

Figure 1: 6505 1:5 S/PDIF Distributor

# Feature Function

1 INPUT RCA Connector Connects to the S/PDIF digital audio source

2 OUT RCA Connectors Connect to the S/PDIF digital audio acceptor (from 1 to 5)

3 5VDC +5V DC connector for powering the unit

4 LINK LED Illuminates when receiving the appropriate input signal

5 ON LED Illuminates when receiving power

4 6505 - Connecting the 6505

4 Connecting the 6505

Always switch off the power to each device before connecting it to your

6505. After connecting your 6505, connect its power and then switch

on the power to each device.

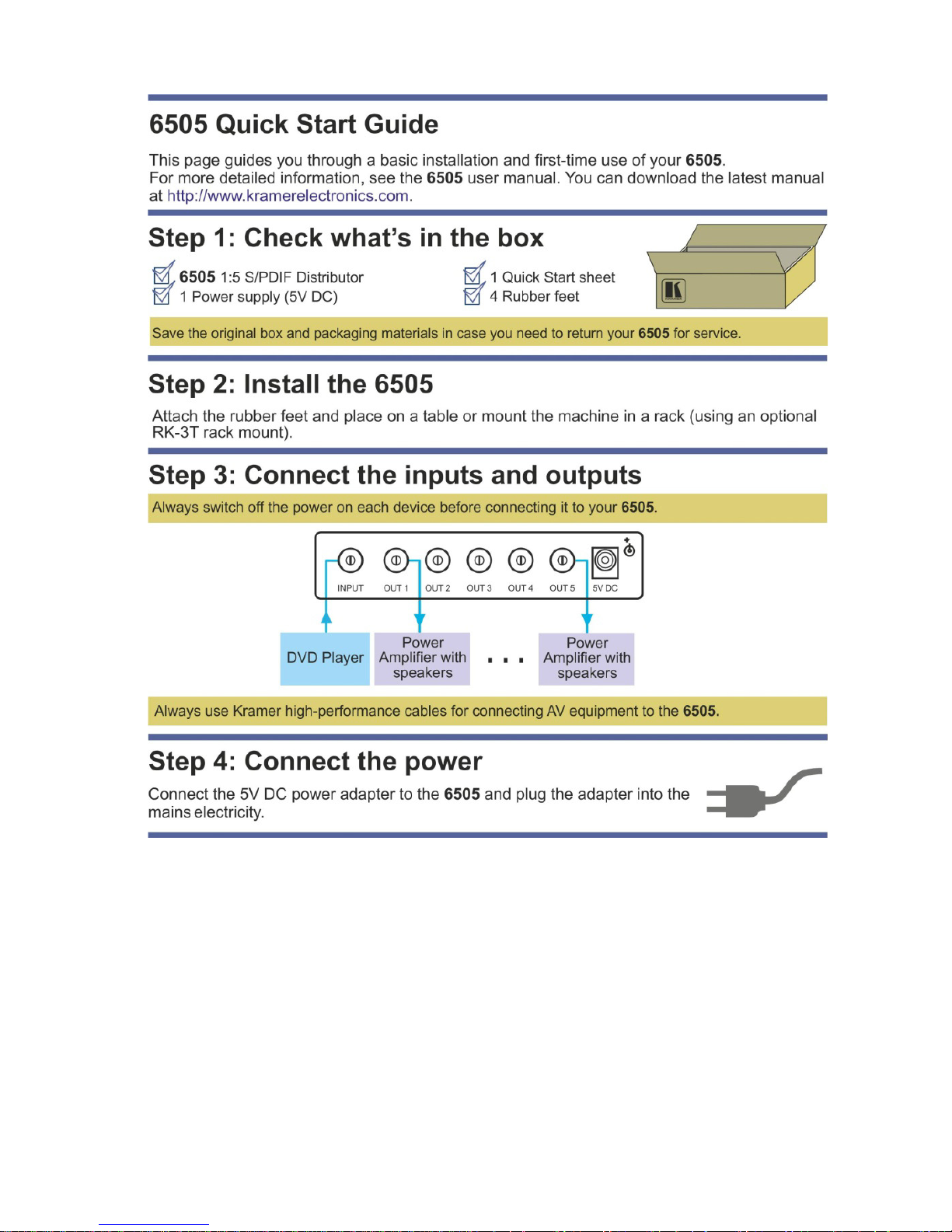

To connect the 6505 as illustrated in the example in Figure 2:

1. Connect an S/PDIF source (for example, a DVD Player) to the S/PDIF RCA

input connector.

2. Connect up to five S/PDIF RCA output connectors to up to five S/PDIF

acceptors (for example, power amplifiers).

3. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity (not shown in Figure 2.

Figure 2: Connecting the 6505 1:5 S/PDIF Distributor

6505 - Technical Specifications 5

5 Technical Specifications

INPUT: 1 S/PDIF digital audio input on an RCA connector

OUTPUTS: 5 S/PDIF digital audio outputs on RCA connectors

STANDARD COMPLIANCE: CP1201, IEC-60958, AES3id and S/PDIF

SAMPLE RATE: 32kHz to 96kHz

INPUT IMPEDANCE: 75Ω

OUTPUT IMPEDANCE: 75Ω

POWER SOURCE: 5V, 120mA

OPERATING TEMPERATURE: 0° to +55°C (32° to 131°F)

STORAGE TEMPERATURE: -45° to +72°C (-49° to 162°F)

HUMIDITY: 10% to 90%, RHL non-condensing

DIMENSIONS: 12cm x 6.95cm x 2.44cm (4.72" x 2.74" x 0.96", W, D, H)

WEIGHT: 0.3kg (0.66lbs) approx.

ACCESSORIES: Power supply, mounting bracket

OPTIONS: RK-3T 19" rack adapter

Specifications are subject to change without notice at Uhttp://www.kramerelectronics.comU

6 6505 - Technical Specifications

For the latest information on our products and a list of Kramer distributors,

visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

Web site:

E-mail:

www.kramerelectronics.com

info@kramerel.com

P/N:

2900-000420

Rev:

SAFETY WARNING

Disconnect the unit from the power

supply before opening and servicing
