RC-76R/RC-78R – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the RC-76R/RC-78R Room Controllers 5

4Connecting the RC-76R/RC-78R 7

4.1 Connecting RS-232 Devices 8

4.2 Connecting RS-485 Devices 8

4.3 Connecting the Ethernet Port 9

4.4 Connecting the K-NET Port 10

4.5 Grounding the RC-76R/RC-78R 10

5Operating the RC-76R/RC-78R 12

6Front Panel Button Caps and Labels 13

6.1 Installing the Front Panel Button Caps and Labels 16

7Technical Specifications 18

Figures

Figure 1: RC-76R/RC-78R Room Controllers 5

Figure 2: Connecting the RC-76R/RC-78R Room Controllers 8

Figure 3: K-NET PINOUT Connection 10

Figure 4: Grounding Connection Components 10

Figure 5: Sample Button Label Sheet 15

Figure 6: Removing the Button Cover Plate Mounting Screws 16

Figure 7: Button Cap Orientation with Label 17

Figure 8: Replacing the Button Cap 17

RC-76R/RC-78R - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer RC-76R/RC-78R Room Controllers,

which are ideal for the following typical applications:

Remote control and management of AV equipment in multimedia rooms,

such as classrooms, auditoriums, conference rooms

RC-76R/RC-78R - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer RC-76R/RC-78R away from moisture, excessive

sunlight and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

RC-76R/RC-78R - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

RC-76R/RC-78R - Overview

3 Overview

The RC-76R/RC-78R are highly versatile master room controllers that act as an

all-in-one extended remote control panel for control of AV equipment—especially

projectors and associated equipment—in any room (such as classrooms,

boardrooms, or auditoriums). They streamline operations and simplify control by

integrating audio, video, and computer-video sources into a centralized system.

The RC-76R/RC-78R have identical functionality. The RC-76R has six buttons and

the RC-78R has eight buttons.

The RC-76R/RC-78R features:

6/8 configurable, RGB backlit, front panel buttons, configured using the

K-Config configuration software

Available from Kramer Electronics on our Web site at

http://www.kramerelectronics.com/support/?soft=k-config.

1 general purpose I/O port that can be configured by K-Config as a digital

input, digital output or analog input for interfacing with a variety of devices

such as sensors, switches, LEDs, or relays

2 bidirectional RS-232 ports that can control AV equipment such as

projectors, LCD and PDP displays, power amplifiers, switchers and scalers

2 relay contact closure ports that can control other room items related to the

AV system, such as, raising and lowering drapes, a screen or a projector

2 IR control ports with an IR learning receiver behind the front plate that

learns commands from any IR remote

1 RS-485 control port

Compatibility with Kramer Site-CTRL software for network remote control

and management over the Ethernet port

A K-NET™ control channel that connects compatible user interfaces, supply

power and control data over a single cable

Flexible control via Ethernet and K-NET

Decora compatible, wall plate size of 1 gang US

RC-76R/RC-78R - Overview

3.1 Defining the RC-76R/RC-78R Room Controllers

This section defines the RC-76R/RC-78R.

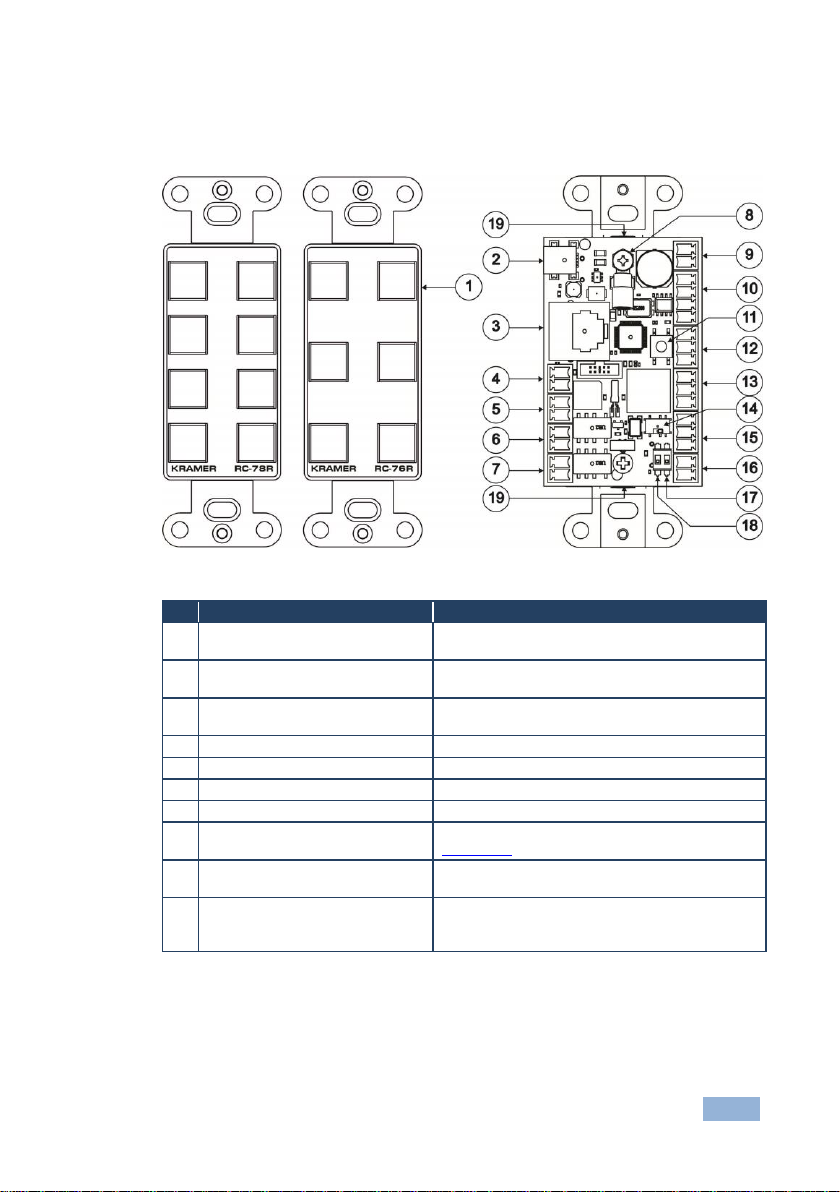

Figure 1: RC-76R/RC-78R Room Controllers

Feature

Function

6/8 Configurable Buttons

Function is programmed by the K-Config

Configuration software

USB Connector

Connect to a computer for firmware upgrade or for

uploading the configuration file

ETHERNET RJ-45 Connector

Connects to the PC or other serial controller

through computer LAN to control AV products

IR 2 Terminal Block Connector

Connect to IR emitter cable 2

IR 1 Terminal Block Connector

Connect to IR emitter cable 1

RELAY C2

Connect to low-voltage relay-driven device 2

RELAY C1

Connect to low-voltage relay-driven device 1

Ring Tongue Terminal Grounding

Screw

Connect to grounding wire (optional), (see

Section 4.5)

Power Supply 2-pin Terminal

Block Connector

Connect +12V to +12V, ground to GND

K-NET Terminal Block Connector

Connect the GND pin to the Ground connection;

pin B (-) and pin A (+) are for RS-485, and the

+12V pin is for powering the unit

RC-76R/RC-78R - Overview

Feature

Function

RESET Button

Press to reset to factory default definitions:

IP number 192.168.1.39, Mask –255.255.0.0,

Gateway –0.0.0.0

First, disconnect the power supply and then connect it

again while pressing the Reset button. The unit

powers up and loads its memory with the factory

default definitions and erases all stored preset

RS-232 (2) Terminal Block

Connector

Connects to a PC or the remote controller

RS-232 (1) Terminal Block

Connector

Connects to a PC or the remote controller

Program Switch

Slide the switch to the left when programming the

unit; slide to the right for normal operation

RS-485 Terminal Block Connector

Pins B (-) and A (+) are for RS-485;

Pin G may be connected to the shield (if required)

GPIO/GND Terminal Block

Connector

Connect to various sensors, switches, LEDs, or

relays

RS-485 Terminator Switch

Slide the DIP-switch up to terminate the RS-485

line with a 120Ω load; down is for no termination

K-Net Terminator Switch

Slide the DIP-switch up to terminate the K-Net line

with a 120Ω load; down is for no termination

Button Cover Plate Mounting

Screws

2 screws that hold the button cover plate to the

body of the device. Remove to access the buttons

(see Figure 6)

RC-76R/RC-78R - Connecting the RC-76R/RC-78R

4 Connecting the RC-76R/RC-78R

Always switch off the power to each device before connecting it to your

RC-76R/RC-78R. After connecting your RC-76R/RC-78R, connect its

power and then switch on the power to each device.

To connect the RC-76R/RC-78R as illustrated in the example in Figure 2:

1. Connect the IR outputs as follows:

Connect an IR emitter to IR OUTPUT 1 and attach the emitter to the

DVD player 1

Connect an IR emitter to IR OUTPUT 2 and attach the emitter to the

DVD player 2

2. Connect the RS-232 ports (see Section 4.1) as follows:

Connect RS-232 port 1 to the projector

Connect RS-232 port 2 to the plasma display

3. Connect the RELAY terminal block connectors as follows:

Connect RELAY C and 1 to the screen

Connect RELAY C and 2 to the lighting system

4. Connect the GPI/O 1 port to a motion detector.

5. Connect the Ethernet port to a network.
