Kramer VP-200K Manual de usuario

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VP-200K

1:2 High Resolution UXGA DA

VP-300K

1:3 High Resolution UXGA DA

VP-400K

1:4 High Resolution UXGA DA

P/N: 2900-000385 Rev 4

VP-200K, VP-300K, VP-400K – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

4Your High Resolution XGA DA 5

4.1 Your VP-200K 1:2 High Resolution UXGA DA 5

4.2 Your VP-300K 1:3 High Resolution UXGA DA 6

4.3 Your VP-400K 1:4 High Resolution UXGA DA 7

5Connecting the VP-300K 8

6Technical Specifications 10

Figures

Figure 1: VP-200K 1:2 High Resolution UXGA DA 5

Figure 2: VP-300K 1:3 High Resolution UXGA DA 6

Figure 3: VP-400K 1:4 High Resolution UXGA DA 7

Figure 4: Connecting the VP-300K High Resolution UXGA DA 9

VP-200K, VP-300K, VP-400K - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VP-200K/VP-300K/VP-400K 1:2/3/4

High Resolution UXGA DA, which are ideal for the following typical applications:

Dual monitor systems, stores, and points of sale

Presentation systems

VP-200K, VP-300K, VP-400K - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer products away from moisture, excessive sunlight and

dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VP-200K, VP-300K, VP-400K - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility.

VP-200K, VP-300K, VP-400K - Overview

3 Overview

The Kramer TOOLS VP-200K, VP-300K and VP-400K are 1:2, 1:3 and 1:4

(respectively) distribution amplifiers for UXGA and higher resolution signals.

The VP-200K, VP-300K and VP-400K accept one input, provide correct buffering

and isolation, and then distribute the signal to two, three or four (respectively)

identical outputs on high-density 15-pin HD connectors.

In particular, the high-resolution UXGA DAs feature:

High video bandwidth exceeding 400MHz, ensuring transparency even at

high-resolution graphics modes such as UXGA (1600x1200)

DDC (Display Data Channel) communication support between the input and

output 1 high-density 15-pin HD connectors on pins 11, 12 and 15

EDID PassThru that passes EDID signals from source to display

Kramer’s innovative integrated sync processing; KR-ISP™ technology,

which lets you achieve a sharp, stable image when the sync level is too low,

by restoring the sync signal waveform

An ID Bit control switch as well as polarity switches

5V DC operation and a DigiTOOLS®enclosure

VP-200K, VP-300K, VP-400K - Your High Resolution XGA DA

4 Your High Resolution XGA DA

This section defines the:

VP-200K1:2 High Resolution UXGA DA (see section 43H4.1)

VP-300K1:3 High Resolution UXGA DA (see section 44H4.2)

VP-200K1:4 High Resolution UXGA DA (see section 45H4.3)

4.1 Your VP-200K 1:2 High Resolution UXGA DA

46HFigure 1 defines the VP-200K:

Figure 1: VP-200K 1:2 High Resolution UXGA DA

Feature

Function

INPUT 15-pin HD Connector

Connect to the computer graphics source

ON LED

Illuminates when receiving power

OUTPUT 2 15-pin HD Connector

Connect to the computer graphics acceptor 2

OUTPUT 1 15-pin HD Connector

Connect to the computer graphics acceptor 1

Hs (Horizontal Sync) Switch

Set both switches to Hi-Z (TTL) if the source is, for

example, a digital graphics card. Set both switches

to 75(ANALOG) if the source is analog based, for

example, an RGBHV source with coaxial cable for

sync

Vs (Vertical Sync) Switch

ID Bit Switch

Slide down to set to ON for a laptop; up to set to

OFF for a non-laptop

5V DC

+5V DC connector for powering the unit

VP-200K, VP-300K, VP-400K - Your High Resolution XGA DA

4.2 Your VP-300K 1:3 High Resolution UXGA DA

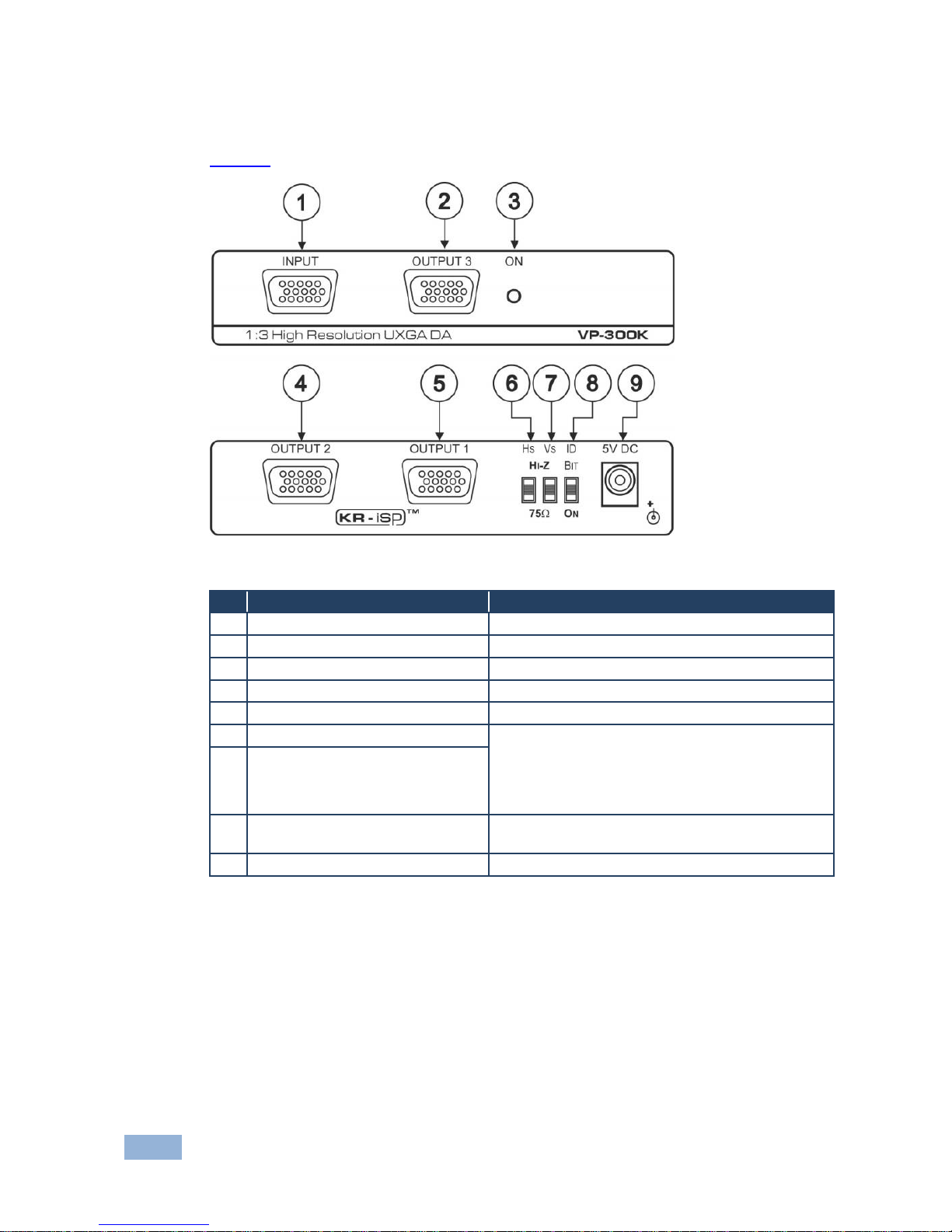

Figure 2 defines the VP-300K:

Figure 2: VP-300K 1:3 High Resolution UXGA DA

Feature

Function

INPUT 15-pin HD Connector

Connect to the computer graphics source

OUTPUT 3 15-pin HD Connector

Connect to the computer graphics acceptor 3

ON LED

Illuminates when receiving power

OUTPUT 2 15-pin HD Connector

Connect to the computer graphics acceptor 2

OUTPUT 1 15-pin HD Connector

Connect to the computer graphics acceptor 1

Hs (Horizontal Sync) Switch

Set both switches to Hi-Z (TTL) if the source is, for

example, a digital graphics card. Set both switches

to 75(ANALOG) if the source is analog based, for

example, an RGBHV source with coaxial cable for

sync

Vs (Vertical Sync) Switch

ID Bit Switch

Slide down to set to ON for a laptop; up to set to

OFF for a non-laptop

5V DC

+5V DC connector for powering the unit

VP-200K, VP-300K, VP-400K - Your High Resolution XGA DA

4.3 Your VP-400K 1:4 High Resolution UXGA DA

Figure 3 defines the VP-400K:

Figure 3: VP-400K 1:4 High Resolution UXGA DA

Feature

Function

INPUT 15-pin HD Connector

Connect to the computer graphics source

OUTPUT 3 15-pin HD Connector

Connect to the computer graphics acceptor 3

ON LED

Illuminates when receiving power

OUTPUT 4 15-pin HD Connector

Connect to the computer graphics acceptor 4

OUTPUT 2 15-pin HD Connector

Connect to the computer graphics acceptor 2

OUTPUT 1 15-pin HD Connector

Connect to the computer graphics acceptor 1

Hs (Horizontal Sync) Switch

Set both switches to Hi-Z (TTL) if the source is, for

example, a digital graphics card. Set both switches

to 75(ANALOG) if the source is analog based, for

example, an RGBHV source with coaxial cable for

sync

Vs (Vertical Sync) Switch

ID Bit Switch

Slide down to set to ON for a laptop; up to set to

OFF for a non-laptop

5V DC

+5V DC connector for powering the unit
