PT-571, PT-572+ Quick Start

P/N:

2900- 301319QS

Rev:

Scan for full manual

PT-571, PT-572+ Quick Start Guide

This guide helps you install and use your PT-571, PT-572+ for the first time.

Go to www.kramerav.com/downloads/PT-571 to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

PT-571 HDMI Line Transmitter or

PT-572+ HDMI Line Receiver

1 Bracket set

4 Rubber feet

1 power adapter (12V DC input)

1 Quick start guide

IMPORTANT NOTICE!

We highly recommend using only Kramer UNIKAT cables with these products. If using 3rd party shielded CAT-6A cables, both ends of the

shield must be soldered to the connectors for the products to function properly. Do not use any jumpers, unshielded wall plates or mid-

span cable connections. These extenders are not compatible with HDBaseT technologies. Prior to signal extension, ensure that the

extension line cable is lying straight and not coiled.

Step 2: Get to know your PT-571, PT-572+

PT-571 HDMI Line Transmitter

Feature

Function

OUT RJ-45 Connector

Connect to the IN RJ-45 connector on the PT-572+

ON LED

Lights to indicate the following:

Red—only the power is connected

Orange—either the input or the output is connected

Green—both the input and the output are connected

If no input is connected the unit invokes the power save mode automatically turning off the power

HDMI™IN Connector

Connect to the HDMI source

12V DC

+12V DC connector for powering the unit

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

PT-572+ HDMI Line Receiver

Feature

Function

IN RJ-45 Connector

Connect to the OUT RJ-45 connector on the PT-571

ON LED

Lights to indicate the following:

Red—only the power is connected

Orange—either the input or the output is connected

Green—both the input and the output are connected

HDMI OUT Connector

Connect to the HDMI acceptor

12V DC

+12V DC connector for powering the unit

Step 3: Mount PT-571, PT-572+

Install PT-571, PT-572+ using one of the following methods:

•Attach the rubber feet and place the unit on a flat surface.

•Fasten a bracket (included) on each side of the unit and attach it to a flat surface

(see www.kramerav.com/downloads/PT-571).

•Mount the unit in a rack using the recommended rack adapter

(see www.kramerav.com/product/PT-571).

•Ensure that the environment (e.g., maximum

ambient temperature & air flow) is compatible for

the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate

ratings should be used for avoiding overloading of

the circuits.

•Reliable earthing of rack-mounted equipment

should be maintained.

•Maximum mounting height for the device is 2

meters.

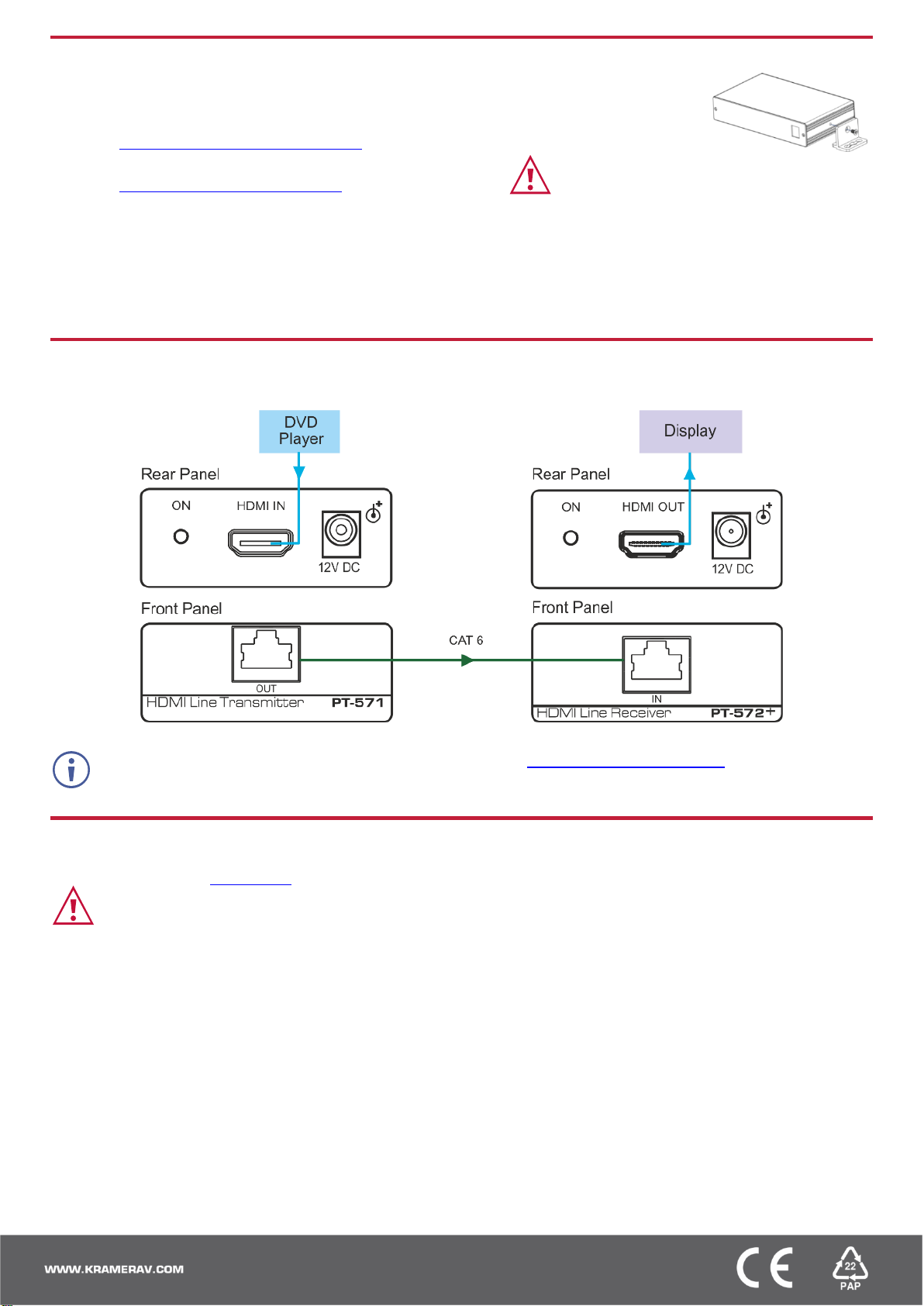

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your PT-571, PT-572+.

For optimal performance, use the recommended Kramer cables available at www.kramerav.com/product/PT-571.

Using third-party cables may cause damage!

Step 5: Connect power

Connect the power cord to PT-571, PT-572+ and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:
