Konica Minolta DiMAGE E50 Manual de usuario

TECHNICAL ILLUSTRATION

PARTS NOTICE WITH PARTS LIST

TECHNICAL REPAIR MANUAL

SERVICE MANUAL

DiMAGE E50

KONICA MINOLTA PHOTO IMAGING, INC.

COMMON MODEL :

DiMAGE E50

PEU/PAU (2811-100)

PHK (2811-110)

China (2811-120)

PCA /PUSA (2811-300)

KONICA MINOLTA PHOTO IMAGING, INC.

2811 Service Manual Index Code

QS FA9220-2811-01

Page

Section/TTL number of pages

1 Service Manual Index 1

2 Product Specification 1

3 Parts List 4

4 Repair Guide 0

5 Trouble-Shooting Chart 0

6 Check List 0

Revision History

Date of issue/Version Reason (Revision part) Approved by Verified by W ri tt e n

15/11/2005 First issued Yata

Ueno

SCS

Division Camera CS Division

Completed November 15, 2005

Approved by Verified by Written by

Yata

Ueno

SCS

Camera Type DiMAGE E50

Number of Effective Pixels Approx. 5.0 million(**2584 x 1936)

CCD 1/2.5-inch CCD **Total pixels: 5.2 million

Camera Sensitivity Auto, ISO 50, 100, 200 equivalent

Focal Length 5.4 - 16.2mm (equivalent to 32 - 96mm in 35mm format)

Maximum Aperture f/2.8 - f/4.8

Focus Range Approx. 50 cm to infinity (both Wide and Tele)

Focus range Approx. 6 cm to infinity (Macro Wide)

Approx. 35 cm to infinity (Macro Tele)

Digital Zoom 4x (Photography mode)

2x and 4x (Playback mode)

Autofocus System TTL method AF

Autofocus Area Center focus area

White Balance Control Auto / Incandescent / Fluorescent 1/ Fluorescent 2 / Daylight / Cloudy / Manual

Metering Multi segment metering (256 segment), Spot metering

Shutter CCD electronic shutter and mechanical shutter

Exposure Mode Programmed AE

Exposure Compensation -2EV - +2EV (in 0.3EV increments)

Flash Metering Pre-flash TTL

Flash Modes Auto Flash / Red-eye Reduction / Night Scene / Suppressed Flash / Forced Flash

Flash Guide Number 6 (in meters at ISO 100)

Self-timer 10 sec. / 2 sec. / 10+2 sec.

Recording Media External memory: Supports SD card (up to 512MB)

File Format DCF 1.0, DPOF 1.1, EXIF 2.2, AVI

LCD Monitor 2.5" LTPS TFT color LCD

Battery

y,,g y,

battery into the camera, and then connect the AC adapter* with the camera via the

conversion adapter*.

*Included in the DiMAGE E50 package.

External Power Source DC 5V (with specified AC adapter)

AV Output NTSC / PAL

Dimensions 88.5mm (W) x 54.5mm (H) x 24mm (D)

Weight Approx. 130g (Without batteries and the Sdmemory card)

PRODUCT SPECIFCATION

margaiDedolpxE05E

2811-0032-01

2811-0022-01

2811-0033-01(2)

2811-0034-01

2811-0001-01

2811-0035-01

2811-0036-01

2811-0031-01

2811-0021-01

2811-0004-01

2811-0006-01

2811-0005-01

2811-0011-01

2811-0031-01 2811-0002-01

2811-0034-01(2)

2811-0035-01

2811-0036-01

2811-0003-01

(2811)

PART NO PART NAME QTY.

2811-0001-01 ASSY, FRONT COVER 前カバーセット 1

2811-0002-01 ASSY, REAR COVER 後カバーセット 1

2811-0003-01 BATTERY COVER 電池蓋 1

2811-0004-01 DECORATION PLATE A デコレーションプレートＡ 1

2811-0005-01 DECORATION PLATE B デコレーションプレートＢ 1

2811-0006-01 STRAP HOLDER ストラップホルダー 1

2811-0011-01 LCD ＬＣＤ 1

2811-0021-01 ASSY, POWER PCB 電源基板 1

2811-0022-01 ASSY, IO DIP FPC ＩＯ　ＤＩＰ基板 1

2811-0031-01 SCREW ねじ 2

2811-0032-01 SCREW ねじ 1

2811-0033-01 SCREW ねじ 2

2811-0034-01 SCREW ねじ 3

2811-0035-01 SCREW ねじ 2

2811-0036-01 SCREW ねじ 2

PARTS LIST

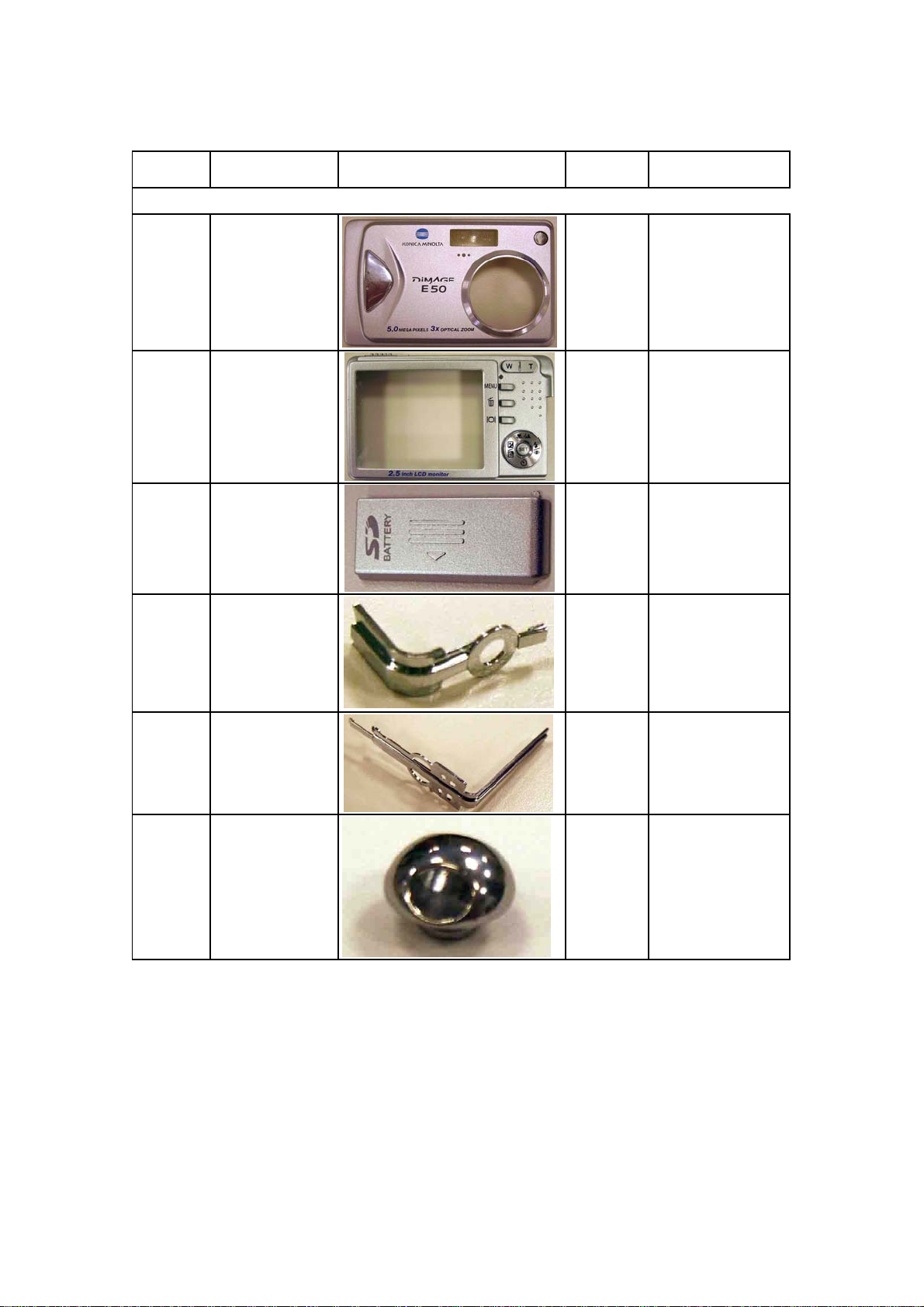

Spare Part Photo

Parts Name Photo Q'ty/Unit KonicaMinolta P/N

Mechanical Parts

BASSY, FRONT

COVER 12811-0001-01

BASSY, REAR

COVER 12811-0002-01

BBATTERY

COVER 12811-0003-01

BDECORATION

PLATE A 12811-0004-01

BDECORATION

PLATE B 12811-0005-01

CSTRAP HOLDER 12811-0006-01

Parts Name Photo Q'ty/Unit KonicaMinolta P/N

Module

A LCD 12811-0011-01

Board Assembly

BASSY, POWER

PCB 12811-0021-01

AASSY, IO DIP

FPC 12811-0022-01
