Konftel 200 Manual de usuario

User guide

Conference phone Konftel 200

English I Espanol I Français

This package includes the following items:

1 pc User Guide

1 pc Conference Phone

1 pc Power supply

1 pc Power supply and network cable

1 set Intermediate plugs

The optional equipment package includes

the following items:

1 pair Expansion microphones

2 pcs Expansion microphone cable 4.9 ft (1.5 m)

2 pcs Expansion microphone cable 8.2 ft (2.5 m)

1 pc Remote control

4 pcs Batteries (AAA) for the remote control

Please check that the package contains all items listed.

If any items are missing, please contact your dealer.

Konftel 200 • User Guide

English

CAUTION

WARNING:

To reduce the risk of fire or shock hazard, do not expose this product to rain or moisture.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF

ELECTRICAL SHOCK, DO NOT REMOVE

COVER OR BACK. NO USER-

SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED PERSONNEL.

The lightning symbol is intended to alert

you to the presence of uninsulated

dangerous voltage within this product’s

enclosure that might be of sufficient

magnitude to constitute a risk of electric

shock. Do not open the product’s case.

The exclamation symbol is intended

to inform you that important operating

and maintenance instructions are

included in the literature accompanying

this product.

Contents

Description

Display and Keypad

Placement Guide

Connection

Calling

Incoming Calls

Outgoing Calls

Three-way Calls

Programming the Flash key

Speed Dialing, Redial

Volume Control, Mute, Tuning

Add a New Number in Phonebook

Edit Phonebook

Delete Name and Number

Ring Volume

Change Time and Date

Select Language

Keypad Tone

Accessories and Spare Parts

Accessories

Expansion microphones

Remote Control

Remote Control Functions

Troubleshooting and Maintenance

Technical Data

Warranty

Service

FCC Information

CSA Information

Konftel 200 • User Guide

English

Konftel 200 • User Guide

English

Description

Output jack for

tape recorder

Microphone

inputs

Telephone

line input

Top

Bottom

Display

Speakers

Green (on)/red (off)

mic indicators

Microphone

Remote control

receiver

Keypad

Power supply input

Konftel 200 • User Guide

English

Display and Keypad

Time

Date

Call Timer

OK key

Menu key

Flash

key

Up/Down key

Mute/Pause key

Delete key

Shift key

1, space, . (period)

2, A, B, C, Å, Ä, Á, À,

a, b, c, å, ä, á, à

3, D, E, F, É, È,

d, e, f, é, è

4, G, H, I,

g, h, i

5, J, K, L,

j, k, l

6, M, N, O, Ö, Ø, Ñ,

m, n, o, ö, ø, ñ

7, P, Q, R, S,

p, q, r, s

8, T, U, V, Ü, Ú,

t, u, v, ü, ú

9, W, X, Y, Z,

w, x, y, z

Placement Guide

Konftel 200 • User Guide

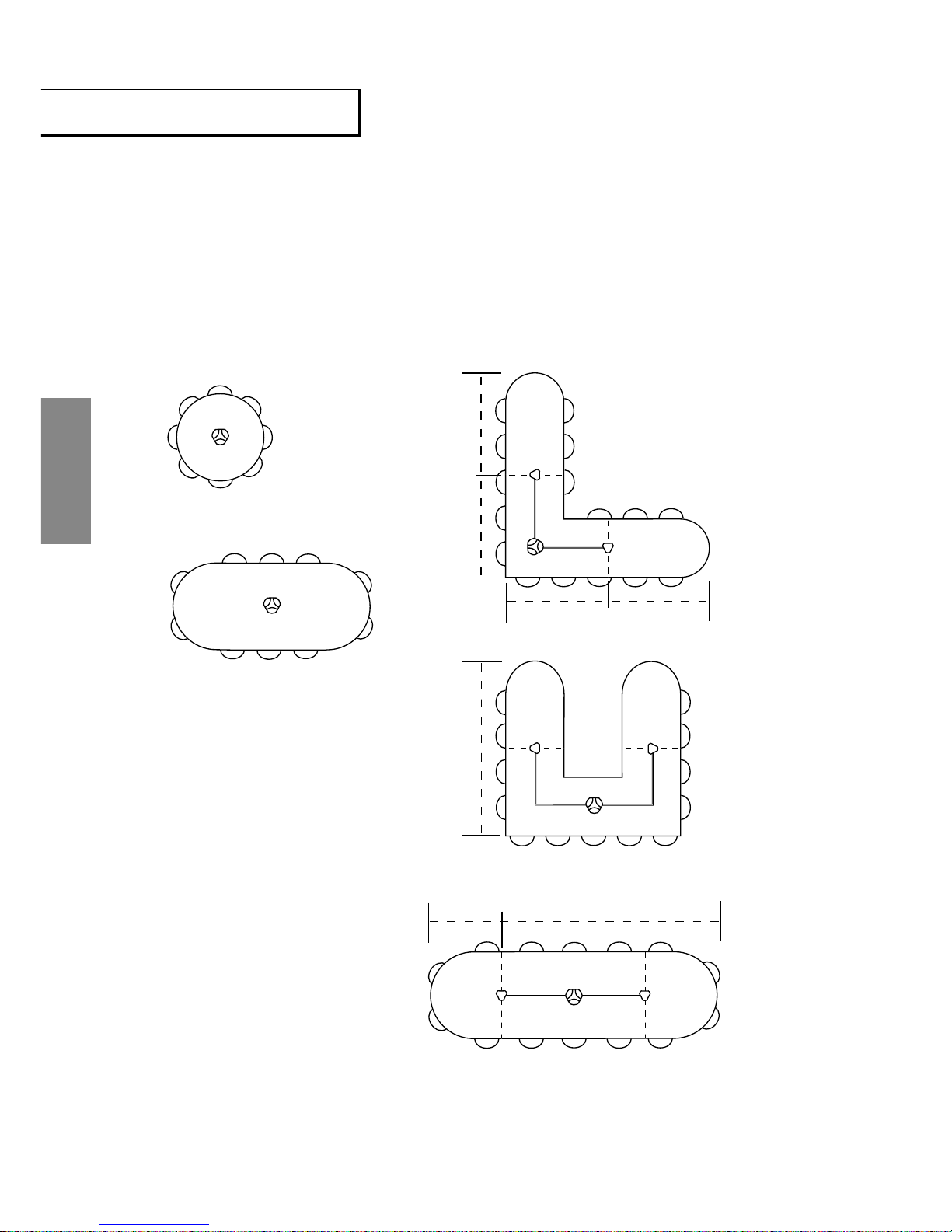

For optimum sound, position the units

as shown in the illustrations

Konftel 200 has a range of

up to 300 sq ft (30 m2)Konftel 200 with

expansion microphones has a range

of up to 700 sq ft (70 m2)

L/2

L/4

English

Konftel 200 • User Guide

English

Connection

Connectors

underneath

Konftel 200

Only a power supply of

SA48-47A type may be

connected.

Analog line

120 VAC 60Hz

electrical outlet

AC power

supply

Analog

telephone line

(POTS)

0-9...

A ring signal is heard and the green mic

indicators light to indicate the incoming call.

Press the OK key to answer.

The call duration is displayed in the call timer

display.

To end the call, press OK.

Incoming Calls

Outgoing Calls

Press OK.

Dial the number.

To preview, first enter the phone number.

The call duration is displayed in the call timer

display.

Press OK. The number is called within 3 seconds.

To end the call, press OK.

12345...

Calling

Konftel 200 •User Guide

English
