Kohler S300 Manual de usuario

Installation and Homeowners Guide

Veil Bathroom Heater S300

S300

K-21464T-0

K-21466T-0

(Aircare)

K-21464T-X-0(Cloud)

KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD,

JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436

( ) 158 200436

1367689-T01-A

-1-

BEFORE YOU BEGIN

Please read these instructions carefully to familiarize

yourself with the required tools, materials, and installation

sequences. Follow the sections that pertain to your

particular installation. This will help you avoid costly

mistakes. In addition to proper installation, read all

operation and safety instructions.

All information in these instructions is based upon the

latest product information available at the time of

publication. Kohler China reserves the right to make

changes in product characteristics, packaging, or

availability at any time without notice.

These instructions contain important care, cleaning, and

warranty information -

This product complies with GB 4706.1-2005, GB4706.23-

2007, GB 4706.27-2008, GB7000.1, GB7000.202 and

GB/T17743.

please leave instructions for the

consumer

GB 4706.1-2005 GB4706.23-2007 GB

4706.27-2008 GB7000.1 GB7000.202 GB/T17743

WARNING: Risk of electrical shock.

A licensed

electrician should make all electrical connections.

Connect only to

a circuit protected by a typical two-pole circuit breaker.

Disconnect

power before servicing.

Tape measure

Level

Screw driver

Connection wire

Wire cutter

Insulation tape

Bushing

Percussion Drill

Pen Knife

Wrench

RECOMMENDED TOOLS AND MATERIALSRECOMMENDED TOOLS AND MATERIALS

Kohler reserves the right to change marked dimensions without prior notice.

Unit: mm

Reference Value

ROUGHING-IN

2018

Junction Box Cover

Ventilation Outlet

Hot Air Outlet

300

289

268

300

294

272

162

180

1367689-T01-A

-2-

SPECIFICATIONS

Model

Voltage/Frequency /

220V~/50Hz

K-21464T-0/K-21464T-X-0/

K-21466T-0

220V~/50Hz

K-21464T-0/K-21464T-X-0/

K-21466T-0

Rated Input Power 2150W 2150W

Heater Power

Fan Power

Dry Clothing Power

Ventilation Power

2137W 2137W

35W 35W

2137W(Hot)/35W(Cool) 2137W( )/35W( )

38W 38W

Air-care Power

Lighting Power

Ventilation Volume

Ventilation Noise

Ingress Protection

13W 2 (72pcs 0.2W) 13W 2 (72 0.2W)

3.0m /min

3m /min

3.0

44dB 44dB

IPX2 (Bathroom Heater) IPX2 ( )

IPX4 (Remote Control)

IP20 (LED)

IPX4 ( )

IP20 (LED )

SIMPLIFIED DIAGRAM OF THE UNIT

36W( K-21464T-0/K-21464T-X-0)

M6 Screw Rod

6 Washer

6 Cushion

Hanger

Keel

Expansion Pipe

M6 Butterfly Nut

M6 Nut

BTP4*8 Triangle

Self-tapping Screws

BTP4*8

BTP4*8 Triangle

Self-tapping Screws

BTP4*8

Ventilation Outlet Assy.

Clamp

Air Exhaust Pipe

Air Outlet Window

36W(K-21464T-0/K-21464T-X-0 Only)

1367689-T01-A

MAIN CONTROL CIRCUIT BOARD

-3-

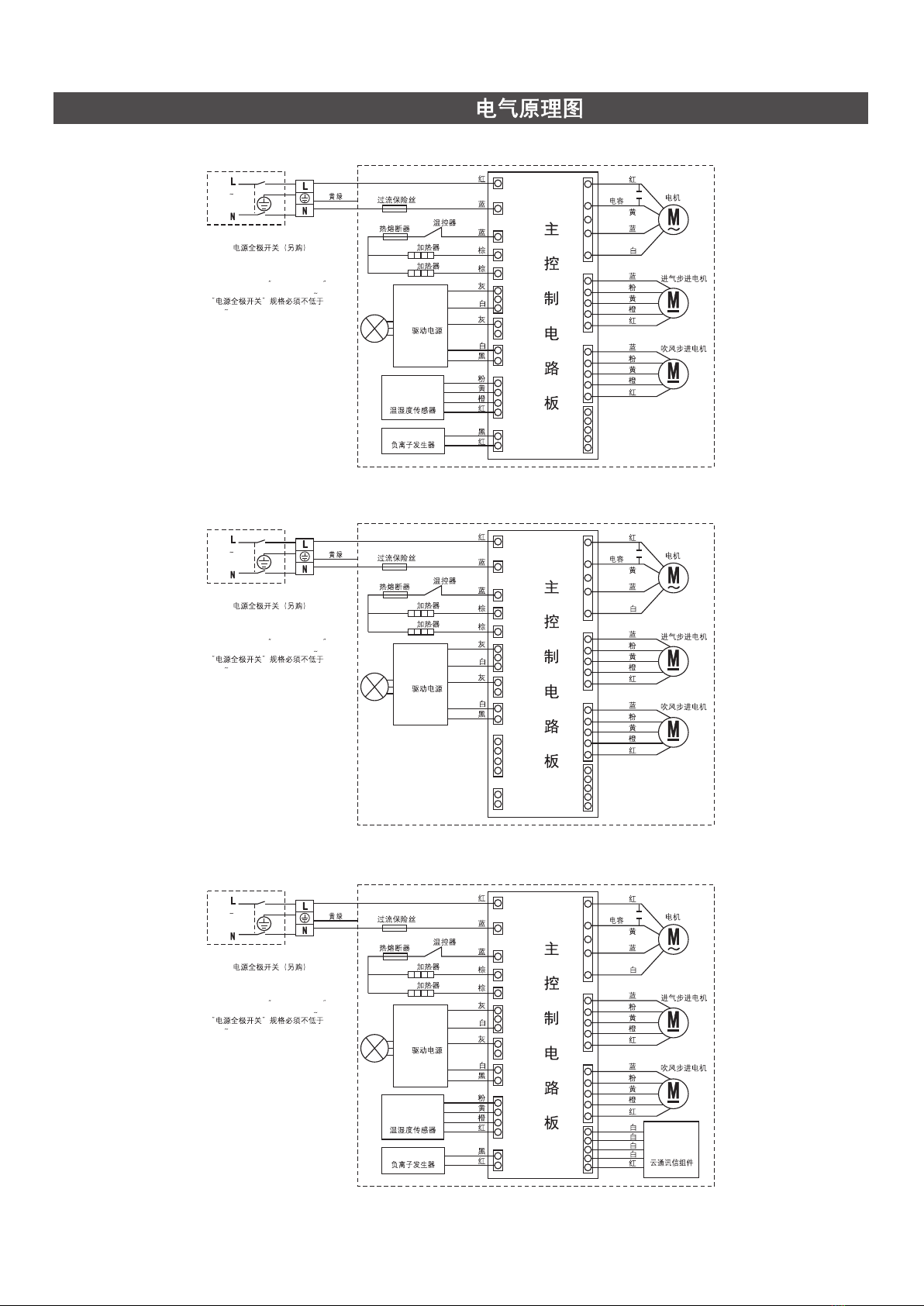

WIRING DIAGRAM

K-21466T-0

K-21464T-X-0

K-21464T-0

ALL-POLE SWITCH (OPTIONAL)

220V

50Hz

220V

50Hz

220V

50Hz

THE RATE OF THE POWER SWITCH

MUST NOT BE LOWER THAN 250V 16A

250V 16A

THE RATE OF THE POWER SWITCH

MUST NOT BE LOWER THAN 250V 16A

250V 16A

THE RATE OF THE POWER SWITCH

MUST NOT BE LOWER THAN 250V 16A

250V 16A

MOTOR

YELLOW/GREEN

HEATER 1 1

HEATER 2 2

THERMOSTAT

THERMAL FUSE

OVER CURRENT FUSE

CAPACITOR

CN4

CN7

CN8

CN5

CN12

CN6

CN3

CN11

CN14

TEMPERATURE

AND HUMIDITY

SENSOR MODULE

TEMPERATURE

AND HUMIDITY

SENSOR MODULE

ANION GENERATOR

STEPPER MOTOR

RED

BLUE

RED

BLACK

WHITE

BROWN

GRAY

PINK

YELLOW

ORANGE

LED POWER

LED

LED POWER

LED

LED POWER

LED

CLOUD

COMMUNICATION

ASSEMBLY

RED

WHITE

1367689-T01-A

-4-

There's no risk of damage to the insulation of power cord.

Copper cord must be inserted into the pillar terminal hole, and make

sure all the cords under the terminal are inserted into the pillar

terminal completely.

Suggest using a power cord which with specification 60227 IEC 53

Model's powercord Specified in GB/T 5023.5 and with cross section

of 3X1.0mm .

GB/T 5023.5 60227 IEC 53 ,

3X1.0mm

Terminal

Conductor

Insulation

(Unit: mm)

(: )

WARNING

Make sure the power cord installed firmly,

otherwise it may catch fire.

Conductor

Earth

Power Cord

PREPARATIONS BEFORE INSTALLATION

A. Preparation before the installation A.

1. Open the hole of outlet window

Make sure that the outlet window s position (it should be

lower than the outlet of the bathroom heater to prevent the

water come back to the bathroom heater from the outlet

window), and open a round hole on the wall.

2. Outlet window installation

Fix the air exhaust pipe to the outlet window on the wall

with the clamp as the preparation of bathroom heater

installation. Seal the pipe and the outlet window with

foaming agent.

(

)

Ceiling

Air Exhaust Pipe

Wall

Inside Outside

Outlet Window

The situation of outlet window on the

wall outside.

The situation of outlet window on the

wall inside.

Outlet Window

Hole on the Wall Hole on the Wall

120mm

110mm

1367689-T01-A

Triangular

Self-tapping Screw

BTP4*8

-5-

B. Take out the bathroom from package. B.

Bathromm Heater

C. Packing List C.

1367446

100 Air Outlet Window

100

1367447

100 Air Exhasut Pipe

100

1285549

Clamp

1367445

Ventilation Outlet Assy.

1285553

Lock Assy. /

M6 Butterfly Nut

6 Washer

6Spring Washer

M6 Nut

Note: Initial Length: 140mm

Stretch Length: 2000mm

140mm

2000mm

1367691

Heater Accessories Assy.

Hanger

Triangular

Self-tapping Screw

BTP4*8

Remote Control

(Only K-21466T-0)

( K-21466T-0)

Cover

M4*25 Screw

Base

6 Plastic

Expansion Pipe

6*2

Remote Control Base Assy.

1367443

Remote Control Assy.

1322379

Fixed Column Assy. (2pcs)

(2 )

Expansion Pipe

M6 Screw Rod

305mm

1367689-T01-A

-6-

INSTALLATION

Caution before installation:

The installed product must be 200mm or above away from

curtains or other combustible materials.

The distance between the ceiling where the product is

mounted and the roof shall be 200mm or above.

Ensure that the gap between the product edge and the

wall is 300mm or above.

The power cord to the product shall have enough length

for the installation.

The distance between the product and the air outlet

window shall be 2000mm or lower.

Cut the screw rod(M6) to suit the distance between the

ceiling and the roof.

200mm

300mm

2000mm

(M6)

Air Exhaust Pipe

Wall

Lower than 2000mm

2000

300mm above

300 300mm above

300

Air Outlet Window

1. Connecting the power cord

(1) Pass the power cord through the ceiling.

(1)

Power cord

Decorated Plate

1367690

Installation Template

S300

Remote Control

(Only K-21464T-0/

K-21464T-X-0)

( K-21464T-0/

K-21464T-X-0)

Cover

M4*25 Screw

Base

6 Plastic

Expansion Pipe

6*2

Remote Control Base Assy.

1367442

Remote Control Assy.

1367689-T01-A

2. Fix the power cord to the bathroom heater

(1) Remove the screw on the wiring cover plate.

(2) Open the wiring cover plate.

(3) Lift the terminal protection cover.

(4) Loosen the screw fixing the power cord clip.

(5) Loosen the screw on the wiring terminal, insert the

power cord (not supplied) connected to the indoor fixed

line into the wiring terminal, tighten the wring terminal

screw.

(6) Fix the power cord with power cord clips. (The power

cord clip must pin the insulation sheath of power cord.)

(7) Use the screw removed in step (1) to fix the wiring

cover plate again.

(1)

(2)

(3)

(4)

(5) (

)

(6) (

)

(7) (1)

3. Installing the Main Body Method 1 integrated ceiling.

integrated ceiling should be 300*300, 300*450, 300*600

(1) Disassembly the decorated plate around the position of

the product installation.

300*300 300*450 300*600

(1)

()

300mm*300mm integrated ceiling

300mm*300mm

Disassembly 6 pieces

6Disassembly 6 pieces

300mm*450mm integrated ceiling

300mm*450mm

300mm*600mm integrated ceiling

300mm*600mm

Disassembly 3 pieces

-7-

(2) Bend the installation template to 90 at the bending line.

Push the template to the location of fixed hole A in the

ceiling as the diagram shows.

°(2) 90

A( )

300mm*300mm integrated ceiling

300mm*300mm

Power cord

Wiring Terminal

Bending Line

Install Template

Fixed Hole A

Cement Board

150

288

1367689-T01-A

-8-

(3) Fix the suspender on the right position of the cement

board, use the install template to adjust the M6 nut on

the suspender.

(4) Fix the suspension bracket on the suspender by 8

BTP4*8 screw.

(3)

(4) 8 BTP4*8

M6 Butterfly Nut

6 Washer

6 Spring Washer

M6 Nut

BTP4*8 Triangular Self Tapping Screw

BTP4*8 (4 )

Suspender

Cement Board

Ceiling Surface Install template datum line

(5) Fix the product on the M6 suspender by the suspension

bracket.

(5) M6

M6 Butterfly Nut

6 Washer

6 Spring Washer

M6 Nut

1367689-T01-A

-9-

(6) Install the air exhaust pipe

1) Fix the air exhaust pipe on the ventilation outlet assy.

by the clamp. The pipeline connected to outside of

the room must be slanted to prevent rain or

condensed water from flowing backwards.

(6)

Outdoors

Indoors

Slant Taper 1

100

()

BTP4*8 Triangular

Self Tapping Screw

BTP4*8 (1 )

Ventilation Outlet Assy.

Ventilation Outlet

Clamp

Air Exhaust Pipe

(7) Install the decorated plate and adjust the nut on the

suspender to keep them on the same horizontal surface.

Lock the nut after the adjustment.

(8) Install the remaining decorated plate (finish the product

installation)

(7) M6 M6

(8) ( )

Decorated Plate

Base

300mm*300mm integrated ceiling

300mm*300mm

1367689-T01-A

Otros manuales para S300

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de Kohler

Kohler

Kohler S450P Manual de usuario

Kohler

Kohler S300 Manual de usuario

Kohler

Kohler PA-253213 Manual de usuario

Kohler

Kohler S300 Manual de usuario

Kohler

Kohler K-77283T-2-MZ Manual de usuario

Kohler

Kohler K-21465T-G-0 Manual de usuario

Kohler

Kohler S600GP Manual de usuario

Kohler

Kohler S300G Manual de usuario

Kohler

Kohler S600 Series Manual de usuario

Kohler

Kohler S450 Manual de usuario

Kohler

Kohler K-77316T-MZ Manual de usuario

Kohler

Kohler Veil S600P Manual de usuario

Kohler

Kohler K-77316T-C-MZ Manual de usuario

Kohler

Kohler S300GP Manual de usuario

Kohler

Kohler S300P Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
