Kohler K-12345M Instrucciones de montaje

Homeowners Guide

Vibracoustic Bath with Heated Surface

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México

(Ej. K-12345M)

Français, page ″Français-1″

Español, página ″Español-1″

1212240-5-B

IMPORTANT INSTRUCTIONS

WARNING: When using electrical products, basic precautions should always be followed,

including the following:

WARNING: Risk of electric shock. Connect only to a circuit protected by a Ground-Fault

Circuit-Interrupter (GFCI)*. Grounding is required. The unit should be installed and grounded by a

qualiﬁed service representative.

WARNING: Risk of electric shock. A qualiﬁed electrician should route all electrical wiring.

WARNING: Risk of electric shock. Disconnect power before servicing.

WARNING: Risk of electric shock. Do not operate electrical powered auxiliary devices near water.

WARNING: Risk of property damage. Building materials and wiring should be routed away from

the heat-producing components of the bath.

WARNING: Risk of injury or property damage. Please read all instructions thoroughly before

beginning installation.

NOTICE: Follow all plumbing, electrical, and building codes.

*Outside North America, this device may be known as a Residual Current Device (RCD).

Table of Contents

IMPORTANT INSTRUCTIONS ....................................................... 2

Product Identiﬁcation .............................................................. 2

Speciﬁcations ................................................................... 2

Your Vibracoustic Bath ............................................................. 5

User Interface Icons ............................................................... 5

Operating Your Bath ............................................................... 6

Setting Menu .................................................................... 7

Experiences ..................................................................... 8

Chromatherapy (If Equipped) ........................................................ 9

Heated Surface ................................................................. 10

Auxiliary Sound ................................................................. 11

Adjusting Resonance ............................................................. 12

Components ................................................................... 13

Troubleshooting ................................................................. 13

Care and Cleaning ............................................................... 17

Warranty ...................................................................... 17

Product Identiﬁcation

Model # K-_______________________

Please record the model number, copied from the label on the box.

Speciﬁcations

User Interface

Ambient Temperature Max 125°F (51.5°C)

Maximum Relative Humidity 100% condensing (External surface only)

Interface Cable Length 25’ (7.6 m)

Control Ampliﬁer

Ambient Temperature Greater than 34°F (1°C), Max 104°F (40°C)

1212240-5-B 2 Kohler Co.

Speciﬁcations (cont.)

Maximum Relative Humidity 95% non-condensing

Transducer Cable Length 25’ (7.6 m)

Chromatherapy Cable Length 25’ (7.6 m)

Heated Surface Control Cable Length 25’ (7.6 m)

Electrical Service 120 V, 15 A, 60 Hz

Kohler Co. 3 1212240-5-B

Your Vibracoustic Bath

Your vibracoustic bath is designed to provide a relaxing resonating surround sound experience. The bath is

equipped with the following components:

Bath – Allows the bather to relax in comfort while enjoying the vibracoustic experience.

User Interface – Provides convenient control of the unit features, allowing you to select experiences,

regulate resonance intensity, adjust heated surface temperature, and turn the unit ON or OFF. The

interface also allows you to adjust chromatherapy lighting (if equipped) and select an auxiliary

music source (if connected).

Chromatherapy Lights (if equipped) – Add ambience to your bath with a continuous cycle through

eight colors, or you can set the lighting to a speciﬁc color.

Heated Surface – Provides soothing warmth to your back, shoulders, and neck with three

temperature settings.

Transducers – Components through which the vibracoustic pulses are transferred to the bath. When

the bath is ﬁlled with water, two transducers are positioned above the waterline, and four are

located below the waterline.

Control Ampliﬁer – Provides power to the transducers and chromatherapy lighting (if equipped) to

create soothing or exhilarating vibracoustic experiences. The control also contains a port to connect

an optional auxiliary music source.

Your bath offers several distinct vibracoustic experiences:

″Awakening,″″Solitude,″″Transcendence,″″Letting Go,″″Toms,″and ″Up Down″– six custom

experiences combining sound and vibrations designed to relax or invigorate your mind and body.

The sound resonance, lighting color, and lumbar heat can be adjusted for each experience as desired.

Refer to the ″Adjusting Resonance,″″Chromatherapy,″and ″Heated Surface″sections.

Transducer

User Interface

Control

Amplifier

Chromatherapy Light

(If Equipped)

Heated Surface

1212240-5-B 4 Kohler Co.

User Interface Icons

[Home] Icon – The main menu that displays when the user interface is powered ON.

[Setting] Icon – Allows access to menus for brightness, language and reset.

[Experience] Icon – Combination of sound vibrations and original compositions designed to relax

your mind and body.

[Chromatherapy] Icon (equipped models only) – Turns chromatherapy lights in the bath ON or

OFF, and allows adjustment of color.

[Heated Surface] Icon – Turns heated lumbar support ON or OFF, and controls temperature settings

(low, medium, and high).

[Intensity] Icon – Enables adjustment of above water and below water sound resonance for all

experiences.

[Aux] Icon – Allows for the selection of music from an external audio device connected via the

“Line In” jack on the control ampliﬁer.

[Back Arrow] Icon – Allows navigation back to the previous screen.

Minus [-] Icon – Decreases resonance intensity, heated surface temperature, or interface screen

brightness.

Plus [+] Icon – Increases resonance intensity, heated surface temperature, or interface screen

brightness.

[Mute] Icon – Turns sound resonance OFF or ON.

[Music] Icon – Turns auxiliary sound ON or OFF.

[Power OFF] Icon – Turns the user interface OFF.

Music

Mute

PlusMinus

Home Setting Experience Chromatherapy Intensity Aux

Power OFF

Back Arrow

Heated

Surface

Kohler Co. 5 1212240-5-B

Operating Your Bath

Fill the Bath

To begin using your bath, close the drain, then ﬁll the bath with water.

Using your hand, test the water temperature for comfort and safety. Carefully enter the bath.

Turn On the Interface

NOTE: User Interface “Sleep” Mode – To enhance your bathing experience, the interface is programmed

to darken after two minutes of inactivity. When in sleep mode, the screen will be blank. To resume normal

operation, touch the interface screen.

NOTE: If the interface is not functioning properly, consult the ″Troubleshooting″section of this guide

before calling a qualiﬁed service representative.

Touch the screen to turn on the interface. The KOHLER logo will brieﬂy fade in and out, then the

home page will appear.

Navigating the Touch Screen

NOTE: All menu icons displayed on the interface touch screen are enclosed in brackets.

To select a menu option, touch the desired icon.

The brackets of the selected icon will illuminate when the icon is touched, then the screen will

change to the selected menu option.

Home Page

The home page displays the [VibrAcoustic] icon. The left side of the screen displays the [Setting]

icon.

Baths with chromatherapy (shown): Provide options on the right side of the screen for:

[Chromatherapy], [Heated Surface], [Aux], and [Power OFF].

Baths without chromatherapy: Provide options on the right side of the screen for: [Heated Surface],

[Aux] and [Power OFF].

Home Page

Aux

Power OFF

Chromatherapy

(If Equipped)

Heated Surface

1212240-5-B 6 Kohler Co.

Setting Menu

From the home page, touch the [Setting] icon to access the setting screen.

The [Setting] menu contains three options: [Brightness], [Language], and [Reset].

Screen Brightness

The [Brightness] option controls the intensity of the interface screen.

Touch the minus [-] icon to decrease brightness, or the plus [+] icon to increase brightness.

To return to the [Setting] menu, touch the [Back Arrow] icon on the left side of the screen.

To return to the home page, touch the [Home] icon.

Language

The [Language] menu provides three options: [English], [Francais], or [Espanõl].

Touch the desired language. The chosen language will illuminate, and any screens accessed from

that point forward will display the chosen language.

To return to the [Setting] menu, touch the [Back Arrow] icon on the left side of the screen.

To return to the home page, touch the [Home] icon.

Reset

The [Reset] option is available to reset the system to factory settings if the user interface is not

functioning properly.

NOTE: To reset the control ampliﬁer and maintain user interface custom settings, unplug the ampliﬁer

power supply, wait 30 seconds, then plug back in.

NOTE: Resetting the system will return your interface to the original factory default settings.

The reset option resets the user interface as well as the control ampliﬁer.

To reset the system, touch the [Reset] option. After several seconds, the system will reboot and the

user interface will return to the home page.

Reset

Home

reset

language

brightness

brightness language

setting Chromatherapy

(If Equipped)

Aux

Heated Surface

Kohler Co. 7 1212240-5-B

Experiences

NOTE: Experience Duration – The unit is designed to run continuously for 2 hours and then shuts down

whether it is playing an experience or auxiliary sound. Within this 2 hours, if the user touches the

interface screen, the 2-hour timer resets and starts again.

Turn an Experience ON

From the home page, touch the large [VibrAcoustic] icon to access the various experience options.

The screen will display an experience icon enclosed in brackets.

Touch the icon to begin the experience. The brackets will illuminate while the experience is playing.

The experience will play for 2 hours unless the user touches the screen to extend the timer or turns

the power OFF.

Select an Experience

The experiences can be changed by touching the arrows to the right or left of the icon. A different

experience can be selected while an experience is currently playing.

The sound resonance and heated surface temperature can be adjusted for each experience as

desired. Refer to the ″Adjusting Resonance″and ″Heated Surface″sections.

If equipped, the light color can also be adjusted for each experience. Refer to the ″Chromatherapy″

section.

Turn the Experience OFF

Touch the icon to turn OFF the experience.

NOTE: Turning on auxiliary sound will stop any experience that is currently playing. Refer to the

″Auxiliary Sound″section.

Chromatherapy

(If Equipped)

Home

Home Page

Aux

experiences

Heated Surface

1212240-5-B 8 Kohler Co.

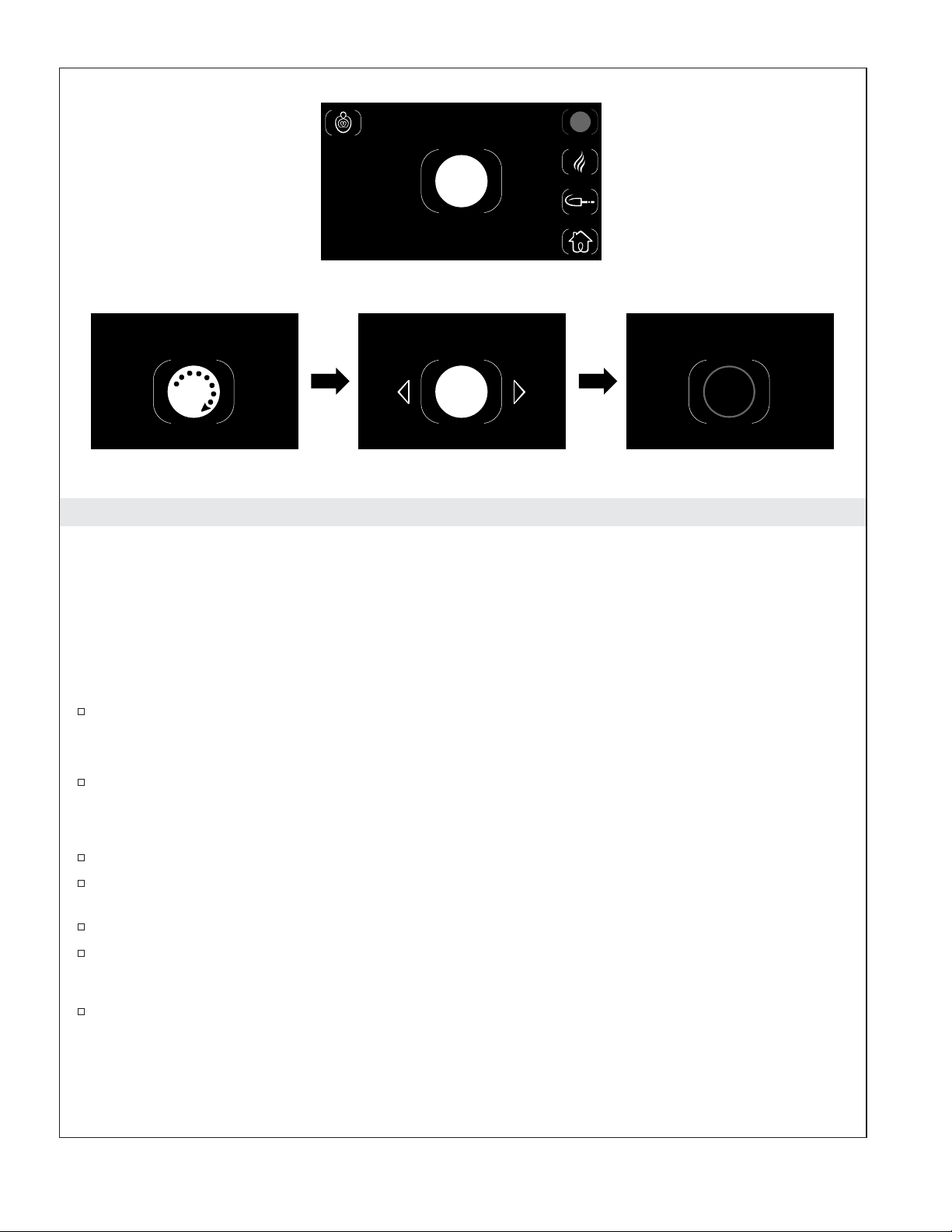

Chromatherapy (If Equipped)

If your vibracoustic bath is equipped with chromatherapy lights, the user interface home page will display a

[Chromatherapy] icon in the top right corner of the screen.

Three chromatherapy options are available: continuous cycle through eight light colors, pause on a selected

light color, and turn OFF chromatherapy lights. To access these options, touch the [Chromatherapy] icon until

the desired setting is reached.

Turn Chromatherapy ON

NOTE: The default chromatherapy setting is a continuous cycle through eight colors of light.

Touch the [Chromatherapy] icon located at the top right of the interface screen to turn the

chromatherapy lights ON. The brackets will illuminate, and a dotted arrow will appear inside the

icon to indicate that the lights are cycling through all colors.

The chromatherapy lights will continuously cycle through eight colors. One full cycle takes

approximately 1 minute.

Pause Chromatherapy Color Cycling

The chromatherapy lights can be set to a speciﬁc color.

Touch the [Chromatherapy] icon to pause the chromatherapy cycle. The dotted arrow will disappear

to indicate that the lights are paused on the selected color.

During the PAUSE mode, the screen will display right and left arrows.

Touch the right or left arrow to toggle through the desired chromatherapy light color.

Turn Chromatherapy OFF

Touch the illuminated [Chromatherapy] icon to turn the chromatherapy lights OFF. The icon and

brackets will no longer be illuminated and all arrows will disappear.

Aux

Home

Color Cycling ON Pause Color Chromatherapy OFF

chromatherapy

chromatherapy chromatherapy chromatherapy

ChromatherapyExperience

Heated Surface

Kohler Co. 9 1212240-5-B

Heated Surface

NOTICE: The heated surface will remain on until it is manually turned OFF by touching the illuminated

[Heated Surface] icon.

Turn Heated Surface ON

NOTE: The heater will turn on at low heat or the last selected temperature setting.

To turn lumbar heat ON, touch the [Heated Surface] icon located on the right side of the interface

screen. The icon and brackets will illuminate in the center of the screen.

Adjust Temperature Setting

NOTE: After 60 minutes of inactivity, the heater will automatically reset to low heat if the temperature

was set to medium or high.

The [Heated Surface] icon consists of three individual ﬂames. Illumination of one or more ﬂames

indicates which temperature setting is activated.

Touch the minus [-] icon to decrease temperature, or the plus [+] icon to increase temperature. The

individual ﬂames will illuminate or darken to signify the selected temperature setting.

Low heat: bottom ﬂame is illuminated.

Medium heat: bottom and middle ﬂame are illuminated.

High heat: all three ﬂames are illuminated.

Turn Heated Surface OFF

Touch the illuminated [Heated Surface] icon to turn the lumbar heat OFF. The icon and brackets will

no longer be illuminated and the minus [-] and plus [+] icons will disappear.

Aux

Home

Medium Heat High Heat Heat OFF

heated surface

heated surface heated surface heated surface

Experience

Low Heat

Chromatherapy

(If Equipped)

Heated Surface

1212240-5-B 10 Kohler Co.

Tabla de contenidos

Idiomas:

Otros manuales de Bañera de Kohler

Kohler

Kohler K-18778T Manual de usuario

Kohler

Kohler K-1114P-GLF Guía de inicio rápido

Kohler

Kohler K-1106 Guía de inicio rápido

Kohler

Kohler K-1460 Instrucciones de montaje

Kohler

Kohler K-1457 Guía de inicio rápido

Kohler

Kohler K-1112P-GLA Guía de inicio rápido

Kohler

Kohler K-11344 Instrucciones de montaje

Kohler

Kohler Lakewood K-1649 Instrucciones de montaje

Kohler

Kohler Mariposa BubbleMassage K-1239-GRA Manual de usuario

Kohler

Kohler K-1257P-LA Guía de inicio rápido

Kohler

Kohler VINTAGE K-700 Manual de usuario

Kohler

Kohler K-1111-H2 Instrucciones de montaje

Kohler

Kohler K-1357P-LA Guía de inicio rápido

Kohler

Kohler Mariposa K-1239-GRF Manual de usuario

Kohler

Kohler K-702-H2 Instrucciones de montaje

Kohler

Kohler K-156 Instrucciones de montaje

Kohler

Kohler Archer K-1125-RA Guía de inicio rápido

Kohler

Kohler K-12205-H Series Manual de usuario

Kohler

Kohler K-1822 Instrucciones de montaje

Kohler

Kohler K-1800 Manual de usuario

Kohler

Kohler K-1375-AH Instrucciones de montaje

Kohler

Kohler mira 1842.350.WH Manual de usuario

Kohler

Kohler K-785 Guía de inicio rápido

Kohler

Kohler VINTAGE K-700 Guía de inicio rápido

Manuales populares de Bañera de otras marcas

Agua

Agua BARTOLI-66 Manual de usuario

PAA

PAA PRELUDE Manual de usuario

BETTE

BETTE SILHOUETTE Manual de usuario

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW Manual de usuario

Oliveri

Oliveri Naples Manual de usuario

Lyons

Lyons Elite ETLxx663219 Series Manual de usuario

Woodbridge

Woodbridge BJ500 Instrucciones de montaje

Whirlpool

Whirlpool Ariel ARL-702 Manual de usuario

TEIKO

TEIKO EXCELLENT DUO Manual de usuario

American Standard

American Standard Colony 5-1/2' x 32" Manual de usuario

American Standard

American Standard 3052OD.X0X Guía de inicio rápido

agape

agape MARSIGLIA AVAS1075 Manual de usuario

Kallista

Kallista P50045-G5 Instrucciones de montaje

Ariel

Ariel AM Series Manual de usuario

Agua

Agua BAHLI-60 Manual de usuario

DURAVIT

DURAVIT XViu 700443 Manual de usuario

American Standard

American Standard Colony 2740 Series Manual de usuario

Rapsel

Rapsel OFURO Manual
