Kohler C3-430 Manual de usuario

Installation Guide

C3-430 Toliet Smart Seat



C3-430

K-22445X

English page 2-8



1349981-X2-A 2 Kohler Co.

Tools and Materials

Thank You for Choosing Kohler Company

Thank you for choosing Kohler. Kohler craftsmanship offers you a rare

combination of proven performance and graceful sophistication that will

satisfy you for years to come. The dependability and beauty of your Kohler

product will surpass your highest expectations. We’re very proud of our

products here at Kohler and we know you will be too.

Please take a few minutes to review this manual before you start installation. If

you encounter any installation or performance problems, please don’t hesitate

to contact us. Our phone numbers and website are listed on back cover.

All information in this manual is based upon the latest product information avail-

able at the time of publication. At Kohler, we constantly strive to improve the

quality of our products. We reserve the right to make changes in product char-

acteristics, packaging or availability at any time without notice.

Thank you for choosing Kohler Company.

Before You Begin

Warning:

• Risk of electric shock, re hazards, or personal injury. This product

must be installaed safely. Connect only to dedicated 220V ~, 50 Hz, 10A

circuit protected by Ground-Fault Circuit-Interrupters (GFCI's) or Earth-

Leakage Circuit-Breakers (ELCB's)

• Risk of electric shock or product damage. Do not immerse the product into

water.

• Risk of product damage. Do not piug in the seat until all other installation

steps have been completed.

• Risk of product damage. Do not install at a place where it may be

splashed by water.

• Follow local plumbing and construction codes.

• Do not use extension cord with the product.

Adjustable Wrench Blade Screw driver Screw driver

Kohler Co. 3 1349981-X2-A

Note:

• Risk of product damage. Do not install the product at a place with exces-

sive humidity, where moisture may condense at the surface of the product.

Please maintain that the usage environment is under adequate ventilation,

so as to prevent damage to electronic components.

• Risk of product damage or property loss. Water leakage may happen if

the water pipe connector is pulled or pressed with excessive force.

• Risk of product damage. The product may be damaged if the the nozzle

is applied with excessive force.

• Risk of product damage. Make sure jthe seat is positioned correctly so

that it can be connected to the thread of the inlet pipe. Otherwise, the inlet

pipe thread may wear off and lead to water leakage.

• Min water pressure 0.07 Mpa (dynamic pressure)

Max water pressure 0.74 Mpa.

• Connect only to a cold water supply line carrying direct tap water.

• Unplug the seat and drain completely, if the seat is not being used for an

extended period of time.

• When install the product in the room, a stop valve shall be installed in a

close proximity. For emergency circumstances, the water inlet valve shall

be stopped without using any tools; otherwise unexpected failure may

cause the loss to the customer.

1349981-X2-A 4 Kohler Co.

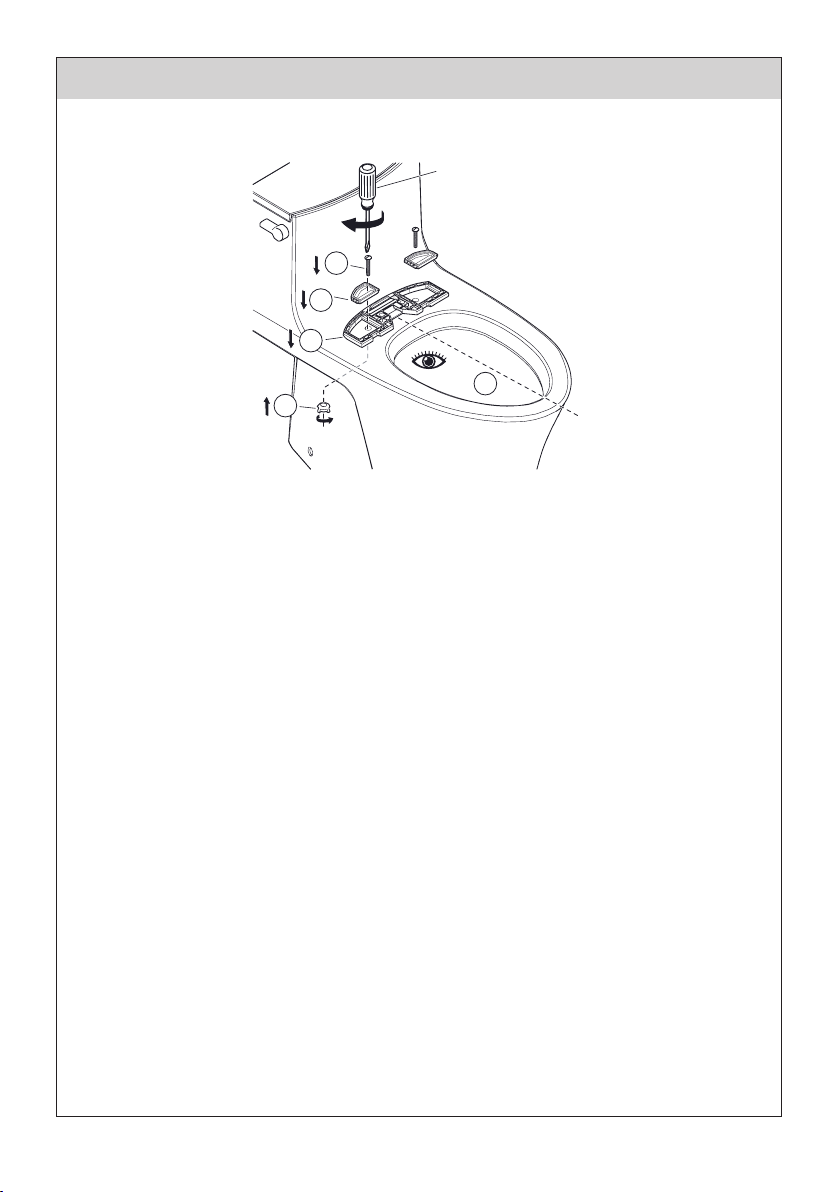

Install the Mounting plate

Screw drive

1. Put the mounting plate(1) over the mounting hole on the bowl.

2. Put the adjusting plate(2) on the mounting plate.

3. Insert a bolt(3) through the mounting plate and the toilet mounting holes.

4. Thread a nut onto the bolt then tighter it by screw driver. Handtighten the

nut.

5. Check if the mounting plate is centered.

Note: Adjust the mounting plate (Stick the other anti-slide strip provided in

the accessory kit onto the one already stuck on as needed). It ts various

bidets, and the mounting plate easy to install.

Kohler Co. 5 1349981-X2-A

Install Bidet Seat

click

1. Install the seat after aligning the mounting plate.

2. Press the seat down with you feel it snap into plate.

3. Push the seat at in the direction of rising arrow as show the picture.

1349981-X2-A 6 Kohler Co.

Adjust Bidet Seat

1. Remove the seat by pulling the seat and pressing the relealse buttom.

2. Release the bolt.

3. Move the mounting plate to the right position.

4. Tightening the bolt.

5. Push the seat to the mounting plate.

Kohler Co. 7 1349981-X2-A

Connect the Water and Power Supply

IMPORTANT! First water, then power.

IMPORTANT! Risk of product damage. Carefully align the thread of inlet

pipe with that of the bidet seat. Do not break the threads or overtighten the

jiont. To x the joint, tighten it with your hands and twist it a 1/4 turn with a

tool.

Directly connect the tee joint with the bidet seat and the inlet pipe.

Attention! For newly installed piping systems, before connecting the inlet

hose to the tee joint, the system must directly drain water for

several seconds to remove sand and dirt from the pipeline.

Use the hose provided to connec the tee joint and the bidet set.

Attention! It is required to use the new hose assembly attached with the

appliance. Do not re-use the old one.

Tighten all connectors.

Openthe water supply system.

Attention! Be sure to thoroughly rinse the waer supply pipe to remove

impurities from the pipeline. Use drinkable tap water as the

water source. Do not use industrial water, wastewater, sew-

age or sea water.

1349981-X2-A 8 Kohler Co.

Installation Inspection

The seat is designed to be

seat-on detection mode. A

wet towel shall be placed on

the right of the seat at the 1/3

position away from the front

end (sensing area).

Plug power cord into socket. Bidet seat generates one shot beep, wand

extends and retracts once, and the indicator on the side panel blinks until

initialization completes.

Turn on this product according to the "PREPARATIONS BEFFORE INITIAL

OPERATIONS" section of the Homeowners Guide.

Continue to read the "USE GUIDE" section of the Homeowners Guide to

test functions of this product.

Kohler Co. 9 1349981-X2-A





  

 

  

 



 



 







ประแจเลื�อน ไขควงปากแบน ไขควงแฉก





• 



• 

• 

• 

• 

• 

• 





1349981-X2-A 10 Kohler Co.



• 



• 



• 



• 

• 

• 

• 

• 


