Kohler 8787T-B01 Manual de usuario

8787T-B01

8787T-B03

8787T-B01

8787T-B03

0.05~0.86MPa

8787T-B01

8787T-B03

8787T-B01

8787T-B03

0.05~0.86MPa

2008

冲洗方式两段冲洗

巴尔顿 BARDON

小便感应器

URINAL SENSOR

安装说明书

INSTALLATION INSTRUCTIONS

K-8787T-B01(DC/直流型)

K-8787T-B03(AC/交流型)

平均冲水量不大于3.8L

average flushing is no more than 3.8L

1106445-T01-A

-1-

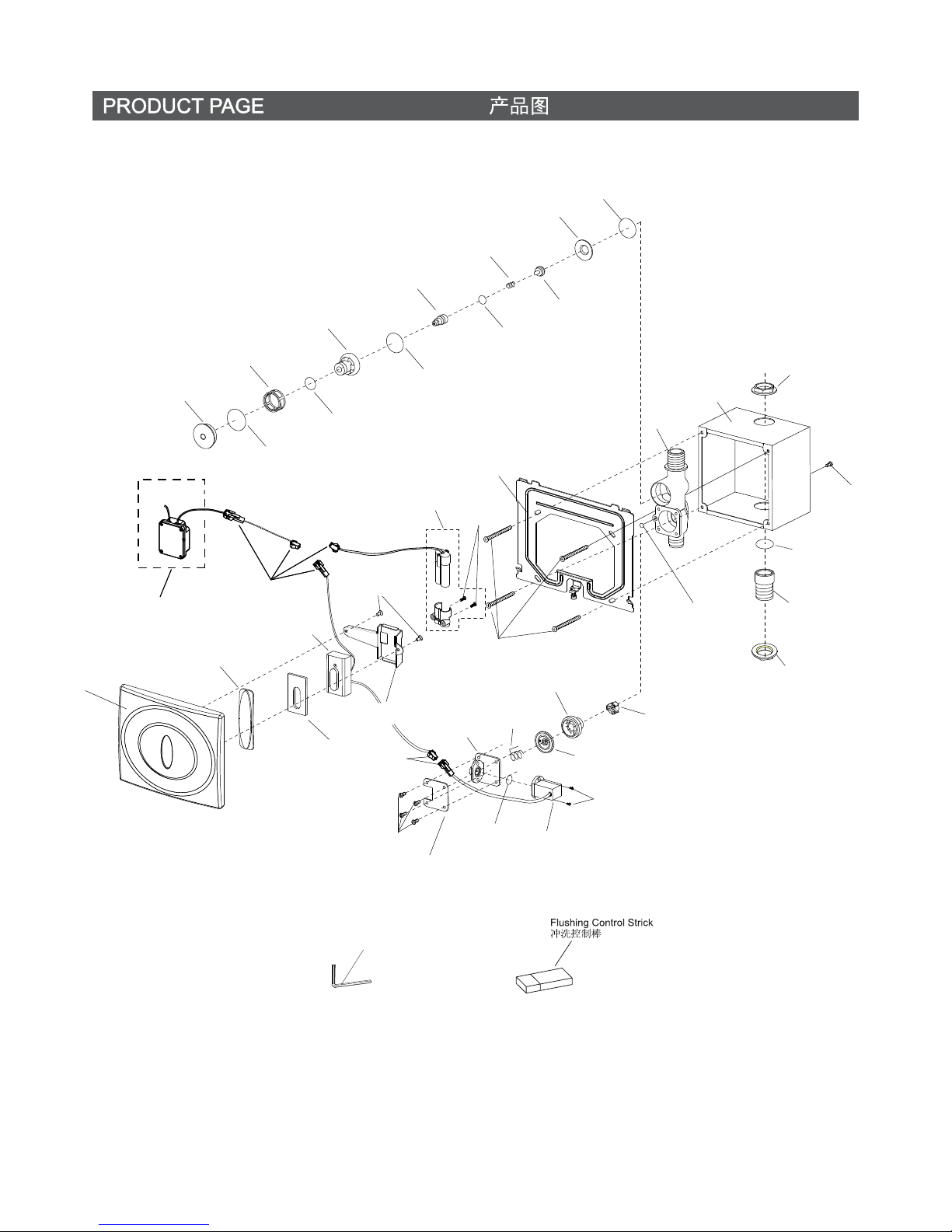

1045448

Center Unit Spring

顶针压簧

1045445

"O" Ring

"O"型圈

1045451

"O" Ring

"O"型圈

1045447

"O" Ring

"O"型圈

1045451

"O" Ring

"O"型圈

Filter Bolt

滤网固定栓

1045450

Gasket

密封垫片

1045449

Center Unit Assy

顶针组件

1045441

Fixed Cap

固定帽

1039038

Filter

滤网

Sponge Gasket

电控盒垫圈

1019266

Sensor Lens

装饰条

1060668

Control Box Assy.

电控盒组件

1056053

Battery Box Assy.

电池盒组件

8787T-B01 选用

8787T-B01 Use Only

Screw M4X50

螺钉M4X50

Screw M4X5

螺钉M4X5

Screw M2.5X6

螺钉 M2.5X6

1045462

Membrane Bracket Assy.

动膜支架组件

1056081

Solenoid Valve Assy.

电磁阀

Screw M3X8

螺钉 M3X8

1045459

"O" Ring

"O"型圈

Restrictor

节流器

Screw M3X8

螺钉M3X8

Pressing Board

压板

1045461

DiaphragmsAssy.

动膜组件

1045456

1045460

Spring

动模压簧

1108556

Bracket Assy.

固定板组件

1045458

Valve Cover

阀盖

Connection

出水接头

Lock Nut

六角吊紧螺母

Valve Body

阀体

Valve Box

暗盒

Connector

接插件

16306T-NA

8787T-B03 Use Only

8787T-B03 选用

1019265-CP

1019265-SC

Cover

面板

"O" Ring

"O"型圈

"O"Ring

"O"型圈

交流电源

Connector

接插件

Bracket, Control Box

电控盒固定架

Screw M3X6

十字沉头螺钉M3X6

Hex Pan

2.5mm内六角扳手

"O" Ring

"O"型圈

1039036

Adjustment Bolt

调节栓

LockNut

六角吊紧螺母

-2-

1106445-T01-A

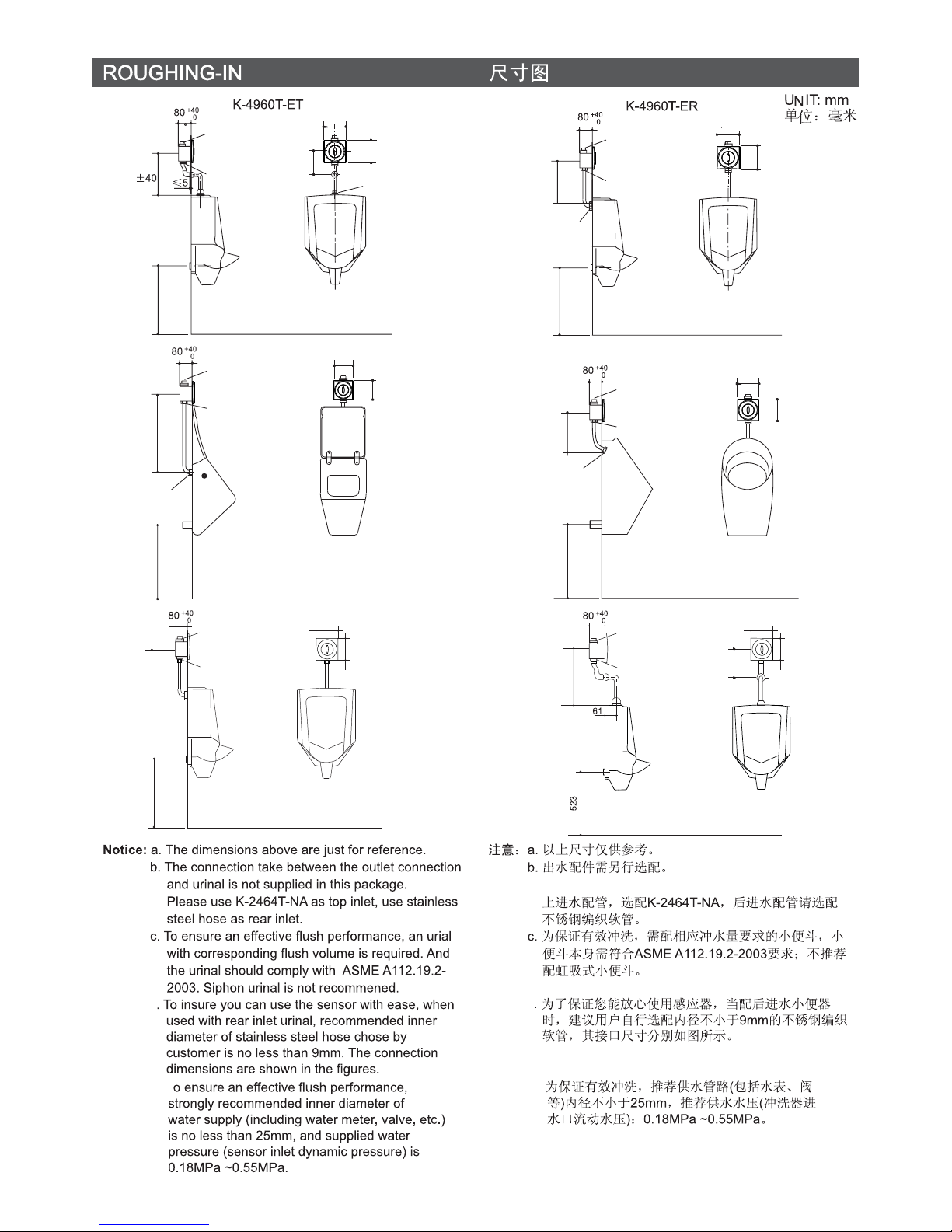

523

K-4978T-ET

K-4978T-ER

≈320±40

≈150

158

3/4” Spud

管接头

523 523

1/2”接头

515±20 420±40

1/2”接头

395

1/2”接头

370

K-19699 K-18645T

320

≈160

158

1/2”接头

3/4” Spud

管接头 320±40 1/2”接头

1/2”接头

1106445-T01-A

-3-

8787T-B03

8787T-B01

8787T-B03

8787T-

B01

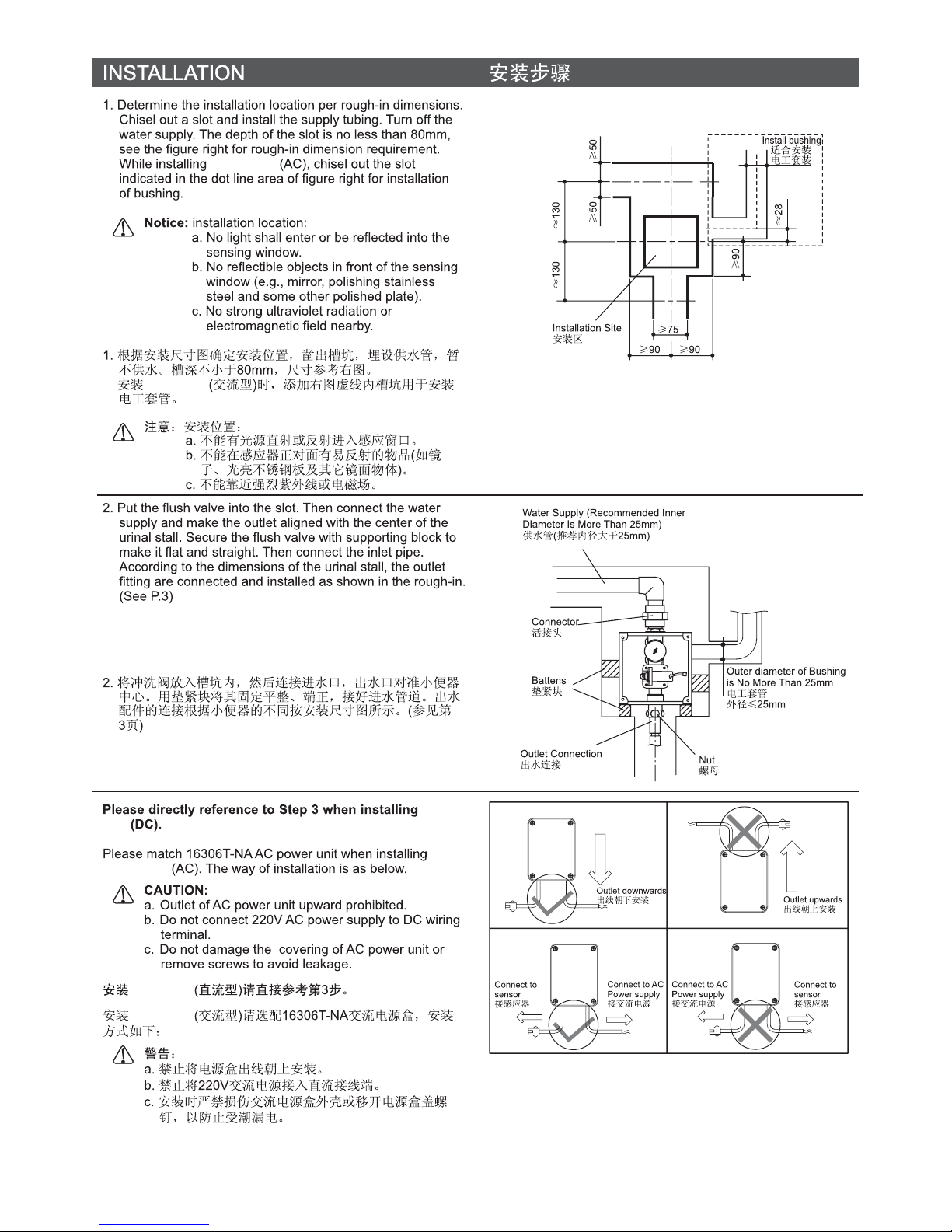

NOTE: It is recommended that a temporary rubber or plastic

hose is attached to the inlet pipe, and the water supply

line should be flushed clean of dirt and debris.

注意：建议在连接供水时,在供水管上连接一个临时橡皮或塑料软

管，冲洗供水管道，确保水干净，管道内无沙石、污垢等。

-4-

1106445-T01-A

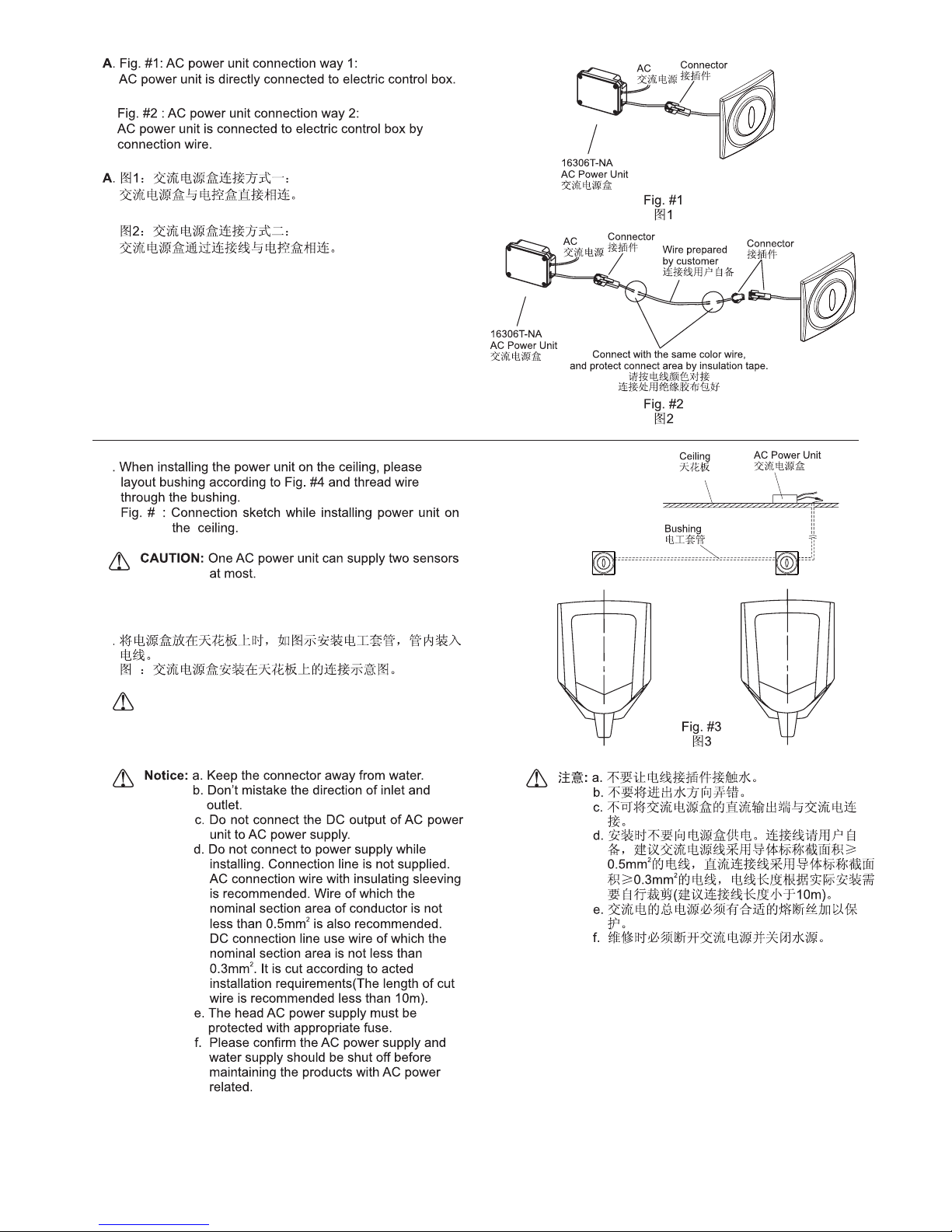

警告：一个交流电源盒最多可连接两个感应器。

1106445-T01-A

-5-

8787T-B01

8787T-B03

anticlockwise to

8787T-B01

8787T-B03

逆时针顺时针

-6-

1106445-T01-A

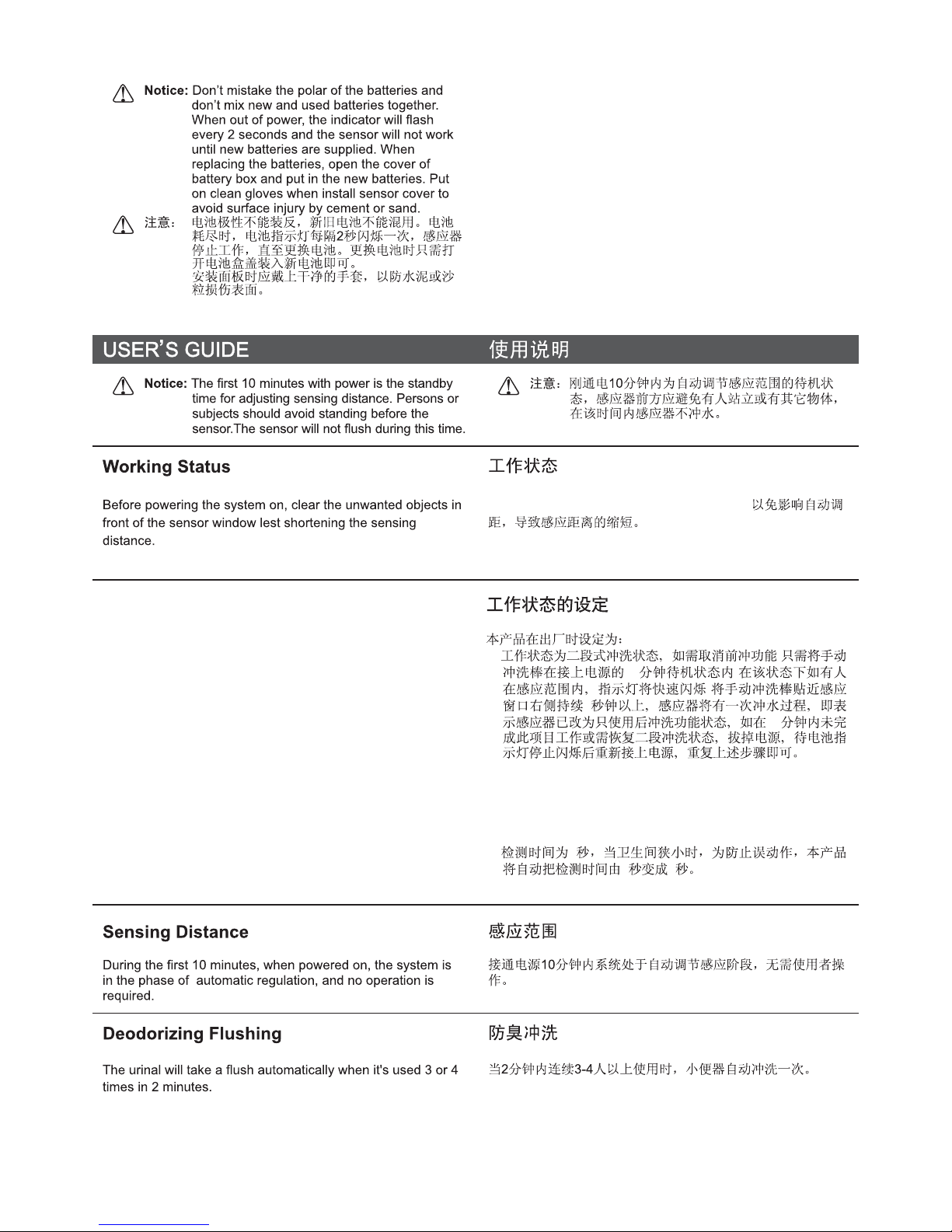

在电源接通前，务必清理感应窗口前的杂物，

Set Working Status

The product comes our factory with:

1. The working status is set as dual-flush. If you want to

cancel the first flushing function, place manual flush stick

adjacent to right side of sensing window for more than 1

second during the 10-minute standby period (Human

presence in sensing range would cause the indicator to

flash fast).The sensor would generate a flushing cycle to

indicate the setup of the sensor has been adjusted to after-

use flushing. If the action is not completed during this 10

minute, or you need to restore the working status to dual-

flush, plug off the power cord and reconnect the power

supply until the indicator stops flashing and repeat the

above procedures.

2. The diction time is set as 2s to avoid improper function in

narrow toilets, the detection time is automatically set from

2s to 5s.

,.1 10 (

)

110

2. 2 25

1106445-T01-A

-7-

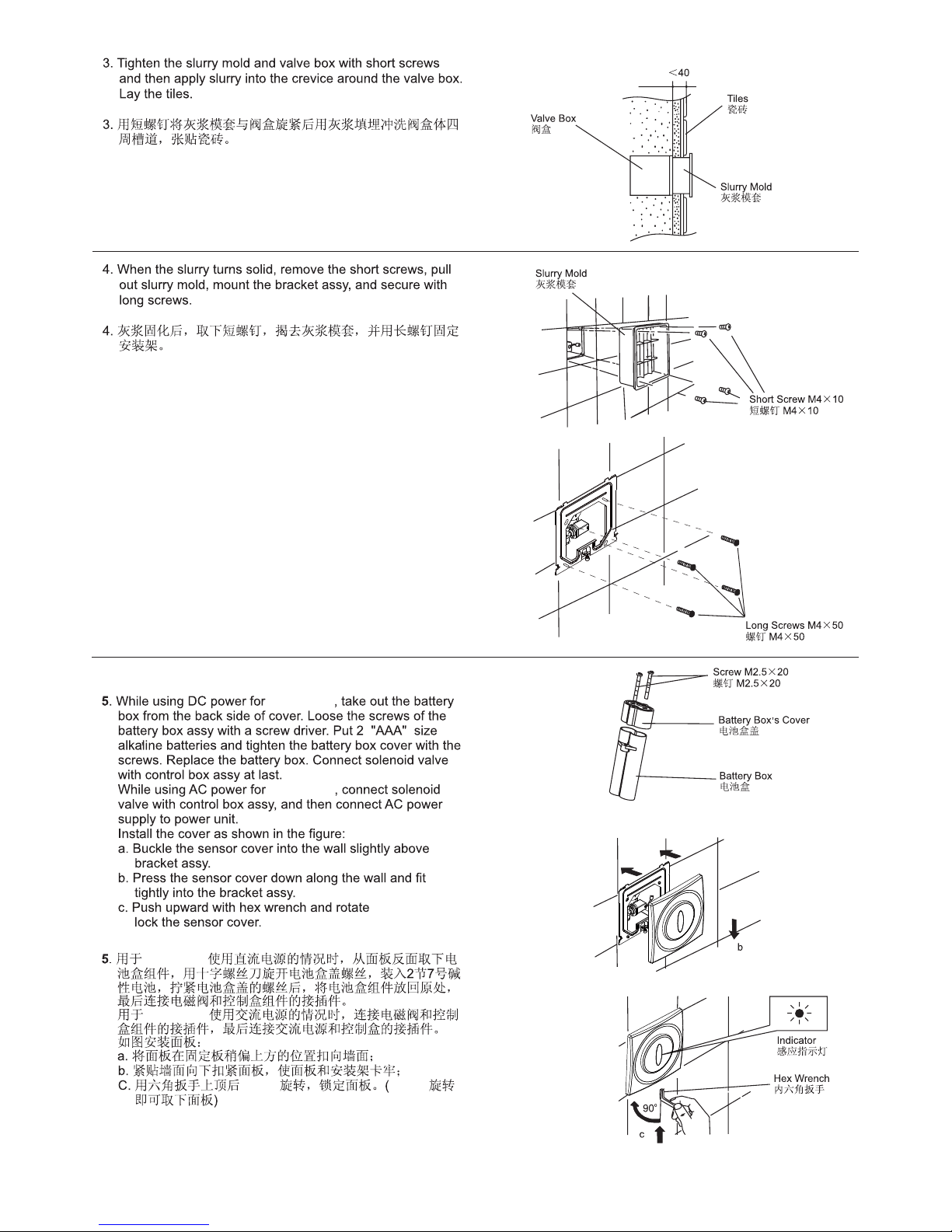

Hex Pan

-8-

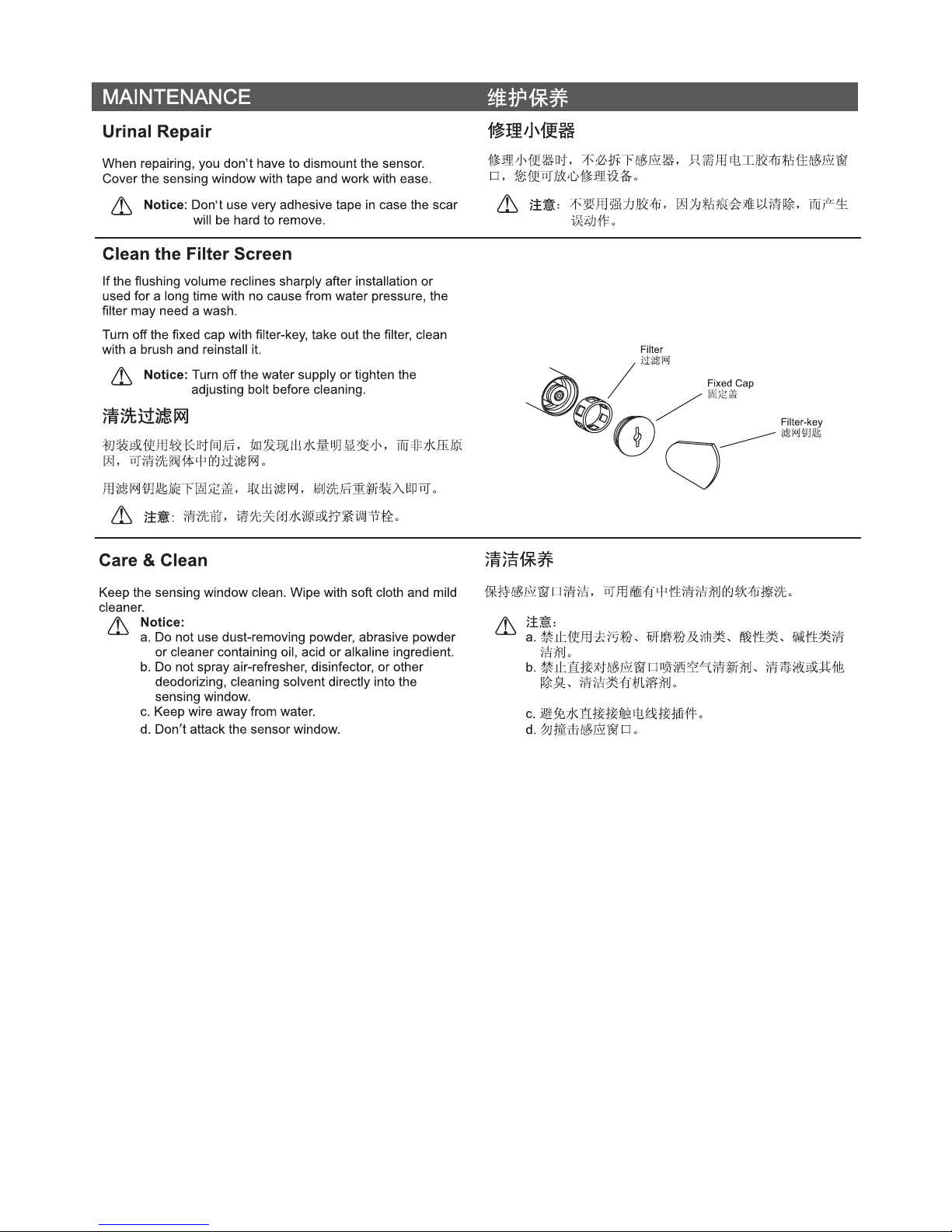

1106445-T01-A

-9-

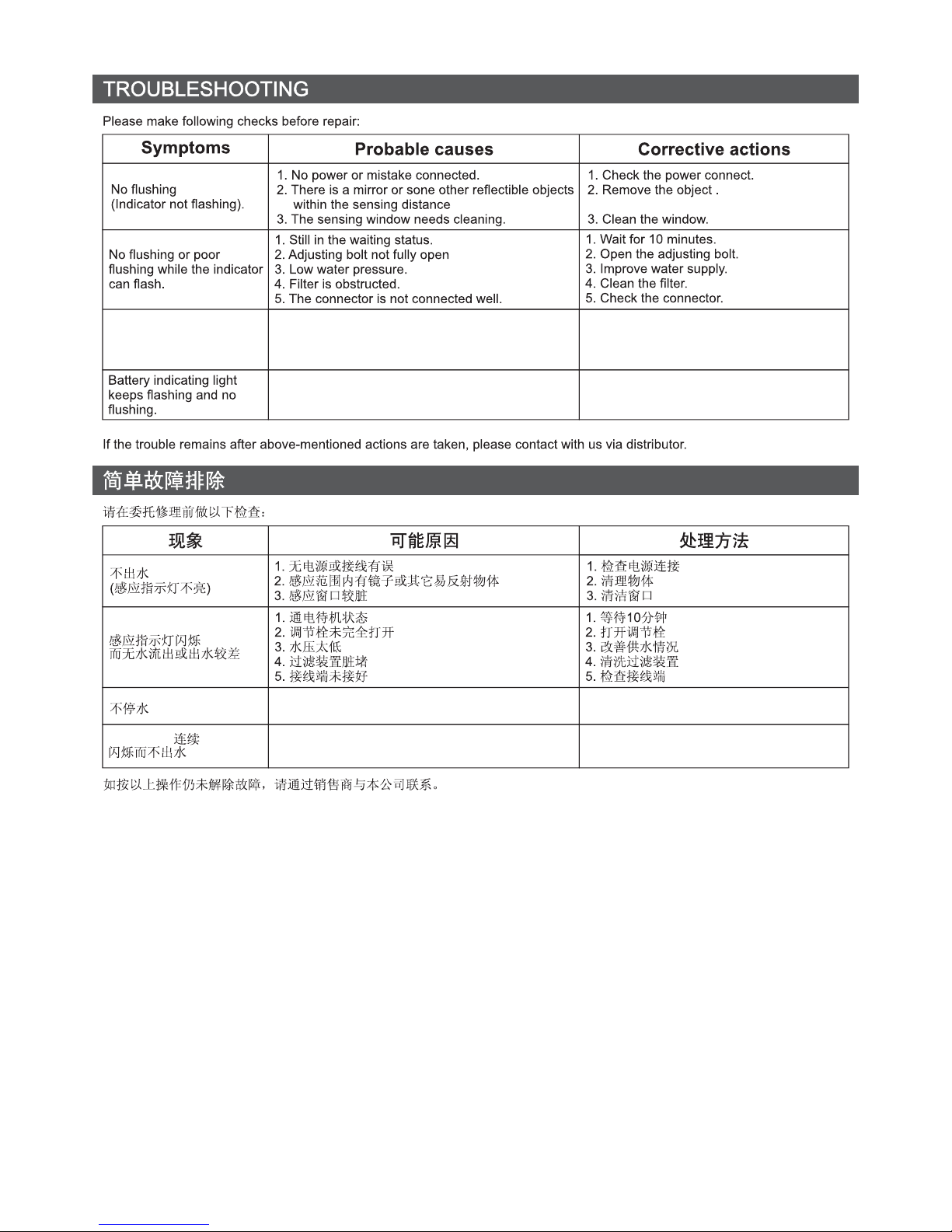

Keep flushing indicator not

flashing. 1. The small hole of diaphragms assembly

is blocked.

2. Foreign objects exist in valve chamber

1. Clean the small hole of diaphragms

assembly

2. Clean the valve chamber and diaphragms

with a brush

2. 阀腔内有杂物 2. 清洗阀腔与膜片

1. 膜片组件小孔堵塞 1. 清理膜片组件小孔

感应指示灯 1.电池耗尽（直流电）

2.刚刚停电 (交流电)1.更换新电池

2.检查总电源

1. Out of electricity (DC)

2. Just power cut (AC) 1. Replace batteries

2. Check the power supply

-10-

1106445-T01-A
