Kogan KALED26DVDYA Manual de usuario

KALED26DVDYA

USER MANUAL

Contents

-2-

SAFETY AND WARNINGS.............................................................2-4

BASE STAND .........................................5

INSTALLATION.............................................................................6-9

REMOTE CONTROL.................................................................10-11

OPERATION.............................................................................12-17

DVD OPERATION......................................................................18-21

DVD TROUBLE SHOOTING............................................................22

TROUBLE SHOOTING................................................................... 23

TECHNICAL SPECIFICATIONS.......................................................24

ASSEMBLY INSTRUCTION

WALL MOUNTING INSTALLATION GUIDELINES...............................5

-3-

SAFETY AND WARNINGS

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with a dry cloth.

7) Do not block any ventilation openings,

install in accordance with the instructions.

8) Do not install near any heat sources such

as radiators, air conditioners, stoves, or

other apparatus (including amplifiers) that

produce heat.

9) Protect the power cord from being

walked on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

10) Only use attachments/accessories

specified by the manufacturer.

11) Unplug this apparatus during lightning

storms or when unused for long periods of

time.

12) Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or has

been dropped.

13) In the event of a hardware malfunction, you

need to disconnect the television quickly. Please

keep the power plug easily accessible.

14) The ventilation should not be impeded

by covering the ventilation openings with

items, such as newspapers, table-cloth,

curtains, etc.

15) No naked flame sources, such as

lighted candles, should be placed on the

apparatus.

16) This device is not suitable for use in

unreasonably hot, cold, or humid

environments.

17) The apparatus shall not be exposed to

dripping or splashing and no objects filled

with liquids, such as vases, shall be placed

on the apparatus.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED SERVICE PERSONNEL.

RISK OF ELECTRIC SHOCK

DO NOT OPEN!

CAUTION

This symbol indicates that dangerous

voltages, constituting a risk of electric

shock are present within this unit.

This symbol indicates that there are

important operating and maintenance

instructions in the literature accompanying

this unit.

To reduce the risk of fire or electric

shock, do not expose this apparatus to

rain or moisture.

WARNING:

This symbol indicates that this product

incorporates double insulation between

hazardous mains voltage and user

accessible parts. When servicing use only

identical replacement parts.

The batteries shall not be exposed to

excessive heat such as sunshine, fire or

the like.

WARNING:

-4-

High voltages are used in the operation of this

television receiver. Do not remove the cabinet

back from your set.

Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not

expose the television receiver to rain or moisture.

Do not drop or push objects into the television

cabinet slots or openings. Never spill any kind

of liquid on the television receiver.

Do not block the ventilation holes in the back

cover.

Adequate ventilation is essential to prevent

failure of electrical components.

Do not trap the power supply cord under the

television receiver.

Never stand on, lean on, or suddenly push the

television or its stand. You should pay special

attention to children. Serious injury may result if it

falls.

Do not place your television on an unstable cart,

stand, shelf or table. Serious injury to an individual,

and damage to the television may result if it falls.

When the television receiver is not used for an

extended period of time, it is advisable to

disconnect the AC power cord from the AC outlet.

Avoid exposing the television receiver to direct sunlight

and other sources of heat. Do not stand the television

receiver directly on other products which give off heat,

e.g. video cassette players and audio amplifiers. Do not

place naked flame sources, such as lighted candles on

the television.

If the television is to be built into a compartment or similar

enclosure, the minimum distances must be maintained. Heat

build-up can reduce the service life of your television, and

can also be dangerous.

Dim:515*320mm(不包括底座）

SAFETY AND WARNINGS

-5-

INSTALLATION

Base Stand Assembly Instruction

Note: Place the TV with the display side down

on a flat surface. Ensure the table or desk

you use provides a flat, totally clean surface.

Use a cloth between the face of the TV and

the table to protect the TV's screen.

1. Locate the bottom bracket into the base

stand and secure in place using the 3 supplied

screw.

2. Gently slide the bracket from the base stand

into the slot in the rear of the TV, aligning the

hole in the bracket with the hole in the TV.

Secure the base stand using the supplied

screw.

WALL MOUNTING INSTALLATION GUIDELINES

For wall mounting with an optional bracket, please read the following instructions in conjunction with the

bracket's instructions. Make sure qualified service personnel perform the operation.

KOGAN bears no responsibility for improper mounting that results in accident or injury.

This television can be wall mounted as follows:

1.Place the LED LCD Television face down onto a solid surface. Please place some soft material over

the front of the screen to protect it from any damage. The LCD panel is a fragile component, and must

be suitably protected when removing the base stand. Be sure that no hard or sharp objects can come

into contact with the screen's surface. Do not exert pressure on the front of the unit at any time, as this

may damage the LCD screen.

2.Remove the screw from the lower part of the television, where the base joins to the TV, and take

away the stand (put the stand and screws somewhere safe for future use).

3.Use the four M4 screws provided to fix the TV onto a wall mounting bracket (not included) via the

four VESA standard holes on the back of the television.

200mm x 100mm VESA

wall mounting hole spacing

and locations

100 mm

200 mm

INSTALLATION

-6-

Front panel

KEYBOARD

1．SOURCE：

Displays the input source Menu.

2．MENU：

Displays the main MENU.

3．CH+/CH-

In TV mode, press "CH+" or "CH-" to change the channel up or down.

In MENU mode, press "CH+" or "CH-" to select items.

4．VOL+/VOL-

Adjusts the sound level.

In MENU mode, press "VOL+" or "VOL-" to adjust the item that you have selected.

5. STANDBY

Once the TV's main power switch has been activated, press this button to turn the

unit ON from STANDBY mode.

Press it again to return the set back to STANDBY.

30 3 0

1: Remote control sensor.

2: Indicator LED:

BLUE = POWER ON.

RED = Stand-by.

3: Key board (on side of TV).

4. Main Power Switch(on bottom

rear of TV)

SOURCE

CH+

CH-

VOL+

VOL-

STANDBY

INSTALLATION

-7-

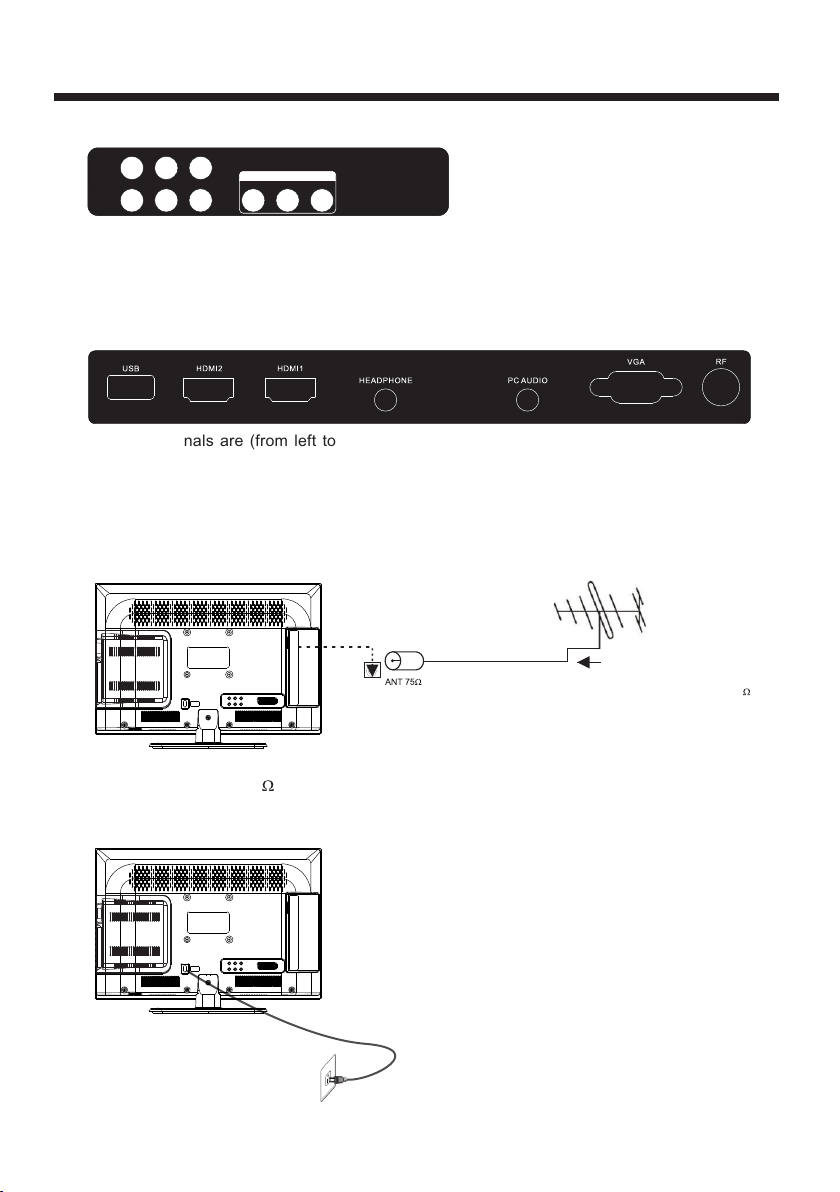

ANTENNA

Note:

Aerial connections: IEC (female).

Input impedance: 75 unbalanced.

REAR AV Connections

All the terminals are (from left to right):

Audio input, , .

Note: AV and YPbPr share one audio channel.

YPbPr (component video) input,

AV composite video input AV output (composite video and audio)

SIDE AV Connections

All the terminals are (from left to right):

USB,HDMI2 input,HDMI1 input,Headphone output,PC Audio input, VGA input,

Note: When receives a DVI signal, the matching audio signal is received

from the PC Audio input.

Antenna socket.

HDMI1/HDMI2

Plug (not supplied)

Outdoor antenna (not supplied)

For optimum digital TV reception,

the use of high quality shielded 75

coax cable is recommended.

POWER

YPb Pr

RLVIDEO R LVIDEO

AV OUTPUT

-8-

INSTALLATION

PRESET MODE

720*400

640*480

800*600

1024*768

31.47

35.156

37.88

48.08

48.36

56.48

RESOLUTION V.Freq.(Hz) H.Freq.(kHz)

STEPS:

Be sure both the TV and computer are

set to Power off.

1.Connect a VGA and audio cable.

2.Connect the power cord.

3.Power on the TV, switch to PC mode.

4.Power on the PC.

This connection and power-up sequence

is very important. VGA and audio cable

not supplied

INSTALLATION

-9-

AV EQUIPMENT

You can use the input and output terminals on the TV set as follows.

Your TV can be connected to the following appliances: VCR, multi disc player, DVD, camcorder,

video game or stereo system, etc.....

YPbPr can support these video formats: 480i,576i,480p,576p,720p,1080i.

Use an HDMI connection to support 1080p operation.

(component video)

Yellow (video)

White(audio L)

Red(audio R or Pr)

W R

GBR

Blue(Pb)

Green(Y)

VIDEO EQUIPMENT with YPbPr

GBR

W R

TO AUDIO OUTPU TS

VIDEO EQUIPMENT

TO VIDEO

OUTPUTS

HDMI

YPb Pr

RLVIDEO R LVIDEO

AV OUTPUT

W R

TO AUDIO INPUTS

VIDEO EQUIPMENT

TO VIDEO

INPUTS

-10-

REMOTE CONTROLREMOTE CONTROL

REMOTE CONTROL

1:POWER :To set the TV to standby or power on.

4: : In DVD mode(if available),or in USB mode, used as

reverse key, in teletext mode used as subpage key.

5: : In DVD mode(if available),or in USB mode, used as

forword key, in teletext mode used as reveal key.

8.TEXT: To enter or exit TELETEXT.

10: : Displays the main on-screen menu.

11:CURSOR: To move within the menu.

12:OK: Confirms selection.

13:EPG: To display information about the program being viewed

and what's on next in DTV mode.

14:FAV: To access your favourite channels list in TV or DTV mode.

15:VOL+/- : To adjust sound level.

16:NUMERIC KEY: For direct access to channels.

17:AUDIO: To select the available audio language of TV programs .

18:MUTE: To disable or enable the sound output.

21: : In DVD mode(if available),or in USB mode, used as

previous key, in teletext mode used as hold key.

22: : In DVD mode(if available),or in USB mode, used as

next key, in teletext mode used as list key. In TV/DTV mode,used

as channel list key when without TTX function.

23: : In teletext mode used as index.

25:MENU/INFO: During DVD playback, press MENU to display the

disc menu of the current title. During VCD/SVCD playback,press

MENU to control PBC ON/OFF. In DTV mode used as info. In USB

playback mode, provides control tab at bottom of screen.

27: : Press to display and select the available video input sources.

28:EXIT: To return to the previous menu or exit menu.

29:CH+/CH-: To access the next or previous channels.

31:RECALL/GOTO: DTV Mode:RECALL:Jumps to last channel viewed.

DVD Mode(if available):GOTO:Allows direct chapter/Title/Track/time

Note:

30:REC: Press to record the TV program you are watching in

DTV Mode or In USB mode, select Repeat mode.

Remote Control Battery Installation

The remote control requires two AAA batteries. Below are steps to

assist you with replacing the batteries.

1.Open the back cover of the battery compartment.

2.Install the batteries into the battery tray. There are +/- polarity

markings in the battery compartment. Please ensure the battery

polarity is correct.

3.Close the battery cover.

There are two battery cover types that may be used. Please

refer to either picture 1 or picture 2 as applicable.

Picture 1:

Picture 2:

VOL CH

ANGLE

REC

A-B

Tabla de contenidos

Otros manuales de TELEVISOR de Kogan

Kogan

Kogan KALED32SMTWA Manual de usuario

Kogan

Kogan KALED22DVDA Manual de usuario

Kogan

Kogan KGNFHDLEDH32VA Manual de usuario

Kogan

Kogan 9 TU9220 Series Manual de usuario

Kogan

Kogan KALED46BLSWB Manual de usuario

Kogan

Kogan KALED32XXXYB Manual de usuario

Kogan

Kogan KALED50XXXTA Manual de usuario

Kogan

Kogan KALED46XX1A Manual de usuario

Kogan

Kogan KALED32XXXWB Manual de usuario

Kogan

Kogan KGNHDLEDPRO19VB Manual de usuario

Kogan

Kogan KGNFHDLEDPRO24VB Manual de usuario

Kogan

Kogan KALED42XXXZA Manual de usuario

Kogan

Kogan KALED42 ZA Series Manual de usuario

Kogan

Kogan KULED26DVDYA Manual de usuario

Kogan

Kogan TU9210 Manual de usuario

Kogan

Kogan KALED55XXXTA Manual de usuario

Kogan

Kogan KALED19DVDA Manual de usuario

Kogan

Kogan KALED32DVDWA Manual de usuario

Kogan

Kogan KALED55UHDZD Manual de usuario

Kogan

Kogan KGNFHDLEDH40VA Manual de usuario

Kogan

Kogan KALED46SMTWA Manual de usuario

Kogan

Kogan KALED22XXXYB Manual de usuario

Kogan

Kogan AGORA KALED39SMTWA Manual de usuario

Kogan

Kogan KALED423DXZA Manual de usuario

Manuales populares de TELEVISOR de otras marcas

Philips

Philips Colour Television Manual de usuario

Toshiba

Toshiba 27A10 Manual de usuario

Philips

Philips 42PF9630A/37 Manual de usuario

Hitachi

Hitachi 32FX48B Manual de usuario

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manual de usuario

Changhong Electric

Changhong Electric uhd55b6000is Manual de usuario

Philips

Philips Matchline 21CE7551 Manual de usuario

Panasonic

Panasonic Genus TX-G10 Manual de usuario

Toshiba

Toshiba 19A20 Manual de usuario

Philips

Philips 25PT4523-16 Manual de usuario

Sony

Sony XBR-100Z9D Manual de usuario

Philips

Philips PR0930X3 Manual de usuario

Philips

Philips Brilliance 231P4QPY Manual de usuario

Samsung

Samsung 55S9 B Series Manual de usuario

Philips

Philips 32HF9385D Guía de solución de problemas

Sharp

Sharp LC-40FI5012E Manual de usuario

Loewe

Loewe Table Stand Reference 55 Manual de usuario

Philips

Philips 32PFH5300 Manual de usuario
