Kogan KALED55XX1B Manual de usuario

KALED55XX1B

USER MANUAL

Safety Precautions

Power Supply..................................................................................................................................................... 1

Installation......................................................................................................................................................... 2

Use and Maintenance....................................................................................................................................... 3

Important Safety Instructions ............................................................................................................................ 4-5

User Guidance Information

Names of each part(Back View) ........................................................................................................................ 7

Names of each part(Front View) / Accessories ................................................................................................. 6

Remote control .................................................................................................................................................. 8-9

Basic Operation

Basic Operation .................................................................................................................................................10

OSD Menu

1. CHANNEL Menu ...........................................................................................................................................11-12

2. PICTURE Menu ............................................................................................................................................ 13

4. TIMER Menu ................................................................................................................................................. 15

5. OPTION Menu ...............................................................................................................................................16

6. LOCK Menu ...................................................................................................................................................17

Recording Operation

Recording Operation ......................................................................................................................................... 21-23

Multimedia Operation

Multimedia Operation ........................................................................................................................................ 18-20

3. SOUND Menu ............................................................................................................................................... 14

Trouble shooting ............................................................................................................................................... 24

Specifications ................................................................................................................................................... 25

Maintenance and Service

Contents

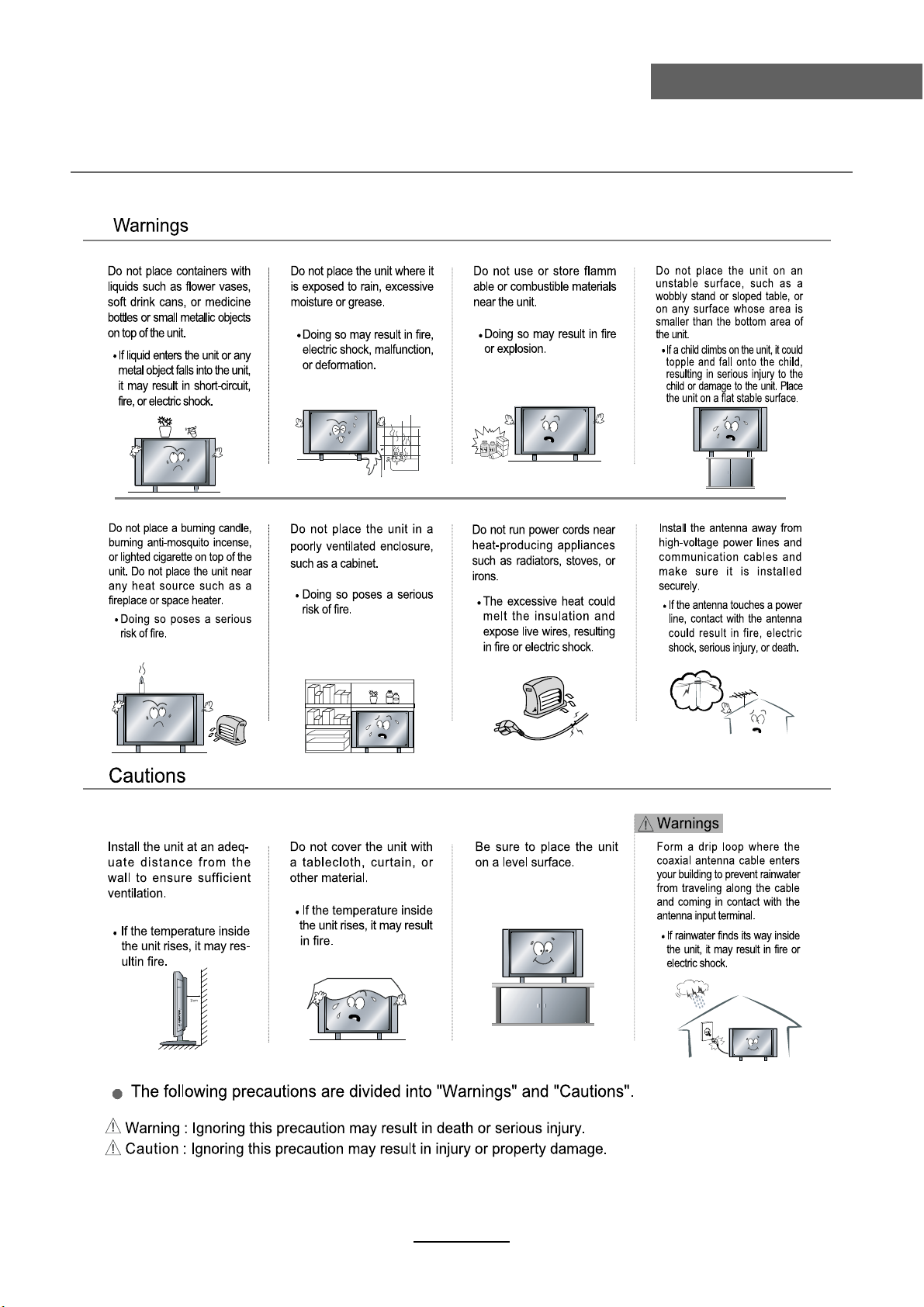

Safety Precautions

Power Supply

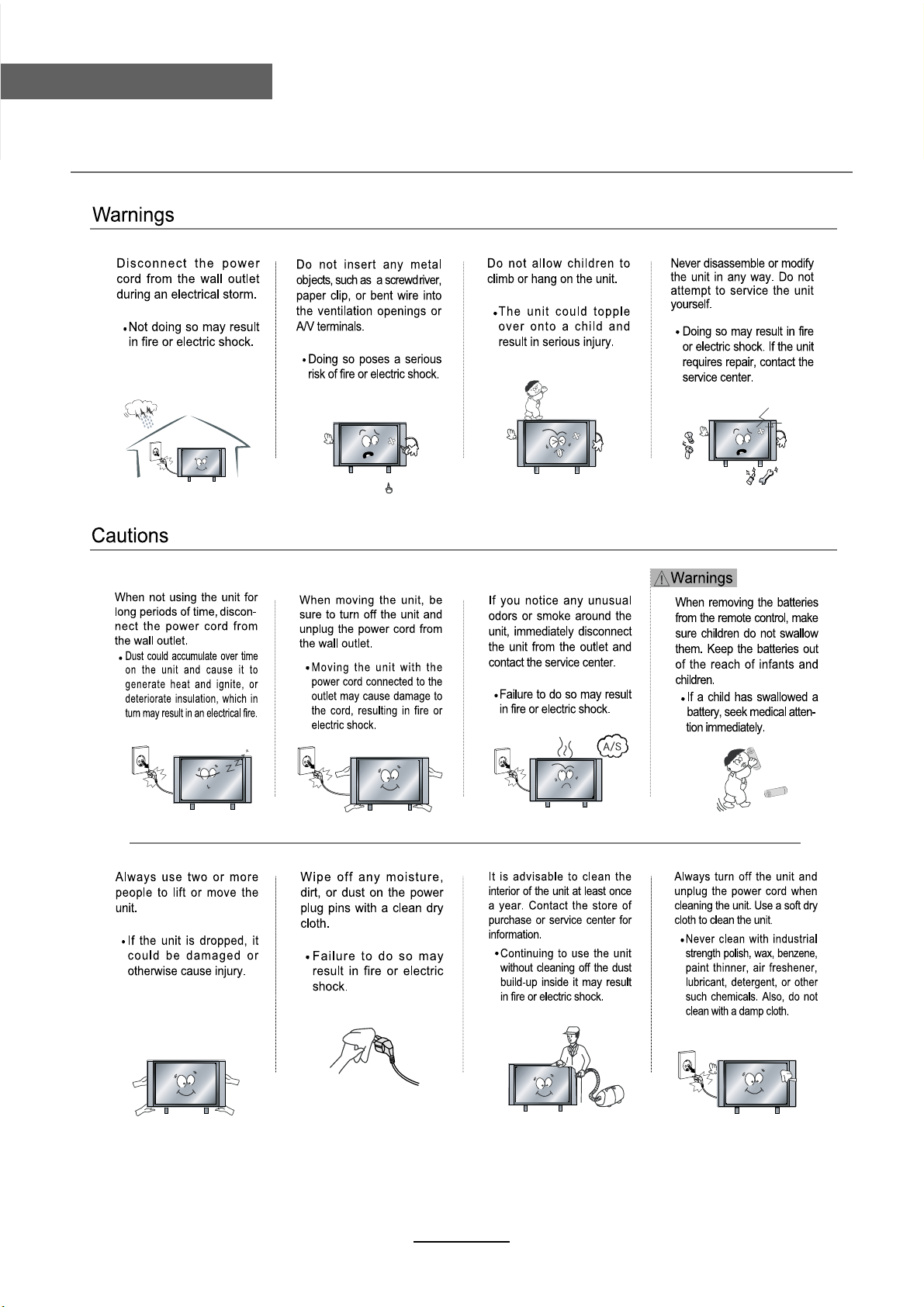

Safety Precautions

Installation

Safety Precautions

Use and Maintenance

Safety Precautions

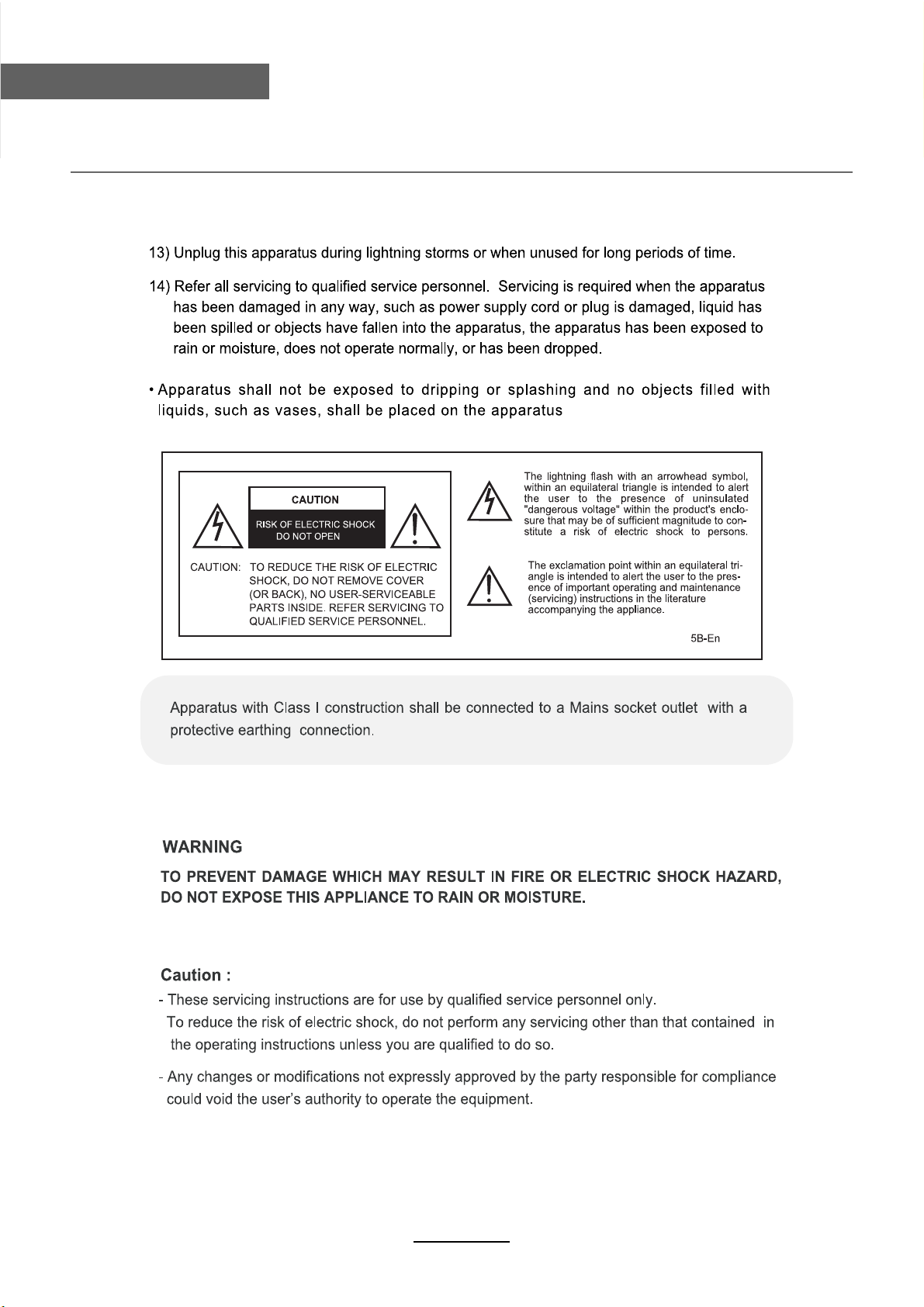

Important Safety Instructions

Safety Precautions

Important Safety Instructions

User Guidance Information

Names of each part

Front View

User’s Guide Remote Control

Power

INPUT: Press to display the input source menu(see page 11).

VOL

CH Press to skip through the channels.

NICAM/A2

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

1 2 3

4 5 6

7 8 9

0FAV

EPG CH.list

AUDIO

SUBTITLE

REC

HOLD REVEAL

INDEX

REC.list

TV/TXT SIZE

SUBPAGE

Power Cable

INPUT MENU CH+ CH- VOL+ VOL- POWER

Names of each part

User Guidance Information

Back View

YPbPr

USB

2VGA

L/R audio in

PC AUDIO IN

Video

1AC POWER

HDMI1/2/3

Coax out

Headphone out

USB

User Guidance Information

Remote Control

The remote control is using Infra-Red(IR). Point it towards the front of the LCD TV. The remote

control may not work correctly if it is operated out of range or out of angle.

NICAM/A2

PICTURE SOUND SLEEP DISPLAY

INPUT

VOL+

VOL-

EXIT

MUTE

CH+

CH-

123

456

789

0FAV

EPG CH.list

AUDIO

SUBTITLE

REC

HOLD REVEAL

INDEX

REC.list

TV/TXT SIZE

SUBPAGE

POWER : Turn on/standby the TV

INPUT : Source select.

DISPLAY : Display the information of current mode.

Thumbstick( ):Allows you to navigate the on-screen

menus and adjust the system settings to your preference.

OK : CONFIRM button.

MENU : Press to display the OSD menu.

EXIT : Press to exit the OSD menu.

MUTE : Press to mute the sound, press again or press VOL+ to

unmute.

VOL+/- : Press to adjust the volume.

CH+/- : Press to scan through channels.

SLEEP : Shutdown timer.

Number Buttons : Choose channel directly.

Select channel 5, Press button "5";

Select channel 62, Press button "6", then press button "2" in 2

seconds;

Select channel 151, Press button "1", and press button "5" in 2

seconds, and press button "1" in 2 seconds;

Select channel 5-1, Press button "5", and press button "- / - -"

in 2 seconds, and press button "1" in 2 seconds;

PICTURE : Press repeatedly to cycle through the available

video picture modes.

SOUND : Press to cycle through the different sound settings.

(RETURN) : Return to the previous channel viewed.
