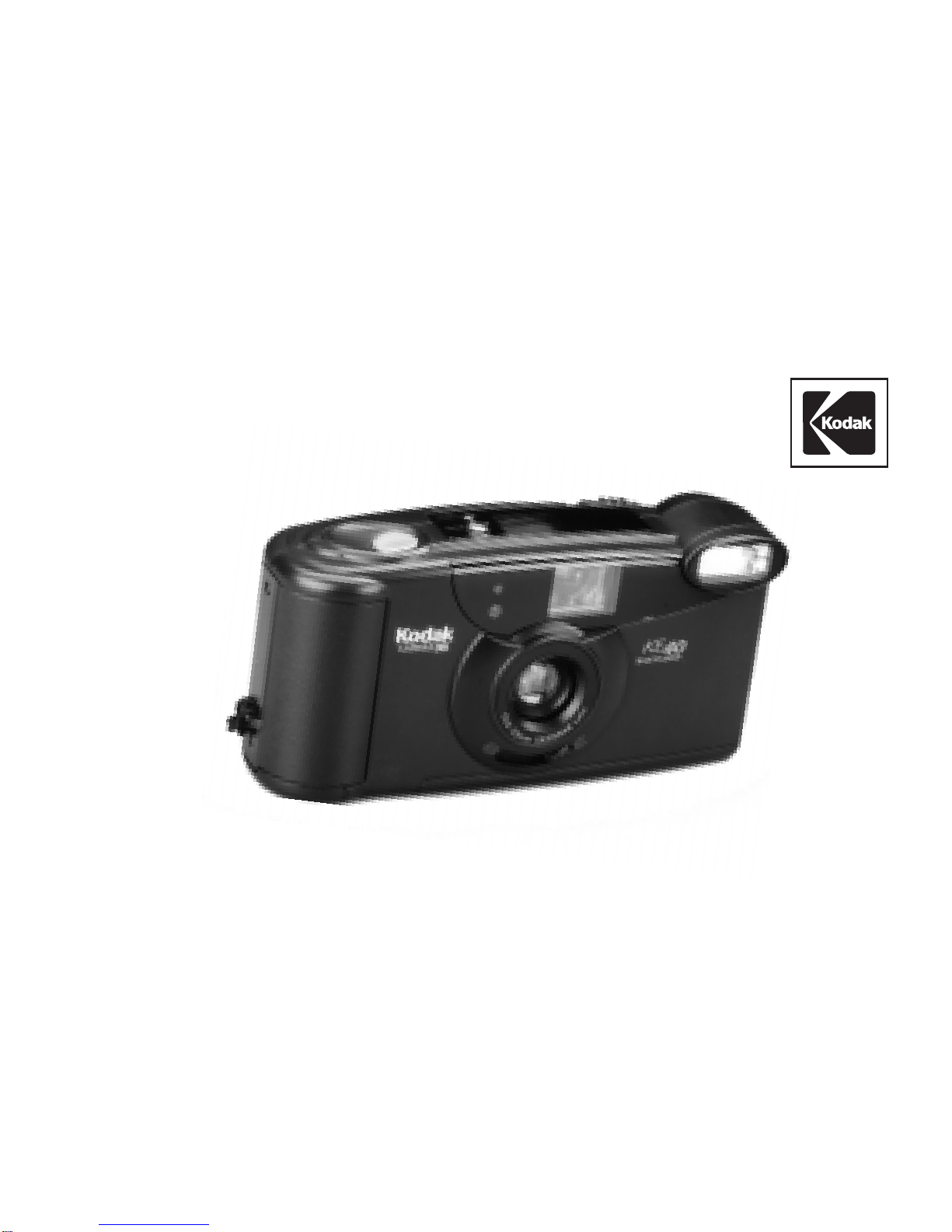

Kodak KE40 - 35 Mm Camera Manual de usuario

Kodak

KE40

35 mm

Camera

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

NOTE: Your model camera has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits provide reasonable protection

against interference in residential use. The camera generates, uses and can radiate radio

frequency energy and, if not used in accordance with the instructions, may cause interference to

radio communications. There is no guarantee that interference will not occur. If this camera does

cause interference to radio or television reception, which can be determined by turning the

camera off and on, you may reduce the interference by the following:

–Reorient or relocate the receiving antenna.

–Increase the separation between the camera and the receiver.

–Consult the dealer or an experienced radio/television technician for help.

Changes or modifications not approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

This Class B digital apparatus meets all requirements of the

Canadian Interference-Causing Equipment Regulations.

GHT ANGL

21 LEFT

Getting to Know Your Camera

FT ANGEL

12 RIGHT ANGEL

20 12 13 14

21 22

2728

ENGLISH

Contents

Need Help with Your Camera?....................................................... 6

Camera Identification ..................................................................... 7

Specifications ................................................................................. 8

Attaching the Camera Strap........................................................... 9

Loading the Batteries ..................................................................... 9

Loading the Film ...........................................................................11

Taking Pictures............................................................................. 13

Taking Flash Pictures ................................................................... 16

Selecting the Flash Modes and Self-timer ................................... 17

Unloading the Film ....................................................................... 22

Troubleshooting ........................................................................... 23

For Owners of the Quartz Date Back Model ................................ 25

Need Help with Your Camera?

Call:

Kodak (USAonly) toll free from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday

through Friday at 1 (800) 242-2424.

Kodak (Canada only) from 8:30 a.m. to 5:00 p.m. (Eastern time) Monday

through Friday at 1 (800) 465-6325, ext. 36100; for the Toronto area,

call (416) 766-8233, ext. 36100.

Visit our web site at http://www.kodak.com

For warranty purposes, please keep your sales receipt as proof of the

date of purchase.

Camera Identification (see inside front cover for diagrams)

1Shutter Button

2Mode-Selector Button

3Film-Rewind Button

4LCD Panel

5Flash

6Viewfinder

7Lens

8Lens-Cover Switch

9Strap Post

10 Self-Timer/Red-Eye-Reduction Lamp

11 Flash Sensor

12 Film-Door Latch

13 Viewfinder Eyepiece

14 Flash-Ready Light

15 Battery-Door Latch

16 TripodSocket

17 Film-Guide Rails

18 Film Chamber

19 Film Door

20 Film Window

LCD Panel

21 Frame Counter

22 Auto-Flash Symbol

23 Fill-Flash Symbol

24 Flash-Off Symbol

25 Self-Timer Symbol

26 Film-Presence Indicator

27 Nighttime-View Symbol

28 Battery Symbol

Specifications

Type: 35 mm fixed-focus, easy-load camera

Lens: 29 mm,

/5.6 hybrid

Flash Unit: KODAK SENSALITE ™ Flash with automatic power

down to conserve battery power

Viewfinder: Reverse-Galilean

Aperture:

/5.6

Shutter Speed: Programmed

Film Speed: DX (ISO) 100, 200, or 400 print film

Focus Range: Daylight: 4 ft (1.2 m) to infinity

Power Source: 2 AA-size alkaline batteries

Dimensions: 5.4 x 2.7 x 1.7 in (136.3 x 68.7 x 44 mm)

Weight: Approx. 6.5 oz (185 g)

Attaching the

Camera Strap

Thread the short loop of the strap

under the STRAP POST (9). Put the

long loop through the short loop and

pull it tight.

Loading the Batteries

This camera uses 2 AA-size alkaline

batteries.

1. Slide the BATTERY-DOOR LATCH (15)

in the direction of the arrow and

lift up to open the door.

2. Load the batteries in the battery

chamber.

3. Snap the battery door closed.

21 RIGHT

21 LEFT ANGLE

Low-Battery Indicator

It’s time to replace the batteries

when—

• the BATTERY SYMBOL (28) “blinks”

on the LCD PANEL (4)

• the camera repeatedly fails to take

a picture

• the FLASH-READY LIGHT (14) flashes

longer than 15 seconds.

Auto Power Off

This camera automatically turns off

after approximately 3 minutes to

conserve battery power. To awake

the camera, press the shutter button

partwaydown.

Battery Tips

• Remember to keep spare batteries

with you at all times.

• Read and follow all warnings and

instructions supplied by the battery

manufacturer.

• Keep batteries away from children.

• Do not try to take apart, recharge

or short circuit the batteries, or

subject them to high temperature

orfire.

• Store batteries in their original

packaging prior to use.
