Kodak F320/F330 Manual de usuario
F320/F330 AutoCamera
Consumer Imaging
EASTMAN KODAK COMPANY
Rochester, NY 14650
Kodak Camera Identification
Unfold front and back cover flaps of manual to view camera diagrams.
ENGLISH/ESPAÑOL/FRANÇAIS
1shutterbutton
2self-timerbutton
3LCDpanel
4viewfinder
5self-timerbulb
6flash
7lens-coverswitch
8lens
9film-doorlever
15 filmchamber
16 filmdoor
17 tripodsocket
18 batterydoor
123
4
9
6
7
8
5
15
18
16
17
©Eastman Kodak Company,2001
Pt.No. 919 6403 Printed in USA
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
NOTE:Yourmodelcamera has been tested and foundto comply with the limits for aClass
B digital device, pursuant to Part 15 of the FCC Rules. These limits provide reasonable
protection against interference in residential use. The camera generates, uses and can
radiate radio frequency energy and, if not used in accordance with the instructions, may
cause interference to radio communications. There is no guarantee that interference will
not occur. If this camera does cause interference to radio or television reception, which
can be determined by turning the camera off and on, you may reduce the interference by
the following:
— Reorient or relocate the receiving antenna.
— Increase the separation between the camera and the receiver.
— Consult the dealer or an experienced radio/television technician for help.
Changes or modifications not approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
19
LCD Panel
20
21
10 print-format
switch
11 viewfinder
eyepiece
12 film-rewindbutton
13 flash-readylamp
14 strappost
19 self-timerindicator
20 picturecounter
21 batterysymbol
10
11 13
14
12
1
Kodak
ENGLISH
F320/F330 Auto Camera
NEEDHELPWITHYOURCAMERAORMORE INFORMATION
ABOUTTHEADVANCEDPHOTOSYSTEM?
Go to our Web site at http://www.kodak.com (for US) or
http www.kodak.ca (for Canada) or call: Kodak (US only) from
9:00 a.m. to 7:00 p.m. (Eastern time) Monday through Friday
at 1-800-242-2424.
Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time)
Monday through Friday at 1-800-465-6325, ext. 36100; for the
Toronto area, call 416-766-8233, ext. 36100. When you call,
please have your camera available.
For warranty purposes, please keep your sales receipt as
proof of the date of purchase.
2
CONTENTS
CAMERAFEATURES ................ 3
ATTACHINGTHESTRAP .......... 4
LOADINGTHEBATTERIES ...... 5
Low-batteriesindicator......... 6
Battery tips .......................... 6
Powershutdown................... 7
LOADINGTHEFILM ................. 8
TAKINGPICTURES ................ 10
Typical print sizes
(formats) .......................... 12
Tips for better pictures ...... 13
TAKINGFLASHPICTURES .... 14
Flash-to-subject distance .. 15
USINGTHESELF-TIMER ....... 15
UNLOADINGTHEFILM .......... 16
Automaticrewind ............... 16
Manualrewind .................... 17
CARINGFOR
YOURCAMERA .................... 18
TROUBLESHOOTING ............. 19
SPECIFICATIONS ................... 21
3
CAMERAFEATURES
Three Print Formats
•You can take three different
size pictures: Classic (C), Group/
HDTV (H), and Panoramic (P)
pictures from the same film
cassette. The viewfinder
changes to show the selected
picture size.
DoubleExposure Protection (DEP)
•You don’t need to worry about
accidentally re-exposing your
film. Your camera reads the
Film Status Indicator (FSI) on
the film cassette to prevent
double exposures.
Easy, Drop-in Loading
•Easy, drop-in loading is fast
and virtually error-free. The
camera uses KODAK ADVANTIX
Film. The film cassette com-
municates the status of film
and becomes the carrier and
storage container for the
processed film.
Safety-Locked Film Door
•After you close the safety-
interlocked film door and the
film starts to prewind, you
cannot open the door until the
film is completely rewound into
the film cassette.
4
ATTACHINGTHESTRAP
Thread the shorter looped end
of the strap under the strap
post (14); pull the longer end
through the shorter loop and pull
it tight.
Film Status Indicator (FSI)
•A highlighted indicator
advances from one symbol to
another to identify the status
of the film inside the cassette.
4
3
2
1
Processed negatives
Unexposed
Partially exposed
Fully
exposed
5
•Before you remove the old
batteries, close the lens cover.
LOADINGTHEBATTERIES
This camera uses 2 AAA-size
batteries that supply power for all
camera operations.

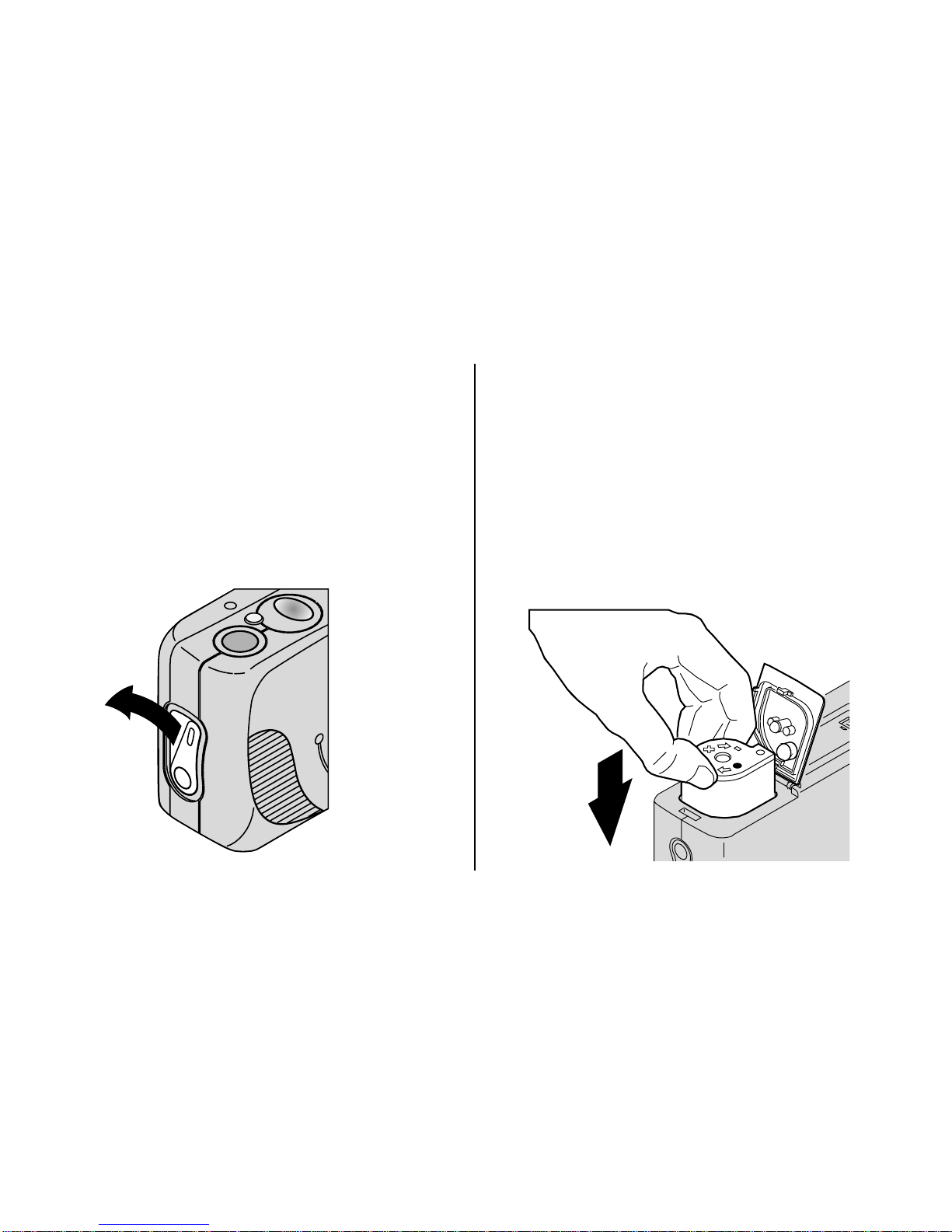

1.Open the battery door (18).
2. Place the batteries over the
battery-pull strap and insert
into the chamber as shown.
3. Snap the battery door closed.
NOTE: Insert the batteries into
the camera before you load
the film.
6
•Keep batteries away
from children.
•Do not try to take apart,
recharge or short circuit the
batteries, or subject them to
high temperature or fire.
•Do not use rechargeable
batteries.
•Store batteries in their original
packaging prior to use.
•Remove the batteries from the
camera when the camera is
not going to be used for an
extended length of time.
•Replace all batteries with the
same brand and grade and as
a set at the same time.
Low-batteries indicator
It’s time to replace the batteries
when the battery symbol (21)
appears on the LCD panel (3) or
when the flash-ready lamp (13)
takes longer than 12 seconds to
turn on.
Battery tips
•Dispose of batteries according
to local and national regulations.
•Remember to keep spare
batteries with you at all times.
•Read and follow all warnings
and instructions supplied by
the battery manufacturer.
7
•In the unlikely event that
battery fluid leaks onto your
skin, contact Kodak Health,
Safety and Environment
Information at 1-716-722-5151
in the U.S. Customers outside
the U.S. can contact their local
health care provider.
•In the unlikely event that
battery fluid leaks inside the
camera, U.S. customers can
contact the Kodak Information
Center (KIC) at 1-800-242-
2424. Customers outside the
U.S. can contact their local
Kodak Customer Service
representative.
Power shutdown
To conserve battery power, the
camera automatically goes into a
sleep mode if it is not operated
for more than 4 minutes. You can
awaken the camera by taking a
picture or by closing and
reopening the lens cover. When
the camera will not be used for an
extended length of time, close
the lens cover to completely turn
off the camera.
8
•The film door opens only
when the film chamber is
empty or the film in the
camera is completely
rewound into the film cassette.
2. Insert the film cassette
completely into the film
chamber (15).
LOADINGTHEFILM
You can load film into the camera
with the camera ON or OFF.
Insertthebatteries intothecamera
before you load the film.
1. Move the film-door lever (9) to
open the film door (16).
