Kodak Advantix Advantix Preview Manual de usuario
Consumer Imaging
EASTMAN KODAK COMPANY
Rochester, NY 14650
© Eastman Kodak Company, 2000
Pt. No. 919 4911a Printed in U.S.A.
Kodak
Preview
Camera
Unfold the front and back flaps of this manual to view the camera’s parts.
Unfold the front and back flaps of this manual to view the camera’s parts.
ENGLISH/ESPAÑOL/FRANÇAIS
1Shutter button
2Lens cover/flash
3Print-format button
4Auto-focus sensors
5Viewfinder
6Red-eye-reduction/
self-timerlamp
7Lens
8Light sensor
9Strap post
CAMERAIDENTIFICATION
1
2
3
4
5
6
7
8
9
FILL
AUTO
AM
PM
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: Your model camera has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
provide reasonable protection against interference in residential use. The camera
generates, uses and can radiate radio frequency energy and, if not used in
accordance with the instructions, may cause interference to radio
communications. There is no guarantee that interference will not occur. If this
camera does cause interference to radio or television reception, which can be
determined by turning the camera off and on, you may reduce the interference by
the following:
— Reorient or relocate the receiving antenna.
— Increase the separation between the camera and the receiver.
— Consult the dealer or an experienced radio/television technician for help.
Changes or modifications not approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Camera Identification LCD Panel
10 Viewfindereyepiece
11 Flash/camera-
readylamp
12 Previewscreen
13 Zoomdial
14 PREVIEW
15 SELECT
16 ENTER
17 Film-doorlever
18 MODE
19 MRC(Mid-roll-
change)
20 Battery door
21 Filmdoor
22 Tripodsocket
23 LCDpanel
24 TITLE
25 DATE
26 Brightness-control
button
27 Picture counter
28 Battery indicator
29 Self-timerindicator
30 Red-eye-reduction
indicator
31 Nightviewicon
32 Portrait icon
33 Center spot-
focus icon
34 Infinity-focus icon
35 Mode-selectorarrow
36 Flashindicator
37 Flash-off indicator
38 Auto-flash symbol
39 Fill-flashsymbol
40 ISO film-
speed display
41 Film-presence
indicator
42 PM/AMindicator
43 Date/timedisplay
12
11
26 28 30
31 32
29
33 34
35
36 37
38
39
24
25
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations
10
14
15
17
18
19
20
21
22
23
16
13
27
40
41
42
43
1
KODAK ADVANTIX
Preview Camera
ENGLISH
Welcome to the world of the Advanced Photo System!
And thank you for buying this KODAK ADVANTIX Camera.
NEED HELPWITH YOUR CAMERA?
Go to our Web site at http://www.kodak.com (for US) or
http://www.kodak.ca (for Canada) or call:
Kodak (USA only) from 9:00 a.m. to 7:00 p.m. (Eastern time) Monday
through Friday at 1 (800) 242-2424.
Kodak (Canada only) from 8:00 a.m. to 5:00 p.m. (Eastern time) Monday
through Friday at 1 (800) 465-6325, ext. 36100; for the Toronto area,
call (416) 766-8233, ext. 36100.
When you call, please have your camera available.
For warranty purposes, please keep your sales receipt as proof
of the date of purchase.
2
CAMERA FEATURES AND BENEFITS ....3
GETTING STARTED .................................5
Loading the batteries ...........................5
Setting the language............................6
Setting the date and time.....................7
Choosing the format .........................7
ATTACHING THE STRAP .........................8
CONTROL-BUTTON ACTUATOR .............9
OTHER BATTERY INFORMATION ...........9
Low-batteries indicator..........................9
Battery tips ......................................... 10
Power shut-off .................................... 10
LOADING THE FILM .............................. 11
TAKING PICTURES—
PREVIEWING THE PRINT................. 12
Typical print sizes (formats) ................ 14
Focus feedback ................................. 15
Select the print quantity .................... 15
Change the print format .................... 16
Brightness control .............................. 16
Tips for better pictures ....................... 17
USING THE ZOOM LENS ...................... 17
TAKING FLASH PICTURES .................. 18
Flash-to-subject distance................... 19
Flash/warning-lamp signals ............... 19
FLASH MODES ..................................... 20
Auto flash with
red-eye reduction........................... 20
Auto flash without
red-eye reduction........................... 20
Fill flash............................................... 20
Flash off ............................................. 21
Selecting the flash modes ................. 21
SPECIAL OPTION MODES ................... 22
Infinity focus ....................................... 22
Center-spot focus .............................. 22
Portrait ................................................ 22
Nightview ............................................ 22
Selecting the special option modes .. 23
USING THE SELF-TIMER ...................... 24
TITLE IMPRINTING ................................ 25
TITLE-SELECT LIST.............................. 25
UNLOADING THE FILM ......................... 26
Automatic rewind................................ 26
Mid-roll change (MRC)........................ 27
CARING FOR YOUR CAMERA .............. 27
TROUBLESHOOTING............................ 28
SPECIFICATIONS .................................. 30
CONTENTS
3
Preview Screen
• You can be sure you got the shot when
you preview your picture on the
Preview Screen.
Print Quantity Selection
• If you are happy with the previewed
picture, you can order extra prints, up
to 9, with a touch of a button on the
camera back. If not, you can select
zero prints and take a new picture. The
magnetic Information Exchange (IX)
technology records the ordering
information on the film, so the selected
number of each print is produced
automatically during processing.
Three Print Formats
• You can take three different size
pictures: Classic (C), Group/HDTV (H),
or Panoramic (P). The viewfinder
changes to show the selected picture
size. You can also see how your print
will look in the different formats on the
Preview Screen and change the format
to the one that looks the best.
Flip Flash Plus
• This smart-flash system
automatically adjusts to provide the
right light in any situation.
–
Flip flash moves the flash away
from the lens to reduce redeye.
–
Automatically turns on for dimly
lit scenes
.
–
Long flash range delivers
brighter light for more colorful
distance pictures.
–
Automatically
provides fill-in light for
more sparkle and clarity in harshly
lit outdoor portraits.
–
Provides softer light for more
natural images for close-ups.
–
Provides extra red-eye reduction
with the red-eye-reduction mode.
CAMERA FEATURES AND BENEFITS
4
4
3
2
1
Picture Quality Information Exchange
(PQix)
• This camera records vital scene data on
the film’s magnetic information strip and
communicates that information to the
photo lab to optimize lighting and color for
better-looking prints.
Easy, drop-in loading
• Easy, drop-in loading is fast and virtually
error-free, eliminating blank rolls and
double exposures. The camera uses
KODAK ADVANTIX Film. The film
cassette, unlike the traditional 35 mm
cartridge, becomes the carrier and
storage container for the processed film.
Date, Time, and Title Imprinting
• The date, time, and cassette ID
number are printed on the back of
your prints, which makes it easy to
organize pictures and order reprints.
You can choose from one of 10 pre-
programmed titles (5 languages
available) to print on the back of the
prints.
See your photofinisher for a
full description of the available
services.
Mid-Roll Change (MRC)
• You can remove your film in mid-roll
and later reload it and continue
taking pictures. MRC lets you:
–
share a family camera in which the
members use their own roll of film,
–
switch between color and
black-and-white film,
–
switch film speeds in mid-roll to
match scene requirements, and
–
organize by dedicating individual
film rolls to specific subjects.
.
Processed Negatives
Fully
Exposed
Partially
Exposed
Unexposed
Film Status Indicator (FSI)
• A highlighted indicator advances from one
symbol to another to identify the status of
the film inside the cassette.
5
GETTING STARTED
Before you take pictures, you need to
load the batteries, set the language, and
set the date and time.
Loading the batteries
This camera uses two 3 V lithium
KODAK K123LA (or equivalent) Batteries
that supply power for all
camera operations.
1. Slide the battery-door latch and lift to
open the battery door (20).
2. Insert the batteries into the
battery chamber.
3. Snap the battery door closed.
• After you load new batteries into the
camera, reset the date and time.
6
Setting the language
English is initially set into the memory of
this camera, but you can select another
language (5 options available).
1. Completely lift up the lens cover/
flash (2) to uncover the lens (7) and to
turn on the camera.
2. Press and hold TITLE (24) until
the language indicator “blinks” on the
LCD panel (23).
3. Move the zoom dial (13) to the left or
right to select a language.
US = English dEU = German
FrA = French JP = Japan
ESP = Spanish
DATE
TITLE
LEFT
EXP
AUTO
7
Setting the date and time
Traditional cameras print date and/or
time information directly onto the film.
Your camera uses the film’s magnetic
data-recording capability to record date
and time information, which your
photofinisher can imprint on the back of
your photographs. This camera has a
quartz clock and automatic calendar
through the year 2099.
1. Completely lift up the lens cover/
flash (2) to uncover the lens (7) and
to turn on the camera.
2. Press and hold DATE (25) until the first
number “blinks.”
3. Press the zoom dial (13) to the right
or left to select the number.
4. Press ENTER (16) to save the
number and to actuate the next
blinking number.
5. Repeat steps 3and 4to continue
setting the date and time or close the
lenscover/flash(2) toendyour selection.
TITLE
DATE
LEFT
AUTO
EXP
EXP
LEFT
ISO
SELECT
ENTER
MODE
AUTO
ISO
EXP
LEFT
AUTO
ENTER
MODE
SELECT
4. Press ENTER (16) to save your selection.
8

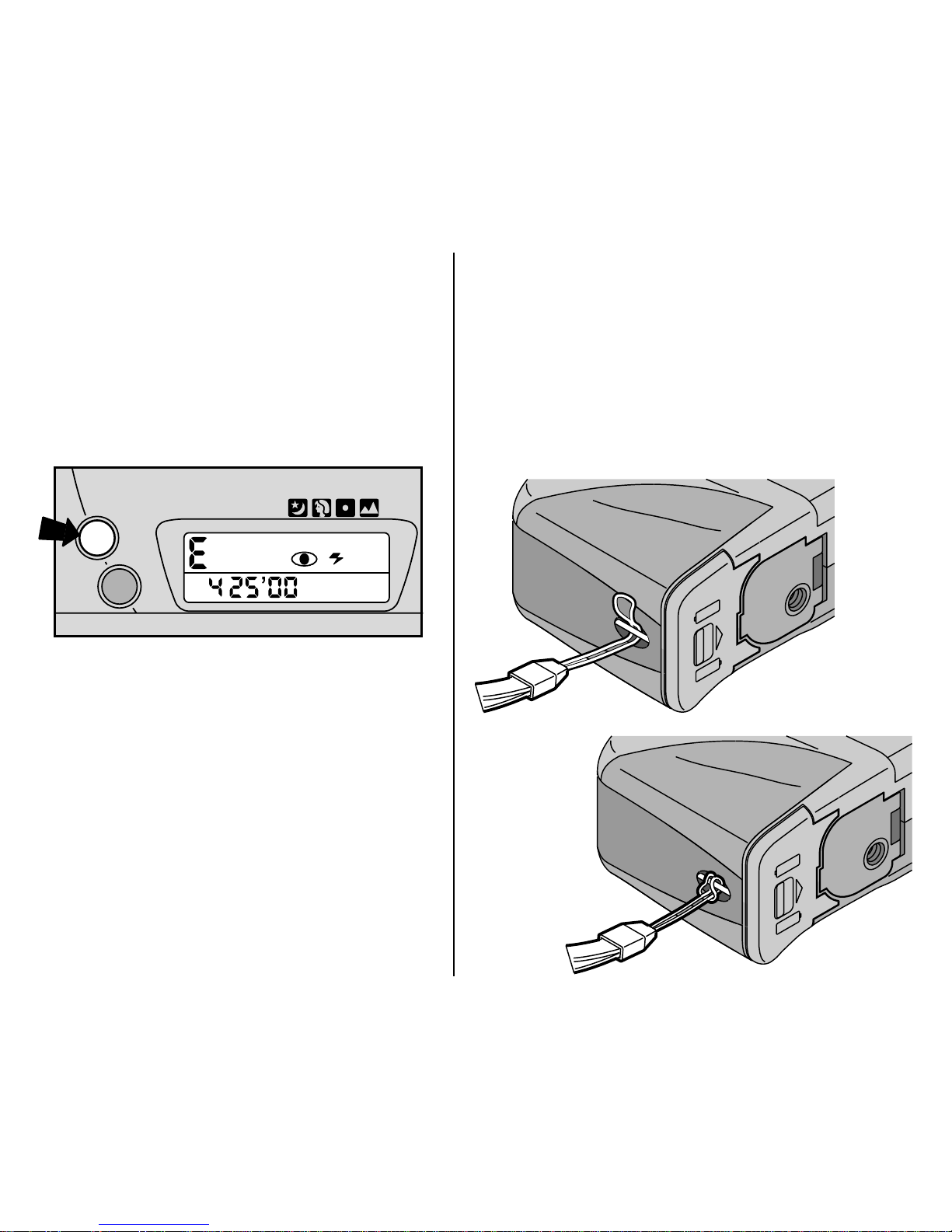

ATTACHINGTHESTRAP
1. Insert the shorter looped end of the
strap behind the strap post (9).
2. Thread the longer end of the strap
through the shorter loop.
3. Pull the strap tight.
TITLE
DATE
LEFT
AUTO
EXP
Choosing the format
You can choose from three formats:
(month/day/year, day/month/year, or
year/month/day) and time format
(hour/minute) with PM or AM display.
1. Repeatedly press DATE (25) to
choose a format.
2. Press ENTER (16) or close the lens
cover/flash (2) to save the format.
Otros manuales para Advantix Advantix Preview
1
Este manual sirve para los siguientes modelos
2
Tabla de contenidos
Idiomas:
Otros manuales de Cámara digital de Kodak
Kodak
Kodak Z885 - EASYSHARE Digital Camera Manual de usuario
Kodak
Kodak V803 - EASYSHARE Digital Camera Manual de usuario
Kodak
Kodak C875 - EasyShare 8MP Digital Camera Manual de usuario
Kodak
Kodak PIXPRO FZ45BK Manual de usuario
Kodak
Kodak DX4330 - Easyshare Zoom Digital Camera Manual de usuario
Kodak
Kodak EASYSHARE M5350 Manual de servicio
Kodak
Kodak EasyShare C530, C315, CD50 Manual de usuario
Kodak
Kodak V1233 - Easyshare 12.1MP Digital Camera Manual de usuario
Kodak
Kodak PIXPRO AZ501 Manual de usuario
Kodak
Kodak C913 - EASYSHARE Digital Camera Manual de usuario
Kodak
Kodak PIXPRO AZ405 Manual de usuario
Kodak
Kodak EasyShare C703 Manual de usuario
Kodak
Kodak DX3500 - EasyShare 2MP Digital Camera Manual de usuario
Kodak
Kodak CX7300 - EASYSHARE Digital Camera Manual de usuario
Kodak
Kodak ZxD Manual de servicio
Kodak
Kodak PIXPRO AZ652 Manual de usuario
Kodak
Kodak KLIC-7004 Manual de usuario
Kodak
Kodak Z710 - EASYSHARE Digital Camera Manual de usuario
Kodak
Kodak AZ901BK Manual de usuario
Kodak
Kodak EASYSHARE M550 Manual de usuario
