1. Introduction
EMV/Chip&PIN/MSR/NFC Mobile POS Companion
The PCI compliant EMV/MSR/NFC SmartSled® design provides a secure and
convenient user payment transaction. Chip-and-PIN payment solutions are becoming
the global industry standard and as a result, KOAMTAC has developed the most
advanced mobile payment companion. Being that it has a traditional magnetic stripe
reader, as well as the newly implemented EMV functionality, the Mobile POS
Companion allows businesses to take payments with existing swipe cards, as well as
support those implementing the newly adopted EMV systems without changing of
solutions.
To find out more about KOAMTAC, Inc. and our family of products, visit us at
www.KOAMTAC.com.
SLED-mPOS User Manual
INTRODUCTION
6
Revision 1.0
Copyright®2012-2021, KOAMTAC, Inc.
1.1 Specification
Main Processor
120MHz ARM Cortex-M4
Memory
1M program flash, 128KB RAM, 32-byte secure key storage,
8MB user data flash
Display
128x64 monochrome
Keypad
Secure Touch Pinpad(15 buttons). '0 to '9', Up/Fn, Down/Menu,
Cancel, Clear and Enter
Mag-Stripe Reader
Track 1/2/3, Bi-directional, ISO 7810, 7811, 7813
Smart Card Reader
EMV L1 and L2, SAM
Contactless and NFC
(NXP PN5180)
Antenna : FPCB Type 2-Turn Loop Antenna with Ferrite Sheet
Frequency : 13.56MHz
PN5180 -> Card (Tx) : 100% ASK (Amplitude Shift Keying)
Bit Encoding : Modified Miller Encoding
Card -> PN5180 (Rx) : Subcarrier Load Modulation
Bit Encoding :
106kBaud ->Manchester Encoding
212kBaud ->BPSK (Binary Phase Shift Keying)
424KBaud->BPSK (Binary Phase Shift Keying)
ISO 14443, MIFARE, Felica, MasterCard PayPass, Visa PayWave
Security
PCI PTS V5.x
Encryption
For PIN : T-DES(128-bit)
For Card data : T-DES(128-bit), AES(128-bit)
Key Management
DUKPT
Key Injection
Key Loader
OS compatibility
All major OS
Interfaces
USB to Serial (Micro USB port)
Dimensions
65.1cm x 105.0cm x 10.1cm
25.63” x 41.34” x 3.98“
Weight
74.5g(2.63 oz)
Drop Spec
5 feet (1.5M)
Operating Temperature
32˚F (0˚C) ~ 122˚F (50˚C)
Humidity
5% ~ 95% (noncondensing)
SLED-mPOS User Manual
INTRODUCTION
7
Revision 1.0
Copyright®2012-2021, KOAMTAC, Inc.
1.2 Package
The standard SLED-mPOS package contains:
1. One SLED-mPOS
2. USB Cable
l 5pin Micro USB cable
SLED-mPOS User Manual
INTRODUCTION
8
Revision 1.0
Copyright®2012-2021, KOAMTAC, Inc.
1.3 Characteristics
Before starting to use the SLED-mPOS, the user should become familiar with its
physical characteristics. Refer to the follow figure that indicate the placement of Secure
Touch Pinpad, OLED display, LED, NFC Reader, Magnetic-Stripe Card Reader, IC Card
Reader and ports on the KDC.
SLED-mPOS User Manual
INTRODUCTION
9
Revision 1.0
Copyright®2012-2021, KOAMTAC, Inc.
Figure 1 – SLED-mPOS Overview
OLED Display
NFC Reader
Secure Touch Pinpad
IC Card Reader
Magnetic-Stripe
Card Reader
SLED-mPOS User Manual
INTRODUCTION
10
Revision 1.0
Copyright®2012-2021, KOAMTAC, Inc.

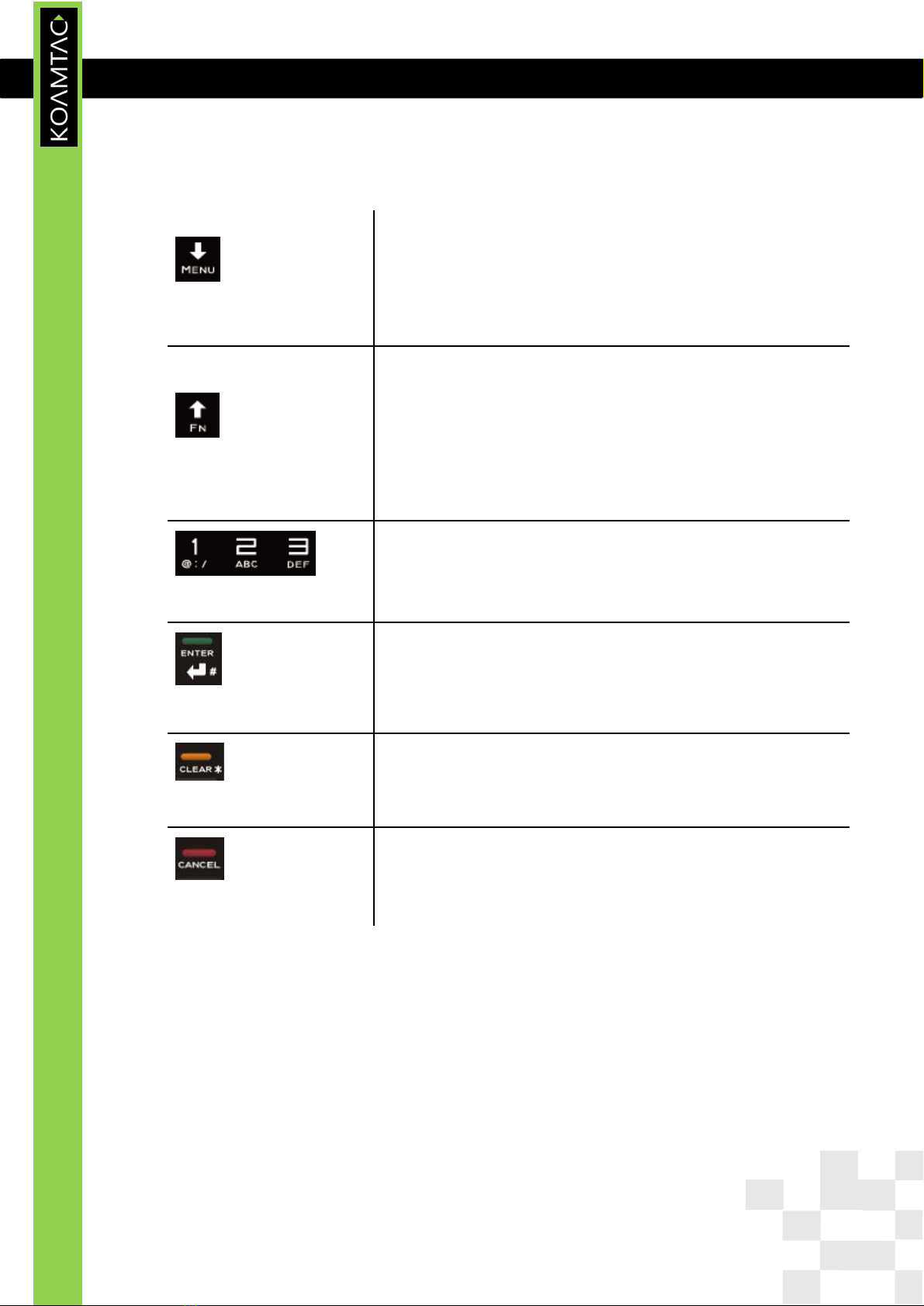

1.4 Secure Touch Pinpad
(Menu/Down button)
While in the SLED-mPOS menu, press this button to scroll
down the selection bar. While on the main screen, press
this button for 5 seconds then the SLED-mPOS will enter
the SLED-mPOS menu mode.
(FN/Up button)
While in the SLED-mPOS menu, press this button to scroll
up the selection bar.
While the SLED-mPOS waits for Alpha-Numeric key entry,
this button allows the user to switch between ABC and
number input mode.
(Number button)
Input numbers or characters
(Enter button)
Press to finish data input.
(Delete button)
Press to delete the last character or number input.
(Cancel button)
Press to cancel data input.
