Stratos MS A405

Conductivity Measurement

Latest Product Information: www.knick.de

User Manual

English

Table of Contents

About This Manual.....................................................................................................5

Documents Supplied ................................................................................................6

Introduction........................................................................................ 7

Overview of the Stratos MS ............................................................... 8

Package Contents.......................................................................................................8

Mounting Accessories ..............................................................................................9

Pipe Mounting, Protective Hood .......................................................................10

Panel Mounting .......................................................................................................11

Terminal Assignments, Rating Plates..............................................12

Power Supply............................................................................................................13

Start-Up.............................................................................................14

Calibration and Maintenance in the Lab ........................................................14

Memosens Cable .....................................................................................................15

Wiring Example SE 670 / SE 680......................................................................... 16

Measuring Mode............................................................................... 17

The Keys and Their Functions ..........................................................18

The Display........................................................................................19

Display in Measuring Mode.................................................................................20

Selecting the Mode / Entering Values .............................................21

Operating Modes ....................................................................................................22

HOLD Mode...............................................................................................................23

Operating Modes / Functions............................................................................. 24

Connecting a Memosens Sensor .....................................................26

Replacing a Sensor.................................................................................................. 27

Conguration: Overview..................................................................29

Device Type: Cond / CondI...................................................................................32

Sensor Verication (TAG, GROUP) .....................................................................34

Output Current: Range, Current Start/End.....................................................36

Output Current: Curve........................................................................................... 38

Output Current: Logarithmic Curve.................................................................. 40

Output Current: Time Averaging Filter ............................................................42

4Table of Contents

Output Current: Error and HOLD .......................................................................44

Alarm Delay, Sensocheck, Tempcheck............................................................. 46

Temperature Compensation ...............................................................................48

Relay Contacts: Function Assignment, Limit Values ...................................50

Relay Contacts: Limit Function, Hysteresis.....................................................52

Relay Contacts: Alarm............................................................................................ 54

Relay Contacts: Controlling a Rinsing Probe .................................................56

Protective Wiring of Relay Contacts.................................................................. 58

Time and Date, Measuring Point (TAG/GROUP)...........................................60

Calibration ........................................................................................63

Calibration with Calibration Solution ..............................................................64

Product Calibration................................................................................................. 66

Temp Probe Adjustment....................................................................................... 68

Calibrating Toroidal Sensors................................................................................69

Calibration by Input of Cell Factor .................................................................... 70

Zero Calibration .......................................................................................................71

Measurement.................................................................................... 72

Diagnostics .......................................................................................73

Service ...............................................................................................78

Error Messages..................................................................................81

Sensocheck and Sensoface..............................................................83

Operating States...............................................................................84

Product Range ..................................................................................85

Specications....................................................................................86

Calibration Solutions .......................................................................91

Concentration Measurement...........................................................93

Concentration Curves.......................................................................94

Index................................................................................................100

About This Manual

Subject to change without notice

Return of Products Under Warranty

Please contact our Service Team before returning a defective device.

Ship the cleaned device to the address you have been given.

If the device has been in contact with process uids, it must be decontaminated/

disinfected before shipment. In that case, please attach a corresponding certicate,

for the health and safety of our service personnel.

Disposal

Please observe the applicable local or national regulations concerning the

disposal of “waste electrical and electronic equipment”.

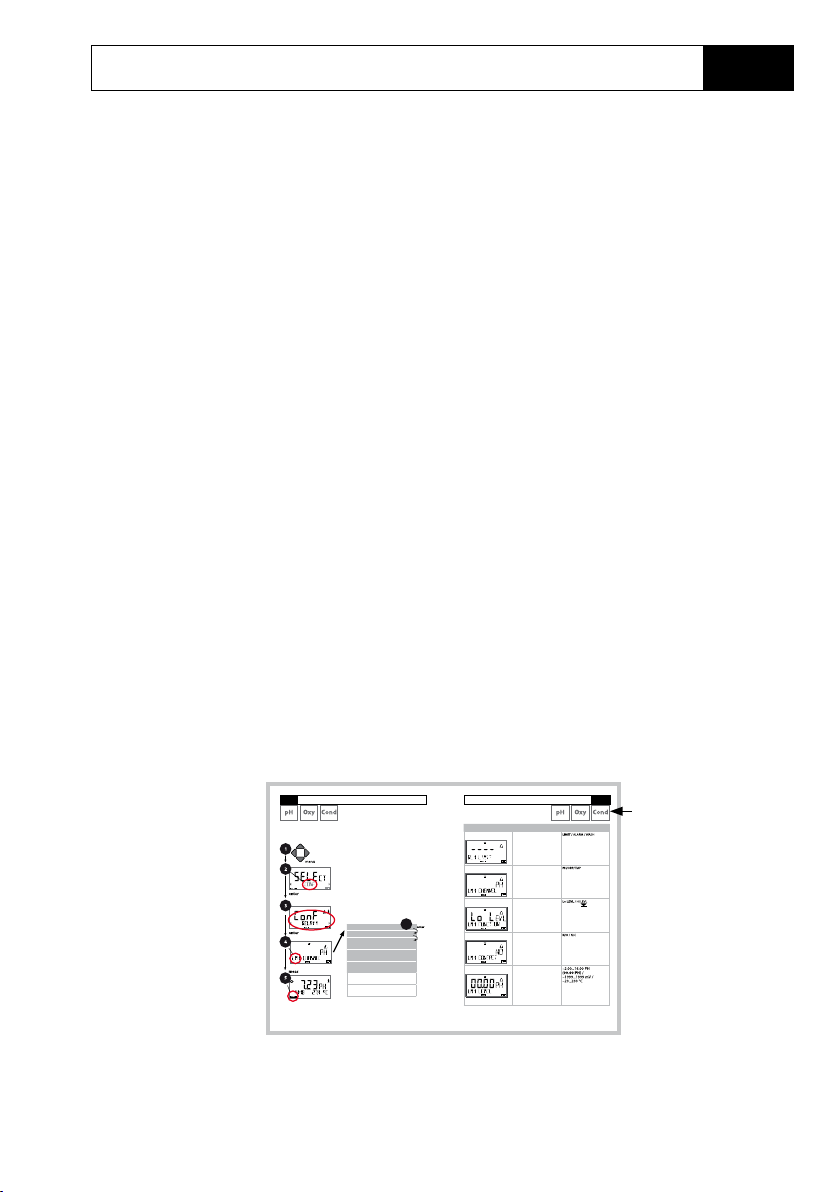

About This Manual:

This manual is intended as a reference guide to your device –

You don’t have to read the book from front to back.

Take a look at the Table of Contents or the Index to nd the function you are

interested in. Each topic is explained on a double-page spread with step-by-step

instructions on how to congure the desired function. Clearly legible page numbers

and headlines help you to quickly nd the information:

58 59

Use of relays

Select process variable

Limit 1

switching characteristics (function)

Limit 1

contact type

Limit 1

setpoint

Limit 1

hysteresis

Limit 1

delay

Relay Contacts: Function Assignment, LimitValues

(Example: device type pH)

1 Press menu key.

2 Select CONF using  keys, press enter.

3 Select RELAY1 menu using  keys,

press enter.

Specify relay contact function: LIMIT.

4 All items of this menu group are indicated by the“LM1:“

code.

Press enter to select menu,

edit using arrow keys (see next page).

Confirm (and proceed) by pressing enter.

5 Exit: Press meas key until the [meas] mode indicator is

displayed.

Conguration: Relay Contacts

Menu item Action Choices

Use of relays Select in the text line using 

keys:

• Limit function (LIMITS)

• Error message (ALARM)

• Rinse contact (WASH)

Press enter to confirm.

Note: The following submenu

depends on the selected setting.

Select process variable Select desired process variable

using  keys.

Press enter to confirm.

Limit 1 function Select desired function using

arrow keys.

LoLevel: active if value falls

below setpoint

LoLevel: active if value exceeds

setpoint

Press enter to confirm.

Limit 1 icon:

Limit 1 contact response N/O: normally open contact

N/C: normally closed contact

Select using keys.

Press enter to confirm.

Limit 1 setpoint Enter setpoint using  

keys.

Press enter to confirm.

Conguration: Relay Contacts

Left page:

How do I get to the

function

Right page:

Which settings are pro-

vided for this function

Parameter concerned

6Documents Supplied

Ex Devices:

Control Drawings

EU Declarations of Conformity

Up-to date documentation available on our website:

www.knick.de

Safety Instructions

In ocial EU languages and others

Quickstart Guides

Installation and rst steps:

• Operation

• Menu structure

• Calibration

• Error messages and recommended actions

Specic Test Report

Electronic Documentation

Manuals + Software

Introduction

Stratos MS is a 4-wire analyzer for use with Memosens sensors. The Model A405B

allows applications in hazardous-area Zone 2. Current is provided through a

universal power supply 80...230VAC, 45...65Hz / 24...60VDC.

The analyzer provides two 0 (4) .... 20mA current outputs for transmission of

measured value and temperature, for example.

Two oating relay contacts are available for free conguration.

You can select one of the following measuring functions:

• pH

• ORP

• Dissolved oxygen

• Conductivity measurement (conductive/inductive)

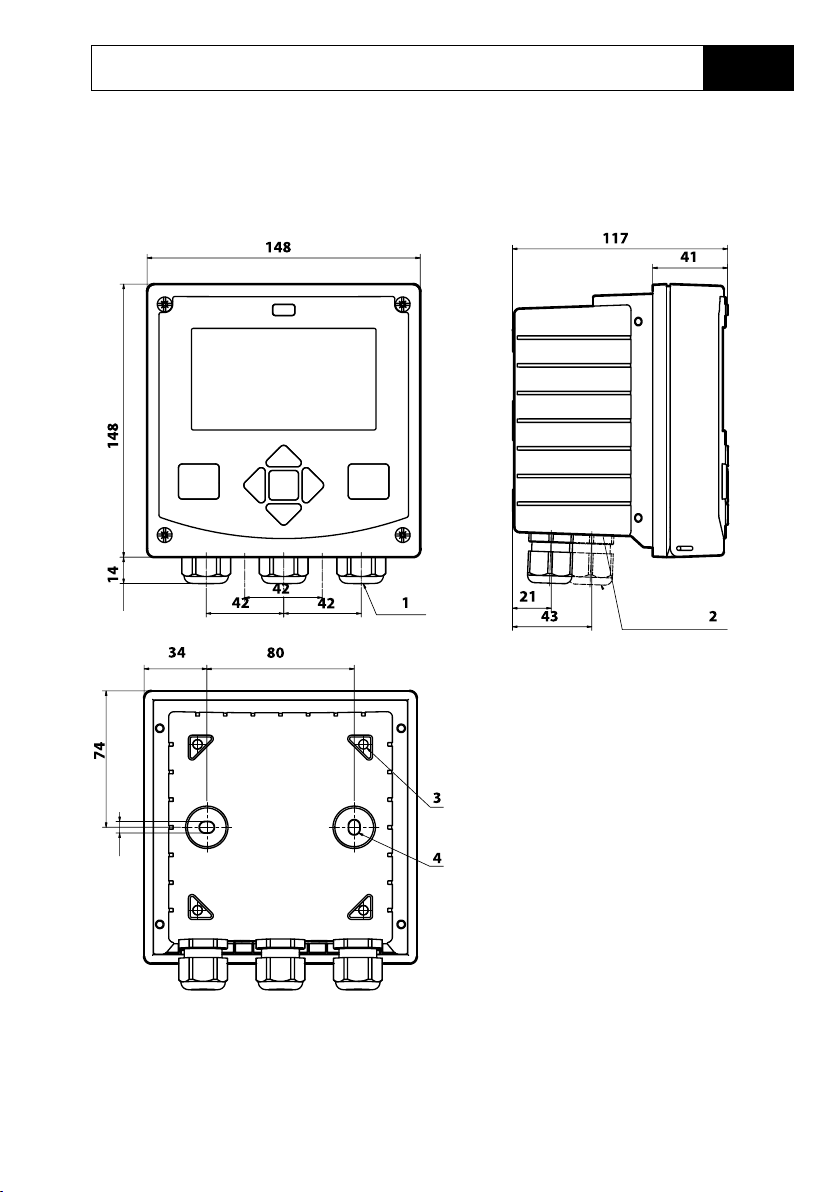

Enclosure and mounting possibilities

• The sturdy molded enclosure is rated IP 67/NEMA 4X outdoor.

Material of front unit: PBT, rear unit: PC.

Dimensions: H 148 mm, W 148 mm, D 117 mm.

It is provided with knockouts to allow:

• panel mounting (138 mm x 138 mm cutout to DIN 43700)

• wall mounting (with sealing plugs to seal the enclosure)

• post/pipe mounting (dia. 40 … 60 mm, 30 … 45 mm)

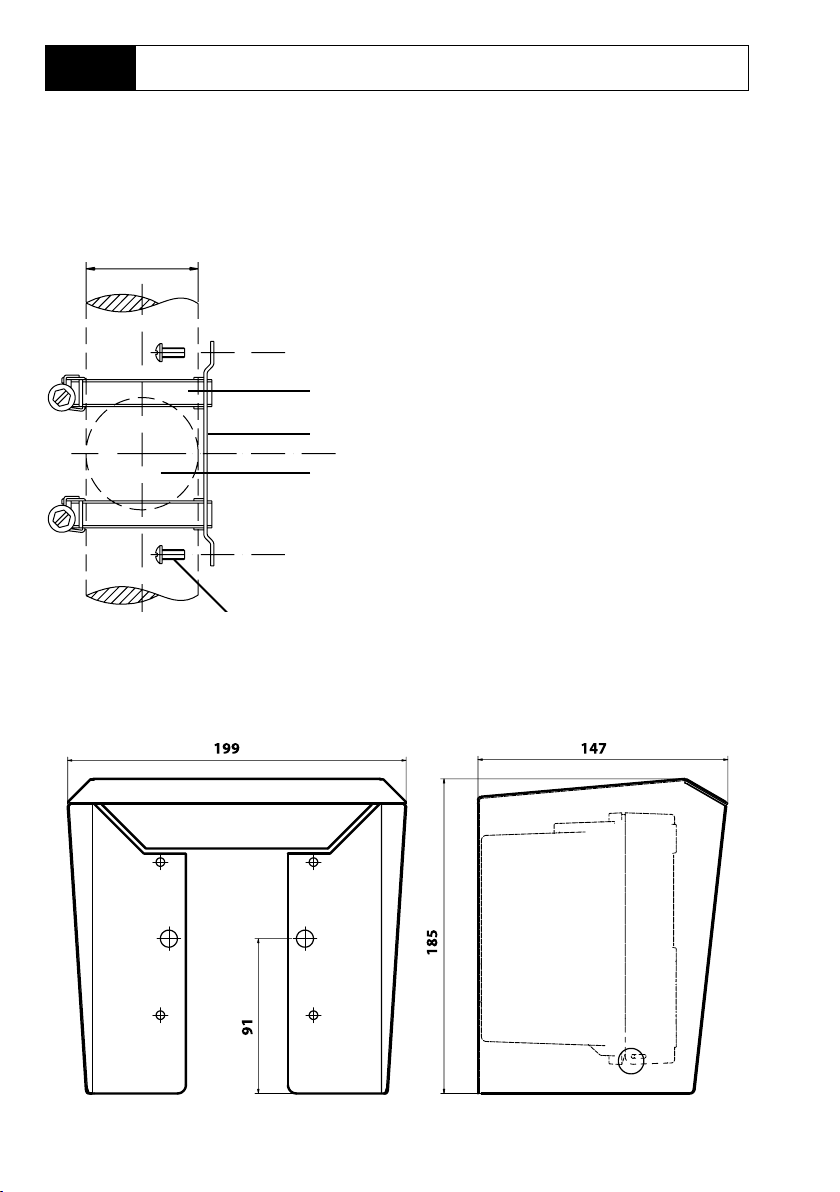

Protective hood (accessory)

The protective hood provides additional protection against direct weather exposure

and mechanical damage (available as accessory).

Connection of sensors, cable glands

For connecting the cables, the enclosure provides

• 3 knockouts for cable glands M20x1.5

• 2 knockouts for NPT 1/2” or rigid metallic conduit

Memosens sensors and connecting cables

Please visit our website for more information on our product range: www.knick.de.

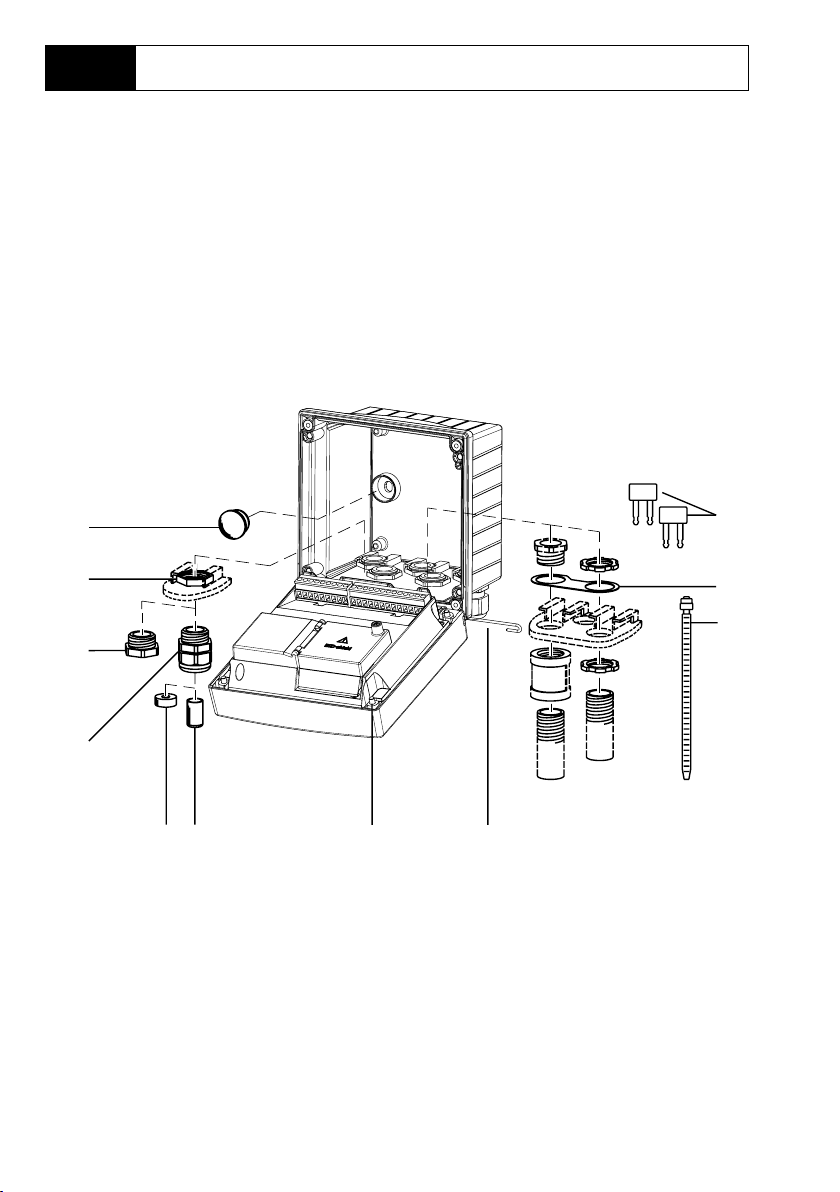

Package Contents

Check the shipment for transport damage and completeness.

The package should contain:

Front unit, rear unit, bag containing small parts

Specic test report

Documentation

76 54

Fig.: Assembling the enclosure

1) Jumper (3 x)

2) Washer (1 x), for conduit mounting:

Place washer between enclosure and

nut

3) Cable tie (3 x)

4) Hinge pin (1 x), insertable from either

side

5) Enclosure screw (4 x)

6) Sealing insert (1 x)

7) Rubber reducer (1 x)

8) Cable gland, M20x1.5 (3 x)

9) Filler plug (3 x)

10)Hexagon nut (5 x)

11)Sealing plug (2 x), for sealing in case

of wall mounting

Overview of the Stratos MS

Mounting Plan, Dimensions

1) Cable gland (3 x)

2) Knockouts for cable gland or

½“conduit, dia. 21.5 mm

(2 knockouts).

Conduit couplings not included!

3) Knockout for pipe mounting

(4x)

4) Knockout for wall mounting

(2x)

6.2

Mounting Accessories

Pipe-mount kit, accessory ZU 0274

Protective hood for wall and pipe mounting, accessory ZU 0737

Panel-mount kit, accessory ZU 0738

All dimensions in mm

Pipe Mounting, Protective Hood

Fig.: Protective hood for wall and pipe mounting, accessory ZU 0737

Fig.: Pipe-mount kit, accessory ZU 0274

1) Hose clamp with worm gear drive to

DIN 3017 (2 x)

2) Pipe-mount plate (1 x)

3) For vertical or horizontal posts or

pipes

4) Self-tapping screw (4 x)

ø40...ø60

Overview of the Stratos MS

Otros manuales para Stratos MS A405

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Instrumento de medición de Knick

Knick

Knick Stratos Eco 2405 Oxy Manual de usuario

Knick

Knick Stratos MS A405 Manual de usuario

Knick

Knick Portavo 904X COND Manual de usuario

Knick

Knick Stratos Pro A2 COND Series Manual de usuario

Knick

Knick Portavo 907 MULTI Manual de usuario

Knick

Knick Stratos PROFIBUS 2221X Cond Manual de usuario

Knick

Knick Protos 3400X Manual de usuario

Knick

Knick Portavo 904X COND Manual de usuario

Knick

Knick Protos 34009(X) Manual de lista de piezas

Knick

Knick 830 R Manual de usuario

Knick

Knick Protos 3400 Series Manual de usuario

Knick

Knick Stratos Eco 2405 Oxy Manual de usuario

Knick

Knick ARD 50 Manual de usuario

Knick

Knick Stratos Pro A2 CC Series Manual de usuario

Knick

Knick Protos CONDI 3400(X)-051 Manual de usuario

Knick

Knick Stratos Pro A4 CC Series Manual de usuario

Knick

Knick Protos II 4400 Manual de usuario

Knick

Knick Protos II 4400(X) Manual de usuario

Knick

Knick Portamess 913 Cond Manual de usuario

Knick

Knick Stratos Pro A2 COND Series Manual de usuario

Knick

Knick Protos II 4400 Manual de usuario

Knick

Knick Protos 3400X Manual de usuario

Knick

Knick SensoGate WA 131 H Manual de usuario

Knick

Knick PORTAVO 904X PH Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
