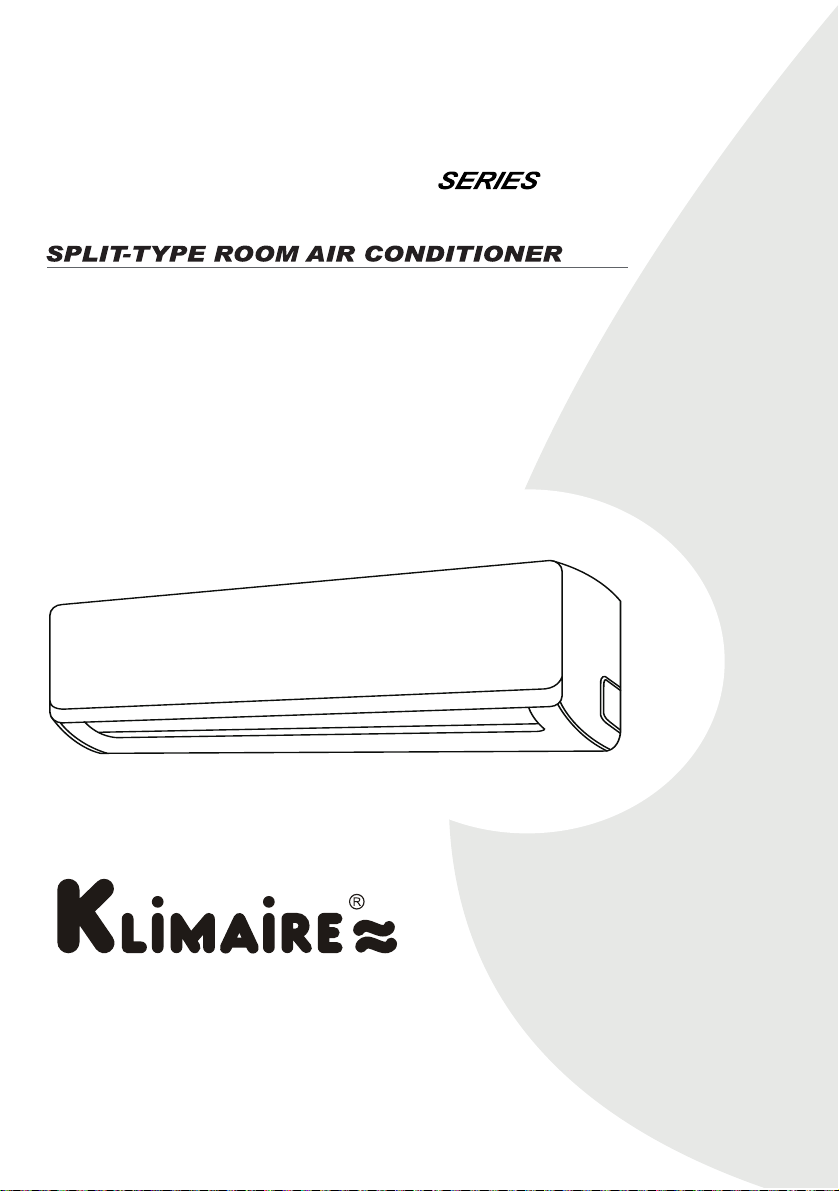

Klimaire KIWU Series Manual de usuario
KIWU/KOIU
Mark of Superior Quality
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.
For more information please visit www.klimaire.com
Service Manual
M0WIU2302
MAINTENANCE
Clean
the unit
When cleaning, you must shut down the machine and cut off the power supply for more
than 5 minutes.
Under no circumstances should the air condioner be flushed with water.
Volale liquid (e.g. thinner or gasoline) will damage the air condioner, so only use so
dry cloth or wet cloth dipped with neutral detergent to clean the air condioner surface.
Pay aenon to cleaning the filter screen regularly to avoid dust covering which will
affect the air filtraon. When the operang environment is dusty, the cleaning
frequency should be done more frequently.
Aer removing the filter screen, do not touch the fins of the indoor unit to avoid cuts.
Tip: Wipe frequently to keep air condioner clean and good appearance .
Wiping damp Gentle wipe the unit surface
Warning
Opposite to the
direcon of taking
out the filter
Take out the filter
from the unit
Clean the filter with
soapy water and air dry it
Replace the filter
Tip: When you find accumulated dust in the filter, please clean the filter on me to
ensure the clean, healthy and efficient operaon inside the air condioner.
Clean
the filter
When the air condioner is not in use for a long me, do the following work:
Take out the batteries of the remote controller and disconnect the power supply of
the air condioner.
When starng to use aer long-term shutdown:
1. Clean the unit and filter screen;
2. Check whether there are obstacles at the air inlet and outlet of indoor and outdoor
units;
3. Check whether the drain pipe is unobstructed;
Install the baeries of the remote controller and check whether the power is on.
Service and
maintenance
<40
104
<40
104
2
TROUBLESHOOTING
Strange odor
The air condioning
unit does not
operate
Noise of running water
A fine mist comes from
the air outlet
Insufficient airflow,
either hot or cold
The appliance does not
respond to commands
The display is off
Switch off the air
condioner immediately
and cut off the power
supply in the event of:
A strange noise can be
heard
Power failure/plug pulled out.
Damaged indoor/outdoor unit fan motor.
Faulty compressor thermomagnec circuit breaker.
Faulty protecve device or fuses.
Loose connecons or plug pulled out.
It somemes stops operang to protect the appliance.
Voltage higher or lower than the voltage range.
Acve TIMER-ON funcon.
Damaged electronic control board.
Dirty air filter.
Back flow of liquid in the refrigerant circulaon.
This occurs when the air in the room becomes very cold, for example
in the COOLING or DEHUMIDIFYING/DRY modes.
This noise is made by the expansion or contracon of the front panel
due to variaons in temperature and does not indicate a problem.
Unsuitable temperature seng.
Obstructed air condioner intakes and outlets.
Dirty air filter.
Fan speed set at minimum.
Other sources of heat in the room.
No refrigerant.
Remote control is not close enough to indoor unit.
The batteries of remote control need to be replaced.
Obstacles between remote control and signal receiver in indoor unit.
Acve DISPLAY funcon.
Power failure.
Strange noises during operaon.
Faulty electronic control board.
Faulty fuses or switches.
Spraying water or objects inside the appliance.
Overheated cables or plugs.
Very strong smells coming from the appliance.
MALFUNCTION POSSIBLE CAUSES
3
TROUBLESHOOTING
ERROR CODE ON THE DISPLAY
Indoor room temperature sensor fault
Descripon of the trouble
Display
Outdoor pipe temperature sensor fault
Indoor pipe temperature sensor fault
Malfuncon of indoor fan motor
Refrigerant system leakage or fault
Outdoor ambient temperature sensor fault
Outdoor discharge temperature sensor fault
Outdoor IPM module fault
Outdoor PCB EEPROM fault
Outdoor current detect fault
In case of error, the display on the indoor unit shown the following error codes:
Outdoor sucon temperature sensor fault
Outdoor fan motor fault
Indoor and outdoor communicaon fault
4
The design and specifications are subject to change without prior notice for
product improvement. Consult with the sales agency or manufacturer for details.
The Klimaire logo is a registered Trademark of Klimaire Products Inc.
Copyright 2023 Klimaire Products Inc.
Tel: (305) 593 - 8358
www.klimaire.com
2190 NW 89 Place, Doral, FL 33172 - USA
TM
Mark of Superior Quality
M0WIU2302
