Klein Tools MM200 Manual de usuario

MM200

Instruction

Manual

ENGLISH

www.kleintools.com

For Professionals...Since 1857

• BACKLIGHT

• KICK STAND

• LEAD

HOLDER

• AUTO

RANGING

• DATA HOLD

• 3-3/4 DIGIT

3999 COUNT

LCD

COM

10A/250V

400mA/250V

600V MAX

Temp

FUNC.

HOLD

MM200

µA

Temp

ENGLISH

MM200

Instruction Manual

GENERAL SPECIFICATIONS

The Klein Tools MM200 is an auto-ranging multimeter. It measures

AC /DC voltage, AC /DC current, resistance, capacitance, temperature,

and frequency. It can also test diodes and continuity.

• Operating Altitude: 2000 meters

• Relative Humidity: 75% max operating

• Operating Temperature: 0°C /32°F to 40°C /104°F < 75% R.H.

• Storage Temperature: -20°C /-4°F to 60°C /140°F < 80% R.H.

• Accuracy Temperature: 18°C /64°F to 28°C /82°F < 75% R.H.

• Temperature Coefﬁcient: 0.1*(speciﬁed accuracy) /°C

• Sampling Frequency: 3 samples per second

• Dimensions: 5.91" x 2.76" x 1.97"

• Weight: 8.36 oz.

• Calibration: Accurate for one year

• CAT Rating: CAT III 600V

• Listing: ETL & cETL standard UL 3111-1 listed

• Pollution Degree: 2

• Accuracy: ± (% of reading + # of least signiﬁcant digits)

WARNINGS

To ensure safe operation and service of the tester, follow these instructions.

Failure to observe these warnings can result in severe injury or death.

• Before each use, verify meter operation by measuring

a known voltage or current.

• Never use the meter on a circuit with voltages that exceed the

category based rating of this meter.

• Do not use the meter during electrical storms, or in wet weather.

• Do not use the meter or test leads if they appear to be damaged.

• Ensure meter leads are fully seated, and keep ﬁngers away from

the metal probe contacts when making measurements.

• Do not open the meter to replace batteries while the probes

are connected.

• Use caution when working with voltages above 60V DC,

or 25V AC RMS. Such voltages pose a shock hazard.

• To avoid false readings that can lead to electrical shock,

replace batteries if a low battery indicator appears.

• Unless measuring voltage or current, shut off and lock out

power before measuring resistance or capacitance.

• Always adhere to local and national safety codes. Use individual

protective equipment to prevent shock and arc blast injury where

hazardous live conductors are exposed.

ENGLISH

FUNCTION INSTRUCTIONS

µA

Temp

COM

10A/250V

400mA/250V

600V MAX

Temp

µA

Temp

COM

10A/250V

400mA/250V

600V MAX

Temp

µA

Temp

F. Backlight

• Press to enable/disable lights.

• Using lights drains the battery signiﬁcantly.

G. H. Battery/Fuse Replacement

• When indicator is displayed on the LCD, batteries must be

replaced.

• Remove back screw and replace 9V battery.

• If more than 400mA is applied to A, replace with 400mA/250V

fast-blow fuse.

• If more than 10A is applied to B, replace with respective

10A/500V fast-blow fuse.

Auto Power-Off

• Device will power off after 15 minutes non-use.

• Turn the dial or press a button to wake.

A. B. Use properly safety-rated leads.

A. Do not attempt to measure more than 600V or 400mA.

B. Do not attempt to measure more than 10A.

C. Select Functionality Button

• Switch between AC and DC.

• Switch between and .

D. Data Hold

• Press to hold the current input on the display.

• Press again to return to live reading.

E. Select Frequency/Duty Cycle Button

• Switch between measurement, Hz, and %.

COM

10A/250V

400mA/250V

600V MAX

Temp

FUNC.

HOLD

MM200

µA

Temp

On Back

• Select AC or DC voltage source.

2. AC /DC Current (large): < 10A

1. AC /DC Voltage: < 600V

• Start with this setting if current level is unknown.

• Attach red lead to “10A” input.

• Select AC or DC current source.

• Current above 10A will require fuse replacement.

FUNC.

PRESS

AC DC

FUNC.

PRESS

AC DC

FEATURE DETAILS

SYMBOLS

AC Alternating Current Warning or Caution

DC Direct Current Dangerous Levels

DC/AC Voltage or Current Double Insulated Class II

Ground AC Source

µA

Temp

SYMBOLS USED ON LCD

AC Measurement DC Measurement

Negative DC Value OL Overload: Range Exceeded

Low Battery HHold Active

AUTO

Auto Range Active

Voltage Measurement

Duty Cycle Mode Frequency Mode

Current in Amps

Resistance in Ohms

Diode Test Continuity Test

Nano 10

-9

Temperature in Fahrenheit

Milli 10

-3

Capacitance in Farads

Micro 10

-6

Mega 10

Kilo 10

ENGLISH

µA

Temp

µA

Temp

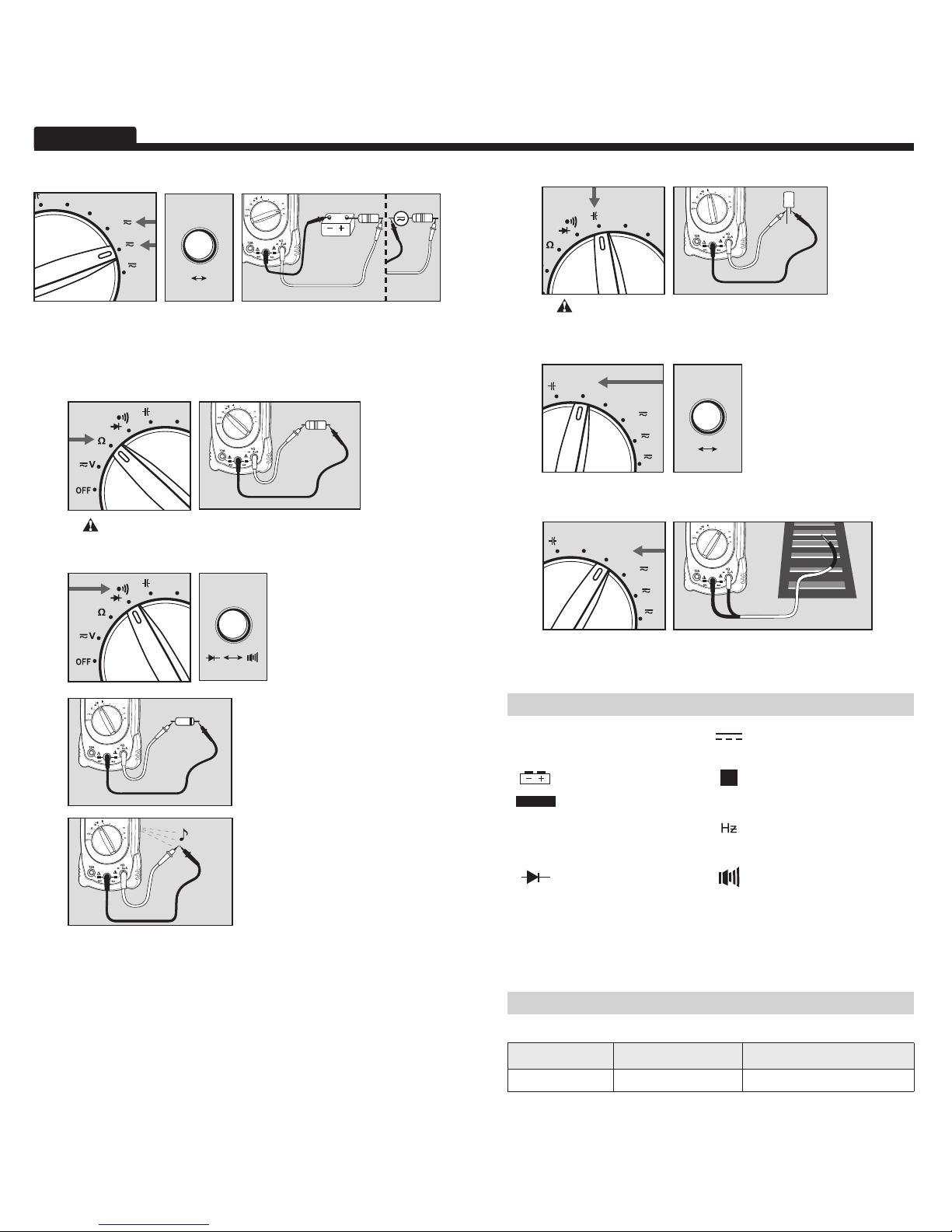

• Safely discharge capacitor before measurement.

• Reading may take up to 60 seconds for large capacitors.

7. Frequency (Hz)/Duty Cycle < 1MHz

• Use included thermocouple and adapter.

• Do not apply voltage to thermocouple.

• Follow AC Voltage test setup.

8. Temperature: -4°

≤

°F

≤

1832°

• Do not attempt to measure resistance on a live circuit.

5. Diode/Continuity

µA

Temp

COM

10A/250V

400mA/250V

600V MAX

Temp

µA

Temp

COM

10A/250V

400mA/250V

600V MAX

Temp

µA

Temp

COM

10A/250V

400mA/250V

600V MAX

Temp

µA

Temp

COM

10A/250V

400mA/250V

600V MAX

Temp

µA

Temp

6. Capacitance < 200µF

PRESS

COM

10A/250V

400mA/250V

600V MAX

Temp

µA

Temp

COM

10A/250V

400mA/250V

600V MAX

Temp

µA

Temp

ELECTRICAL SPECIFICATIONS

DC Voltage Measurement

Range Resolution Accuracy

400mV ~ 600V 0.1mV ~ 1V ± (0.5% + 3 digits)

Overload Protection: 600V RMS Input Impedance: > 10MΩ.

Diode:

Display shows:

• Forward voltage drop if

forward biased.

• “O.L.” if reverse biased.

3. AC/DC Current (small): < 400mA

• Attach red lead to “mAμA” input.

• Select μA or mA, and AC or DC current source.

• Current above 400mA will require fuse replacement.

4. Resistance: < 40MΩ

FUNC.

PRESS

FUNC.

PRESS

AC DC

Continuity:

• Display shows resistance.

• Buzzer sounds if less than 50Ω.

CUSTOMER SERVICE

KLEIN TOOLS, INC.

450 Bond Street

Lincolnshire, IL 60069

1-877-775-5346

www.kleintools.com 139572T

ENGLISH

WARRANTY

This product is warranted to be free from defects in materials and workmanship

for a period of two years from the date of purchase. During this warranty period,

Klein Tools has the option to repair or replace or refund the purchase price of

any unit which fails to conform to this warranty under normal use and service.

This warranty does not cover damage which occurs in shipment or failure which

results from alteration, tampering, accident, misuse, abuse, neglect, or improper

maintenance. Batteries and damage resulting from failed batteries are not

covered by warranty. A purchase receipt or other proof of original purchase date

will be required before warranty repairs will be rendered.

Any implied warranties, including but not limited to implied warranties of

merchantability and ﬁtness for a particular purpose, are limited to the express

warranty. Klein Tools shall not be liable for loss of use of the instrument or other

incidental or consequential damages, expenses, or economic loss, or for any

claim or claims for such damage, expenses or economic loss.

Some states or countries laws vary, so the above limitations or exclusions may

not apply to you. This warranty gives you speciﬁc legal rights, and you may also

have other rights which vary from state to state. If your Klein product requires

repair or for information on how to exercise your rights under the terms of this

warranty, please contact Klein Tools at 1-877-775-5346.

CLEANING

Turn instrument off and disconnect test leads. Clean the instrument by using

a damp cloth. Do not use abrasive cleaners or solvents.

STORAGE

Remove the batteries when instrument is not in use for a prolonged period of

time. Do not expose to high temperatures or humidity. After a period of storage

in extreme conditions exceeding the limits mentioned in the Speciﬁcations

section, allow the instrument to return to normal operating conditions before

using it.

DISPOSAL /RECYCLE

Caution: This symbol indicates that equipment and its accessories

shall be subject to a separate collection and correct disposal.

Diode Test

Overload Protection Test Current Open Circuit Voltage

600V RMS Appx. 0.6mA Appx. < 1.5V DC

Continuity Test

Overload Protection Open Circuit Voltage

600V RMS Appx. 0.44V



Max Input Current:

• mA Input: 400mA DC / AC RMS

• 10A Input: 10A DC / AC RMS

AC/DC Current Measurement

Range Resolution DC Accuracy AC Accuracy

400μA ~ 400mA 0.1μA ~ 0.1mA ± (1.0% + 3 d) ± (1.2% + 3 d)

10A 0.01A ± (3.0% + 5 d) ± (3.0% + 5 d)

Overload Protection:

• mA Input: F400mA / 250V fuse

• 10A Input: F10A / 500V fuse

Capacitance Measurement

Range Resolution Accuracy

4nF ~ 40μF 0.001nF ~ 0.01μF ± (3.0% + 6 digits)

200μF 0.1μF ± (4.0% + 6 digits)

Overload Protection: 600V RMS

4nF Range: Stated accuracy with ﬁlm capacitor or better.

Frequency Measurement

Range Resolution Accuracy

9.999Hz ~ 999.9kHz 0.001Hz ~ 0.1kHz ± (0.5% + 2 digits)

Overload Protection: 600V RMS

Sensitivity: 0.7V RMS at 1MHz

Temperature Measurement

Range Resolution Accuracy

-4°F ~ 32°F 1°F ± (5.0% + 2 digits)

32°F ~ 1832°F 1°F ± (3.0% + 2 digits)

Overload Protection: 600V RMS

Sensor: K-type thermocouple, accuracy not listed

Duty Cycle Measurement

Range Resolution Accuracy

0.1% ~ 99.9% 0.1% ± (2% + 5 digits)

Overload Protection: 600V RMS

Frequency: 0.5Hz ~ 100kHz (pulsewidth > 2μsec)

Resistance Measurement

Range Resolution Accuracy

400Ω ~ 4MΩ0.1Ω ~ 0.001MΩ± (0.8% + 4 digits)

40MΩ0.01MΩ± (1.5% + 4 digits)

Overload Protection: 600V RMS

AC Voltage Measurement

Range Resolution Accuracy

4V ~ 600V 1mV ~ 1V ± (1.2% + 5 digits)

Overload Protection: 600V RMS Frequency: 50 ~ 60Hz

Input Impedance: > 10MΩResponse: Averaging

Tabla de contenidos

Otros manuales de Multímetro de Klein Tools

Klein Tools

Klein Tools MM420 Manual de usuario

Klein Tools

Klein Tools MM400 Manual de usuario

Klein Tools

Klein Tools MM1000 Manual de usuario

Klein Tools

Klein Tools MM2000 Manual de usuario

Klein Tools

Klein Tools MM500 Manual de usuario

Klein Tools

Klein Tools CL100 Manual de usuario

Klein Tools

Klein Tools CL3100 Manual de usuario

Klein Tools

Klein Tools MM320 Manual de usuario

Klein Tools

Klein Tools MM720 Manual de usuario

Klein Tools

Klein Tools CL200 Manual de usuario

Klein Tools

Klein Tools MM2300 Manual de usuario

Klein Tools

Klein Tools MM325 Manual de usuario

Klein Tools

Klein Tools MM400 Manual de usuario

Klein Tools

Klein Tools MM450 Manual de usuario

Klein Tools

Klein Tools MM2000 Manual de usuario

Klein Tools

Klein Tools MM500 Manual de usuario

Klein Tools

Klein Tools MM600 Manual de usuario

Klein Tools

Klein Tools MM200 Manual de usuario

Klein Tools

Klein Tools CL110 Manual de usuario

Klein Tools

Klein Tools CL1000 Manual de usuario

Klein Tools

Klein Tools MM420 Manual de usuario

Klein Tools

Klein Tools MM5000 Manual de usuario

Klein Tools

Klein Tools 69149P Manual de usuario

Klein Tools

Klein Tools MM300 Manual de usuario

Manuales populares de Multímetro de otras marcas

Agilent Technologies

Agilent Technologies 34420A Manual de usuario

Fluke

Fluke 83 Manual de usuario

Hameg

Hameg HM 8012 Manual de usuario

Mastech

Mastech MY70 Manual de usuario

Steren

Steren MUL-300 Manual de usuario

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manual de usuario

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manual de usuario

PeakTech

PeakTech 4000 Manual de uso y cuidado

YOKOGAWA

YOKOGAWA 90050B Manual de usuario

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manual de usuario

Fluke

Fluke 8846A Manual de operación y mantenimiento

Tempo Communications

Tempo Communications MM200 Manual de usuario

Elenco Electronics

Elenco Electronics CM-1555 Manual de usuario

Mastech

Mastech MS8238C Manual de usuario

SDAR

SDAR 830A, 830B, 830D, 830C Manual de usuario

RS PRO

RS PRO RS-9519BT Manual de usuario

BGS technic

BGS technic 8890 Manual de usuario

Amprobe

Amprobe Hexagon 60 Manual de usuario
