Kitronik BBC Micro Bit move Mini Mk2 Manual de usuario

TIPPER

TRAILER ADD-ON

GET TIPPING WITH THE

V2.0

For :MOVE mini Mk2

BUILD INSTRUCTIONS

Remove the ‘:MOVE’ panel and Servo:Lite

board from your :MOVE mini. Put these aside,

you will need them again later.

DISASSEMBLY

NOTE: If not done already, the Servo:Lite board will need to be

converted for use of three servos with the pin header provided.

Visit kitronik.co.uk/3servo for the online guide.

Install the Tow Panel at the rear of :MOVE mini using the

screws shown below.

TOW PANEL

M3 x 10mm

This kit is compatible with all versions of :MOVE mini but this booklet

has been designed for :MOVE mini Mk2. If you have the original

:MOVE mini, visit kitronik.co.uk/5670 for instructions.

NOTES

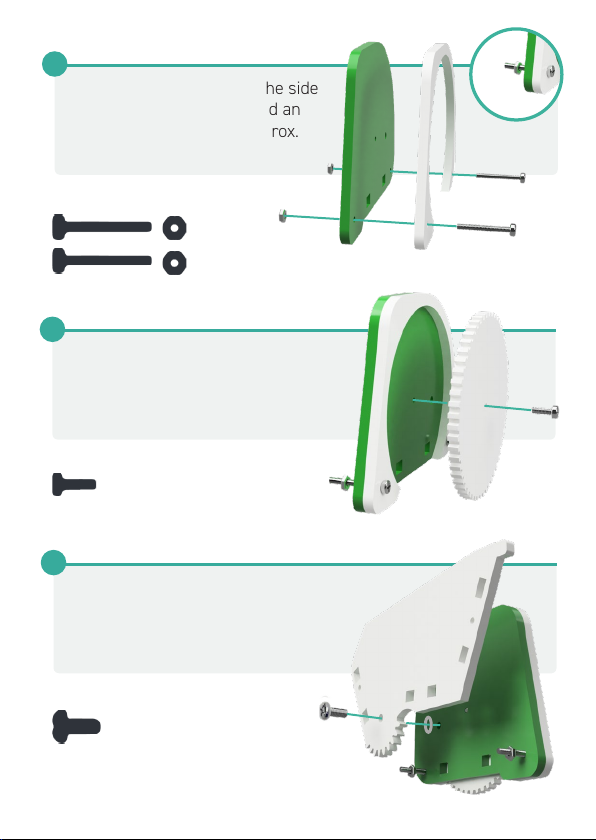

Push the screws through the side

panels as shown and thread an

M2 nut onto the end by approx.

3mm.

TRAILER SIDE

Use an M2 x 6mm screw to attach

the wheel as shown, making sure

to leave the screw a little loose,

allowing the wheel to spin freely.

ADD WHEELS

Add one of the bucket sides to the

assembly using a M3 x 6mm screw

and a washer. The washer fits in

between the two panels.

BUCKET SIDE

M2 x 16mm

M2 x 6mm

M3 x 6mm

Secure the servo into place with the M2 x 6mm

screws: these should pass through the servo

first and then thread into the acrylic.

SECURE SERVO

Press the servo gear onto the

servo to fit firmly in place and

gently rotate fully clockwise.

GEAR MECHANISM

Repeat steps 3-5 for the opposite

side, making sure components are in

reverse order. Then set these aside.

REPEAT

Take the base plate and line up the

servo as shown. Then slot in the two

mounting brackets making sure

the flat edges are facing in

towards the servo.

ADD SERVO

M2 x 6mm

Take the left side panel made earlier and assemble it

onto the base plate, taking care to line up the gears so

that the tipper is horizontal. You will need to fit the

nuts into the T-joints on the base plate

and tighten.

ADD LEFT SIDE

NOTE: Before you continue,

gently rotate the bucket side to make sure

it moves correctly. If not, try loosening the

screw shown to the left.

Slot the rear panel of the

tipper bucket into the trailer

side as shown and secure

using an M2 x 6mm screw and

M2 nut.

REAR BUCKET

NOTE: If you’re having trouble,

try using a piece of tape to

hold the nut in place whilst you

screw it together.

M2 x 6mm

T-Joints

Add the second side panel on the

opposite side, like in Step 10. Slot the

rear bucket panel in and tighten the

screws in the base. Finally

insert the second

M2 x 6mm screw into the

rear panel and secure with

another M2 nut.

ADD RIGHT SIDE

Rotate the tipper backwards

and slot the base panel of

the tipper bucket into place,

followed by the front panel.

ASSEMBLE REST OF BUCKET

NOTE: The front panel will only fit in

one way.

Install the two remaining

M2 x 6mm screws at the front of

the tipper and secure in place

with the M2 nuts.

FINAL BUCKET SCREWS

M2 x 6mm

Screw an M2 x 16mm through the

Tipper trailer and into the Tow Plate

attached to :MOVE mini.

TOW BAR

Thread the servo wires under the bucket and through the holes

in the base panel, then up through the tow panel. Reconnect

the servo wires into the Servo:lite board, and slot it back into

:MOVE mini. Finally clip the :MOVE panel back in the front and

tuck the excess wires away.

RECONNECT SERVOS

Visit kitronik.co.uk/5670 for help.

GET CODING!

NOTE: With the back of the board

facing you - the third servo

attaches to uppermost, right, set

of pins.

M2 x 16mm

Designed & manufactured

in the UK by

T: 0845 8380781

W: www.kitronik.co.uk

E: [email protected]

kitronik.co.uk/twitter

kitronik.co.uk/facebook

kitronik.co.uk/youtube

kitronik.co.uk/instagram

For more information on RoHs and CE please visit kitronik.co.uk/rohs-ce. Children

assembling this product should be supervised by a competent adult. The product

contains small parts so should be kept out of reach of children under 3 years old.

WARNING: Contents may inspire creativity

This accessory requires modification to the Servo:Lite board and

disables the on board ZIP LEDs. Visit kitronik.co.uk/3servo for the

online guide.

Small Phillips Screwdriver

Soldering Iron

Knife

TOOLS REQUIRED

5670

STOCK CODE

CONTENTS
