KitchenAid KRWS 9010 Manual de usuario

KRWS 9010

Assembly instructions

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 1

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 2

Installation kit supplied 4

Wine drawer overall dimension 5

Installation kit 6

Preparation of the cabinet for inserting the wine drawer 8

Fitting the two brackets supplied in the installation kit 9, 10

Inserting the wine drawer in the cabinet 13

Inserting the corrugated plastic sheet covering 16

Installation completed 17

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 3

The wine drawer is designed for built-in installation and must not be used as a free-standing unit.

Installation and maintenance must be carried out by at least two qualified technicians.

INSTALL THE WINE DRAWER ONLY IN POSITION UNDER THE KITCHEN WORKTOP.

Make sure the wine drawer is fixed to the adjacent cabinet with the brackets supplied.

DO NOT INSTALL THE WINE DRAWER IN A COLUMN.

DO NOT INSTALL THE WINE DRAWER ON ITS OWN OR IN A SINGLE CABINET.

Otherwise the wine drawer will be unstable, with risk of tipping over and consequent injury or damage.

Do not start this electrical appliance if it is damaged, does not work properly, is partially disassembled or if

there are broken or missing components, including damaged cable or power socket.

Make sure the power cable is in a position where it cannot be trodden on, tripped over, damaged or

undergo strain.

Do not install or store the appliance in places where it can be exposed to bad weather or temperatures

below freezing.

The min. area in the base board for the passage of air must be at least 200 cm2.

Installation kit supplied

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 4

Wine drawer overall dimension

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 5

SCALE 1:1

N°2 BRACKET

SCALE 1:5

SCALE 1:2

SCALE 1:2 SCALE 1:5

SCALE 1:1

N°1 COVERING IN CORRUGATED PLASTIC SHEE

N°2 SIDE ADHESIVE

N°1 TEMPLATE

N°6 SCREW 4.2x13 UNI 6954-71 B

N°14 SCREW 4.8x15 UNI 6955-71 AB

Installation kit

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 6

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 7

VERT.

16 MIN.

CHAMFER 014x3.6

16 MIN.

50 MIN.

550 MIN.

VERT.-VERT. SECTION

SECTION F-F

SCALE 1:1

680 MIN.

316 MIN.

100 100 100 100

81.5

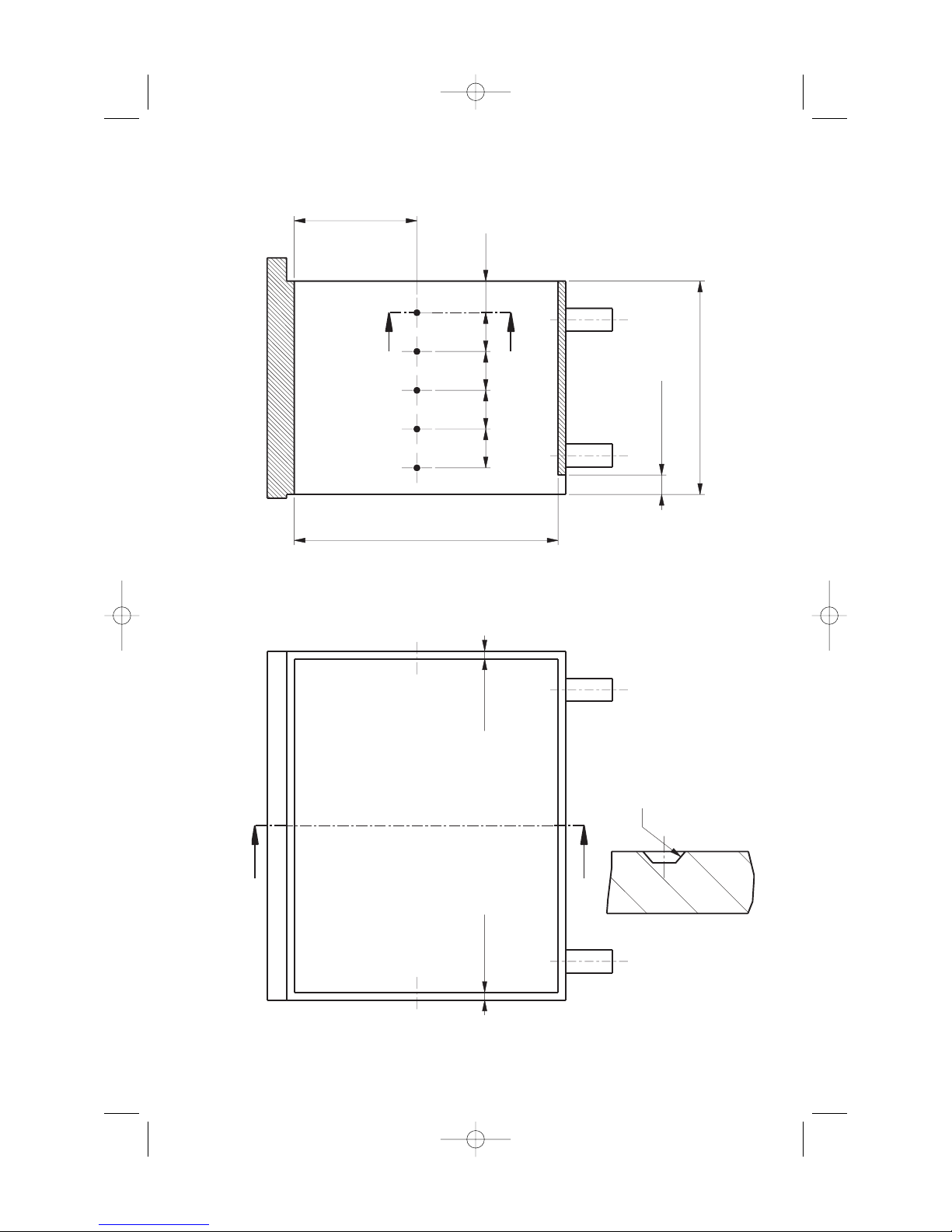

Preparation of the cabinet for inserting the wine drawer

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 8

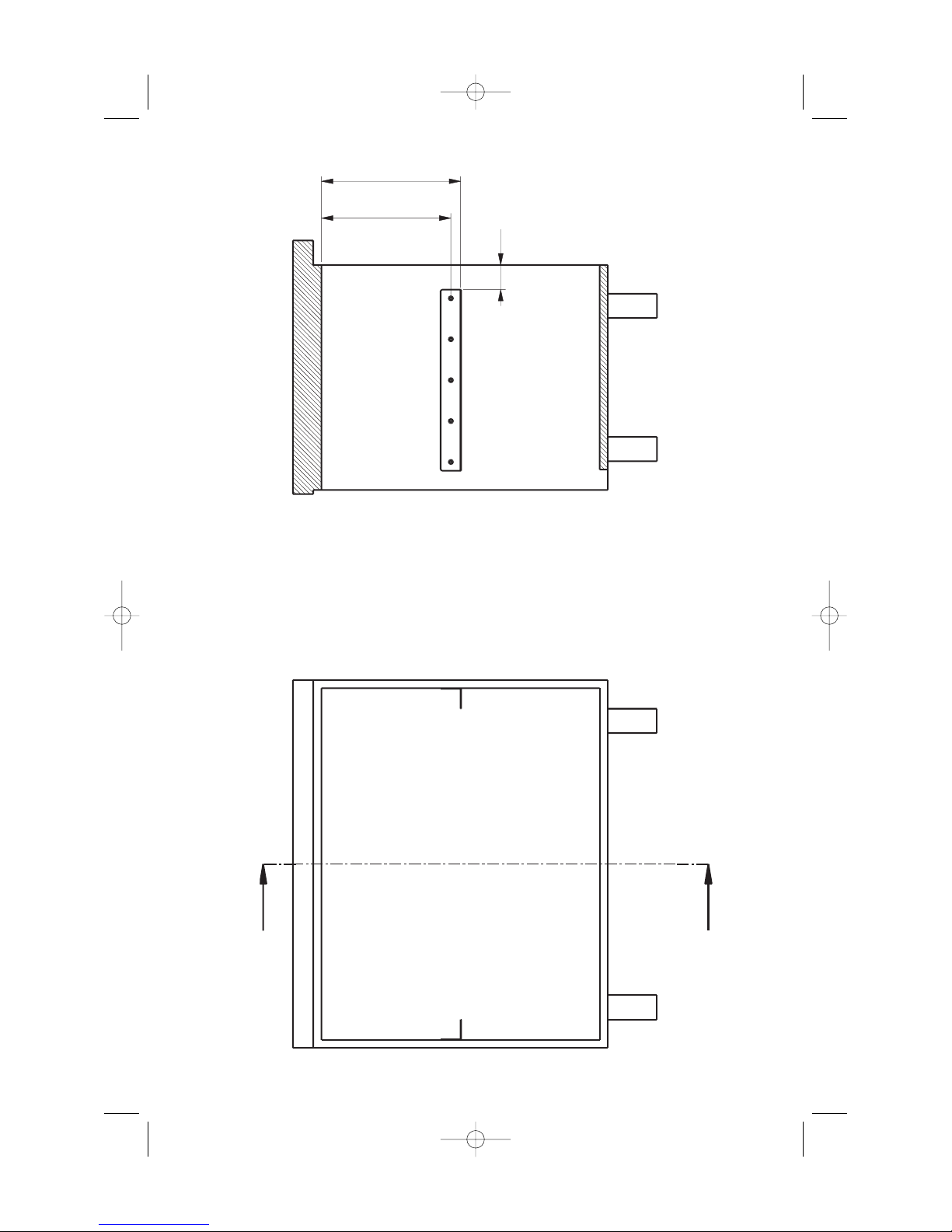

Fitting the two brackets supplied in the installation kit

316 MIN.

340 MAX.

VERT.-VERT SECTION

VERT.

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 9

BRACKET

N°10 SELF-TAPPING SCREWS 4.8x 15 UNI 6955-71B

Fitting the two brackets supplied in the installation kit

5019_102_00270_INSTAL_GB 6-11-2007 10:45 Pagina 10
