KitchenAid KBCO24LSBX02 Guía de solución de problemas

CABINET PARTS

For Model: KBCO24LSBX02

(Black Cabinet)

11−08 Litho In U.S.A. (wam) (eeb) Part No. W10241962 Rev.A

BEVERAGE CENTER

CABINET PARTS

For Model: KBCO24LSBX02

(Black Cabinet)

W10241962

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2300277 Use & Care Guide

4344901 Wiring Diagram

2 Cabinet (Not A

Service Part)

3 4344739 Lens, Light

4 4344740 Bulb, Light

5 4344746 Heater, Defrost

6 4344747 Heat Shield

7 4344761 Grille

8 4344762 Plate, Bottom

9 4344763 Foot, Leveling

W10204638

Brace, Support

11 4344898 Control Box

12 Frame, Side

4344789 Left Side

4344790 Right Side

13 4344771 Bracket, Grille

W10239395

Evaporator Fan

Assembly

15 4344860 Thermostat

16 4344768 Knob, Thermostat

17 4344767 Switch, Plunger

18 4344826 Screw

W10243104

Screw

20 4344819 Clip, Grille

21 4344825 Screw

22 4344823 Seal

23 Frame, Support

4344821 Right

4344820 Left

24 4344824 Clip, Harness

25 4344857 Harness, Wire

26 4344826 Screw

27 4344792 Thermal Fuse

28 4344793 Screw

29 4344791 Screw

30 4344783 Fan Blade

31 4344878 Screw

32 4344865 Evaporator Fan

Motor

33 4344877 Harness, Wire

34 4344832 Screw, Ground

35 4344778 Grommet, Fan Motor

36 4344899 Bracket, Motor

37 Evaporator

(Not Serviced)

38 4344858 Switch, Light

39 4344917 Transformer Cable

W10238027

Temperature Sensor

SHELF PARTS

For Model: KBCO24LSBX02

(Black Cabinet)

W10241962

SHELF PARTS

For Model: KBCO24LSBX02

(Black Cabinet)

W10241962

Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

W10238032

Wine Rack

Top & Middle

2 4344866 Rubber Support

W10238029

Rail Assembly

W10187313

Wine Rack, Lower

5 Ladder, Shelf

4344842 Left Side

4344843 Right Side

6 4344794 Screw

7 4344795 Washer

W10239367

Shelf Support

9 4344851 Screw

10 4344882 Trim, Top And

Middle Racks

11 4344867 Rubber Support

W10163279

Trim, Lower Rack

13 Support, Bumper

4344886 Left

4344885 Right

14 Screw

4344915 Left

4344914 Right

W10238033

Shelf, Large

16 4344871 Glass, Shelf

17 4344868 Shelf, Small

18 4344869 Glass, Shelf

19 4344872 Trim, Shelf

20 4344873 Seal, Rear

21 4344874 Seal, Side (2)

22 4344875 Seal, Front

W10239364

Shelf Support

W10239371

Shelf Support

W10239368

Shelf Support

W10162986

Screw W/Washer

W10238187

Top Cover

W10238184

Bottom Cover

W10238024

Transformer Cable

W10238026

Sensor Assy

W10238025

Sensor Assy, Top

W10238028

Extension Cable

W10238180

PCB Display Board

W10204809

Screw, Cover

W10238031

LED Spacer

W10238384

Seal

W10238189

Support

W10239385

Support Spacer

W10243273

Screw, Support

W10243310

Screw. Support

W10243312

Screw, LED

DOOR PARTS

For Model: KBCO24LSBX02

(Black Cabinet)

W10241962

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4344891 Door Assembly

(Includes Gasket)

W10162992

Washer/Bottom

W10163191

Gasket−Push Plate

4 4344787 Hinge Bottom

5 4344754 Hinge, Top

6 4344804 Spacer, Top Trim

7 4344798 Spacer

Bottom Hinge

8 4344757 Actuator, Switch

9 4344802 Door Stop

10 4344852 Door Gasket

11 4344760 Washer

12 4344803 Spacer, Door

13 4344796 Screw

14 Screw, Lower Hinge

4344906 Quantity 3

W10243104

Quantity 3

W10204865

Screw

16 4344800 Screw

W10243123

Screw

Following Parts Not Illustrated

4344818 Installation Kit,

Door Panel

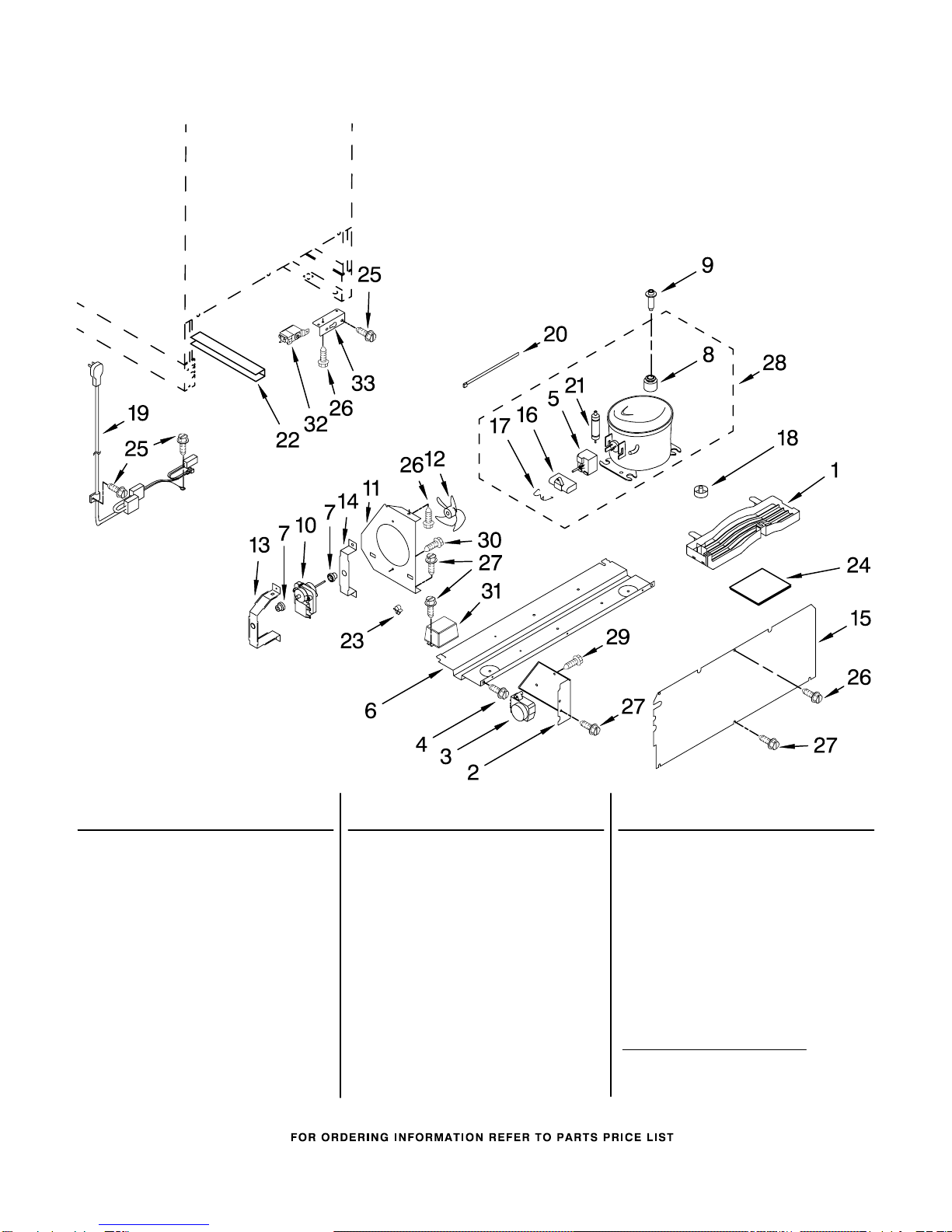

UNIT PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KBCO24LSBX02

(Black Cabinet)

W10241962

W10163193

Drain Pan

2 4344773 Bracket,

Defrost Timer

3 4344774 Defrost Timer

4 4344797 Screw

5 4344776 Start Device

W10238066

Mounting Plate,

Compressor

7 4344778 Grommet, Fan Motor

8 4344779 Grommet,

Compressor

9 4344780 Bolt, Compressor

10 4344781 Fan Motor,

Condenser

11 4344782 Baffle, Air

12 4344783 Fan Blade

13 4344784 Bracket, Motor

14 4344785 Bracket, Motor

15 4344786 Cover, Rear

16 4344837 Capacitor

17 4344836 Clip

W10163276

Trap, Drain

19 4344861 Power Cord

20 4344829 Cable Tie

W10163273

Drier

22 4344907 Trim Edge

W10238022

Clip

W10163274

Pad−Rubber

25 4344826 Screw

26 4344825 Screw

27 4344832 Screw

28 4344775 Compressor

(Includes Items

5, 8, 16, 17 & 21)

29 4344834 Screw

30 4344833 Screw

W10238070

Transformer

W10163278

Thermostat

33 4344864 Bracket,

Thermostat

REFRIGERANT CHARGE

3.5 Ounces

(R−134A)
