1

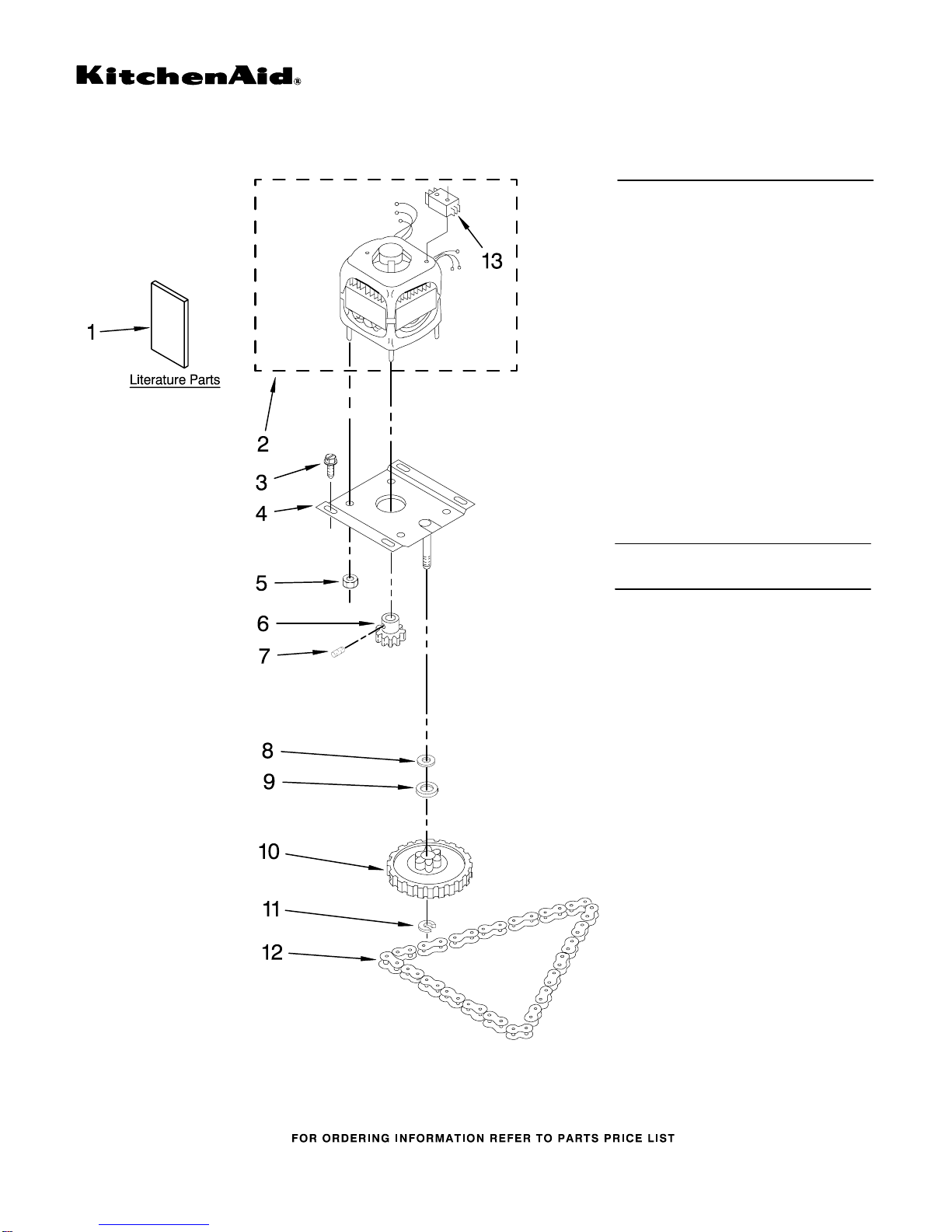

MOTOR AND DRIVE PARTS
For Model: KFCK03ITWH0
(White)
1−07 Litho in U.S.A. (els) Part No. W10122455 Rev. A
TRASH COMPACTOR
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9871923 Sheet, Tech
9872216 Guide, Use & Care
9872109 Label, Warning
2 9870343 Motor, Drive
(Includes No. 13)
3 9871067 Screw,
1/4−20 x 3/4 (4)
4 776327 Plate, Drive
Mount
5 776338 Locknut, 10−32 (4)
6 4149667 Gear, Drive
7 454512 Pin, Slotted
Spring
8 776035 Washer, Wave
9 297462 Washer, Thrust
10 777124 Gear, Driven
11 776036 Clip, Ring
12 780477 Chain, Drive
13 777971 Switch, Motor
Parts Not Illustrated and
Optional Parts (Not Included)
9870118 Undercounter
Conversion Kit
FRAME PARTS
2
For Model: KFCK03ITWH0
(White)
W10122455
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Frame (Not A
Serviceable Part)
2 9870867 Shield, Slide
Track (2)
3 9870976 Frame, Slide (R.H.)
9870975 Frame, Slide (L.H.)
4 4153788 Bearing, Roller (2)
5 776356 Locknut,
3/8−24 (2)
6 777458 Screw,
6−32 x 3/8 (4)
7 3400938 Nut, 6−32 (4)
8 9870167 Pan, Bottom
9 489478 Screw, 8 x 1/2
10 775668 Angle, Top
Support
11 777070 Screw,
8−32 x 5/16
12 776780 Barrier, Glass
13 4149377 Switch, Drawer
Safety
14 777811 Switch, Top
Limit &
Directional
15 777849 Screw,
6−20 x 1" (2)
16 777850 Plate, Nut
17 9872116 Wiring Harness &
Power Cord
18 776119 Bushing, Cord
19 777035 Clamp, Wire
20 775526 Leveler,
Front (2)
21 9870585 Wheel,
Leveler (2)
22 780034 Screw,
10−24 x 3/8 (2)
23 9870444 Panel, Inner
24 777180 Spring,
Container
POWERSCREW AND RAM PARTS
3
For Model: KFCK03ITWH0
(White)
W10122455
Illus. Part
No. No. DESCRIPTION
1 9870500 Screw, Power
Complete
Assembly (2)
2 Screw, Power
(Available Only
As Complete
Assembly)
3 779121 Plate, Bearing (2)
4 775482 Bearing, Needle (2)
5 776941 Hub, Power
Screw (2)
6 775481 Race, Thrust (2)
7 777385 Sprocket,
Washer (2)
8 4154842 Nut, Power
Screw (2)
9 777332 Washer, Cone (2)
10 9871067 Screw,
1/4−20 x 3/4
11 9871251 Ram Assembly
12 9870163 Nut, Power
13 9870187 Stud
14 9870037 Stop, Ram
15 9870498 Bracket, Top Limit
Switch
16 489399 Screw, (2)
17 9870775 Cap, Stop
18 9870169 Slide, Ram (4)
CONTAINER PARTS
4
For Model: KFCK03ITWH0
(White)
W10122455
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3400888 Screw (2)
2 Handle, Container
9871235 White
3 Panel, Container
9872238W White
4
W10021860
Nameplate
5 9870996 Container
Assembly
6 Pedal, Foot
9871989W White
7 780263 Screw, Shoulder
#8−32 x 3/8 (2)
8 776395 Guide, Rear Latch
9 9870066 Latch Assembly
10 9871125 Spring,
Safety Switch
11 489478 Screw, 8 x 1/2
12 9871602 Container, Bearing
Roller
13 776356 Locknut,
3/8−24 (2)
14 Plate, Toe Guard
9871030 White
15 776654 Pin
16 775736 Spring, Latch
17 775735 Ring, ‘‘E’’
18 775665 Plate, Latch
19 3196175 Screw
20 4147703 Retainer, Bag
(Contains 4 Each)
5
PANEL AND CONTROL PARTS
For Model: KFCK03ITWH0
(White)
W10122455
PANEL AND CONTROL PARTS
6
For Model: KFCK03ITWH0
(White)
W10122455
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Cabinet
9870913 White
2 Top, Cabinet
9871075 White
3 775676 Plate, Power Cord
4 9871893 Fan Mount Assembly
5 489478 Screw,
8 x 1/2AB (6)
6 Escutcheon,
Control
9871746 White
7 246131 Screw,
6−20 x 3/8 (2)
8 4152703 Strap, Fan
9 608824 Switch, Rotary
Start−Run
10 Knob, Rotary
Switch
9871799 White
11 777383 Nut, Rotary
Switch
12 4152058 Switch,
Drawer
13 4151442 Compartment,
Air Freshener
14 Plug, Hole
4151479 White
15 780034 Screw,
10−24 x 3/8
16 Switch Assembly
9872326W White
17 Cover,
Air Freshener
9870911 White
18 4151750 Filter,
Charcoal
19 9871051 Fan,
Filter
20 4151897 Clip,
Wire
21 4151897 S−Clip
22 780438 Plate, Bag
Storage
(Includes No. 23)
23 776780 Barrier, Glass
24 Lid, Bag
Storage
608739 White
25 9870863 Panel, Back
26 Insert,
Escutcheon
9872198W White
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
The Accessory Parts Listed Below
May or May Not Be Included With
Your Compactor.
1 Panel, Container
Front/Handle
4396297 White/White
4396296 Black/Black
4396298 Biscuit/Biscuit
4396299 Cobalt Blue/SSt.
4396300 Empire Red/SSt.
9871805 Majestic Yellow
w/SSt. Handle
2 Bag, Trash
(15" Plastic)
4318921 15 Pack
4318922 60 Pack
94318921 12 Boxes of
15 Pack
(15" Paper)
675186 12 Pack
882652 48 Pack
3 777635 Deodorizer,
Solid Stick−Ups
(2−Pack)
4 Deodorizer Block
9872166LG
Lemongrove
9872166GA
Green Apple
9872166L Lavender
5 13030 Carrier, Bag
(Includes No. 6)
6 777108 Handle, Bag
Carrier
7 675351 Grease, 4 Oz.
(Use on Power
Screw & Ram
Pressure Pads
8 Wire, 25’ Roll
10875 Blue 16 Ga.
242820 Black 14 Ga.
242825 Red 14 Ga.
242826 White 14 Ga.
47261 Black 12 Ga.
299885 Red 12 Ga.
47263 White 12 Ga.
9 279368 Adhesive,
Insulation
(2oz Tube)
10 Paint,
Touch−Up 1/2 Oz.
72107 Almond
72017 White
72032 Black
4892899 Biscuit
8171571 Cobalt Blue
8171651 Hunter Green
8171652 Empire Red
8171653 Majestic Yellow
11 Paint,
Spray 13 Oz.
350956 Almond
285006 Black
4392901 Biscuit
350930 White
OPTIONAL PARTS
NOT ILLUSTRATED
Framed Trim Kits
9871382 White
9871383 Black
9871600 Biscuit
Previous Architect Series
Handle Kit
8564945 Stainless Steel
7
For Model: KFCK03ITWH0
(White)
W10122455
