KitchenAid KTRC22ELBL01 Manual de usuario

CABINET PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

7−02 Litho In U.S.A. (kdj) Part No. 8198149 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2218879

Service &

Wiring Sheet

LIT2225256

Energy Label

LIT2218589

Use & Care Guide

LIT628370

Modular Icemaker

Service Sheet

LIT2218345

Customer Quick

Tips

LIT2210486

Instrucion Sheet,

Water Filter

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

5 489385 Clamp, Tube

(Water Supply Line)

10 489341 Washer

11 3400504 Screw

12 549193 Clamp, Cord

13 2179826 Rivet

15 489497 Screw

16 2183972 Hinge, Center

17 2183854 Shim, Hinge

Center

18 489464 Screw

19 487576 Washer

20 2189194 Hinge Butt

23 2172743 Shim, Bottom Hinge

24 Fitting, Water Tube

(NOT SERVICED)

27 Hole Plug, Endcap

2201012 White

2200924 Biscuit

2183998 Black

35 Corner Filler (2)

2201014 White

2200926 Biscuit

2201017 Black

36 Grille

2201006 White

2201020 Biscuit

2201008 Black

37 2189356 Clip, Grille

40 Cover, Hinge

2213360 White

2213364 Biscuit

2213363 Black

41 Rail, Center

(NOT SERVICED)

44 2210542 Cover, Unit

45 Cabinet (Not a

Serviceable Part)

LINER PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

LINER PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2221653 Gasket, Evaporator

Cover (2)

4 2213493 Adaptive Defrost

Control/P.C.

Board Combination

5 549512 Thermostat Tube

Barrier

6 2179834 Seal, Air

Diffuser

7 2187448 Wire Assembly,

Control Box

8 2162085 Socket, Light (2)

9 2212413 Damper, Air (Slide)

10 2214986 Fan Motor

11 2163777 Fan Blade

12 2218670 Control Box

13 2204984 Thermostat Assembly

(Includes Item

14 98129 Screw

15 489464 Screw

16 2201180 Cover, Evaporator

17 527949 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch (2)

20 2219652 Wire Assembly,

Freezer Compartment

21 2176281 Cover, Air

Diffuser

22 2205094 Knob, Thermostat

23 2182340 Air Tower

24 2189452 Air Diffuser,

Bottom

25 2190589 Freezer Floor

26 2204690 Air Diffuser, Top

27 2212485 Thermostat Tube

Barrier

28 2184574 Gear Wheel,

Thermostat

29 2218696 Bracket,

Fan Motor

30 2213495 Cover, Light

Lens

31 2214981 Insulation,

Water Tube

32 2204951 Knob, Damper

33 489478 Screw

34 489442 Screw

35 2204639 Shield, Heat

36 2205079 Seal, Rear

Thermostat

37 2204991 Control, Freezer

38 2204992 Gear Wheel,

Freezer Control

39 2201153 Housing Base

40 2205055 Air Seal, Foam

41 2221681 Wiring Harness,

Freezer Light

42 2193491 Electrical Shield,

Freezer Light

43 850166 Light Bulb

44 2210510 Bracket Assembly,

Water Filter

45 2210504 Cover, Filter

46 2181943 Tube, Filter

Outlet

47 2210518 Tube, Filter

Inlet

48 2166284 Gasket, Rear

49 2189449 Pullout, Freezer

Floor

50 2198768 Rear Fence, Pull−

Out Freezer Floor

51 2176246 Roller, Slide

52 2179713 Side Support,

Floor Assembly

53 2179714 Center Support,

Floor Assembly

54 2210521 Cover, Tubing

55 2213384 Cartridge, Filter

56 2213462 Harness, Indicator

Light

58 2210509 Valve

59 2210563 Clip, Retainer

60 2214979 Bracket

Evap. Fan, Front

61 2214976 Bracket

Evap. Fan, Rear

SHELF PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

SHELF PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2202821 Shelf, Ladder

Center

4 2216624 Egg Bin

5 489478 Screw

6 2174014 Frame Assembly,

Cantilever

8 2188212 Roller & Tread

Assembly

9 2210583 Crisper Cover

(Includes Rollers)

10 2174478 Eyelet, Roller

11 2210571 Glass, Crisper

Cover

13 2179213 Gasket, Crisper

Cover (Front) (2)

15 2163832 Crisper, Support

16 2174012 Shelf Assembly,

Spillguard (3)

(Includes Rollers)

17 2184667 Shelf, Freezer

18 489211 Screw

19 2188283 Pan, Crisper

(Includes Rollers)

20 2188289 Pan, Meat

(Includes Rollers)

21 2179214 Gasket, Crisper

Cover (Side) (4)

23 2179216 Gasket, Crisper

Cover (Rear) (2)

24 2163762 Cup, Shelf Mtg.

26 2188276 Window, Crisper

27 Cap, Crisper

2174258 Left Side

2174259 Right Side

28 2188278 Window, Meat Pan

29 489261 Screw

30 489439 Screw

32 2174257 Slide, Humidity

35 2176219 Ice Bucket

36 2174253 Button, Humidity

Control

39 2174396 Gasket, Front

45 2190504 Shelf Assembly,

Spillguard

47 2179404K Wine & Egg Rack

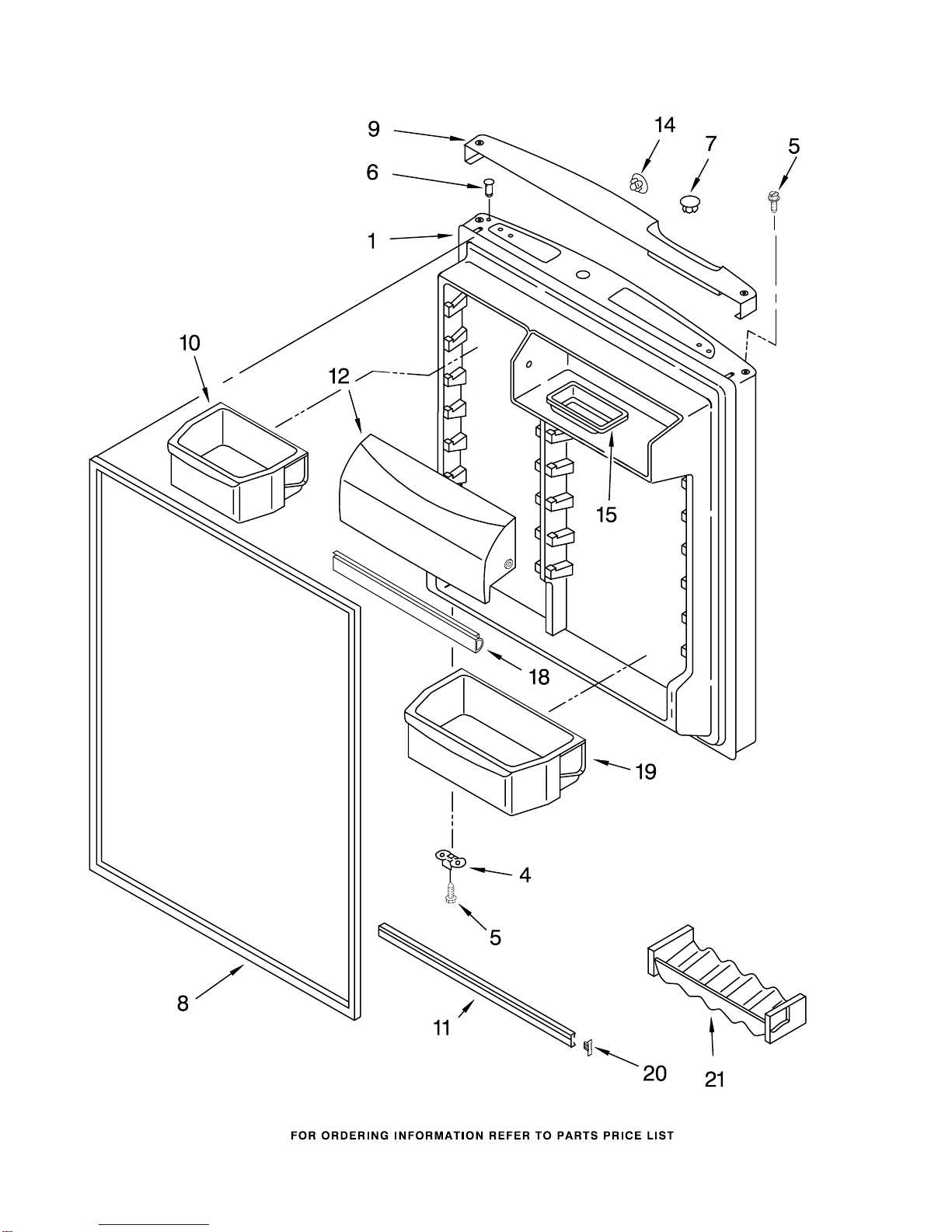

REFRIGERATOR DOOR PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

REFRIGERATOR DOOR PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #6 & #8)

2205214 White

2205215 Biscuit

2205217 Black

2212418 Stainless Steel

4 2189202 Bracket, Door

Stop

5 489276 Screw

6 2183003 Thimble

7 Hole Plug

2212648 White

2212649 Biscuit

2212651 Black

8 Door Gasket,

Magnetic

2202875 Mist Beige

2202882 Black

9 Handle

2213333 White

2213334 Biscuit

2221628 Black

10 2171064 Bin, Door Shelf (2)

11 2195948 Shelf, Trim

12 2218122 Door Compartment

14 Hole Plug, Handle

2204837 White

2204838 Biscuit

2204840 Black

15 2165792 Butter Dish

18 2159124 Gasket, Door

Compartment

19 2171062 Bin, Door Shelf (1)

20 2156006 Plug, Trim

21 2193409 Beverage Holder

UNIT PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

UNIT PARTS

For Models: KTRC22ELWH01,KTRC22ELBT01, KTRC22ELBL01, KTRC22ELSS01

(White) (Biscuit) (Black) (Stainless Steel)

8198149

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2205340 Plate, Unit

Mounting

2 2221677 Defrost Bimetal

3 2210454 Condenser

4 2166124 Heater, Defrost

5 2195390 Evaporator Assy.

6 3400518 Screw

7 2172620 Drain Pan

8 2176301 Bracket, Heater

9 489478 Screw

10 2163780 Extension, Air

Baffle

11 2212996 Strap

12 4387731 Cover

(Service Only)

13 Overload

4387766 Service

(Includes Relay)

14 Grommet (4)

1100826 Production

4387558 Service

15 531933 Grommet

16 489373 Screw

17 2150304 Roller (2)

18 981126 Rivet

19 2182338 Clip, Heater

20 2218853 Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

22 2201185 Support

28 2218994 Compressor

(Includes Items

12,13,14,29 & 32)

29 Drier

2199167 Production

4387019 Service

30 2155774 Clamp

32 Capacitor

2169373 Production

4387764 Service

39 2198921 Air Baffle

40 2188537 Motor, Condenser

42 2187385 Wire Assembly

Unit

43 2190685 Fan Blade

44 486692 Nut

45 2212603 Tube, Transition

46 2205384 Tube, Discharge

47 2219622 Tube, Suction

48 2154109 Tube, Process

56 488500 Screw

58 2210451 Tray, Evaporator

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
