CABINET PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

REFRIGERATOR

6-99 Litho In U.S.A. (mdg) Part No. 4394710 Rev. D

CABINET PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Cabinet (Not a

Service Part)

3 Plug, Button (3)

4344191 White

4344189 Almond

4344190 Black

4 Plug, Button (3)

4344209 White

4344207 Almond

4344208 Black

5 4344291 Roller, Front Assy.

6 4344155 Clip, Grille

7 4344177 Pin, Center Hinge

8 Shim

4344188 White Model

4344201 Almond & Black

Model

10 Hinge Cover, Bottom

4344204 White

4344203 Almond

4344202 Black

11 4344186 Screw

13 Shim, Hinge Top

4344194 White

4344193 Almond

4344192 Black

14 4344198 Screw

15 4344179 Hinge, Center

16 Shim, Center Hinge

4344176 White

4344175 Almond

4344174 Black

17 4344295 Housing, Roller

19 Hinge Bottom

4344285 White

4344284 Black

20 4343782 Screw

21 4344178 Pin, Bottom Hinge

22 Grille

4344154 White

4344153 Almond

4344152 Black

23 4344267 Screw

24 4344264 Plug, I/M

25 4343759 Screw

26 4344257 Wire Cover

27 4344261 Back Cover

28 4344258 Harness, Control

29 4344266 Plate, Water Valve

30 4344262 Cover, Unit

31 4344210 Plug, Button

32 4344263 Power Cord

33 4344259 Grommet

34 4344260 PLug

39 4344265 Clip

40 4344286 Shim, Hinge

41 4344172 Hinge Top

42 Hinge Cover

4344197 White

4344196 Almond

4344195 Black

43 Plate, Hinge

Tap

4344299 Right Side

4344301 Left Side

44 4344290 Screw

45 4344293 Screw

46 4344298 Foot Break

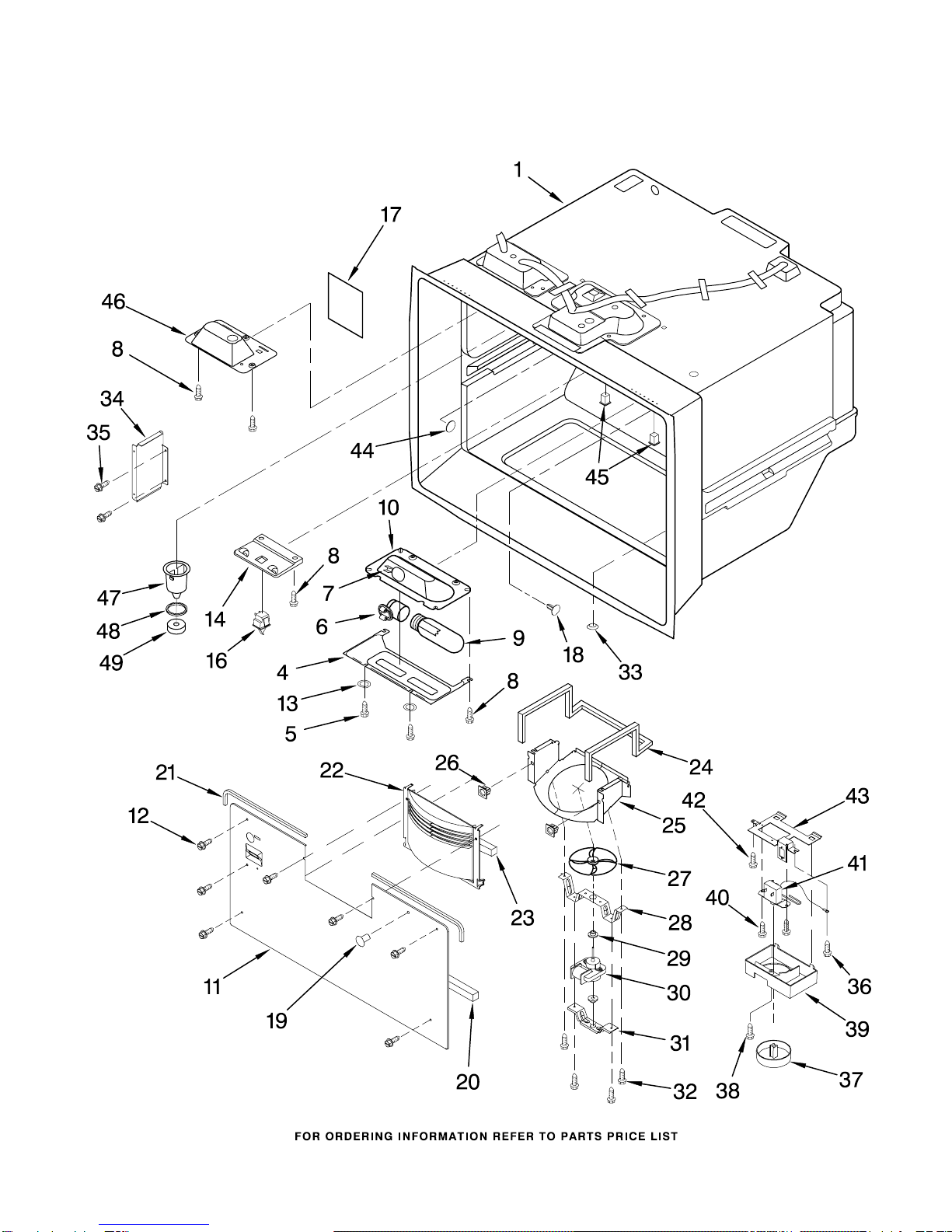

FREEZER LINER PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

FREEZER LINER PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not a

Serviceable Part)

4 4344205 Light Lens

5 4344206 Screw

6 4344318 Light, Socket

7 4343682 Clip, Ground

8 4344167 Screw

9 4343660 Light Bulb

10 4344319 Housing, Frz.Lt.

11 4344213 Cover, Evaporator

12 4344215 Screw

13 4344211 Washer (4)

14 4343928 Cover, Switch

16 4344314 Switch, Light

17 4344166 Cover, Plug

18 4344315 Plug, Button

19 4344228 Plug, Button

20 4344216 Gasket, Bottom

21 4343886 Gasket, Top (2)

22 4344220 Cover, Fan Shroud

23 4344212 Gasket

24 4344230 Gasket

25 4344229 Evap. Fan Shroud

26 4343657 Grommet, Screw

27 4343936 Fan, Evaporator

28 4343935 Bracket, Motor

29 4343934 Grommet

30 4343793 Motor, Evaporator

31 4343937 Bracket

32 4343749 Screw (4)

33 4344227 Plug, Button

34 4344222 Duct, Return Air

35 4344218 Screw

36 4343860 Screw

37 4344214 Knob, Control

38 4344224 Screw

39 4344226 Cover, Frz.Control

40 4343861 Screw

41 4344225 Thermostat

42 4343215 Screw

43 4344223 Bracket, Control

44 4344316 Plug, Button

45 4344321 Grommet

46 4344312 Housing, Frz.Ctrl.

47 4344308 Funnel, Drain

48 4344311 Seal

49 4344310 Gasket

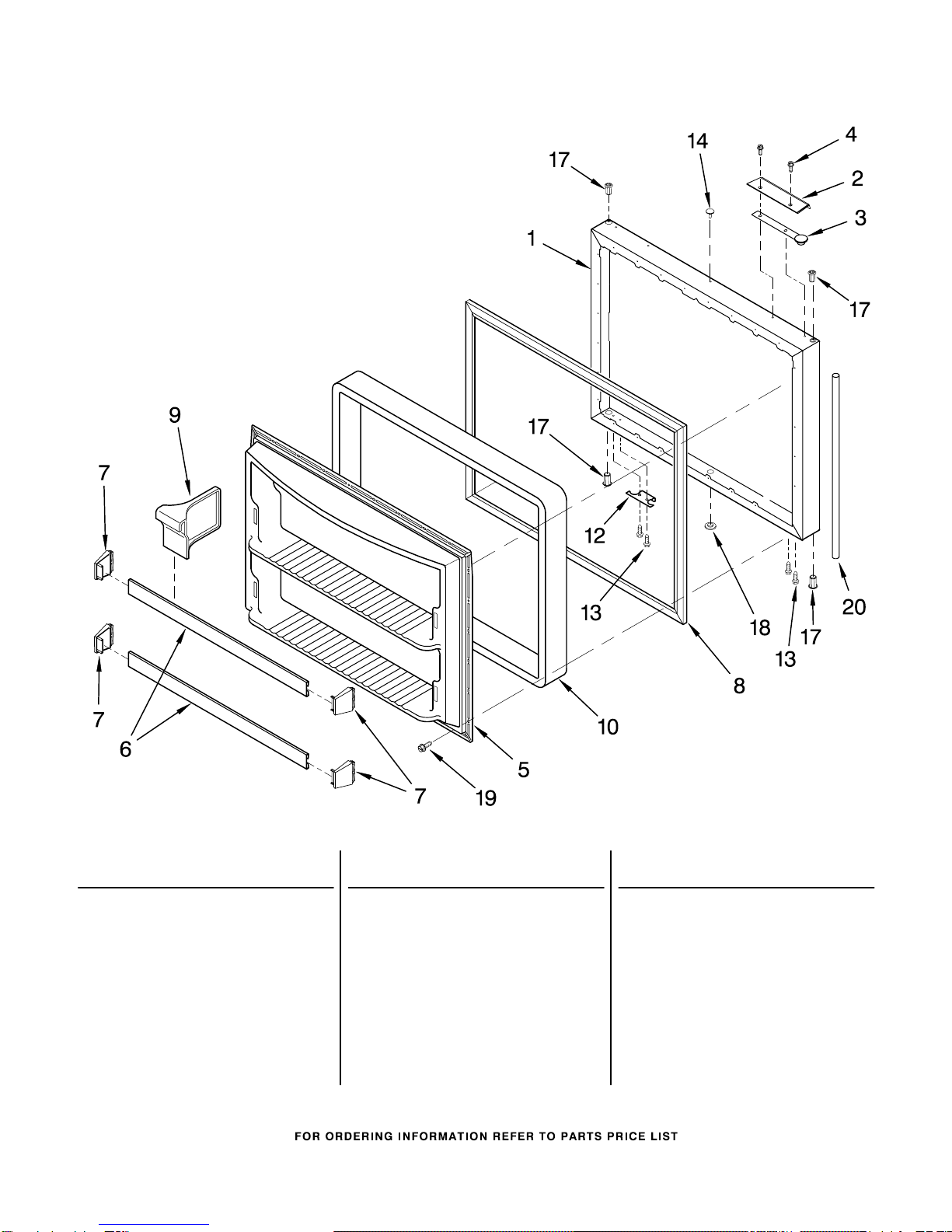

FREEZER DOOR PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

Panel (Includes

Insulation)

4344349 White

4344348 Almond

4344347 Black

2 4344359 Handle

3 Plug, Button

4344159 White

4344158 Almond

4344157 Black

4 4343653 Screw

5 4344355 Interior Panel

6 4344357 Trim, Shelf

7 4344352 End Cap

8 Door Gasket,

Magnetic

4344354 White

4344353 Black

9 4344300 Divider, Door Shelf

10 4344350 Insulation

12 4344334 Door, Stop

13 4344333 Screw

14 Plug, Button

4344209 White

4344207 Almond

4344208 Black

17 Bushing

4343945 White

4343944 Black

18 Plug, Button

4344227 White

4344363 Almond

4344364 Black

19 4343811 Screw

20 4344199 Sipport Pin

REFRIGERATOR LINER PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 4343927 Housing, Frz.

Light

3 4343928 Cover, Light

Switch

4 4344314 Light Switch

5 4343682 Ground Clip

6 4344167 Screw

10 4344211 Washer (4)

11 4344206 Screw (8)

12 4344169 Egg Bin

13 4344321 Grommet

14 4344309 Screw

15 4344182 Control, Damper

16 4344184 Insulation, Damper

17 4344181 Shield, Light

18 4344325 Socket, Duel

19 4344185 Gasket

20 4343660 Light Bulb

21 4343726 Light Lens, Top

22 4343675 Screw

23 4343681 Gasket, Damper

24 4343650 Insert

25 4344183 Cover, Control

26 4344180 Knob, Control

28 4343240 Insulation, Plug

29 4344241 Plug, Button

REFRIGERATOR DOOR PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

REFRIGERATOR DOOR PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

Panel (Includes

Insulation)

4344332 White

4344331 Almond

4344330 Black

2 4344371 Interior Panel

3 4344369 Door, Compartment

4 4344370 Trim, Comp. Door

5 4333151 Screw

6 4344372 Shelf Bin (1)

7 End Cap

4344589 White

4344590 Almond

4344591 Black

8 Door Gasket,

Magnetic

4344339 White

4344338 Black

9 4344329 Door Handle

11 Insert, Handle

4344343 White

4344344 Almond

4344345 Black

12 4344365 Shelf Bin (3)

13 4344356 Insert, Handle

14 4344373 Trivet, Door

15 4343653 Screw

17 4344334 Stop, Door

18 Plug, Button

4344209 White

4344207 Almond

4344208 Black

19 4343811 Screw

20 Shim

21 4344333 Screw

22 4344167 Screw

23 Bushing

4344362 White

4344361 Black

24 Plug, Button

4344227 White

4344363 Almond

4344364 Black

25 Nameplate

4344326 White

4344327 Almond

4344328 Black

28 4344296 Butter Dish

29 4344374 Holder, Beverage

UNIT PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

UNIT PARTS

For Models: KBRS22KFWH0, KBRS22KFAL0, KBRS22KFBL0

(White) (Almond) (Black)

4394710

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4343865 Screw

2 4344271 Fan, Blade

3 4344270 Condenser & Pan

Assembly

5 4343691 Screw

6 4343860 Screw

7 4344217 Heat Shield

8 4344276 Drain Pan

10 4344232 Evaporator Heater

11 4343852 Cover

12 4343849 Overload

13 4344275 Gasket

14 4344231 Bi-Metal

15 4343850 Relay

16 4344278 Bracket, Timer

17 4343851 Capacitor

18 4344277 Shield, Capacitor

19 4343969 Clip, Wire

20 4344221 Drain Pan

22 4344233 Evaporator

24 4344273 Motor, Fan

25 4343918 Clip, Heater

26 4344274 Harness, Unit

27 4344268 Drier

28 4343856 Compressor

(Includes Items

11, 12, 15,

17 & 27)

30 4344282 Washer

31 4344269 Shroud

32 4344272 Bracket, Fan Motor

33 4344281 Screw

34 4343763 Clip, Drier

35 4344279 Cover, Timer

36 4344234 Block, Evaporator

37 4344151 Screw

38 4344280 Timer, Defrost

39 4343845 Grommet (4)

40 4343859 Screw

41 4344274 Harness

42 4344219 Clip, Evaporator

43 4343772 Screw

44 4343847 Screw

45 4343765 Screw

46 4343661 Clamp

48 4343749 Screw

49 4344297 Cabinet, Brace

50 4344218 Screw

51 4344289 Axle-Roller

52 4344288 Roller-Rear

53 4344292 Screw

54 4344287 Plug, Button

55 4344283 Drain Tube

56 4344303 Insulation

57 4344302 Insulation, Slope

58 4343777 Clamp, Tube

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.5 Ozs.

(R-134A)
