KitchenAid KSSS36MBX01 Manual de usuario

CABINET PARTS

For Model: KSSS36MBX01

5−94 Litho In U.S.A. (RCG) Part No. 4379491

REFRIGERATOR

CABINET PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KSSS36MBX01

1 Cabinet (Not A

Serviceable Part)

2 1112019 Leveler, Front (2)

3 1113249 Retainer (2)

4 1112023 Roller, Front &

Rear (4)

5 1112695 Leveler,

Adjustable (2)

6 2000670 Adjusting Rod (2)

7 1113250 Sleeve,

Retainer (2)

8 1112937 Bushing, Rod (2)

9 489359 Screw

10 1112939 Hole Plug, Leveler

11 1112849 Cap, Grommet

13 1113122 Grommet, Wiring

14 2002001 Wiring Harness,

Cabinet

15 1112848 Drain Fitting

16 Gap, Cover

Assembly (Top)

2000305 Left Side

2000304 Right Side

17 2001295 Shoulder Screw

18 Hinge (Top)

2000306 Left Side

2000307 Right Side

19 2000770 Shim, Hinge

Top

20 1112805 Guard, Wiring

21 487534 Screw (2)

23 1112992 Door Closer

Assembly (2)

24 2000333 Bracket, Door

Closer

25 486194 Screw

26 1112973 Tap Plate,

Hinge Butt (2)

27 1113227 Fastener (3)

28 Gap, Cover

Assembly (Bottom)

2001200 Left Side

2001199 Right Side

29 Hinge (Bottom)

2001733 Left Side

2001732 Right Side

30 1112942 Shim, Hinge (1)

1112943 Shim, Hinge (2)

Bottom (4)

31 2000490 Screw

33 2001266 Tube clamp

34 2001962 Grille Base,

Front

35 489238 Screw (6)

36 2000727 Cover, Rear

37 1113123 Grommet, Wiring

38 1113079 Grommet, Flexible

41 2001377 Screw

42 2000530 Grommet

43 2001415 Screw (4)

44 489359 Screw

4379491

CABINET TRIMS AND BREAKER TRIM PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSS36MBX01

1 2000321 Cabinet, Trim R.S

2 2000322 Cabinet, Trim L.S

3 2001297 Screw

4 1112800 Cabinet, Trim

(Bottom)

5 488649 Screw

6 2001309 Cabinet, Trim Top

7 2000007 Retainer, Unit

Base (2)

8 487944 Washer (2)

4379491

Illus. Part

No. No. DESCRIPTION

TOP GRILLE AND UNIT COVER PARTS

For Model: KSSS36MBX01

1 2001315 Decorative

Panel Assembly

2 1113313 Back Up Panel

3 2002710 Top Grille

Assembly

4 2001883 Cover, Unit

5 486194 Screw

6 2001874 Cover, Component

Assembly

7 1113317 Brace

4379491

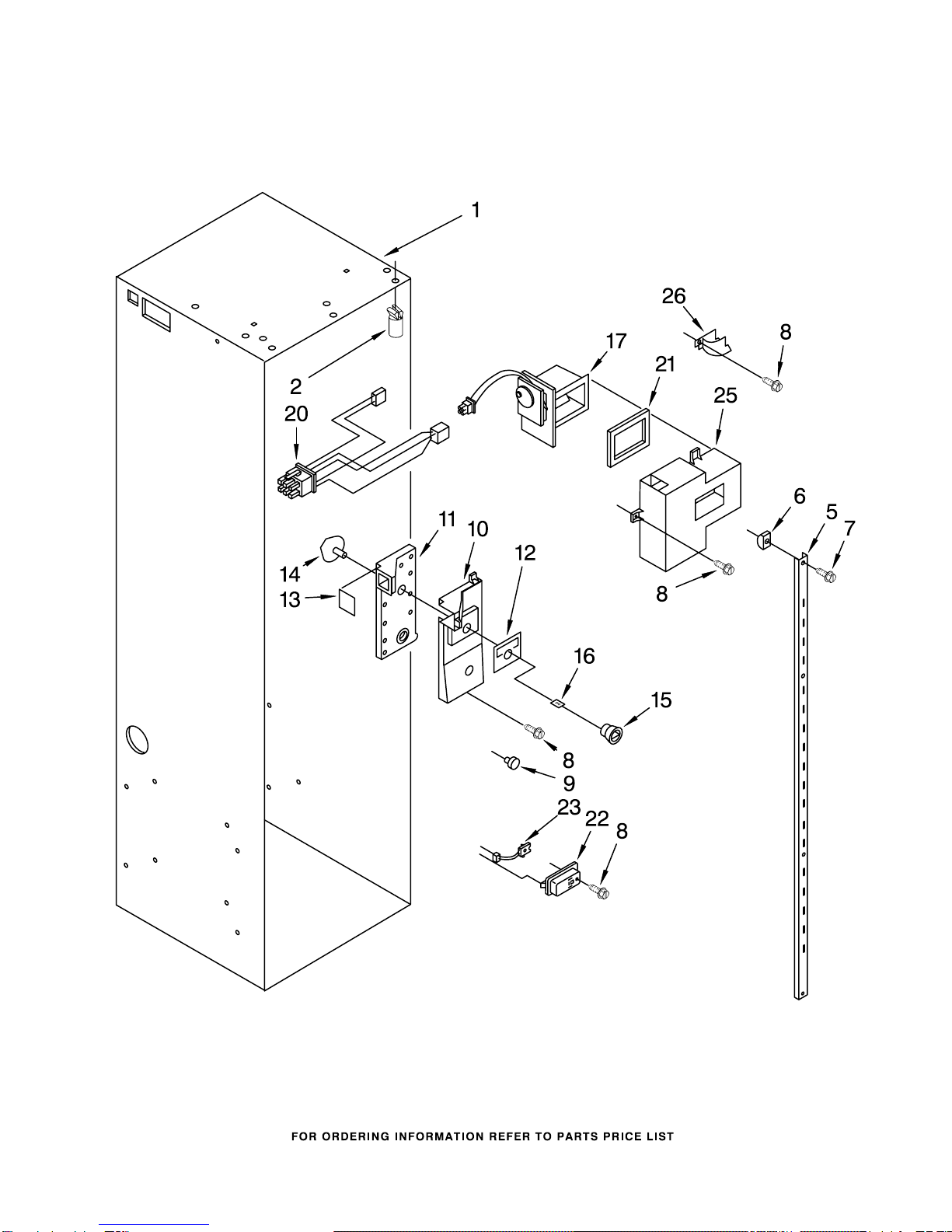

REFRIGERATOR LINER PARTS

For Model: KSSS36MBX01

4379491

REFRIGERATOR LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSS36MBX01

1 LINER (Not A

Serviceable Part)

2 1112591 Spacer, Control

Panel (3)

5 2001117 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 488357 Screw

8 486194 Screw

9 1112257 Hole Plug

10 2000740 Meat Pan, Air

Duct Cover

(Also Order 12)

11 2000337 Meat Pan, Air Duct

12 2001302 Inlay, Control

Meat Pan

13 2001326 Seal, Air Duct

14 1112218 Damper Control,

Meat Pan

15 2001735 Control Knob,

Meat Pan

16 837444 Retainer, Knob

17 2000343 Air Baffle

Assembly

20 2001073 Wiring Harness,

Air Baffle

21 2001146 Seal

22 1116793 Cover, Thermistor

23 1116959 Thermistor

25 2000736 Air Baffle Cover

26 2000527 Guard, Air Return

4379491

FREEZER LINER PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KSSS36MBX01

1 Liner (Not A

Serviceable Part)

2 1113649 Bracket, Light

3 1113650 Lens

4 1112613 Light, Socket

5 547225 Light, Bulb

6 538533 Support Clip,

Icemaker (2)

7 2000193 Grommet, Screw (2)

8 488552 Screw

12 486194 Screw

13 1112591 Spacer, Control

Panel (3)

14 842534 Clip, Air Duct (4)

16 1112260 Support,

Evaporator

17 658944 Stud, Shelf (8)

18 487559 Screw

4379491

Illus. Part

No. No. DESCRIPTION

FREEZER CONTROL PANEL PARTS

For Model: KSSS36MBX01

1 1113625 Control Panel

2 1113963 Inlay, Control

Panel

3 1113466 Thermostat &

Barrier Assembly

4 488974 Screw (2)

5 1108112 Switch, Rocker Arm

6 1113132 Seal, Control

Panel

8 489260 Screw (3)

9 2000153 Hole Plug (3)

10 1113767 Shield, Control

Panel

11 1112613 Socket, Light

12 486194 Screw

13 547225 Light Bulb

14 1112707 Channel, Wiring

16 1112592 Knob, Thermostat

17 1115375 Clip, Wiring

4379491

REFRIGERATOR SHELF PARTS

For Model: KSSS36MBX01

4379491

REFRIGERATOR SHELF PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

FREEZER SHELF PARTS

For Model: KSSS36MBX01

1 1113542 Frame, Shelf

2 1112297 Glass, Shelf

3 1113546 Reflector, Shelf

4 1113790 Gasket, Glass (2)

5 1125913 Rack, Wine

6 2164372 Egg Bin

7 1113550 Frame, Assembly

Meat Pan

8 2164373 Egg Carrier

9 1113893 Cover, Crisper

10 2002146 Glass, Crisper

11 2000742 Meat Pan,

Connector

12 2164374 Cover

14 2000887 Crisper Pan

15 1113870 Roller

(Includes Relay)

16 1113871 Eyelet, Roller

17 489211 Screw

18 488307 Washer

19 2000891 Utility Pan

20 2000815 Meat Pan

23 2002181 Retainer, Glass

25 1112165 Crisper Spacer,

Right Side (2)

27 1113169 Stop, Roller

28 2002180 Crisper Spacer,

Left Side (2)

29 486194 Screw

1 1113628 Solid Shelf

3 1113564 Shelf, Fixed (2)

1113636 Shelf, Fixed−Deep

4 2001551 Basket

5 1122529 Pan, Ice Cube

6 1122530 Trim, Ice Pan

7 1113633 Shelf, Fixed

Ice Pan

13 1113642 Trim, Basket

15 1113870 Roller

16 1113871 Eyelet, Roller

17 489211 Screw

18 488307 Washer

22 Basket Slide

2000061 Right Side

2000062 Left Side

Right Side (2)

24 1113169 Stop, Roller

25 486194 Screw

4379491
