KitchenAid KBRS20EVMS00 Manual de usuario

CABINET PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

10−08 Litho In U.S.A (mat) (eeb) Part No. W10234662 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Use & Care Guide

W10209771

Energy Guide

67006616 Tech Sheet

2 Cabinet (Not a

Serviceable Part)

3 Plug, Button (3)

67001130 White

67001131 Black

4 67003729 Tube, Plastic

5 Roller Foot

Assembly

W10237085

W10237087

6 12627302 Clip, Grille

7 67006642 Pin, Center Hinge

9 67006521 Screw

W10137519

Elbow, Fill Tube

11 67006380 Screw

12 67006473 Screw

13 A3076901 Plug, Button

14 67006303 Screw

15 Hinge, Center

67006960 White

67007043 Black

12607103AP

Apollo Grey

W10141622

Foot Brake (2)

17 Cover, Corner

67003484 White

67003485 Black

12587703AP

Apollo Grey

12566606ED

Hinge, Top Left

19 67003331 Cover, Waterline

20 67006564 Screw (8)

21 Cover, Hinge

67001014 White

67001012 Black

12477601AP

Apollo Grey

22 Grille Assembly

(Includes Clips)

W10131133

White

W10131134

Black

24 67006287 Screw

25 67006425 Screw

26 67004092 Block, Filter

27 12751509 Cover, Water Valve

12575101WD

Cover, Unit

29 67003796 Insulation, Sound

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

32 67006737 Screw

33 B5759649 Gasket

REFRIGERATOR LINER PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

REFRIGERATOR LINER PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

W10209973

Overlay

W10185585

Module, Control

W10207861

Board, Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

(Includes Harness)

16 12002355 Thermistor

18 67001668 Plate

W10153959

Tank, Water

12706909SP

Dispenser

21 67006400 Screw

22 B8390302 Clip

23 67006524 Head, Water

Filter Assembly

24 12568001 Cover, Filter

UKF8001AXX

Filter, Water

26 12664501 Plug, Filter

Bypass

12707303SP

Plate, Switch

28 67006415 Screw

29 67005674 Cover

30 12575501 Switch, Limit

31 61006182 Union

32 67002816 Clip, Water Tube

33 67003728 Guide, Water

Line

Following Parts Not Illustrated

67005644 Harness, Controls

(Refrigerator)

FREEZER LINER PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

FREEZER LINER PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (2)

(Includes RT & LT)

4 67003905 Cover, Light

5 67004017 Shaft

Y12570701

Socket, Light

8 67006737 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (7)

13 Bracket, Door

W10119064

Left

W10119295

Right

14 67003906 Housing, Lighting

15 10623002 Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 Cradle, Basket

12846703 Left

12846704 Right

W10180420

Slide, Drawer

20 67002492 Gasket, Bottom

21 Adapter, Slide

12846607 Left

12846608 Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

W10150583

Grommet

W10199049

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

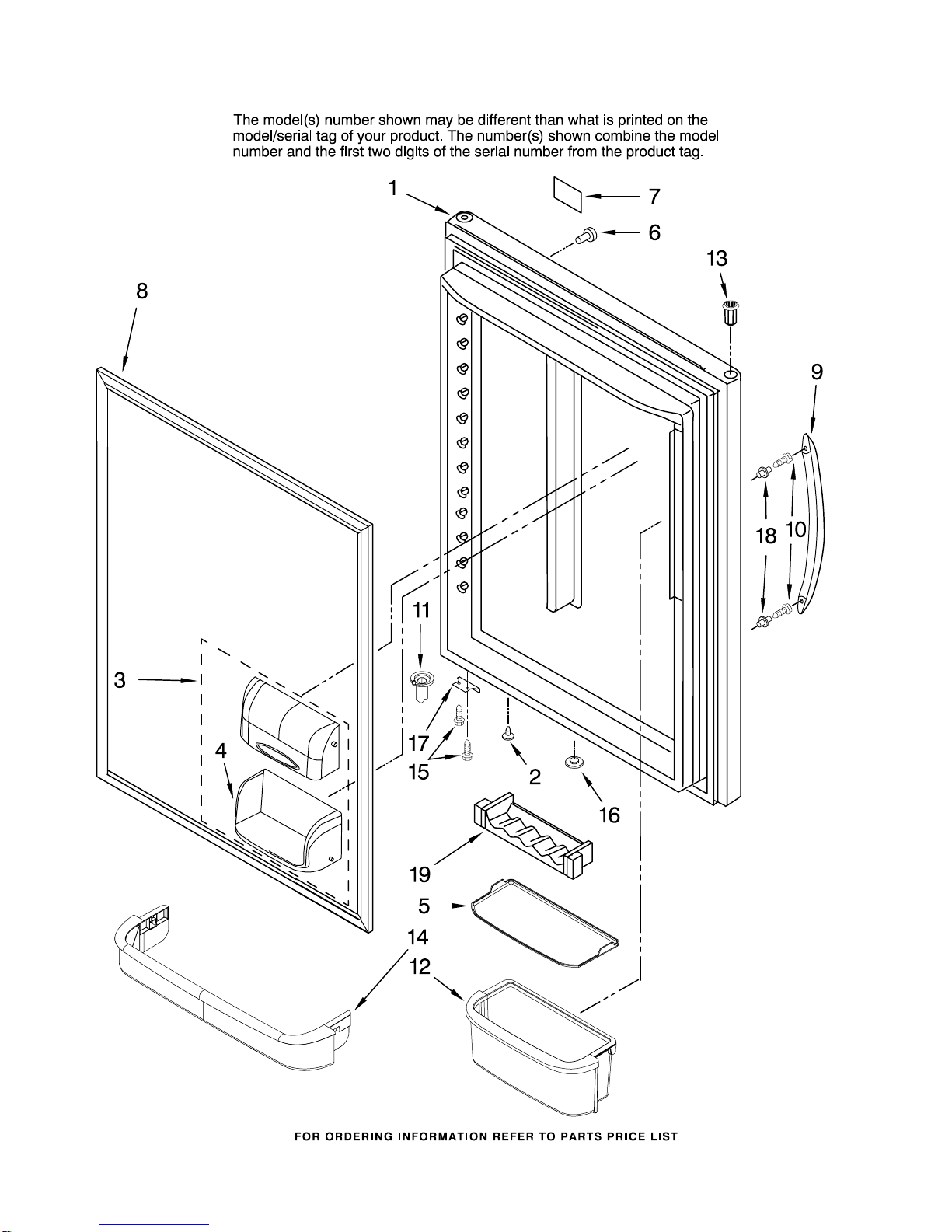

REFRIGERATOR DOOR PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

REFRIGERATOR DOOR PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

12658582WQ

White

12658582BQ

Black

13023868SQ

Stainless

2 Plug, Vent

67001130 White

67001131 Black

3 67003819 Door, Dairy

(Includes #4)

4 67001279 Tray, Dairy

12567322SP

Gripper, Bucket

6 Plug, Handle Hole

67001130 White

67001131 Black

7 Nameplate

W10146670

White

W10146640

Black

W10146610

Grey

8 Gasket, Door

W10164038

White

W10164039

Black

W10179478

Apollo Grey

9 Handle, Door

W10119642

White

W10119643

Black

W10119644

Stainless

10 67006901 Screw, Handle

11 Closure, Door

67003638 White

67003639 Black

12 67003765 Bucket, Shelf (2)

(Gallon)

13 Bushing

67004977 White

67004978 Black

14 12690503 Retainer, Door

15 67006287 Screw

16 Plug, Button

10712401 White

67004838 Black

17 Stop, Door

67003779 White

67003780 Black

10447114 Apollo Grey

18 67006113 Mount, Handle

19 67005626 Caddy, Can

UNIT PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

UNIT PARTS

For Models: KBRS20EVWH00, KBRS20EVBL00, KBRS20EVMS00

(White) (Black) (Monochromatic Stainless)

W10234662

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw

5 67004954 Screw

6 67005565 Compressor

W10171661

Harness, Evap.

Heater

8 67007175 Drain Pan

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 2264017 Capacitor

12 67005560 Start Device

13 61003210 Gasket

W10165425

Thermostat,

Defrost

W10137529

Grommet (4)

16 12575309 Shroud, Condenser

17 67007052 Clip, Capacitor

18 67006131 Condenser

19 67004700 Tube, Discharge

20 67002490 Tray, Drip

21 10623002 Clip, Evaporator

22 67003720 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060202 Harness, Unit

with Power Cord

W10143759

Drier

28 10547003 Clip, Drier

29 67004953 Bracket, Condenser

30 67003493 Grommet

31 67006432 Screw (3)

32 67006573 Screw

33 67005421 Cover, HV

12782036SP

Board, HV

35 67005418 Spacer, HV

36 67004969 Box, HV

37 67006550 Screw

38 12972902 Harness, HV

39 67006615 Screw (3)

40 67006737 Screw

41 67005680 Grommet (2)

42 67005491 Block, Condenser

43 67006434 Axle, Roller

44 67005149 Roller (2)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.0 Ozs.

(R−134A)
