KitchenAid FOR THE WAY IT'S MADE KSSS48MDX03 Manual de usuario
1
CABINET PARTS
For Model: KSSS48MDX03
6−96 Litho In U.S.A. (RCG) Part No. 4394439
48" BUILT IN
REFRIGERATOR
2
CABINET PARTS
For Model: KSSS48MDX03
4394439
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Cabinet (Not A
Serviceable Part)
2 1112019 Leveler, Front (2)
4 1112023 Roller, Front &
Rear (4)
5 1112695 Leveler,
Adjustable (2)
6 2000670 Adjusting Rod (2)
7 1113250 Sleeve,
Retainer (2)
8 1112937 Bushing, Rod (2)
9 489359 Screw
10 1112939 Hole Plug, Leveler
11 1112849 Cap, Grommet
12 2002902 Stop Screw
13 1113122 Grommet, Wiring
14 2002805 Wiring Harness,
Cabinet
15 1112848 Drain Fitting
17 2001295 Shoulder Screw
18 Hinge (Top)
2001976 Left Side
2001975 Right Side
19 2000770 Shim, Hinge
Top
20 1112805 Guard, Wiring
21 487534 Screw (2)
22 2002903 Bushing
23 1112992 Door Closer
Assembly (2)
24 2000333 Bracket, Door
Closer
25 486194 Screw
26 1112973 Tap Plate,
Hinge Butt (2)
27 1113227 Fastener (3)
28 Gap, Cover
Assembly (Bottom)
2003386 Left Side
2003387 Right Side
29 Hinge (Bottom)
2001978 Left Side
2001977 Right Side
30 1112942 Shim, Hinge (1)
1112943 Shim, Hinge (2)
31 2000490 Screw
33 2001266 Tube clamp
34 2001964 Grille Base,
Front
35 489238 Screw (6)
36 2000684 Cover, Rear
37 1113123 Grommet, Wiring
38 1113079 Grommet, Flexible
39 2003472 Cup, Wiring
40 2003474 Seal
41 2001377 Screw
42 2003473 Grommet
43 2001415 Screw (4)
44 489359 Screw
3

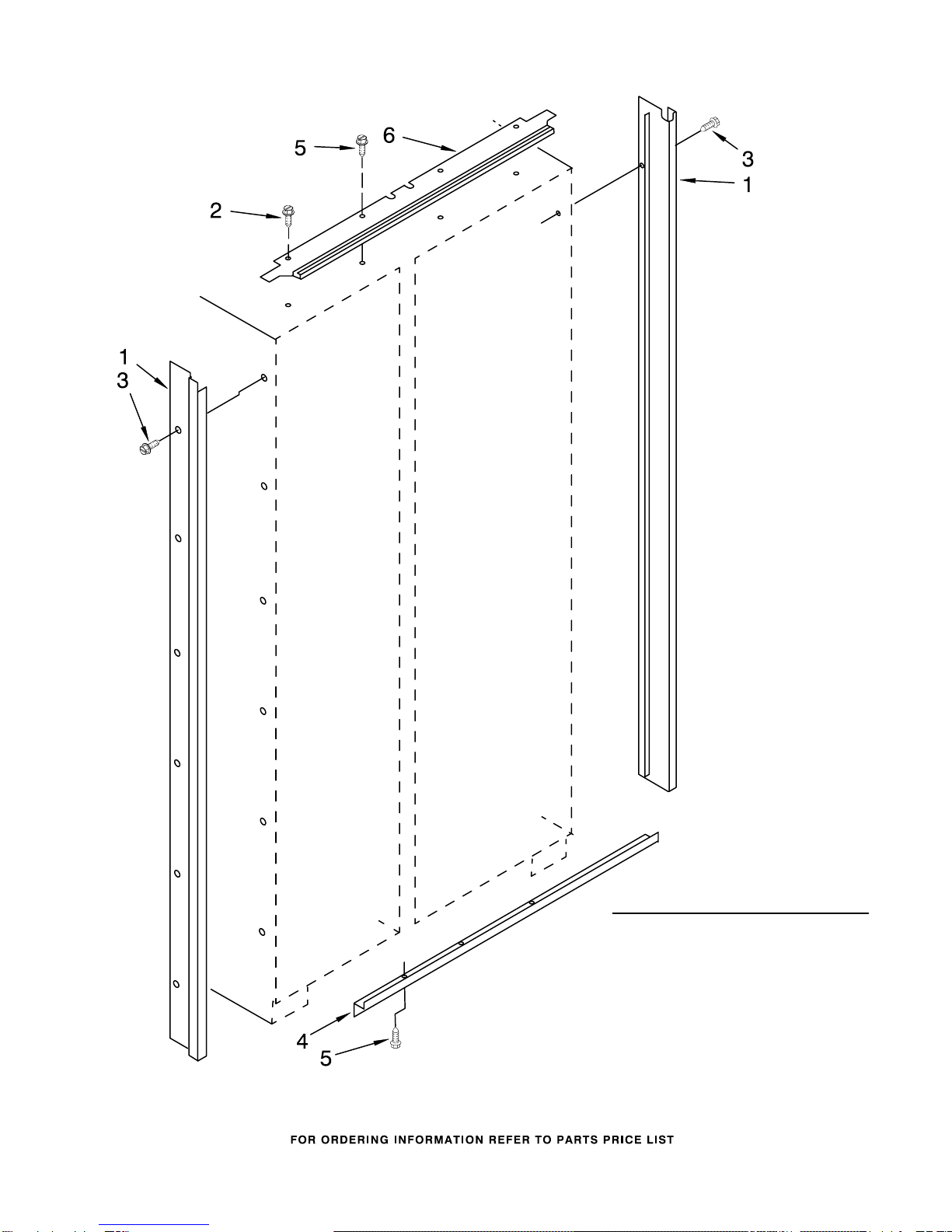

CABINET TRIM PARTS
For Model: KSSS48MDX03
4394439
Illus. Part
No. No. DESCRIPTION
1 2003643 Cabinet, Trim (2)
2 2003857 Screw
3 2001297 Screw
4 2003592 Cabinet, Trim
(Bottom)
5 488649 Screw
6 2003647 Cabinet, Trim Top
FREEZER LINER PARTS
4
For Model: KSSS48MDX03
4394439
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 1113649 Bracket, Light
3 1113650 Lens
4 1112613 Light, Socket
5 548049 Light, Bulb
6 538533 Support Clip,
Icemaker (2)
7 2000193 Grommet, Screw (2)
8 488552 Screw
12 486194 Screw
13 1112591 Spacer, Control
Panel (3)
14 842534 Clip, Air Duct (4)
16 1112260 Support,
Evaporator
17 2004068 Stud, Shelf (20)
18 487559 Screw
5
REFRIGERATOR LINER PARTS
For Model: KSSS48MDX03
4394439
6
REFRIGERATOR LINER PARTS
For Model: KSSS48MDX03
4394439
Illus. Part
No. No. DESCRIPTION
1 LINER (Not A
Serviceable Part)
2 1112591 Spacer, Control
Panel (3)
5 2001117 Ladder, Shelf (2)
6 520965 Screw Support,
Ladder (8)
7 488357 Screw
8 486194 Screw
9 1112257 Hole Plug
10 2003579 Meat Pan, Air
Duct Cover
11 2000337 Meat Pan, Air Duct
12 2003299 Inlay, Control
Meat Pan
13 2001326 Seal, Air Duct
14 1112218 Damper Control,
Meat Pan
15 2003811 Control Knob,
Meat Pan
16 837444 Retainer, Knob
17 2000343 Air Baffle
Assembly
20 2001073 Wiring Harness,
Air Baffle
21 2001146 Seal
22 1116793 Cover, Thermistor
23 1116959 Thermistor
25 2003578 Air Baffle Cover
26 2000527 Guard, Air Return
REFRIGERATOR CONTROL PANEL PARTS
7
For Model: KSSS48MDX03
4394439
Illus. Part
No. No. DESCRIPTION
1 1112642 Control Panel
2 2003303 Inlay, Control
Panel
3 2000789 Circuit Board
4 2182110 Control Knob
5 837444 Retainer, Knob
6 1118894 Switch, Rocker Arm
7 1113137 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 1113775 Shield, Control
Panel
11 1112613 Socket, Light (2)
12 548049 Light Bulb (2)
13 486194 Screw
14 2001074 Control, Harness
15 2001141 Channel, Wiring
16 1115375 Clip, Wiring (2)
8
FREEZER CONTROL PANEL PARTS
For Model: KSSS48MDX03
4394439
Illus. Part
No. No. DESCRIPTION
1 1113627 Control Panel
2 2003309 Inlay, Control
Panel
3 1113466 Thermostat &
Barrier Assembly
4 488974 Screw (2)
5 1115373 Switch, Rocker Arm
6 1113136 Seal, Control
Panel
8 489260 Screw (3)
9 2000153 Hole Plug (3)
10 1113769 Shield, Control
Panel
11 1112613 Socket, Light
12 486194 Screw
13 548049 Light Bulb
14 2001974 Channel, Wiring
16 2182112 Knob, Thermostat
17 1115375 Clip, Wiring
REFRIGERATOR SHELF PARTS
9
For Model: KSSS48MDX03
4394439
REFRIGERATOR SHELF PARTS
10
For Model: KSSS48MDX03
4394439
Illus. Part
No. No. DESCRIPTION
1 2174404 Frame, Shelf
2 2003377 Glass, Shelf
3 1112006 Reflector, Shelf
4 1113792 Gasket, Glass (2)
5 2179375 Rack, Wine
6 2169933 Egg Bin
7 2003327 Frame, Assembly
Meat Pan
8 2164373 Egg Carrier
9 1112247 Cover, Crisper
10 2003380 Glass, Crisper
(Includes #9)
11 2000742 Meat Pan,
Connector
12 2169935 Cover
14 2003317 Crisper Pan (2)
15 2174388 Roller
16 2174478 Eyelet, Roller
17 489211 Screw
20 2003322 Meat Pan
23 2002181 Retainer, Glass
25 2003411 Crisper Spacer,
Right Side (2)
27 1113169 Stop, Roller
28 2003410 Crisper Spacer,
Left Side (2)
29 486194 Screw
