CABINET PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

1−09 Litho In U.S.A. (mat)(bay)(bay) Part No. W10234661 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Use & Care Guide

W10209771

Energy Guide

67006616 Tech Sheet

2 Cabinet (Not A

Serviceable Part)

3 67001131 Plug, Button

4 B5705307 Tube, Plastic

5 Roller Foot

Assembly

W10237085

W10237087

6 12627302 Grille, Clip

7 67006642 Pin, Center Hinge

9 67006521 Screw

W10137519

Elbow, Fill Tube

11 67006380 Screw

12 67006473 Screw

13 A3076901 Plug, Button

14 67006303 Screw

15 Hinge, Center

12607104ED

Black

W10141622

Foot Brake (2)

17 Cover, Corner

W10191102

Apollo Grey

12566606ED

Hinge, Top

19 67003331 Cover, Water Line

20 67006564 Screw (8)

12477601AP

Cover, Hinge

22 Grille Assembly

(Includes Clips)

W10131134

Black

24 67006287 Screw

25 67006425 Screw

26 67004092 Block, Filter

27 12751509 Cover, Water Valve

12575101WD

Cover, Unit

29 67003796 Insulation, Sound

W10164397

Tube, Drain

W10157973

Clip, Drain Tube

32 67006737 Screw

33 B5759649 Gasket

REFRIGERATOR LINER PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

REFRIGERATOR LINER PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

W10209973

Overlay

W10185585

Module, Control

W10207861

Board, Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw (2)

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

(Includes Harness)

16 12002355 Thermistor

17 61006182 Union, Tube

18 67001668 Plate

W10153959

Tank, Water

12706909SP

Dispenser

21 67006400 Screw

22 B8390302 Clip

23 67006524 Head, Water

Filter Assembly

24 12568001 Cover, Filter

25 13040210 Filter, Water

26 12664501 Plug, Filter

Bypass

12707303SP

Plate, Switch

28 67006415 Screw

29 67005674 Cover

30 12575501 Switch, Limit

32 67002816 Clip, Water Tube

33 67003728 Guide, Water

Line

Following Parts Not Illustrated

67005644 Harness, Controls

(Refrigerator)

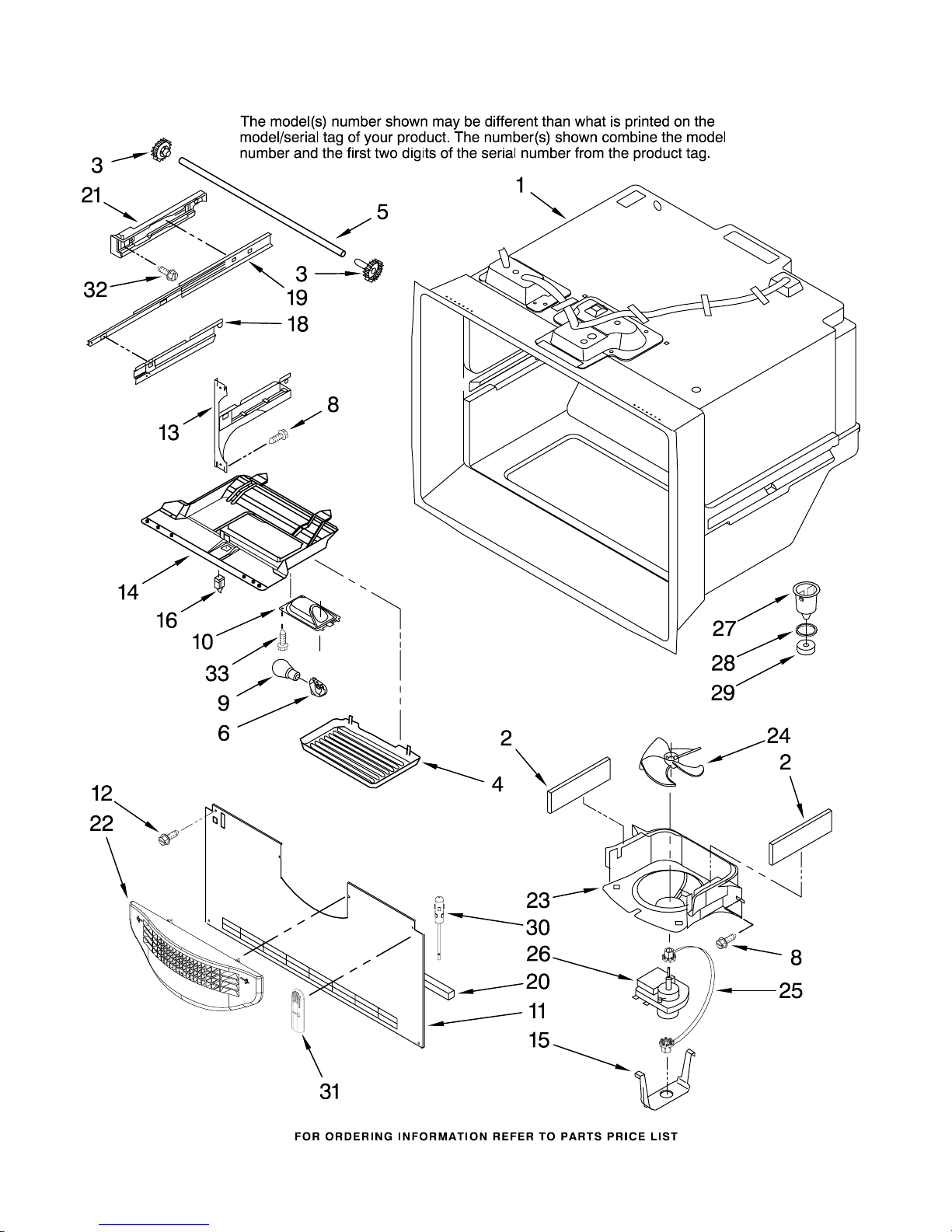

FREEZER LINER PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

FREEZER LINER PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (2)

(Includes RT & LT)

4 67003905 Cover, Light

5 67004017 Shaft

Y12570701

Socket, Light

8 67006737 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw (7)

13 Bracket, Door

W10119064

Left

W10119295

Right

14 67003906 Housing, Lighting

15 10623002 Clip, Evap. Motor

16 67005653 Switch, Light

18 Cradle, Basket

12846703 Left

12846704 Right

W10180420

Slide, Drawer

20 67002492 Gasket, Bottom

21 Adapter, Slide

12846607 Left

12846608 Right

W10175909

Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

W10150583

Grommet

W10199049

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw (6)

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

REFRIGERATOR DOOR PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

REFRIGERATOR DOOR PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

13023867SQ

Stainless

2 Plug, Vent

67004838 Black

3 67003819 Door, Dairy

(Includes #4)

4 67001279 Tray, Dairy

12567322SP

Gripper, Bucket

W10046610

Nameplate

8 Gasket, Door

W10179478

Apollo Grey

9 Handle, Door

W10119644

Stainless

10 67006113 Mount, Handle

11 Closure, Door

W10191100

Apollo Grey

12 67005464 Bucket, Large (2)

13 Bushing, Door

10961006AP

Apollo Grey

14 12690503 Retainer, Door

15 67006287 Screw

17 Stop, Door

10447114 Apollo Grey

18 67006113 Mount, Handle

19 67005626 Caddy, Can

FREEZER DOOR PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

FREEZER DOOR PARTS

For Models: KBLS20EVMS00

(Monochromatic Stainless)

W10234661

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

W10180959

Stainless

2 Handle, Door

W10119644

Stainless

3 67006113 Mount, Handle

4 Gasket, Door

W10164042

Apollo Grey

5 67006901 Screw

6 Plug, Vent (2)

67004838 Black
