CABINET PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

42" BOTTOM MOUNT

BUILT IN REFRIGERATOR

10−07 Litho In U.S.A. (dmm) Part No. W10134897 Rev. B

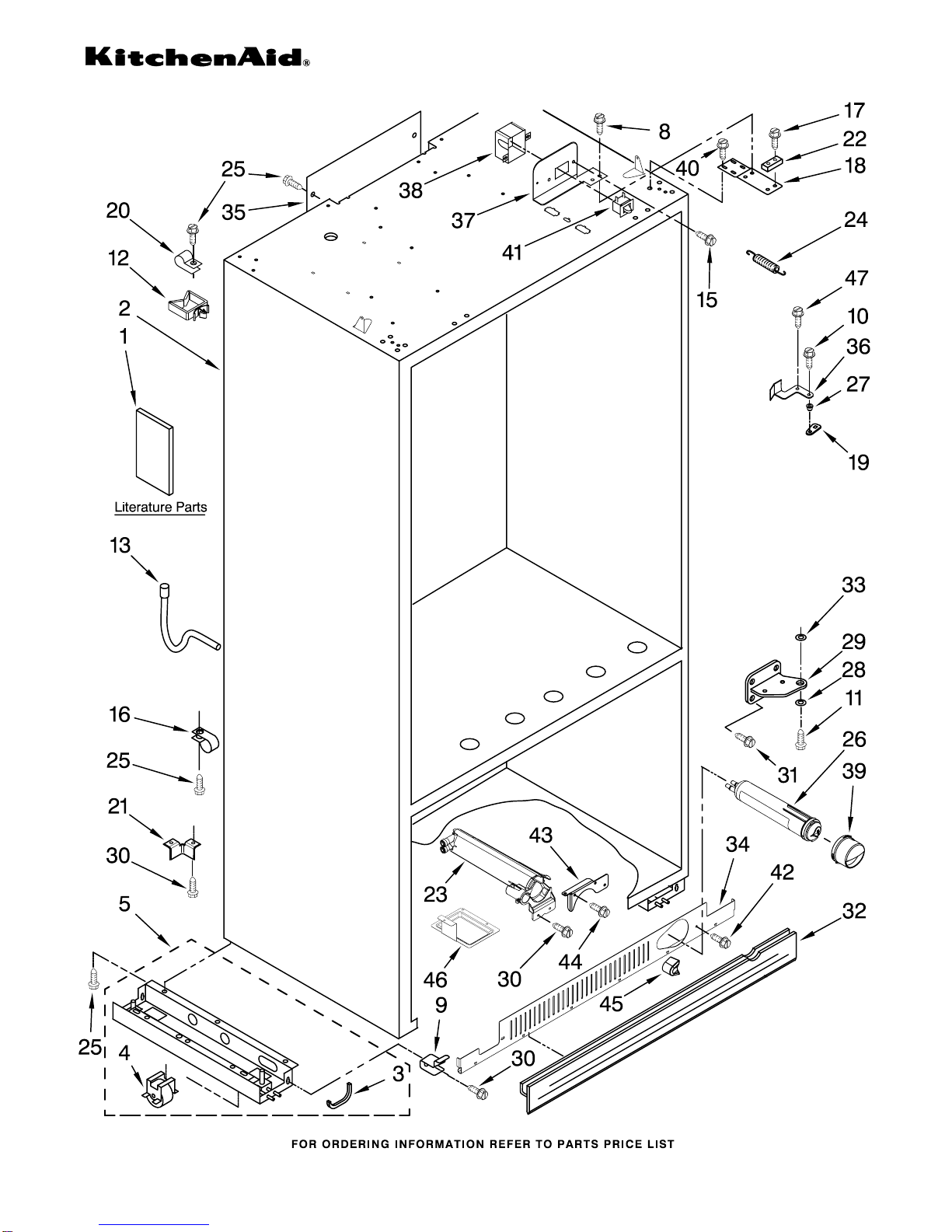

CABINET PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2320682 Use & Care Guide

2320685 Energy Guide

2316852 Service & Wiring

Sheet

2317849 Main Control

Service Sheet

2317840 Modular Icemaker

Service Sheet

2320680 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2307584 Grommet, Crossover

Tube

W10138054

Roller,

Front & Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

8 8281164 Screw

9 2307640 Mounting Bracket,

Grille

W10004850

Screw

11 488234 Screw 8−32 x 1/4

W10129069

Clip (6)

13 2314064 Tube, Drain

15 487415 Screw, 8−18 x 3/8

16 2305274 Clamp, Tube

W10005070

Screw, Door Stop

18 2316759 Hinge, Door

Refrigerator Top

19 2320509 Cam−Closer,

Door

20 2221070 Clamp, Tube

21 2006617 Bracket,

Support Door

22 2316758 Stop, Door

23 2260526 Housing,

Water Filter

24 2004517 Spring,

Door Closure

25 486194 Screw

26 4396841 Filter, Water

27 2316859 Bushing−Arm,

Extension

28 2004994 Bushing, Hinge (2)

(Lock−Adjustable)

29 2302889 Hinge, Bottom

Refrigerator Door

30 489464 Screw, 8−18 x 1/2

31 489282 Screw

32 2209025B Skirt, Grille

(Bottom)

33 2314023 Bushing, Hinge (2)

34 2325188B Grille Base,

Front

35 2215612 Cover, Air Duct

36 Arm, Extension

2266882 Right

2266881 Left

37 Bracket, Switch

2221097 Right

2221096 Left

38 2215938 Cover, Switch

39 2260518B Cap, Water Filter

40 8533913 Screw

41 1118894 Switch,

Rocker Arm (2)

W10005050

Screw, 8−18 x 1/2

43 2318190 Bracket, Mounting

(Filter)

44 8281163 Screw 8−16 x 1/2

45 2260503B Button, Filter

46 2318189 Tray, Drip Filter

47 8533980 Screw

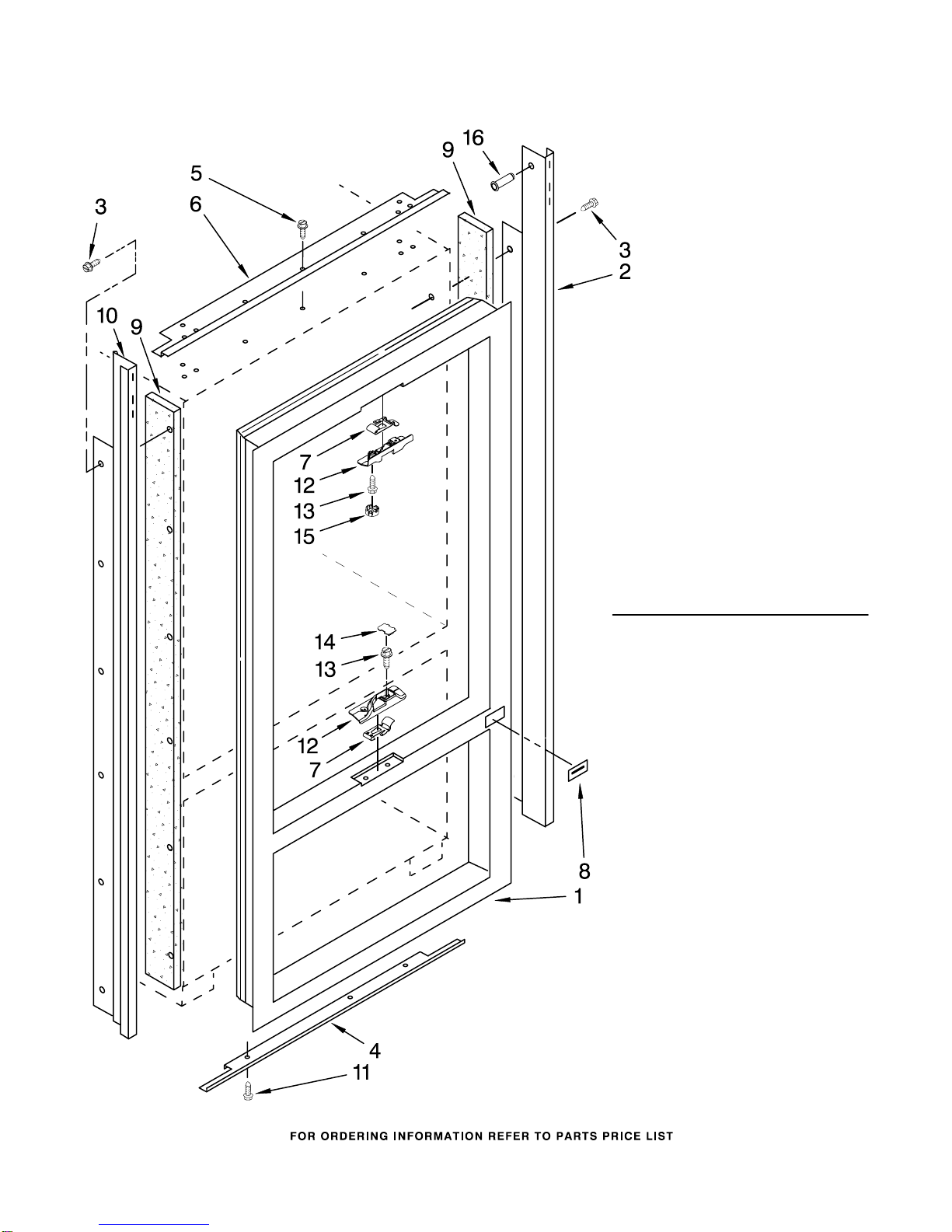

CABINET AND BREAKER TRIM PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

Illus. Part

No. No. DESCRIPTION

1 Breaker, Trim

(Not Serviced)

W10133679

Cabinet Trim,

Right Side

3 1163283 Screw

4 2316687 Cabinet Trim,

Bottom

5 486194 Screw

6 2313961S Cabinet Trim, Top

7 Cam, Mullion

2316857 Top

2316858 Bottom

8 2005782 Cover, Hinge

9 2005925 Seal−Trim,Side

W10133683

Cabinet Trim,

Left Side

11 489464 Screw, 8−18 x 1/2

12 Contact, Mullion

2309230 Top

2309231 Bottom

13 486194 Screw

14 2316899 Cover, Screw (2)

(Square)

15 2317078 Cover, Screw (2)

(Round)

W10121451

Nutsert (4)

TOP GRILLE AND UNIT COVER PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

Illus. Part

No. No. DESCRIPTION

1 2317080S Top Grille

Assembly

2 2320502 Cover, Unit

3 2317881 Grille, Condenser

4 2256466 Back Panel

5 2307682 Front,

Unit Cover

6 487415 Screw

7 2187946 Wire Assembly,

Light Switch

9 489348 Clamp

10 2003347 Tee Bolt (4)

11 1161548 Nut (4)

REFRIGERATOR LINER PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

REFRIGERATOR LINER PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

Illus. Part

No. No. DESCRIPTION

1 Liner,

Refrigerator

(Not Servicable)

2 2317004 Cover,

Air Return (2)

3 2320663 Control Box,

Complete

4 2317000 Clip, Control Box

5 2324969 Bracket,

Control Box

6 2309248 Shield, Light

7 487539 Screw, 8−15 x 1/2

8 488163 Screw

9 2223857 Socket, Light (3)

10 2309101 Bulb, Light (3)

11 2317917 Clip,

Diffuser Cover

12 2320523 Diffuser Assembly

13 2320519 Cover, Diffuser

14 2320519 Thermistor

16 2317105 Cover, Thermistor

17 2268249 Diffuser, Crisper

(Complete)(2)

18 2196483 Stud, Shelf

19 Spacer, Crisper

2268331 Left

2268332 Right

20 Spacer, Deli

2306475 Left

2306474 Right

21 Slide, Crisper Pan

2302952 Left (2)

2302953 Right (2)

22 Center Support

2320551 Left Half

2320550 Right Half

23 Slide, Deli Pan

2302956 Left (2)

2302957 Right (2)

24 2314054 Support,

Deli Cover (2)

25 2309083 Cover, Center

(Crisper Pans)

26 2318008 Cover, Center

(Deli Pans)

W10001160

Screw, 8−32 x 1/2

28 2171931 Valve, Tube−Body

29 2310164 Wire, Jumper

FREEZER LINER PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

FREEZER LINER PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

Illus. Part

No. No. DESCRIPTION

1 Liner, Freezer

(Not Servicable)

2 2306425 Mounting Bracket,

Drawer Slide (2)

W10071460

Screw

4 2320616 Drawer Slide,

Freezer Basket (2)

W10061370

Screw

6 2314022 Cover,

Light Switch

7 1118894 Switch, Rocker

8 486194 Screw

9 2223857 Socket, Light

10 2309101 Bulb, Light

11 2268299 Switch Assembly,

Icemaker (Includes

Emitter)

12 2306187 Cover, Wiring

(Icemaker)

13 2317005 Duct, Air Flow

(Icemaker)

14 2306100 Cover, Evaporator

15 2317829 Cover,

Evaporator Fan

16 487539 Screw

17 2306106 Spacer, Drawer

(Right Side)

18 Slide, Freezer Bin

2306117 Left (2)

2306116 Right (2)

19 488163 Screw

20 2317925 Divider,

Freezer Bins

(Includes

Receiver)

21 2306104 Support, Slide

(Right)

22 2317927 Shield

23 2306105 Support, Slide

(Left)

24 Bracket,

Evaporator Cover

2320512 Left Side

2317893 Right Side

25 488163 Screw

W10121940

Bracket,

Air Return

28 2317105 Cover, Thermistor

29 2188820 Thermistor

W10075920

Washer

31 2320526 Washer (EPDM)

32 8533928 Screw

W10135430

Air Deflector Asy

34 2198643 Lens, Receiver

SHELF PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

SHELF PARTS

For Model: KBFO42FTX00

(Etched Aluminum)

W10134897

Illus. Part

No. No. DESCRIPTION

1 Crisper Pan

Assembly

(Includes # 2)

2268173 Left

2268171 Right

2 2256247 Front, Crisper Pan

3 Deli Pan Assembly

(Incl. #4, 5 & 6)

2317940 Left

2317941 Right

4 2256365 Front, Deli Pan

5 2307810 Duct, Deli Pan

6 2317939 Air Deflector

7 2179404 Rack, Wine

9 2306174 Ice Pan Assembly

(Includes # 10)

10 2306175 Front, Ice Pan

11 2327511 Freezer Pan

Assembly

(Includes # 12)

12 2256367 Front, Freezer Pan

13 2327314 Ladder, Shelf (4)

14 520965 Support, Ladder

15 2268246 Shelf (4)

16 Cover, Deli Bin

2320665 Left

2320667 Right

17 2309400 Gasket, Rear

18 2309045 Cover, Crisper

19 2309396 Gasket, Front

(Crisper Cover)

20 2309395 Gasket, Front (2)

(Deli Cover)

21 8281251 Screw

22 2006475 Screw

23 488886 Screw, 8−18 x 1/2

25 Locking Clip, Bin

2327393 Right

2327394 Left
