KitchenAid KSSC48FMS02 Manual de usuario

CABINET PARTS

For Model: KSSC48FMS02

(Stainless Steel)

11−05 Litho In U.S.A. (mek) Part No. 8214654

48" BUILT IN

REFRIGERATOR

CABINET PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2317086 Use & Care Guide

2307364 Energy Label

2306324 Service & Wiring

Sheet

2306337 Icemaker and

Ingredient Care

Center

Service Sheet

2302865 Main Control

Service Sheet

2309069 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2004514 Clamp, Tube

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 Cap, Water Filter

2186494B Black

9 2006442 Mounting Stud,

Grill

10 2005004 Grommet, Crossover

Tube

11 2005783 Cam, Door Closer

12 2209022 Housing, Water

Filter

14 3400525 Screw

15 2255709 Filter, Water

16 489399 Screw

17 3400230 Screw, Door Stop

18 2257644 Hinge (Top)

20 489464 Screw

21 2004994 Lock, Adjustable

Bushing

22 2300082 Bushing

23 2209090 Clamp, Filter

Housing

24 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

25 486194 Screw

26 2005008 Retaining Ring,

Adjustable Bushing

27 1113227 Fastener (3)

28 2006342 Gap, Cover

Assembly (Bottom)

29 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

30 2302876 Bushing,

Adjustable

31 8533913 Screw 1/4−20 x 5/8

32 2209026B Skirt−Grille,

Bottom

33 Extension Arm,

Door Closer

2266882 Right

2266881 Left

34 2209431B Grille Bottom,

Front

35 2005921 Screw

36 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

37 1157158 Screw

38 2006617 Bracket, Support

Base (Rear) (2)

39 2006346 Washer

40 2266880 Bushing,

Extension Arm

41 1163283 Screw

44 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

45 2215938 Cover, Switch (2)

46 487415 Screw (2)

47 Bracket, Switch

2221097 Right

2221096 Left

48 2215612 Cover, Rear

CABINET TRIM PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

Illus. Part

No. No. DESCRIPTION

1 2222552S Cabinet, Trim

(Right Side)

3 1163283 Screw

4 2254726 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2313993 Cabinet, Trim Top

7 2222553S Cabinet Trim

(Left Side)

9 2005925 Seal−Trim, Side

10 489464 Screw

FREEZER SHELF PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

Illus. Part

No. No. DESCRIPTION

1 2302869 Wire, Shelf

2 2302872 Cover, Shelf

3 2302884 Shelf, Fixed

4 2259083 Basket

5 2256271 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

8 2266935 Door, Ice

9 2266932 Bucket, Ice

10 2266955 Spacer, Ice Door

11 8533929 Screw

REFRIGERATOR LINER PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

REFRIGERATOR LINER PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

3 2208970 Air Duct

4 2209204 Clip, Thermistor

5 2259077 Ladder, Shelf (2)

6 520965 Screw Support,

Ladder (8)

7 2006475 Screw

8 487539 Screw

9 2302937 Thermistor

10 2302986 Lid, Meat Pan

Baffle

11 2302987 Baffle, Control

Assembly

12 2171846 Release Valve

13 2187619 Jumper, Air Baffle

14 488357 Screw

15 486194 Screw

16 2306010 Thermistor

17 2221296 Air Baffle

Assembly

21 2309222 Diffuser Assembly

22 1116793 Cover, Thermistor

23 2188820 Thermistor

24 2302992 Spacer, Air−

Baffle

25 2309087 Cover, Diffuser

27 2259412 Seal, Air Duct

(Round Hole)

28 2259398 Seal, Air Duct

(Square Hole)

CONTROL PANEL PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

Illus. Part

No. No. DESCRIPTION

1 2302773 Control Box

2 2303938 Insert, Control

Box

3 2302913 Circuit Board,

Housing Control

4 2187424 Control Box

Wire Harness

6 2221121 Support, Control

Box

7 489006 Screw (2)

8 2306086 Display Board,

Ingredient Care

Center

11 2162085 Socket, Light

12 2255743 Light Bulb (2)

13 486194 Screw

14 8281185 Screw

15 2257520 Overlay

16 2302716 Shield, Light

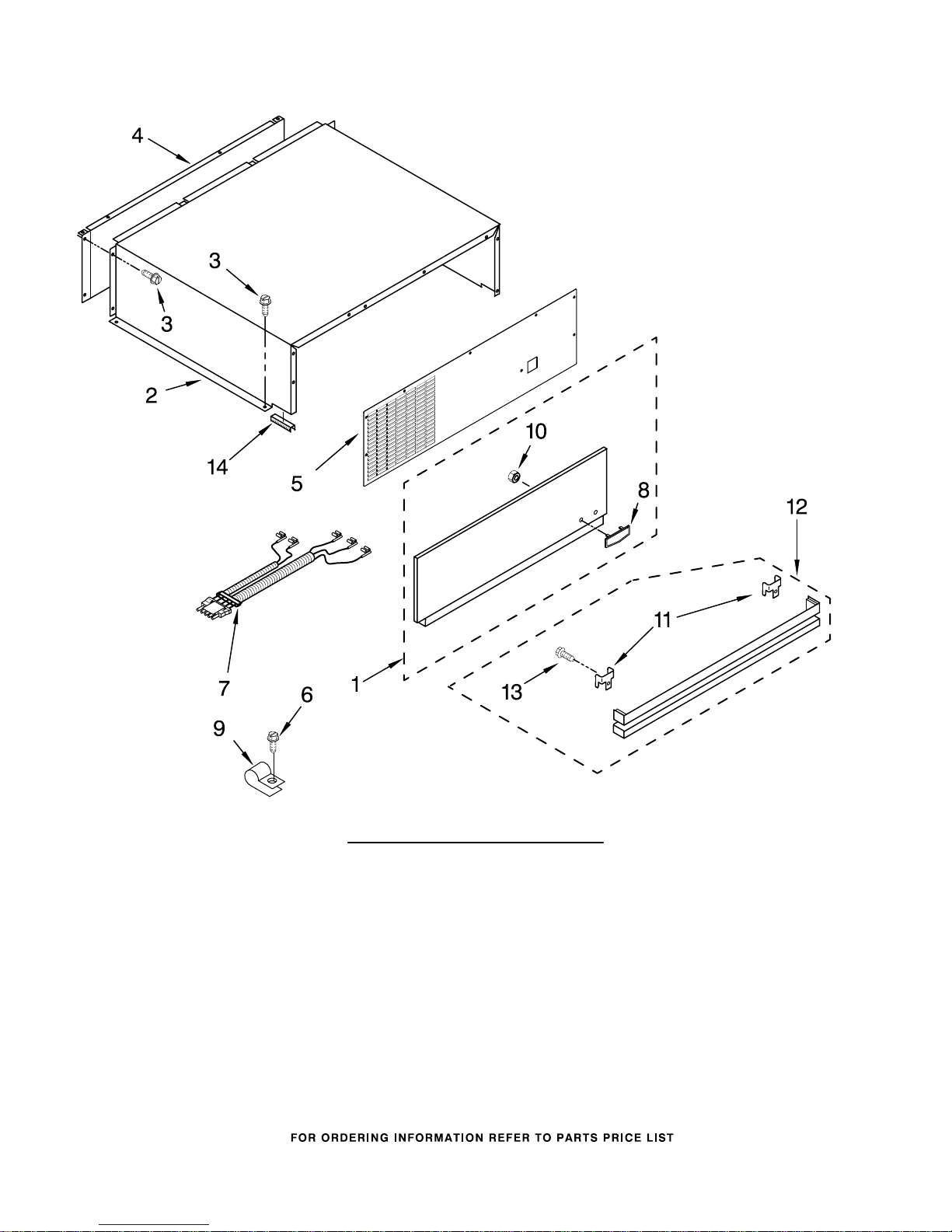

TOP GRILLE AND UNIT COVER PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

Illus. Part

No. No. DESCRIPTION

1 2257412S Panel, Decorative

Assembly

2 2259320 Cover, Unit

3 486194 Screw

4 2256466 Back Panel

5 2302974 Cover, Unit Front

6 487415 Screw

7 2187429 Wire Assembly

RC/FC Light Switch

8 2005292 Badge, Kitchen Aid

9 489348 Clamp

10 2004333 Nut

11 2254759 Bracket, Louver

12 2254762S Grille, Louver

13 488879 Screw

14 2215910 Grommet, Flexible

REFRIGERATOR SHELF PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

REFRIGERATOR SHELF PARTS

For Model: KSSC48FMS02

(Stainless Steel)

8214654

Illus. Part

No. No. DESCRIPTION

1 2222593 Shelf Assembly

5 2179404 Rack, Wine

6 2221071 Egg Bin

9 2302843 Meat Pan Cover

Assembly

10 2302836 Crisper Cover

Assembly

11 2257611 Trim, Glass Rear

Side

12 2169935 Cover, Egg Bin

13 2257583 Trim, Glass Rear

14 2252413 Crisper Pan (2)

17 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

18 Trim, Glass Front

(Not Serviceable)

19 2256255 Trim, Glass Rear

21 2256249 Front, Crisper

Pan

23 2252255 Trim, Glass Side

Crisper Pan

24 2256250 Trim, Glass Side

Meat Pan

25 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

27 Slide, Crisper

2302957 Right Side (2)

2302956 Left Side (2)

28 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

29 Screw

8533929 Right Side

8533928 Left Side

30 2256370 Pan Assembly

Meat

31 2256367 Front, Meat Pan
