KitchenAid KDRS807SSS01 Manual de usuario

COOKTOP PARTS

For Models: KDRS807SSS01

(Stainless)

1−08 Litho in U.S.A. (amd) Part No. W10122850 Rev. A

30" Slide−In

Dual Fuel

CONVECTION

COOKTOP PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10118264

Installation

Instructions

W10118263

Use & Care Guide

W10112147

Tech Sheet

9757680 Anti−Tip

Instructions

Safe Cooking Tips

3191638 English

9759133 French

9763467 Guide Easy Set

W10110471

Burner Box

3 9761784 Bracket, Mounting

W10106380

Cooktop

5 3196537 Screw

6 9757807 Thermostat

7 3400843 Screw

W10108030

Bracket, Spark

Module

9 9763445 Bracket, Burner

10 8301084 Shield, Heat

11 8522426 Module, Spark

9761555CB

Grate, Burner (RH)

9761556CB

Grate, Burner (LH)

14 3368921 Screw

W10109770

Backsplash

16 9759944 Thermostat

9763483BL

Gasket, Backsplash

9761557CB

Grate, Insert

19 Cap, Burner

9761563CB

12.5K (RR)

8284669 6K (RF, LR)

9761749BL

Glass, Backsplash

21 3196160 Screw

22 9762768 Clip, Retainer(3)

23 9761755 Cover, Cooktop

Rear

24 9763436 Cover, Top Rear

25 Head, Burner

8286182 Large (RR)

8286181 Small (LR,RF)

W10109920

Gasket

27 9761577 Panel, Backsplash

28 Trim, Cooktop

W10110684

Right

W10110679

Left

OVEN PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

OVEN PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

W10109560

Right

W10109510

Left

2 3400832 Screw

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 3196537 Screw

6 3196160 Screw

7 8303099 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10067870

Lens, Light (2)

W10009930

Oven Light,

Assembly (2)

12 4452166 Bulb, Light (2)

13 4449154 Screw

W10130368

Frame, Front

W10074200

Gasket, Door

16 4448444 Grommet, Mounting

Rail

17 4452152 Bracket, Mounting

18 9757685 Guide, Side Panel

19 4451478 Support, Insulation

20 Body, Side

9760723PB

Black

21 9757461 Bracket,Side Panel

22 9760888 Latch, Motorized

23 9759242 Thermostat

24 9757811 Brace, Side Panel

25 4455641 Side, Chassis

26 9759761 Back, Chassis

27 Liner, Oven

(Not Serviceable)

28 9759890 Clip, Side Panel

29 4455636 Sensor

30 9759884 Insulation

31 3196176 Screw

32 9757829 Bracket,

Transformer

33 9759713 Base, Chassis

34 4448933 Retainer, Gasket

35 9758583 Cover, Back

9756481SS

Vent, Bottom Upper

W10104870

Vent, Bottom Lower

38 4449743 Screw

39 9759722 Insulation, Side

Trim

40 4448717 Rack, Oven

41 9760212 Control,

Transformer

42 4449868 Block, Terminal

43 3400080 Screw

44 9757404 Box, Terminal

45 9757405 Cover, Terminal

Box

46 9759721 Insulator,

Terminal Box

47 9761958 Block, Terminal

48 9756454 Bracket, Appliance

Manager

W10083460

Slide, GOC

50 9761801 Appliance Manager

51 9759320 Blower

52 9756821 Support, Wiring

53 3196537 Screw

54 9759945 Stand Off−Rear

55 3400805 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

DOOR PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

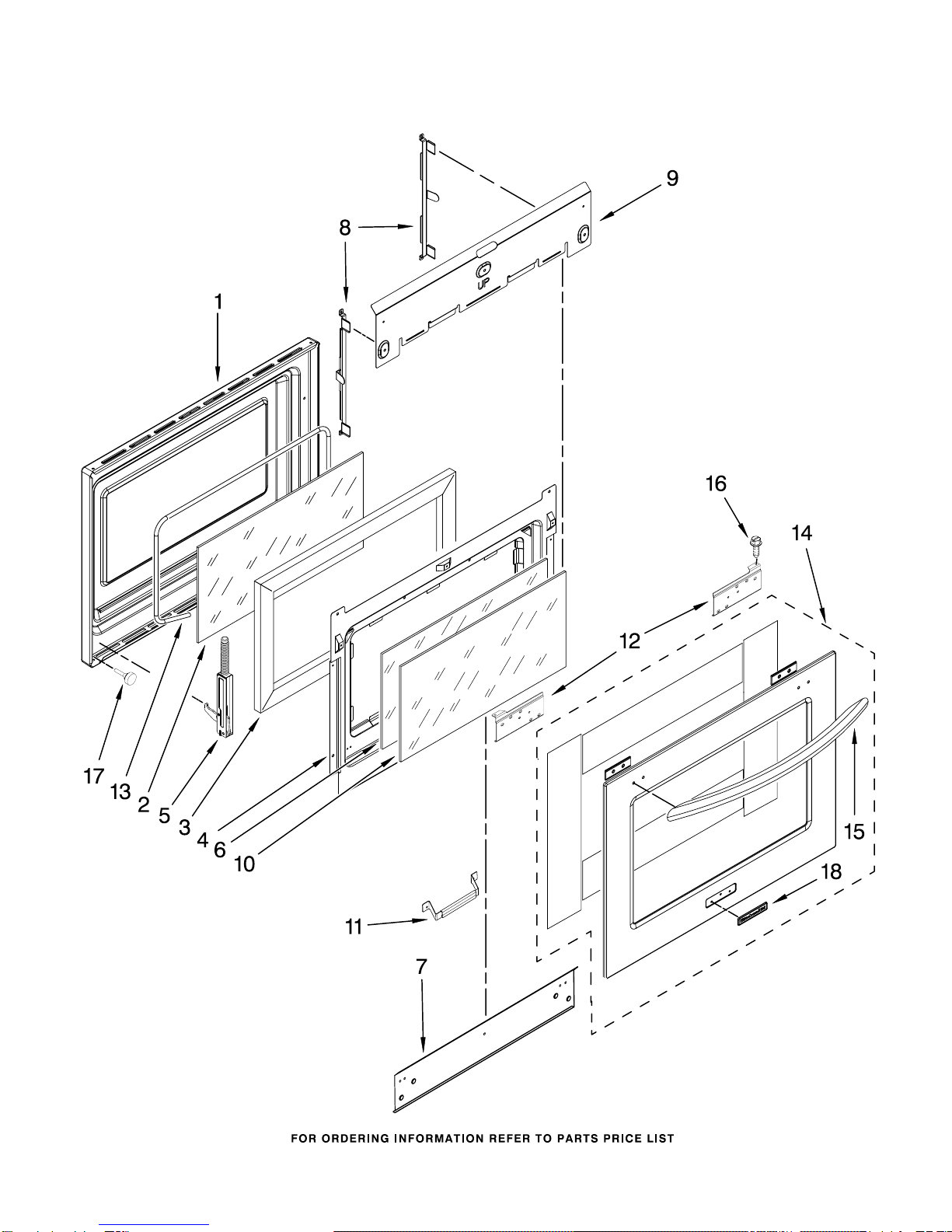

DOOR PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

Illus. Part

No. No. DESCRIPTION

1 9759413 Panel, Door

2 9757706 Glass, Inner

3 4451722 Insulation, Door

4 4457132 Retainer, Glass

5 Hinge, Oven Door

9760579 Right

9760580 Left

6 9759225 Glass, Inner

7 4457114 Shield, Heat

Bottom

8 9759229 Bracket, Glass

Side

9 4457103 Shield, Heat Top

10 9759225 Glass, Inner Door

11 9759230 Bracket, Central

12 Bracket, Handle

9763497 Right

9763496 Left

13 8522415 Seal, Window

W10131121

Assembly, Door

Kit

8303774SS

Handle, Door

16 3196184 Screw

17 4448520 Bumper, Door (3)

8304603SS

Badge

DRAWER PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Support, Drawer

Rail

9757687 Right

9757686 Left

9763501BL

Support, Front

& Rear

3 Brace, Drawer

4453720 Right

4453721 Left

5 Side, Base

9759953 Right

9759954 Left

W10058460

Foot

8 3196037 Foot Assembly

10 9757805 Drawer

11 Guide, Roller

Includes Roller

W10019810

Right

W10019800

Left

12 9763456 Panel, Drawer

9761747SS

Front, Drawer

9761573SS

Handle, Drawer

15 3196537 Screw

16 8274149 Thermistor

17 9760775 Element, Warming

18 4449809 Screw

19 9758676 Support, Element

20 9763491 Bracket, Regulator

W10108850

Regulator

W10045140

Cover, Terminal

23 9761796 Enclosure, Warming

Drawer

W10118828

Cover, Access

25 3400805 Screw

TOP VENTING PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent Top

4 4451758 Block, Foam

5 4455177 Elbow, Vent Bottom

6 9759938 Bracket, Terminal

Box

7 4449809 Screw

10 4449040 Screw

11 4455352 Bracket, Blower

INTERNAL OVEN PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 4448717 Rack, Oven

3 9760768 Element, Bake

4 4455037 Tray, Bake Hidden

5 9756690 Cover, Fan

6 4449154 Screw

8 4449809 Screw

9 9760769 Element,

Convection

10 4452226 Blade, Fan

11 4452227 Nut

12 4451583 Motor, Convection

13 9755543 Jack, Meat Probe

14 9755542 Probe, Meat

15 9755547 Lock Washer

16 9755546 Hex Nut

17 4450039 Cover, Bake Tray

COOKTOP BURNER PARTS

For Models: KDRS807SSS01

(Stainless)

W10122850

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Burner Base

Includes Orifice

W10128455

W10128446

RF, LR

2 9761069 Tubing, Burner(RF)

3 9761070 Tubing, Burner(RR)

4 9761068 Tubing, Burner(LR)

5 4456816 Valve, Burner

Small (2)

6 4456817 Valve, Burner

Large

7 9756824 Spark Switch &

Harness Assembly

8 9761752 Tube, Manifold

9 Manifold

9761641 TCB

9761642 Cooktop

11 3196537 Screw

12 8523704 Bolt, Valve (4)

W10108840

Tubing

DF to Regulator

W10110378

Igniter, Orfice

Holder

15 Orifice

9762938 RR

9762937 LR, RF

16 8273062 Screw
