KitchenAid KGSK901SBL00 Manual de usuario

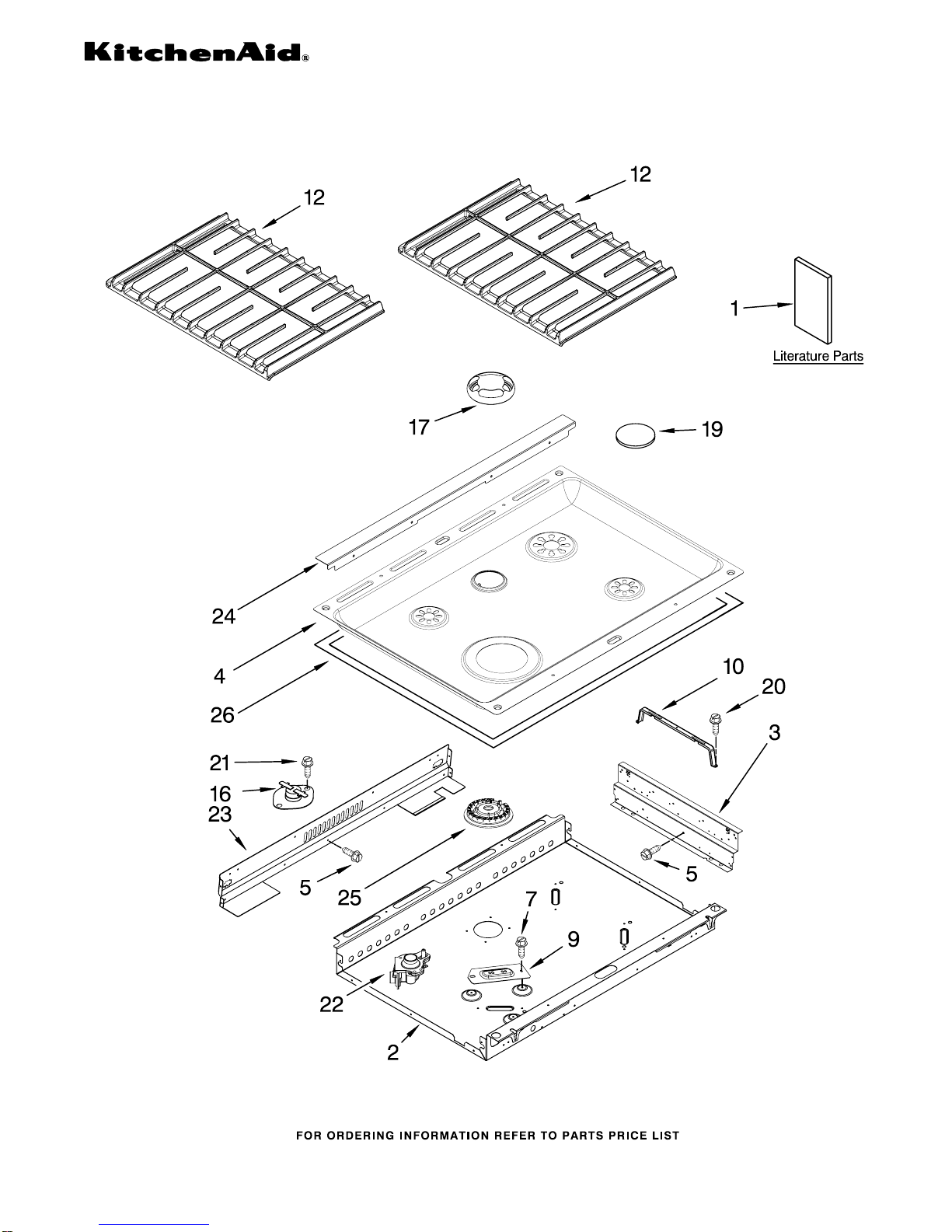

COOKTOP PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

7−06 Litho in U.S.A. (cre) Part No. 8186672

30" Slide−In

GAS OVEN

COOKTOP PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literaturre Parts

W10075750

Installation

Instructions

9763457 Use & Care Guide

9762783 Tech Sheet

9757680 Anti−Tip Instruct.

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

9763467 Guide Easy Set

W10110471

Burner Box

3 9761784 Bracket, Mounting

4 Cooktop

W10106300

White

W10106290

Black

5 3196537 Screw

7 3400843 Screw

9 9763445 Bracket, Burner

10 9756821 Support, Wiring

12 Grate, Burner

9761555SD

Satin Cumbrlnd(RH)

9761555CB

Coal Black (RH)

9761560CB

Coal Black (LH)

9761560SD

Satin Cumbrlnd(LH)

16 9759944 Thermostat (60c)

17 Vent, Center

9760225BL

Black

9760225WH

White

19 Cap, Burner

14K

9761564CB

Coal Black

9761564SD

Satin Cumberland

12K

9761563SD

Satin Cumberland

9761563CB

Coal Black

6K(2)

9761562SD

Satin Cumberland

8284669 Coal Black

20 4449809 Screw

21 3196160 Screw

22 Orifice Holder

W10110375

Small (2)

W10110376

Large

W10110377

Turbi

23 9759627 Cover, Cktp Rear

24 9763436 Cover, Top Rear

25 Head, Burner

8286182 Large

8286181 Small (2)

9762553 Turbi

W10109920

Gasket (Tape)

OVEN PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

OVEN PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

(Right Hand)

W10109570

White

W10109540

Black

W10109560

S.Steel

(Left Hand)

W10109520

White

W10109490

Black

W10109510

S.Steel

2 8053971 Brace, Main Back

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 4448520 Bumper, Door

6 3400832 Screw

7 8303099 Top Chassis

9 9761666 Tube, Vent

W10067870

Lens, Light

W10009930

Oven Light Assy

12 4452166 Bulb, Light

13 9757732 Shield, Heat

14 9760756 Frame, Front

W10074200

Gasket, Door

W10105420

Deflector, Vent

Bottom

17 4452152 Bracket, Mounting

18 9757685 Guide, Side Panel

19 9757461 Bracket,Side Panel

20 Oven, Side Panel

9760723PB

Black

9760723PW

White

21 9757811 Brace, Side Panel

22 9760888 Latch, Motorized

23 9757807 Thermostat SPST

(230)

24 9759890 Clip, Side Panel

25 4455641 Side, Chassis

(R.H. & L.H.)

26 9759762 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 9759945 Standoff, Rear

29 4455636 Sensor

30 9756454 Bracket, GOC

31 9760223 Slide, GOC

W10083460

Slide, GOC

33 9762774 Central, Appliance

34 3196537 Screw

37 9759242 Thermostat (TOD)

(Temp.) SPST 130C

41 4449743 Screw

W10110534

Base, Chassis

49 4448933 Retainer, Gasket

50 9758583 Cover, Back

51 4449809 Screw

54 Vent, Bottom Upper

9756481WH

White

9756481BL

Black

9756481SS

S.Steel

55 Trim, Btm Vent

W10104910

White

W10104890

Black

W10104870

S.Steel

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

DOOR AND DRAWER PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

DOOR AND DRAWER PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

5 Glass, Door Front

9762766BL

Black

9762766WH

White

9762766SS

S.Steel

6 9760592 Panel, Drawer

7 4449809 Screw

8 Handle, Door

8303774BL

Black

8303774WH

White

8303774SS

S.Steel

9 9759230 Bracket, Central

10 Hinge, Door

9760579 Orange RH

9760580 Orange LH

11 9761935 Foot, Rear

12 9759229 Bracket, Side

13 Nameplate

9763444BL

Black

9763444WH

White

9763444SS

S.Steel

14 3400832 Nut

15 9757706 Glass, Inner

16 4457114 Shield, Heat Btm

17 9759225 Glass, Inner (2)

18 4451722 Insulation, Door

19 9759413 Liner, Door

20 9757806 Drawer Assy

21 3196037 Foot, Front

23 4457132 Retainer, Glass

24 Front, Drawer

9761747WH

White

9761747BL

Black

9761747SS

S.Steel

25 Bracket, Handle

9763497 R.Hand

9763496 L.Hand

26 Handle, Drawer

9761573WH

White

9761573BL

Black

9761573SS

S.Steel

27 Side, Base

9759953 R.Side

9759954 L.Side

28 4449743 Screw

29 Track, Drawer

9756837 R.Side

9756839 L.Side

30 8533988 Screw

32 Slide−Drawer

9756842 L.Hand

9756841 R.Hand

33 4457103 Shield, Heat Top

TOP VENTING PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

Illus. Part

No. No. DESCRIPTION

W10105780

Front, Air Duct

2 Top, Air Duct

W10068590

R.Hand

W10068600

L.Hand

3 9759320 Blower

4 4451758 Block, Foam

7 9757829 Bracket, Transfrmr

8 9760212 Transformer

9 3196537 Screw

10 4449040 Screw

11 4449809 Screw

12 9757070 Plate, Relectance

INTERNAL OVEN PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9752980 Shield, Flame

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 9757779 Fitting, Broiler

6 4448717 Rack, Oven

7 4453625 Element, Broil

8 4453957 Pan Support, Bake

9 9760229 Electrode, Bake

10 9760228 Burner, Bake Log

11 9752737 Shield, Oven

12 4453984 Shield, Bake Flame

3196176 Screw

13 9763716 Valve, Assy

14 9756831 Tube, Broil

15 9757700 Burner, Broil

16 8054129 Ignitor, Broil

17 4454009 Cover, Ignitor

18 4453920 Pan, Oven Bottom

19 3196176 Screw

20 4449154 Screw

COOKTOP BURNER PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

2 9761069 Tubing, Burner(RF)

3 9761070 Tubing, Burner(RR)

4 9761561 Tubing,Burner (LF)

5 9761068 Tubing, Burner(LR)

6 4456818 Valve, Burner

Turbi

7 4456816 Valve, Burner

Small (2)

8 4456817 Valve, Burner

Large

9 9756822 Spark Switch &

Harness Assembly

10 9761648 Tube, Manifold

11 9761642 Manifold

12 3196537 Screw

14 8523704 Bolt, Valve (4)

18 4453754 Tubing

GDS to Manifold

CONTROL PANEL PARTS

For Models: KGSK901SBL00,KGSK901SWH00, KGSK901SSS00

(Black) (White) (S.Steel)

8186672

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Control Panel

W10110716

White

W10110714

Black

W10110713

Greenville Nickel

2 9761565 Switch, Membrane

3 9762793 Control, Interface

W10105370

Shield, Console

5 3196537 Screw

6 9757409 Support, Gas Valve

7 9761745 Brkt, Touchsensor

9 Knob

9761569BL

Black

9761569WH

White

9761569NP

Nickel Plated

10 9758080 Module, Spark

12 9780271 Screw
